Airstream DMX Bridge

This single universe DMX Bridge that works with the Airstream DMX or the Airstream DMX Pro Apps to control DMX products through WiFly wireless or via 2-Pin XLR.

From the Manufacturer:

The Airstream DMX Bridge is a single universe, (512 DMX Channels), Wifi interface that works with Airstream DMX or Airstream DMX Pro Apps to control DMX products through WiFly wireless DMX or a hardwire connection via 3-pin XLR. Download the Airstream DMX or Airstream DMX Pro Apps in the Apple App store.

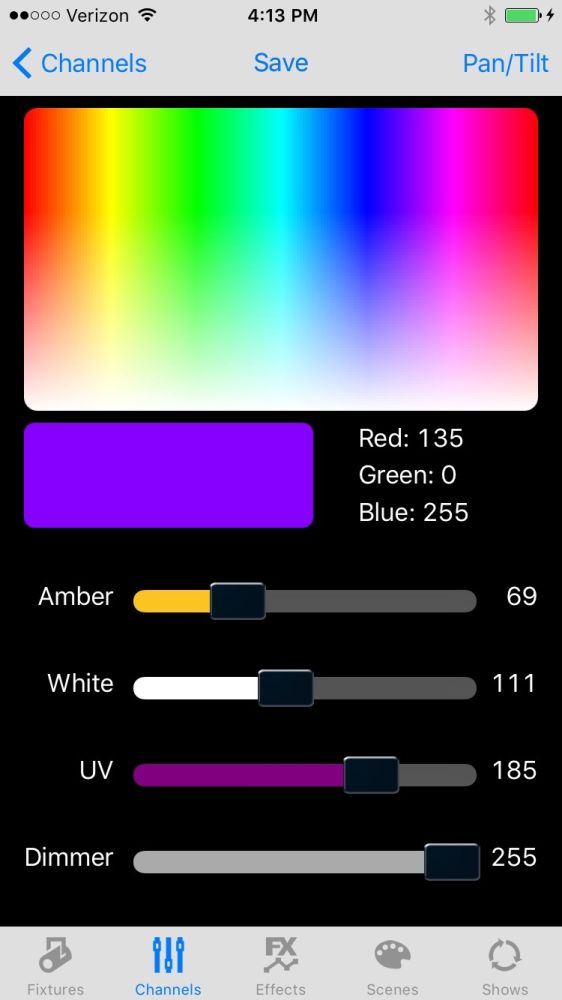

The Airstream DMX Bridge is a powerful DMX control software for iOS mobile devices, (Airstream DMX App compatible with iPad and iPhone, Airstream DMX Pro App compatible with iPad only), that may be downloaded from the App Store. The hardware creates a wireless WIFI DMX network to control DMX lighting fixtures. It is compatible with ADJ WiFly and Elation Professional E-Fly products. Users may also control non-WiFly products from the unit’s 3-pin DMX output. Airstream DMX Bridge features ADJ’s 2,500 foot “EXR” extended range wireless DMX transceiver.

Features:

• Creates a wireless DMX network to control DMX lighting fixtures using Airstream DMX or Airstream DMX Pro Apps for iOS devices
• Compatible with all ADJ WiFLY and Elation Efly products
• Control 1 DMX Universe (512 DMX Channels)
• Control non-WiFLY products throughout the 3-pin XLR Out connection
• Airstream DMX and Airstream DMX Pro Apps available in the App Store
• WiFLY wireless signal indicator on side panel
• Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects
• Quick lock bracket included

• Up to 2500 wireless feet (open line of sight) when using other “EXR Extended Range” WiFLY products

• One transmitter can send to many receivers using the same radio channel

• Receivers automatically listen for transmitters (no pairing required)

• 14 WiFLY Channels

• 3-pin DMX Out

• Wireless Frequency: 2.4 GHz DSSS

SIZE / WEIGHT:

• Dimensions (LxWxH): 5” x 7” x 2.5” / 125 x 175 x 62mm

• Weight: 1 lbs. / 0.5 kg.

ELECTRICAL:

• Power Supply: DC 9-12V
