CBT 70J-1

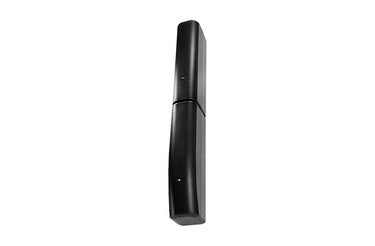

The JBL CBT 70J-1 line array column speaker has asymmetrical vertical coverage and an included mounting bracket.

From the Manufacturer:

The CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (shown with included grille removed)

Features:

• Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.
• Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers, arranged coaxially.
• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection of HF devices
• Swivel (pan) / tilt wall bracket included.

Specifications:

• Drivers: Four 130 mm (5 in) LF drivers Sixteen 25 mm (1 in) HF drivers
• Frequency Range (-10dB): 60 Hz – 20 kHz
• Coverage Angle: Vertical: Switchable, Narrow Mode: 25° (±10°), Broad Mode: 45° (±10°), Horizontal: 150° (±20°)
• Sensitivity: Narrow: (speech mode) 98 dB (1 kHz - 8 kHz) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 96 dB (1 kHz - 8 kHz) (music mode) 92 dB (300 Hz - 18 kHz)
• Impedance: 8 ohms
• Power Rating: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
• Maximum SPL (1m): Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 120 dB cont ave (126 peak) Broad: (speech mode) 123 dB cont ave (129 peak) (music mode) 119 dB cont ave (125 peak)
• Low Frequency Drivers: 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
• High Frequency Drivers: 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
• Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
• Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
• Color: Black or white (-WH)
• Insert Points: 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
• Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
• Dimensions (H x W x D): 694 x 170 x 237 mm(27.4 x 6.7 x 9.3 in)
• Net Weight: 9.5 kg (21 lb)
• Included Accessories: Swivel (pan) / tilt wall bracket
• Optional Accessories: MTC-PC2 terminal panel coverMTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
