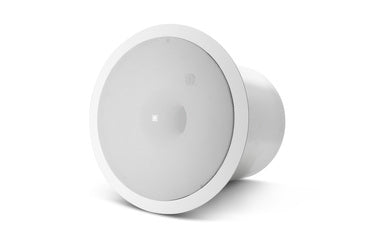

CONTROL 19CS

The JBL Control 19CS in-ceiling subwoofer with SonicGuard overload protection produces powerful bass in a low-profile design.

From the Manufacturer:

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

Features:

• Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
• JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
• Component: Long excursion 200 mm (8 in) driver.
• Packaged with grille, backcan and tile rails for fast installation and easy stocking.
• Simple installation and wire connection method.

Specifications:

• Frequency Range: 42 Hz - 200 Hz
• Power Rating:
  • IEC System Long-Term Ratings (low-Z direct):
    • 200 Watts Continuous Program Power
    • 100 Watts Continuous Pink Noise (400W peak), 100 hrs
• Sensitivity: 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
• Coverage Angle: 180° conical
• Maximum SPL (1m): 109 dB (low-impedance, 115 dB peak, center of ceiling)
• 115 dB (low-impedance, 121 dB peak near corner)
• Impedance: 8 ohms
• Input Connectors: Removable locking connector with screw-down terminals.
• Drivers: 200 mm (8.0 in) subwoofer
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 305 mm (12.0 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
• Plenum Usage: Yes, backcan included
• Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Overload Protection: Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
• Outside Dimensions (H x Dia):
• 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
• Net Weight (each): 5.5 kg (12 lb)
• Shipping Weight (pair): Control 19CS: T12.7 kg (28 lb)
