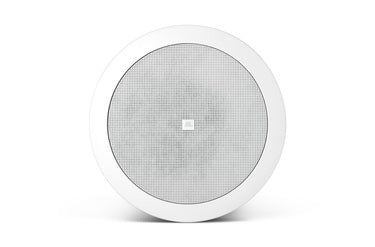

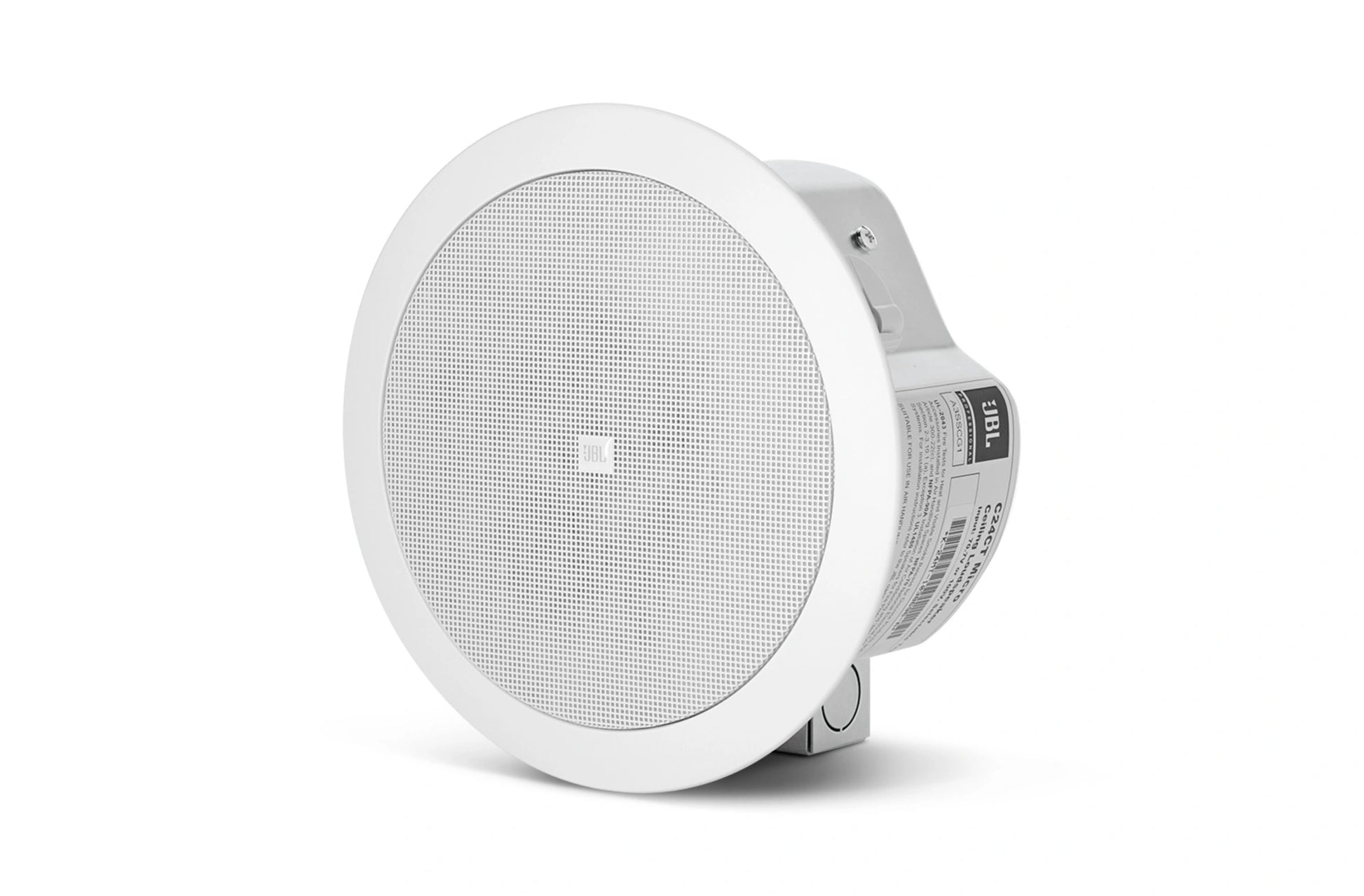

CONTROL 24C MICRO

The JBL Control 24C Micro compact in-ceiling speaker is perfect for background music and music-plus-paging systems.

From the Manufacturer:

The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features:

• Extremely wide 150°coverage.
• Smooth frequency response.
• Components:
  • 4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround.
  • .5 in (12 mm) polycarbonate tweeter for extended response.
• Control 24C Micro is 8 ohms and handles 15 W.
• Shallow 4 in (100 mm) depth.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications:

• Frequency Range: 85 Hz - 25 kHz
• Power Rating:
  • IEC System Long-Term Ratings (low-Z direct):
    • 30 Watts Continuous Program Power
    • 15 Watts Continuous Pink Noise (60W peak), 100 hrs
• Sensitivity: 86 dB (100 Hz - 10 kHz)
• Crossover Frequency: 3.5 kHz
• Maximum SPL (1m): 98 dB (104 dB peak)
• Coverage Angle: 150° conical
• Impedance: 7.1 ohms
• Input Connectors: Screw-down terminals.
• Drivers:
  • LF Driver: 115 mm (4.5 in)
  • HF Driver: 12 mm (0.5 in)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O
• Ceiling Cutout Size: 167 mm (6.6 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
• Optional Accessories: MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
• Plenum Usage: Yes, backcan included
