CONTROL 5

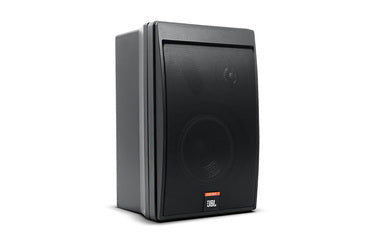

The JBL Control 5 is a compact control monitor, great for the primary sound source in any professional application.

From the Manufacturer:

The Control 5™ is a high performance, wide range control monitor suitable for use as the primary sound source in a variety of applications.

Features:

• Sensitivity: 89 dB SPL, 1 W, 1 m (3.3 ft)
• High power handling (175 W pink noise) with integral protection circuit network.
• Molded enclosure with shielded magnet structure.
• Components: •165 mm (6.5 in) low frequency loudspeaker. •25 mm (1 in) pure titanium dome tweeter.

Specifications:

• Frequency Response (±3 dB): 75 Hz to 20 kHz
• Power Capacity: 175 W
• Sensitivity: 89 dB SPL, 1 W, 1 m (3.3 ft)
• Directivity Factor (Q): 2.8
• Directivity Index (DI): 4.5
• Impedance: 4 ohms
• Crossover Frequency: 3 kHz
• Polarity: Positive Voltage to + terminal causes outward low frequency cone motion
• Enclosure: Polypropylene structural foam
• Colors: Black or white
• Dimensions (H x W x D): (H) 387 mm x (W) 251 mm x (D) 229 mm (15.25 in x 9.875 in x 9 in)
• Net Weight (each): 4.5 kg (10 lbs.)
• Shipping Weight (pair): 11 kg (24 lbs.)
• Note: Molded of dense polypropylene Accessory attachment points on rear of the enclosure are 1⁄4 x 20 threaded brass bushings
• Maximum SPL (1m): 111 dB continuous, 117 dB peak
• Drivers: LF Driver: 165 mm (6.5 in)
• HF Driver: 25 mm (1 in)

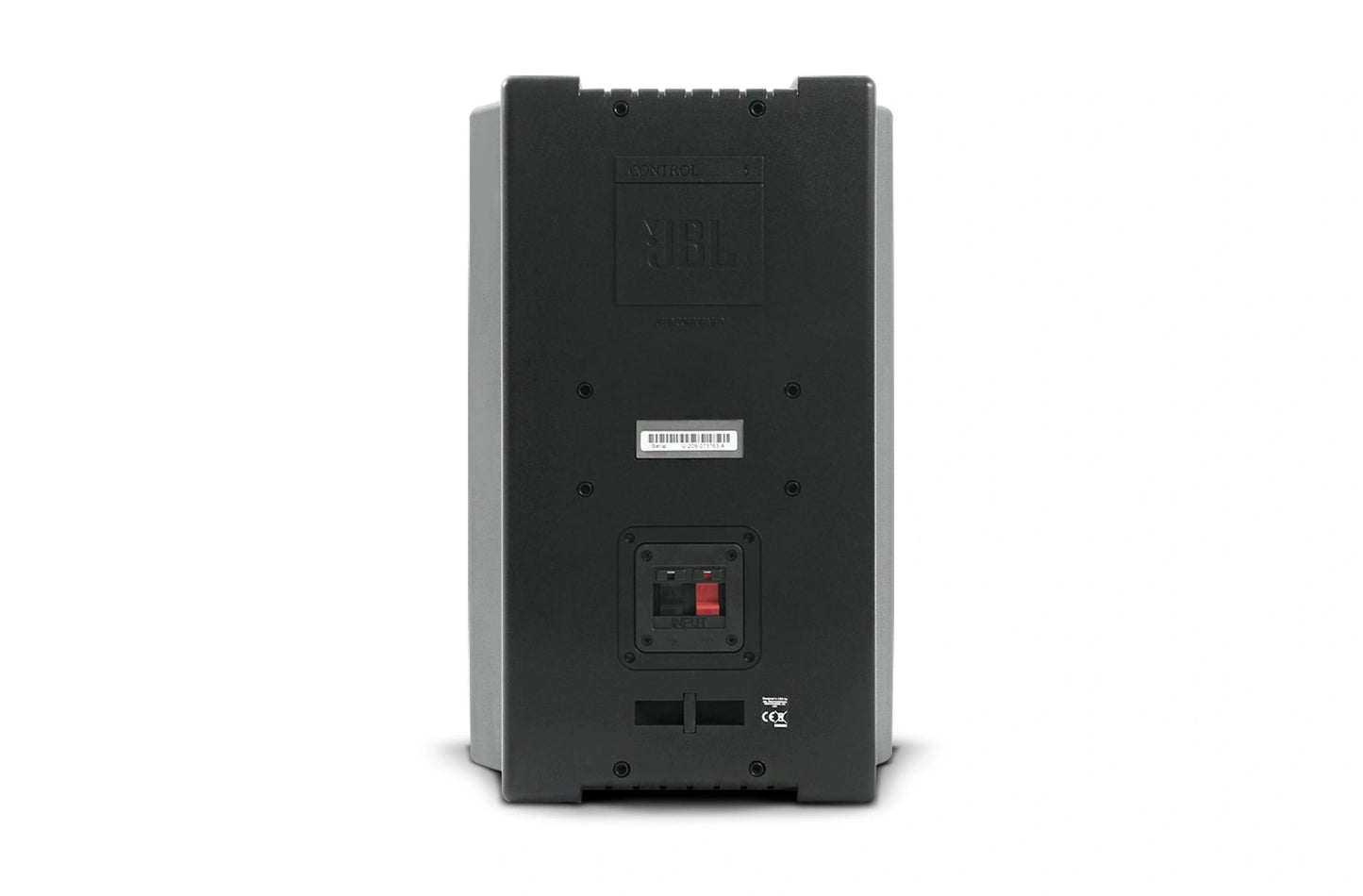

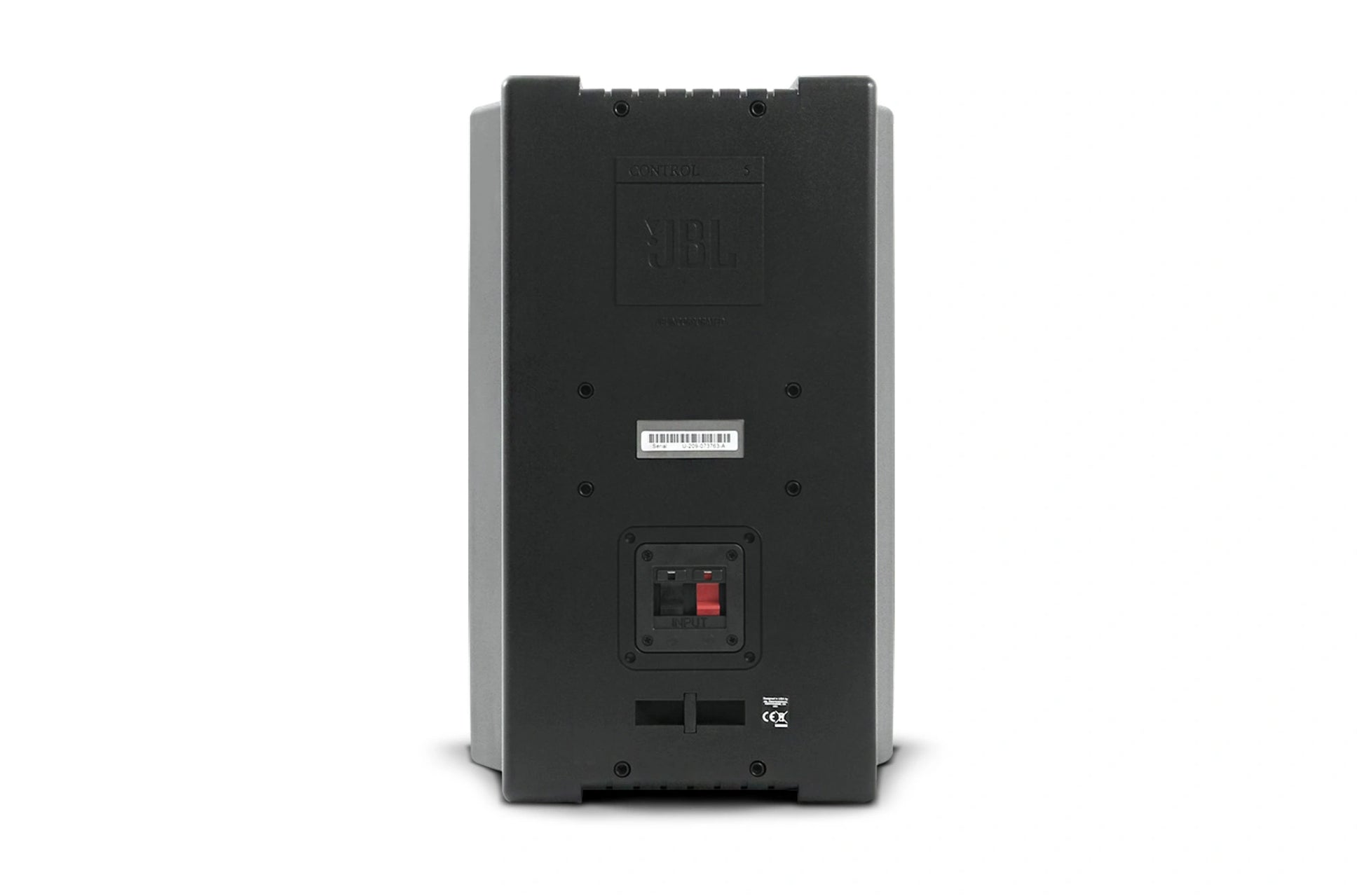

• Input Connectors: Spring-loaded terminals
• Grille: Zinc-plated steel
• Mounting Hardware: Mounting points -- no bracket included.
• LF Driver: 6.5in (165mm)
• Amplifier Power Rating: 175 W
