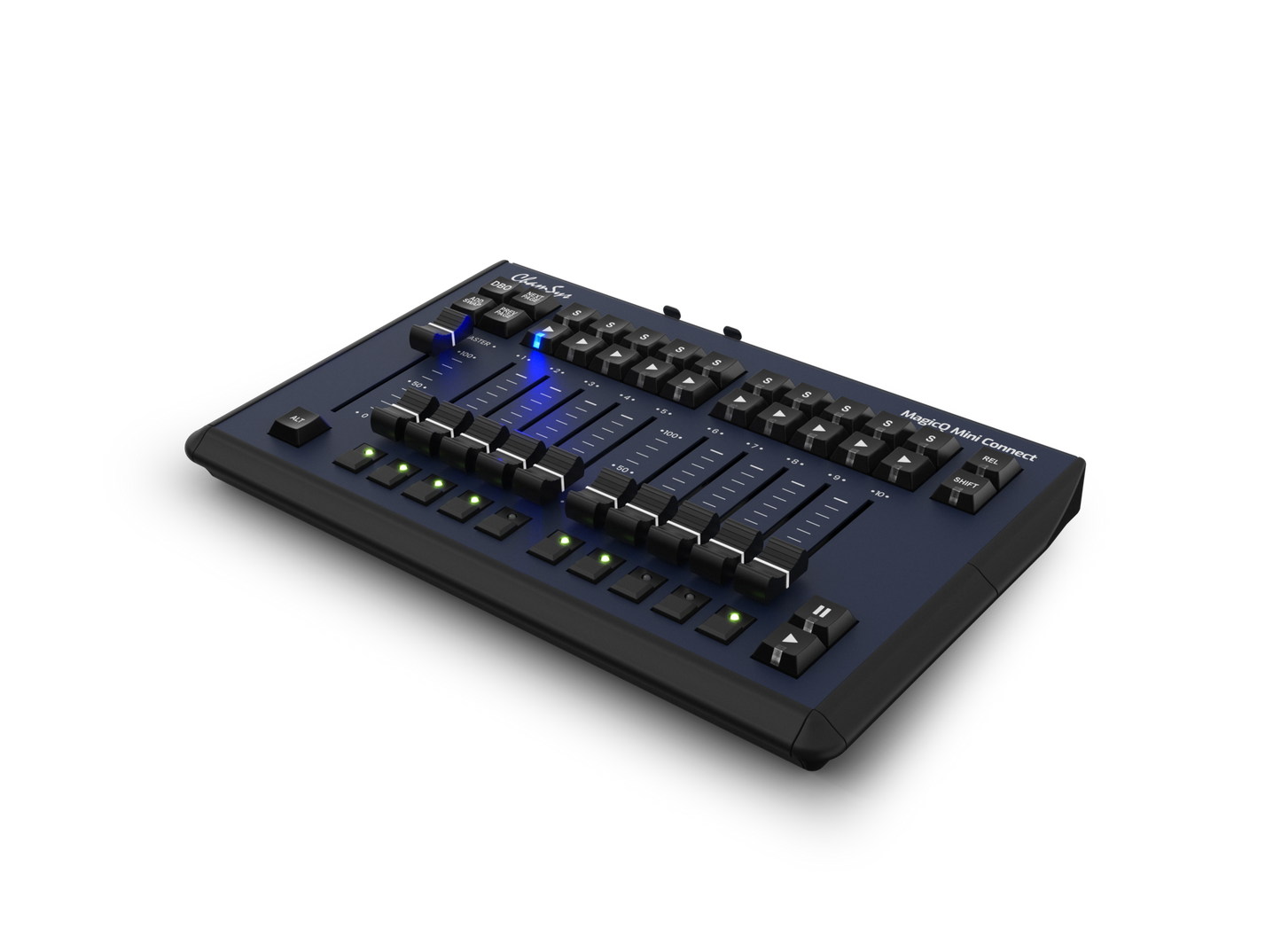

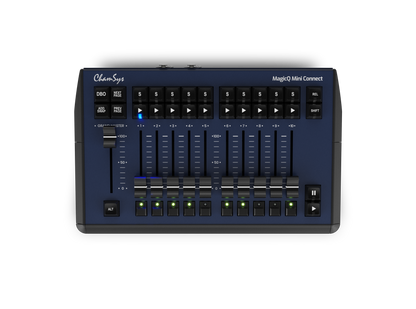

MagicQ Mini Connect

The MagicQ Mini Connect is a compact control surface that connects to your laptop via USB3. It is a simple way of adding physical playback to the MagicQ software.

From the Manufacturer:

The MagicQ Compact Mini Connect is a highly portable USB 3 powered control surface that couples physical playback with the power of MagicQ software.

Attached to a Windows, macOS or Linux system running MagicQ software, the Compact Mini Connect turns your computer into a powerful lighting, media and LED control center. Live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.

The Compact Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Compact Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.

Overview:

• 10 Playbacks

• USB Powered

• Connects to Free MagicQ Software – PC, Mac or Linux

• 1 Direct DMX Output supporting RDM

• Kensington Lock Slot

• Includes Lightweight Durable Case

• 64 Universes via Artnet/sACN

Hardware Specifications:

• Fader Playbacks: 10

• Direct DMX Outputs: 1

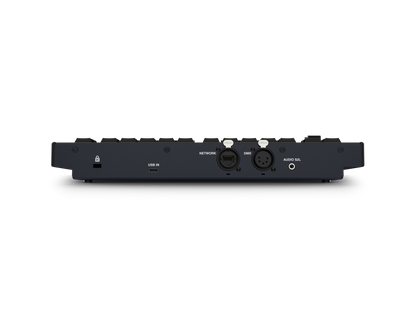

• Network Ports: 1

• Kensington Security Lock Fixing: 1

• USB Connector: Yes – USB-C

• USB 3 Powered: Yes (Must be connected to a USB 3.0 or higher port)

• Lightweight Durable Case Included

Included Accessories:

• Width: 380mm (15 inches)

• Depth: 100mm (3.94 inches)

• Height: 300mm (11.8 inches)

• Weight: 3.0kg (6.6 lb)
