THH Biamped 3-way Point Source Horn-Loaded Horizontal Speaker

The THH  Point Source Horn-Loaded Horizontal Passive Speaker. It is a great scalable option for larger installs.

From the Manufacturer:

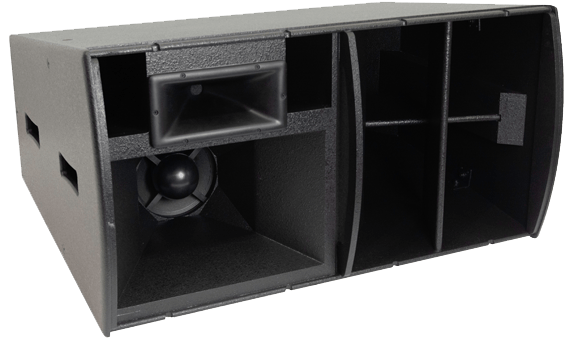

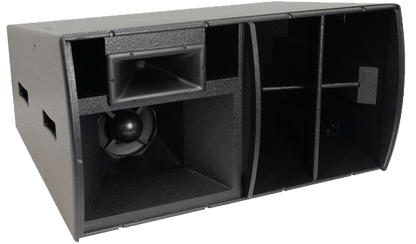

THH is a very high performance, all-horn, three-way system in a single, horizontally formatted, wide-bandwidth package.

Features:

• All-horn three-way system

• ‘Phase-ball’ loaded mid-driver

• Hybrid® LF section

• Fitted with handles and castors

• Horizontal format

• Five year limited warranty

Applications:

• Larger club performance

• Large scale installs

Specifications:

• Type

• Three-way bi-amp trapezoid Hybrid® fully horn loaded

• Frequency Response

• 50Hz-18kHz ± 3dB

• Driver

• 15” (380mm)/4” (100mm) coil bass driver

• 10” (250mm)/2.5” (63.5mm) coil mid driver

• 1” (25mm) exit HF compression driver

• Rated Power

• LF: 750W AES, 3000W peak

• MF + HF: 300W AES, 1200W peak

• Sensitivity

• LF: 104dB, MF + HF: 104dB

• Maximum SPL

• 133dB continuous, 139dB peak

• Nominal Impedance

• LF: 8Ω, MF + HF: 8Ω

• Dispersion (-6dB)

• 70˚ horizontal, 40˚ vertical

• Crossover

• 200Hz active, 2kHz passive

• Enclosure

• 250 litre, multi-laminate birch ply

• Finish

• Textured black paint

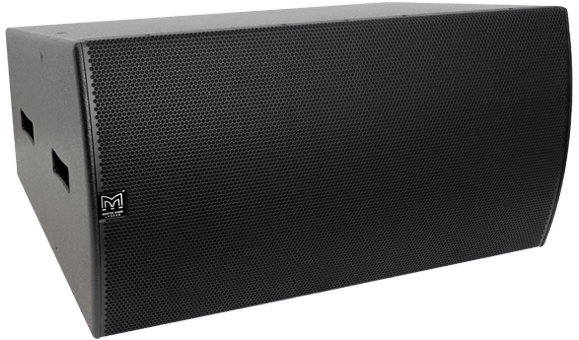

• Protective Grille

• Black perforated steel

• Connectors

• 2 x Neutrik NL4

• Pin Connections

• LF+,- : 1+,1-

• (MF + HF) +,- : 2+,2-

• Fittings

• 12 x M10 inserts

• 4 x 4” (100mm) castors

• 4 x pocket handles

• Dimensions

• (W) 1067mm x (H) 558mm x (D) 780mm (908mm)

• (W) 42ins x (H) 22ins x (D) 30.7ins (35.7ins)

• Weight

• 77.5kg

• 170.5lbs
