Sku: 90357691HU-1

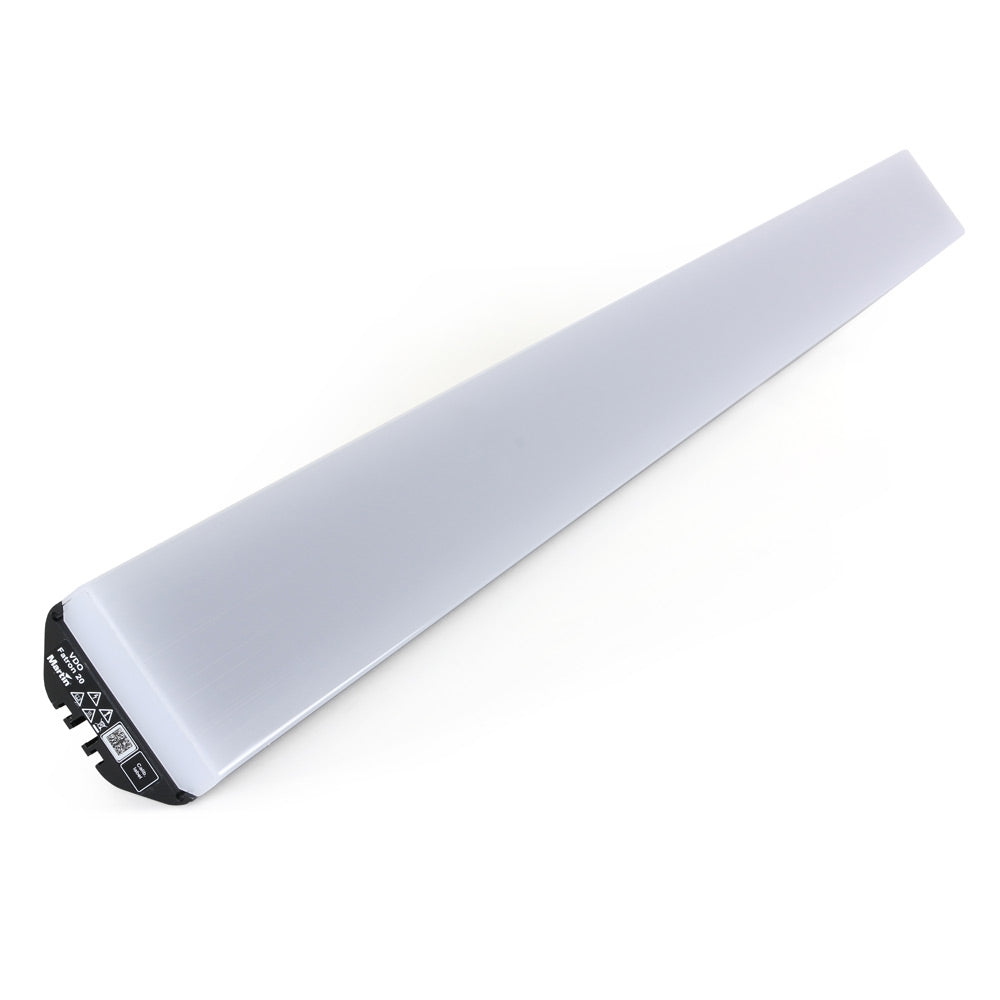

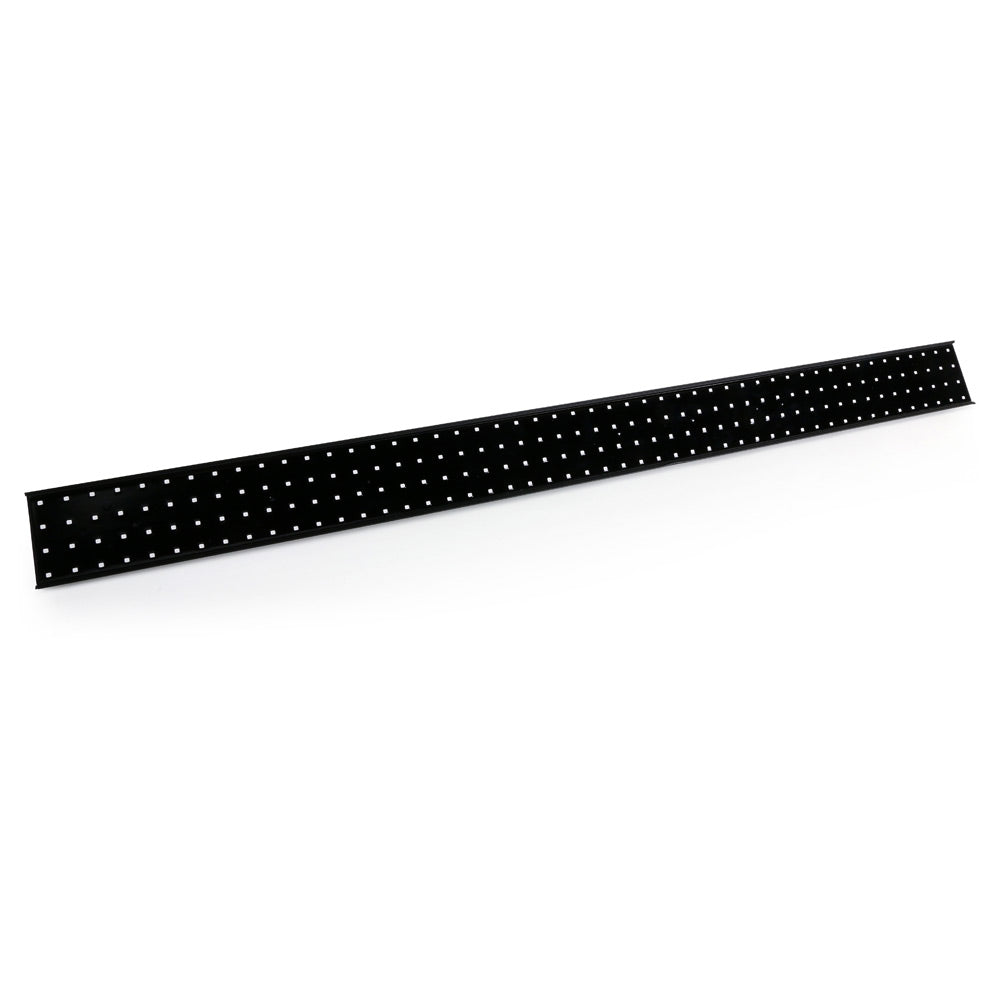

VDO Fatron 20 (320mm)

Regular price
$706.29
Regular price
Sale price
$706.29
Shipping calculated at checkout.
Vendor: Martin

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
VDO Fatron 20 (320mm): Fixture
Accessories: Fixture

Description

Caret Down

Introducing VDO Fatron 20, a versatile LED video batten with a variety of optical accessories for dynamic 3D stage designs, seamlessly integrated with Martin LED video products via the P3 System Controller. With easy installation and setup, it's the ideal tool for unleashing your creativity.

From The Manufacturer:

Your creative VDO toolbox just got bigger, more dynamic and way more flexible, making your P3 System Controller even more versatile.

VDO Fatron 20 is a 20 mm pixel pitch outdoor-rated LED video batten with an extensive range of optical accessories for a wide variety of looks that allows you to seriously play with creativity in 3D stage designs. Easy video-mapping and creative mix ‘n’ match with other Martin LED video products via the P3 System Controller. It uses the same integrated power and data cabling as VDO Sceptron and VDO Dotron, making installation a breeze. Be creative.

  • The perfect expansion of your creative VDO toolbox for exciting 3D stage setups
  • Extensive range of field-exchangeable diffusers and lenses for a great variety of looks
  • Easy setup, mapping and configuration via P3 System Controller
  • Complete range of rigging accessories available

Features:

  • Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system

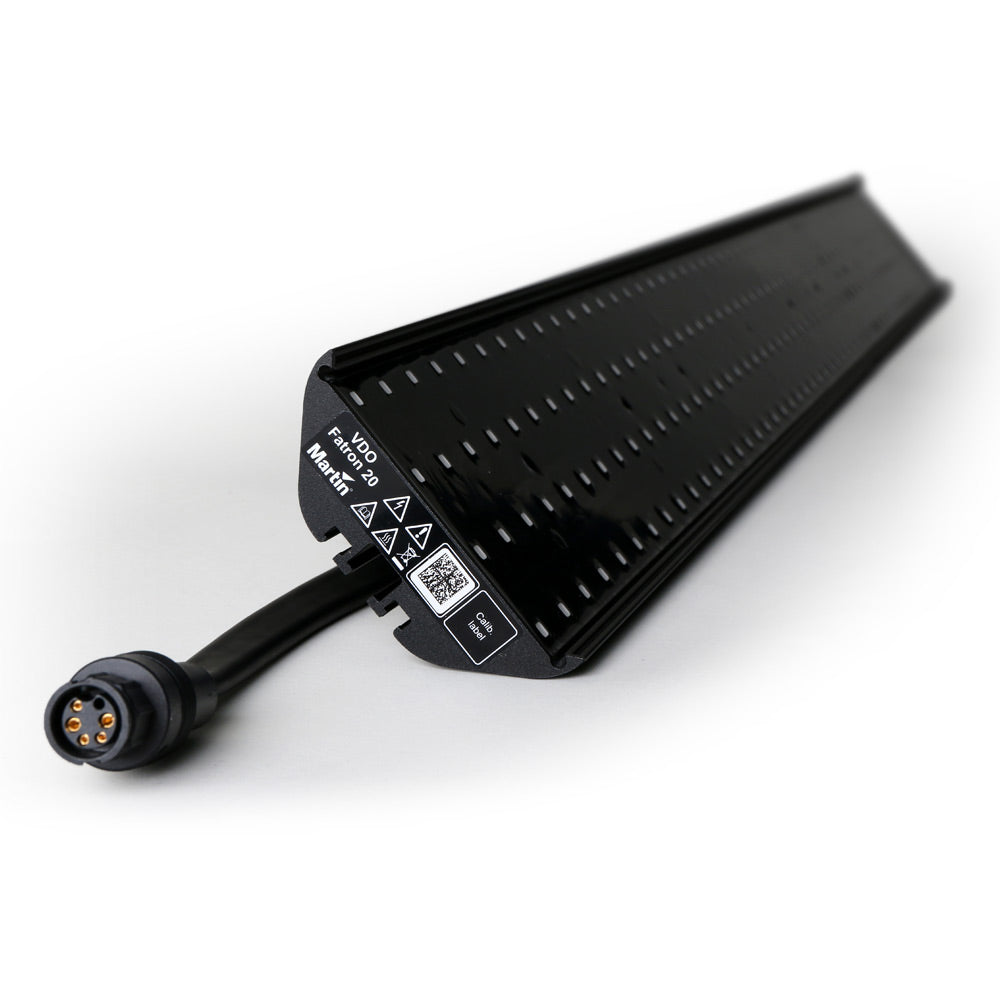

  • Combined power and data cabling (compatible with other products such as VDO Sceptron and VDO Dotron)
  • DMX Control
  • P3 Control with VideoMapping
  • Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
  • Extensive range of built-in effects
  • Intuitive mapping and addressing via P3 System Controller
  • Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Sceptron and VDO Dotron)

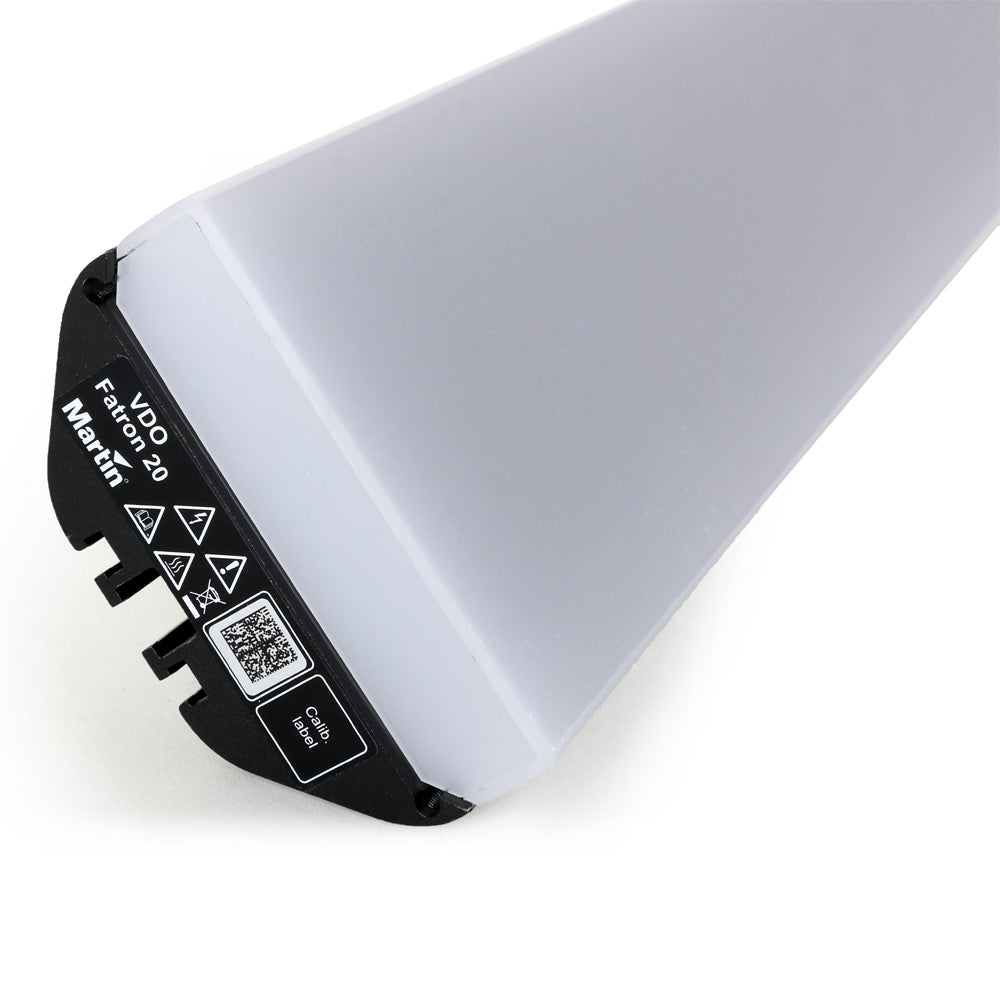

  • Pixel-level brightness and color calibrated for a completely homogenous look
  • High-quality 16-bit per color image processing technology

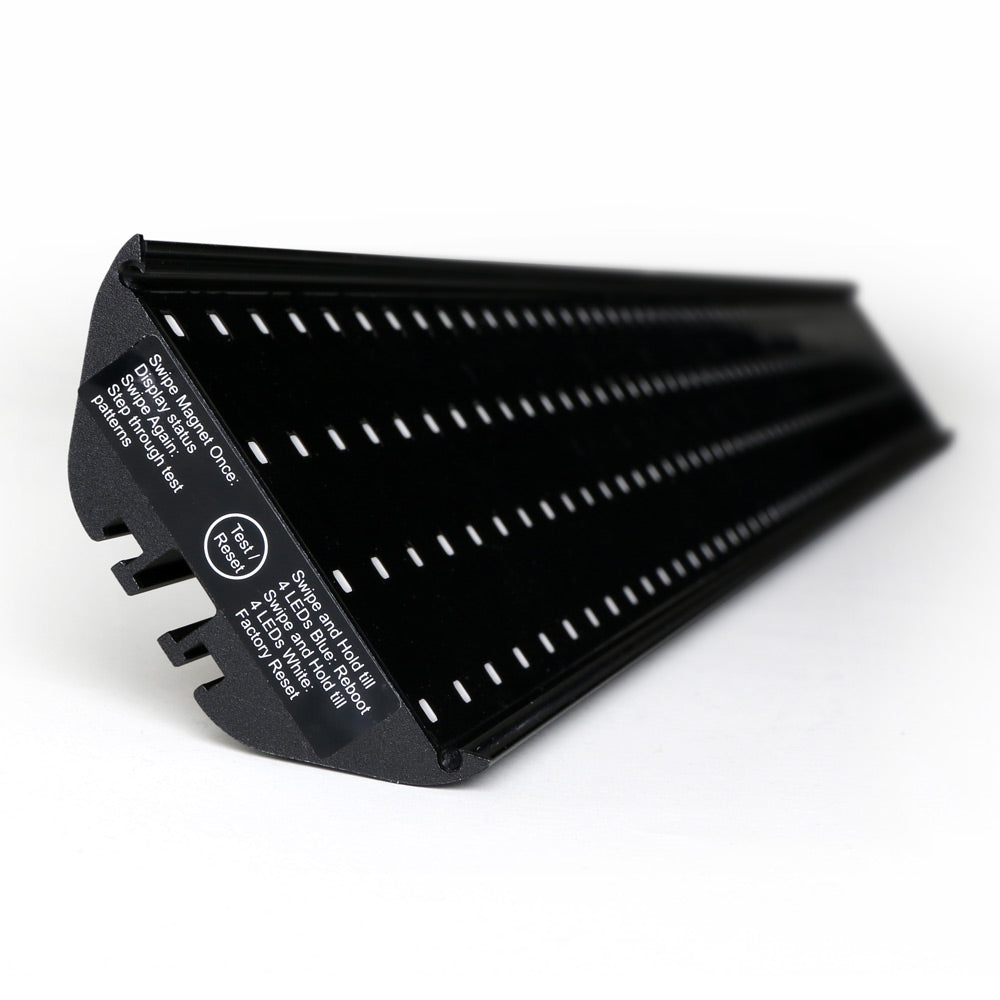

  • 20 mm pixel pitch
  • 500 cd per meter calibrated
  • 1500 lumen per meter calibrated

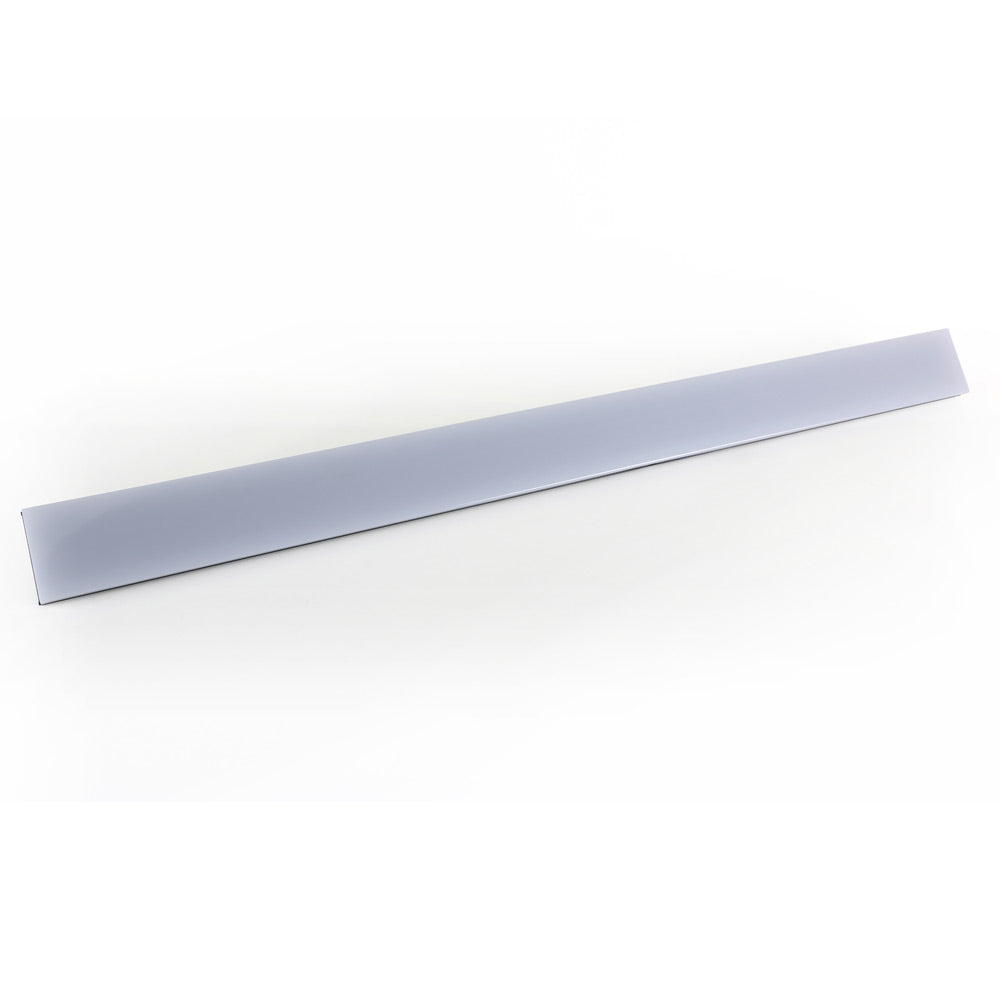

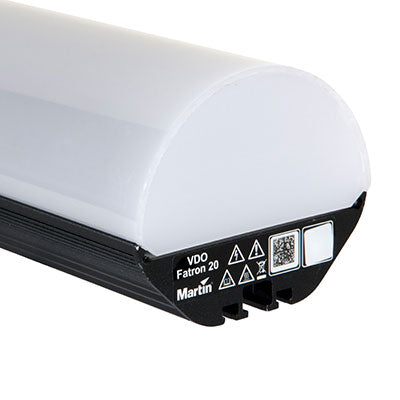

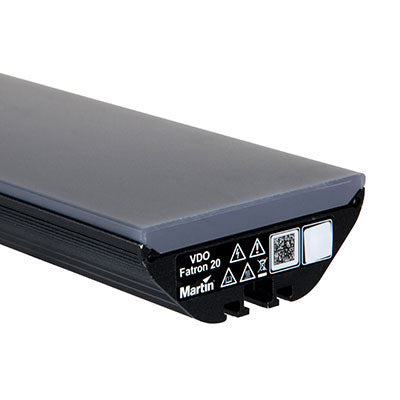

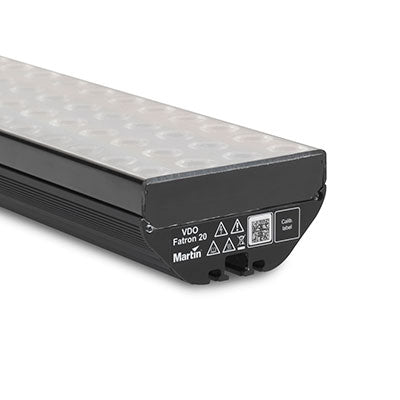

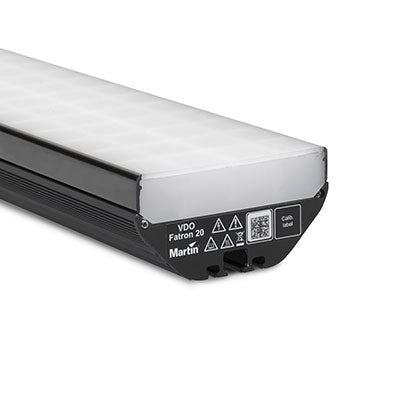

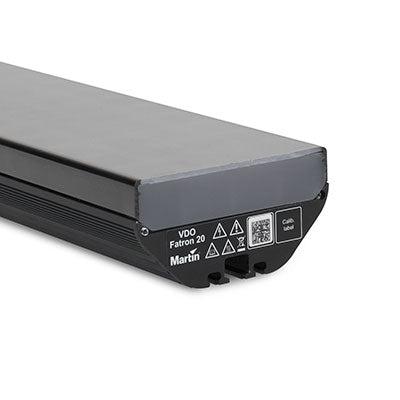

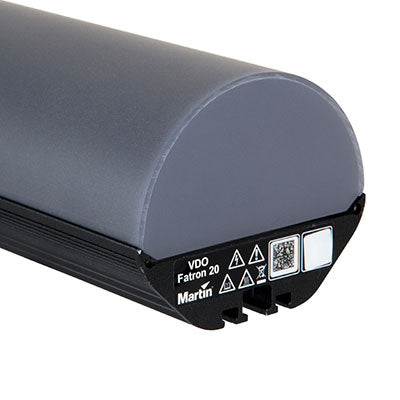

  • 8 different diffuser options plus 1 lens option (all field-exchangeable)
  • IP65 rated for outdoor use

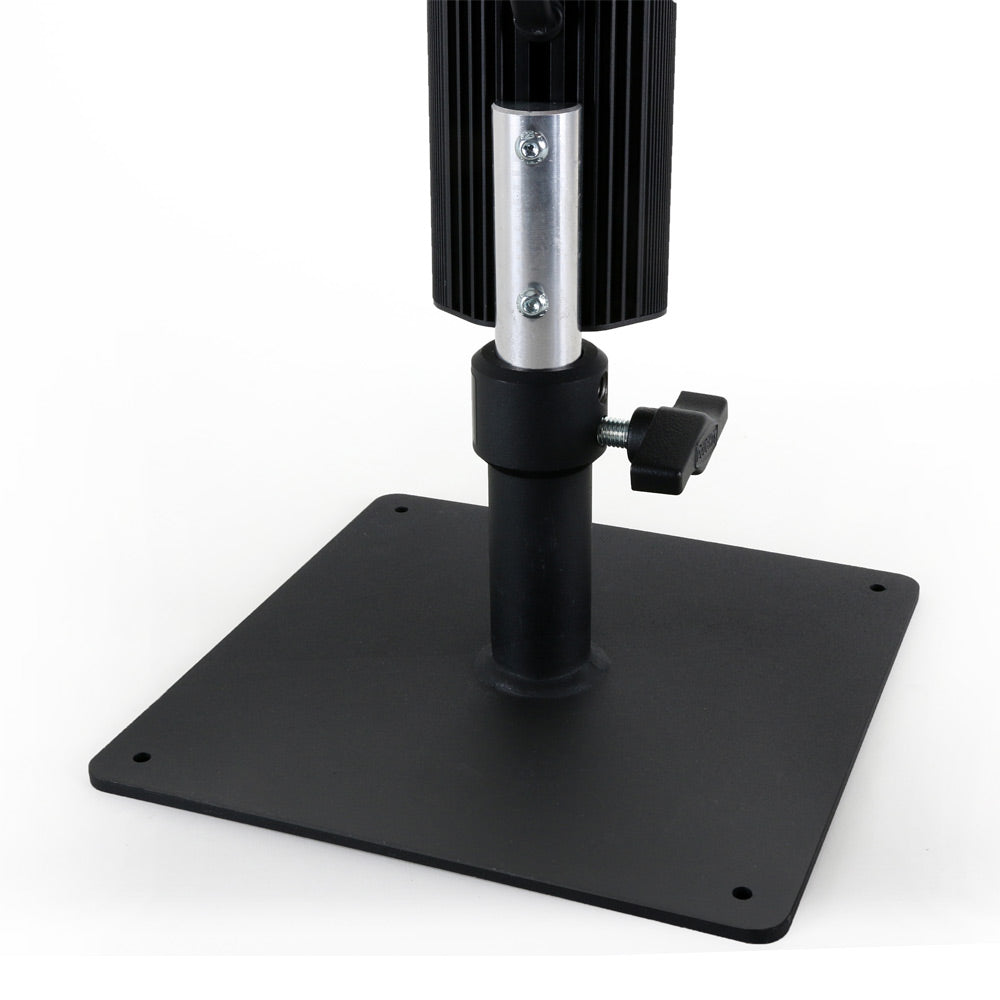

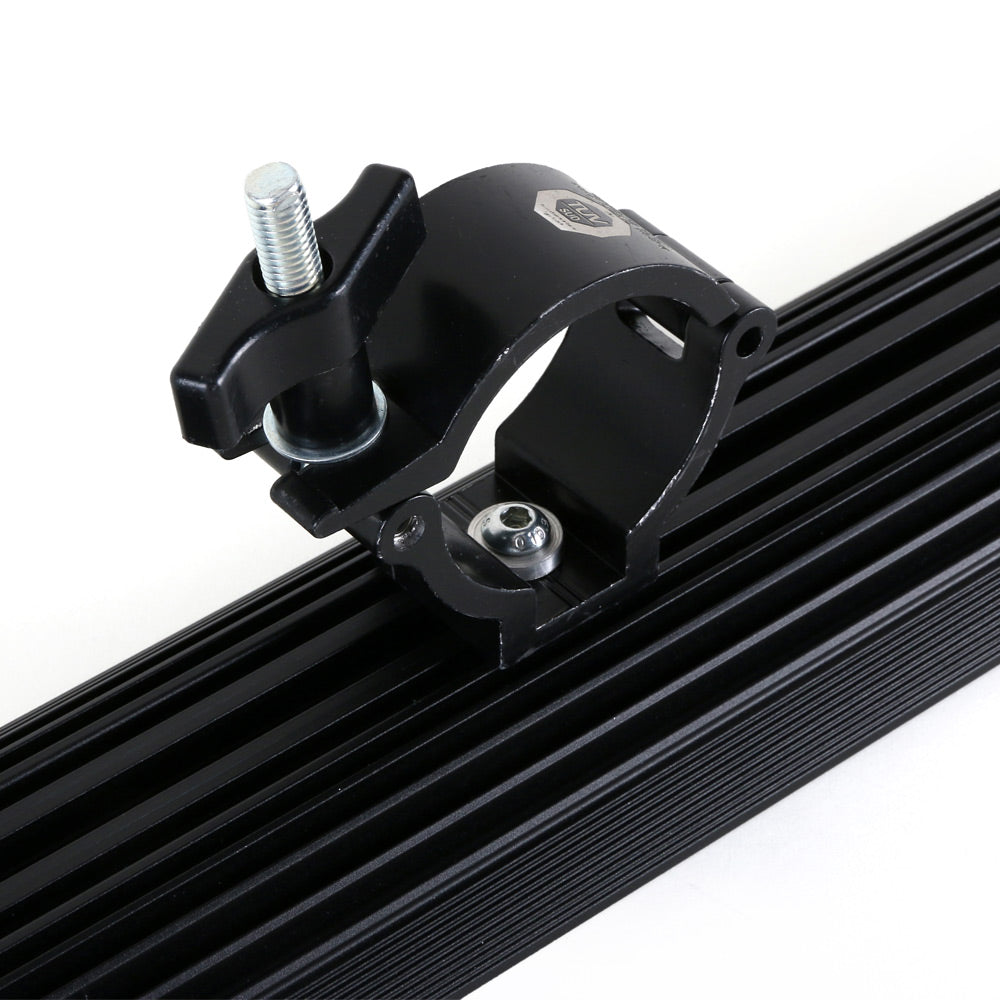

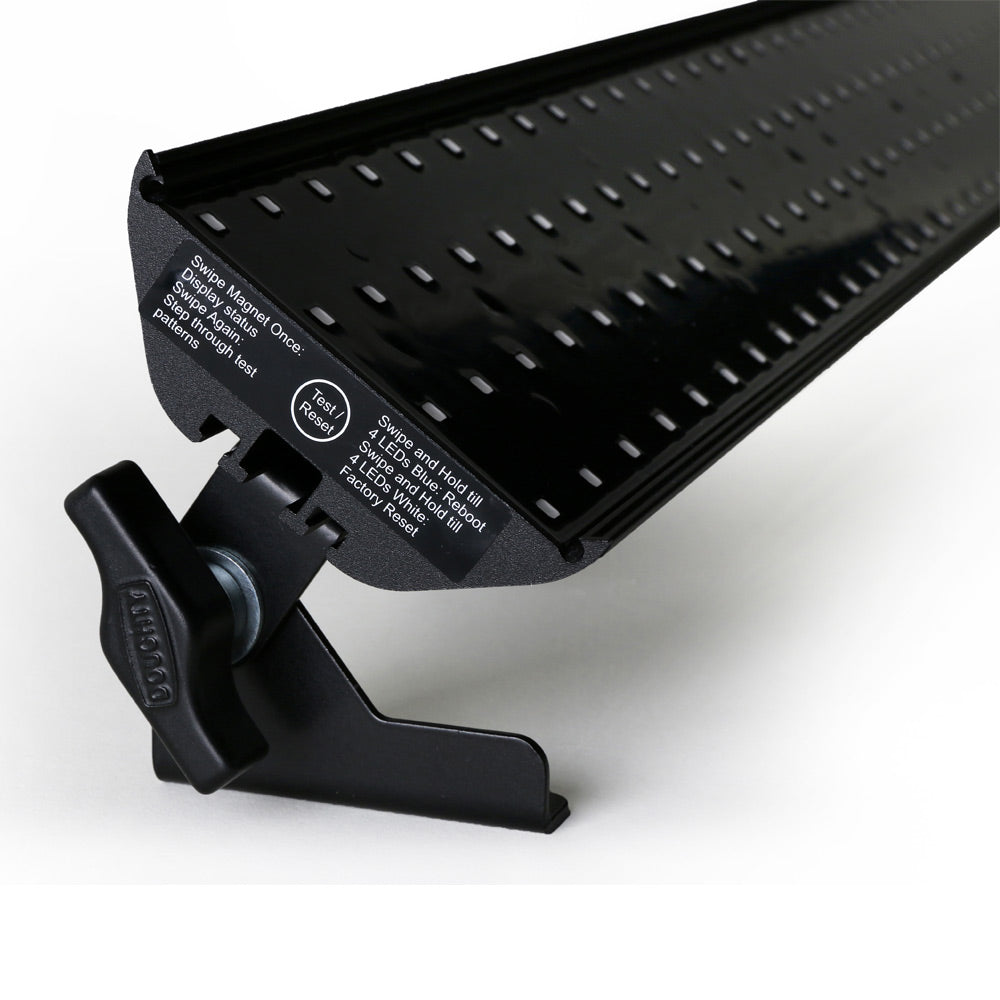

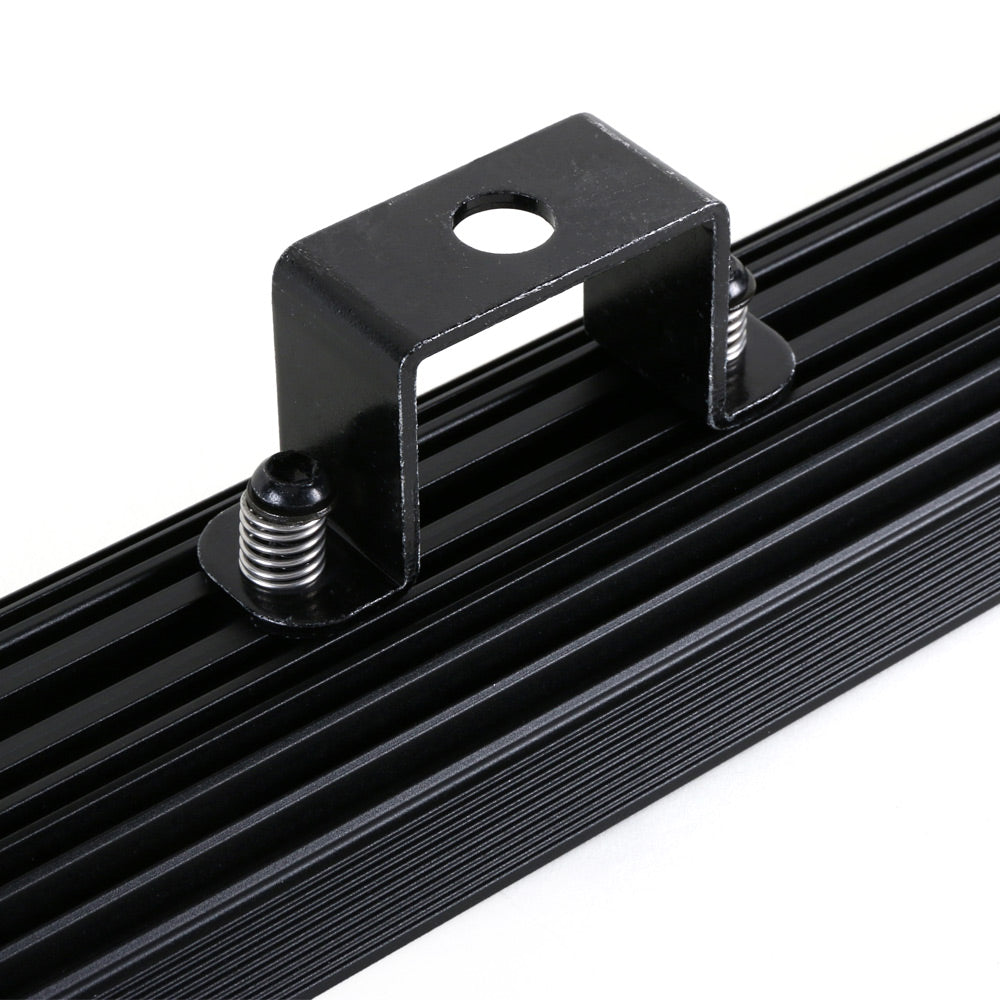

  • Versatile rigging accessories
  • Available in two lengths: 1000 mm and 320 mm

Physical:

  • VDO Fatron™ 20, 320 mm model:
  • Length: 320 mm (12.6 in.)
  • Width: 80 mm (3.15 in.)
  • Height without front: 28 mm (1.10 in.)

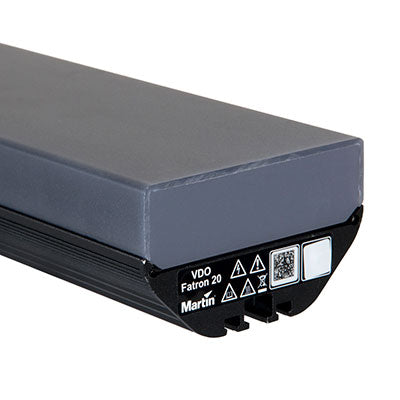

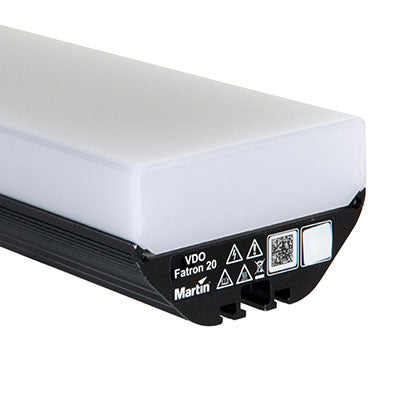

  • Height with standard front (Square Diffuser): 48 mm (1.89 in.)
  • Weight without front: 0.85 kg (1.9 lbs.)
  • Weight with standard front (Square Diffuser): 0.95 kg (2.1 lbs.)

Electrical:

  • Nominal input voltage: 48 VDC +/- 4%
  • Maximum power consumption, all LEDs at full intensity, VDO Fatron™ 20, 320 mm: 20 W
  • Maximum power consumption, all LEDs at full intensity, VDO Fatron™ 20, 1000 mm: 60 W
  • Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU

Certifications / Qualifications:

  • EU safety: EN 60950-1, EN 60950-22, EN 62471
  • EU EMC: EN 55024, EN 55032
  • US safety: UL 60950-1, UL 60950-22
  • US EMC: CFR Title 47 Part 15 Class A
  • Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: RCM
  • India: BIS

    Tech Specs

    VDO Fatron 20  (320mm)
    VDO Fatron 20 (320mm)
