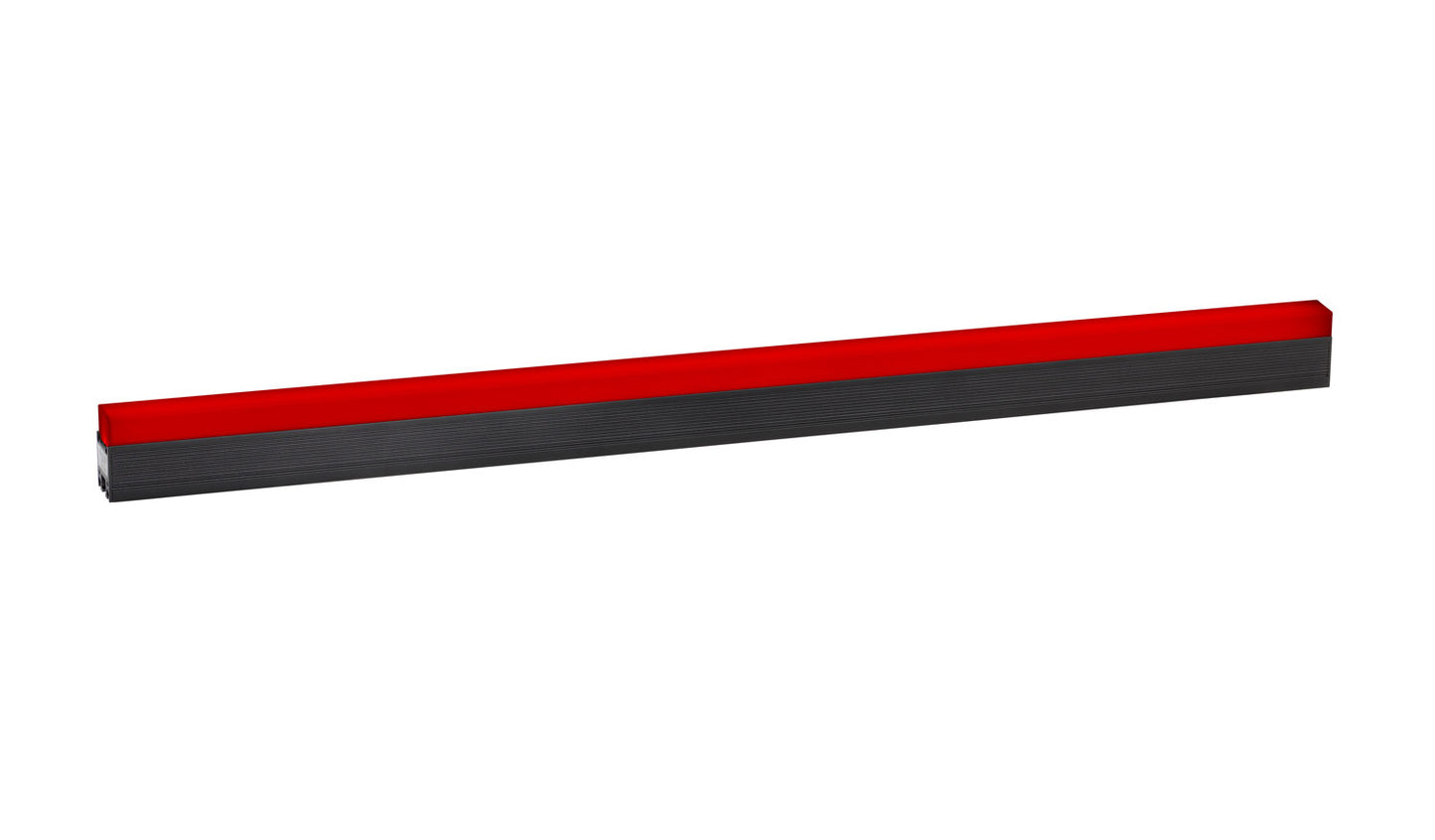

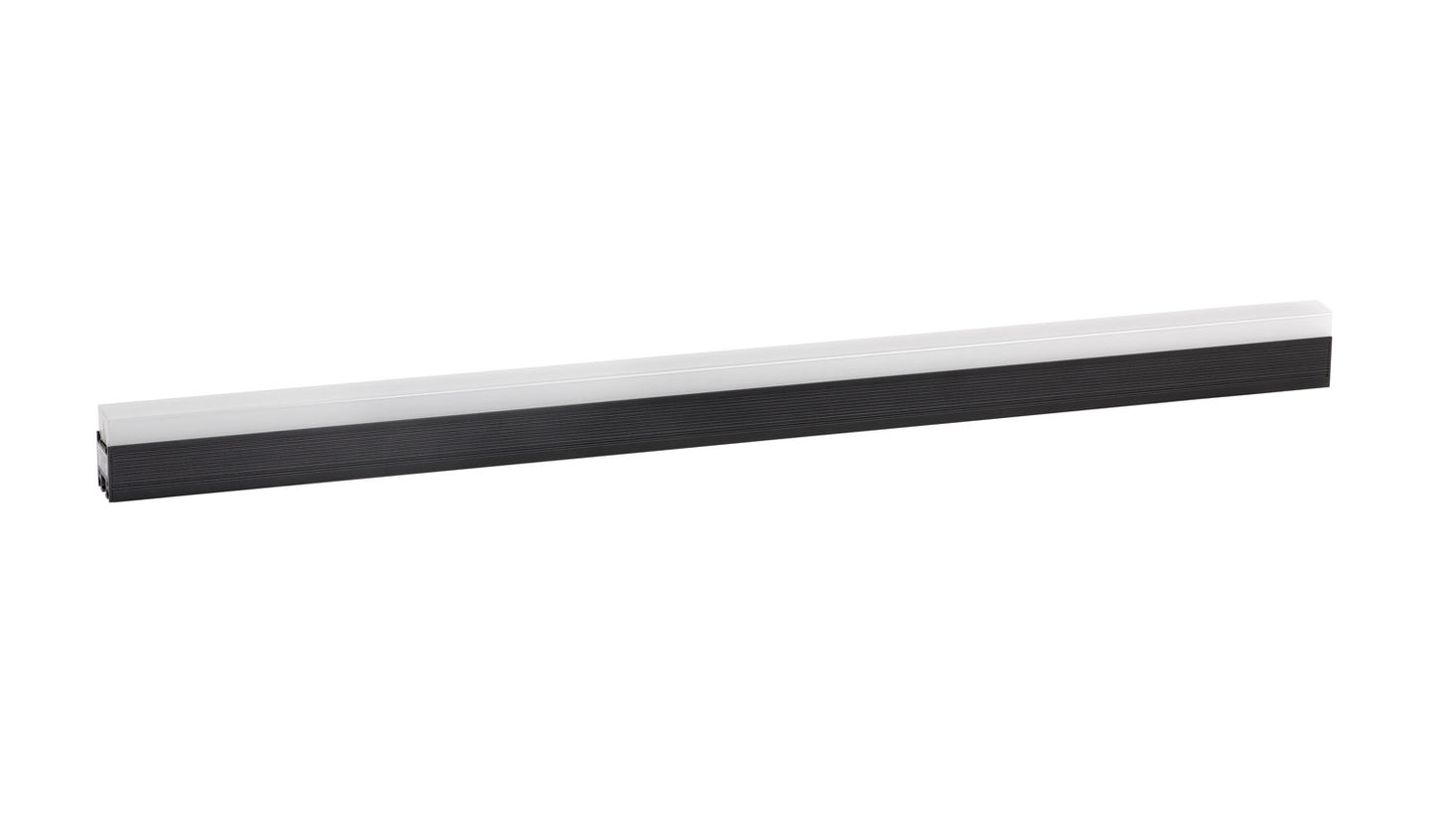

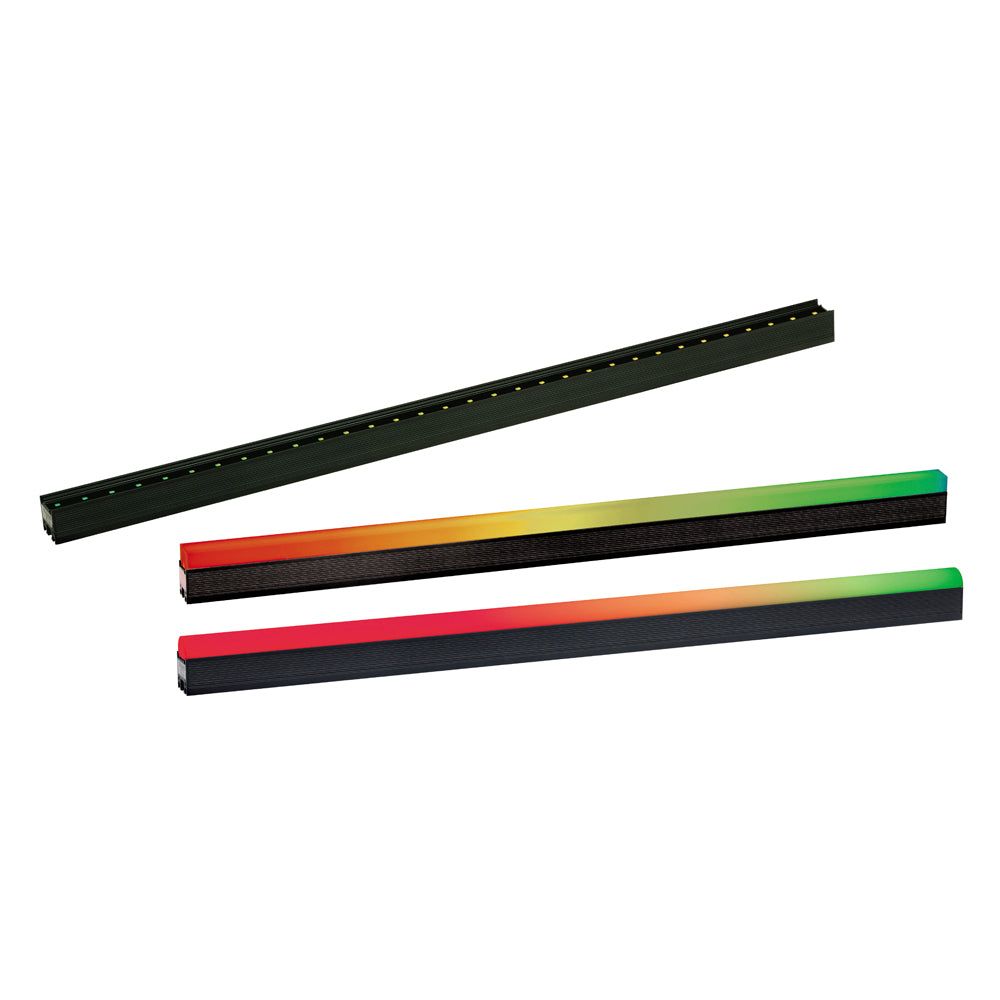

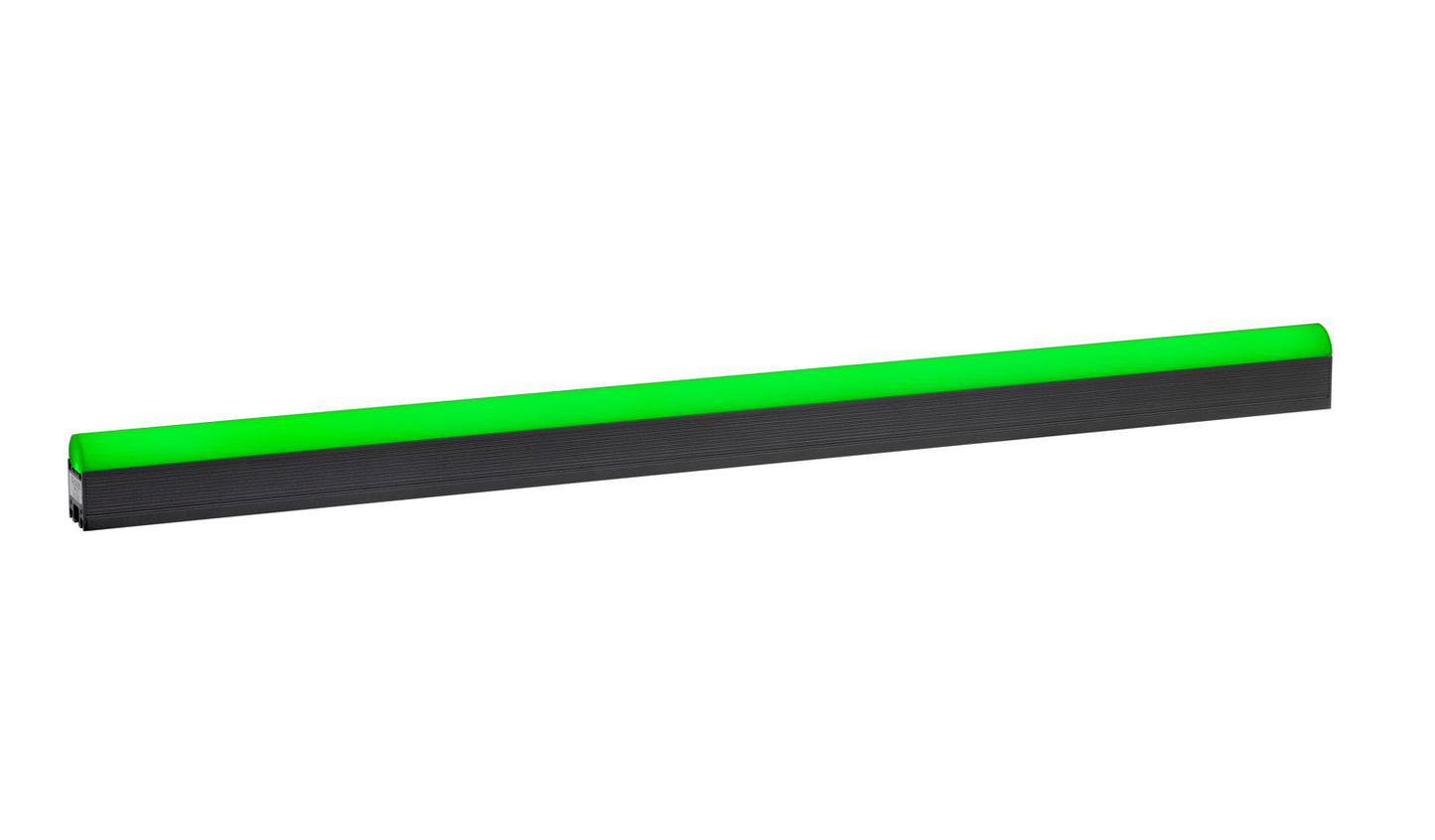

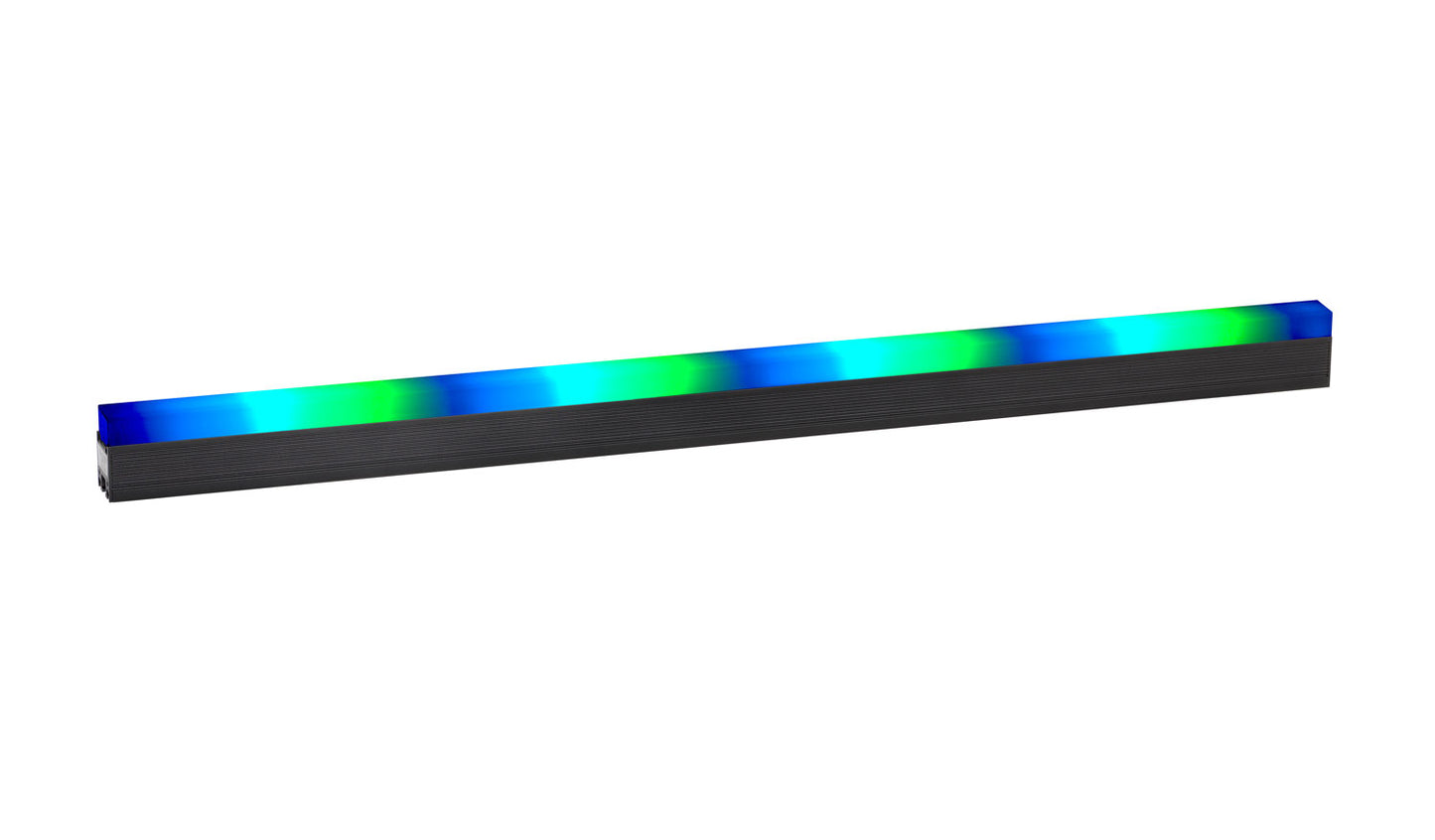

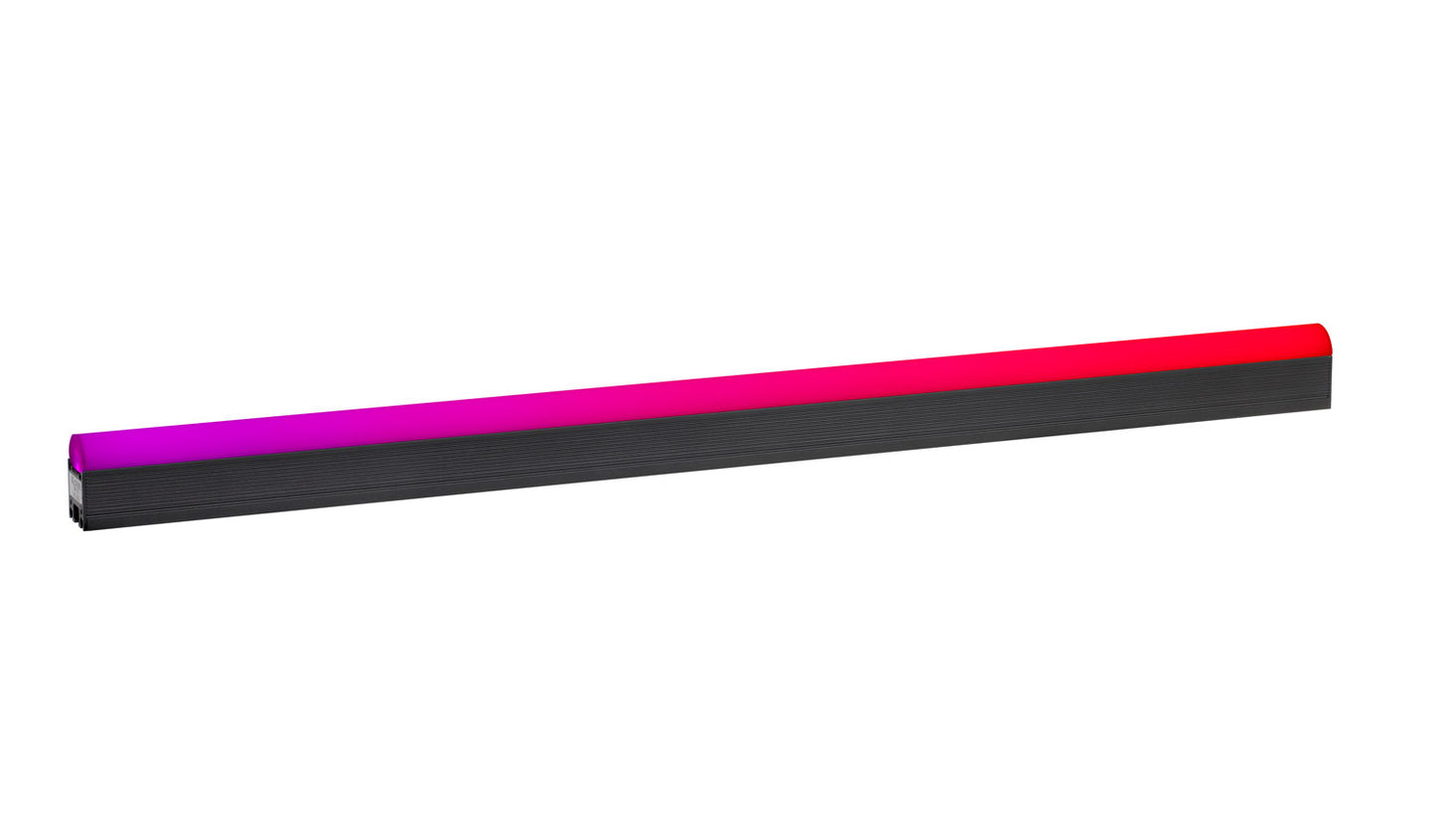

VDO Sceptron 40 (320mm)

The VDO Sceptron 40 is an outdoor-rated LED video fixture with a 40mm pixel pitch, offering versatile looks with its range of optical accessories. It's driven by the Martin P3 System Controller family for easy setup and configuration, while also compatible with DMX for simpler setups. Its integrated power and data cabling enable long daisy-chains, and the power supply can be located up to 50m away for a tidy setup without messy cabling.

From The Manufacturer:

The VDO Sceptron 40 is a linear outdoor-rated LED video fixture for the rental market with 40 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 40 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.

• Extensive range of field-exchangeable optical accessories for a wide variety of looks
• Easy setup, mapping and configuration
• Bright and fully calibrated for optimal consistency
• Complete range of rigging accessories available

Features:

• Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system

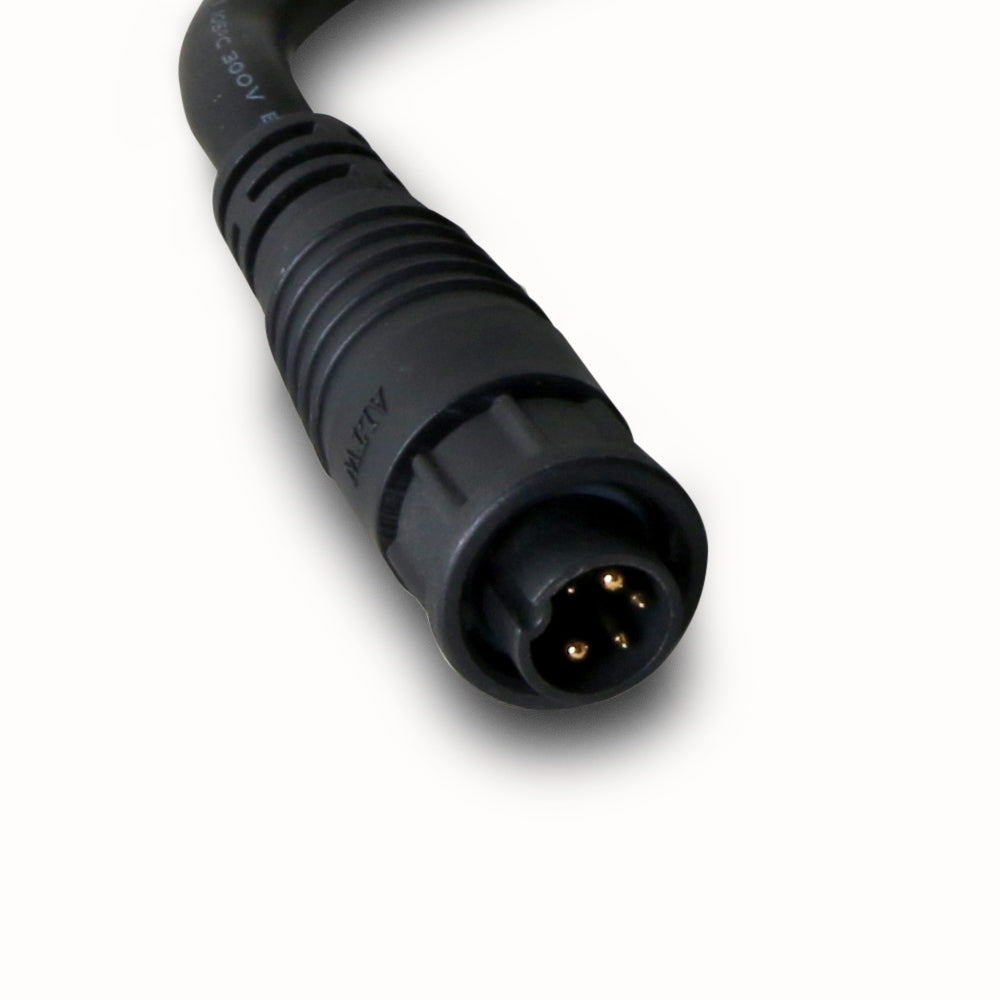

• Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
• DMX Control
• P3 Control with VideoMapping
• Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
• Extensive range of built-in effects
• Intuitive mapping and addressing via P3 System Controller
• Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Fatron and VDO Dotron)
• Pixel-level brightness and color calibrated for a completely homogenous look
• High-quality 16-bit per color image processing technology
• 40 mm pixel pitch
• 62 cd per meter calibrated
• 187 lumen per meter calibrated

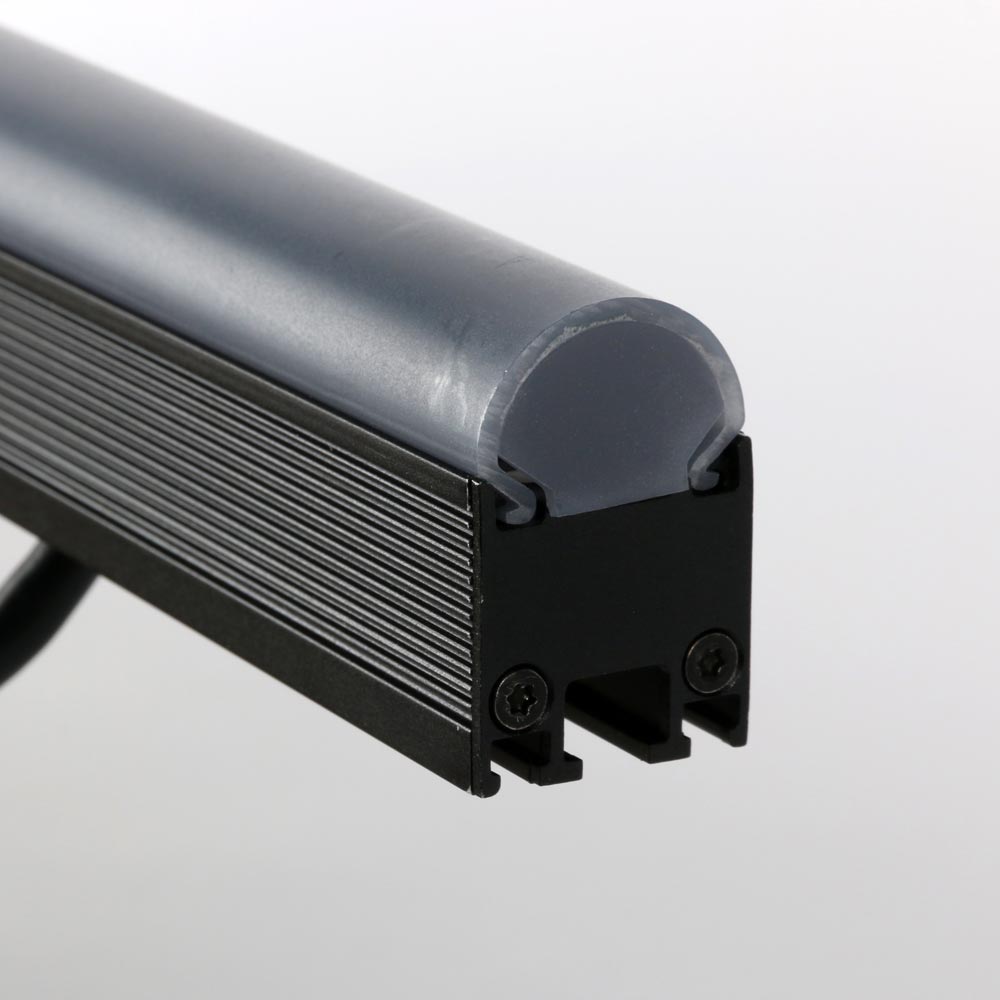

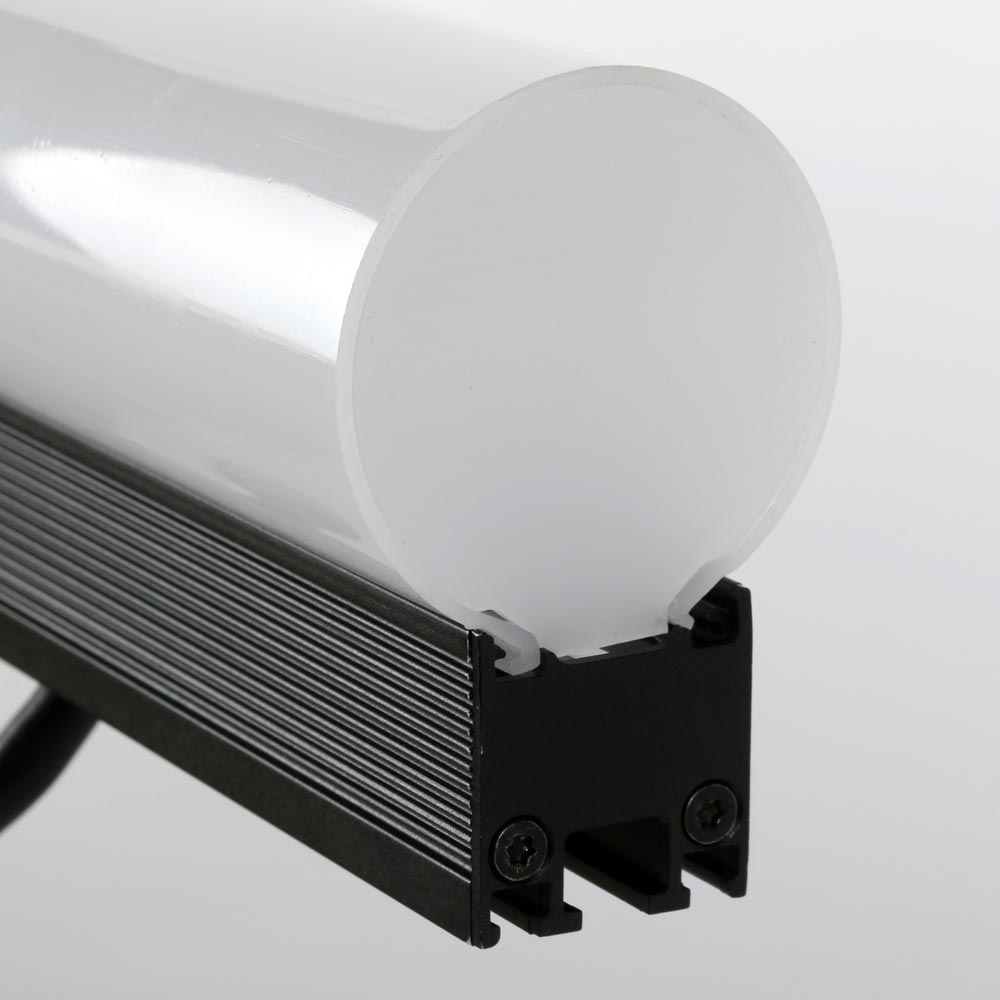

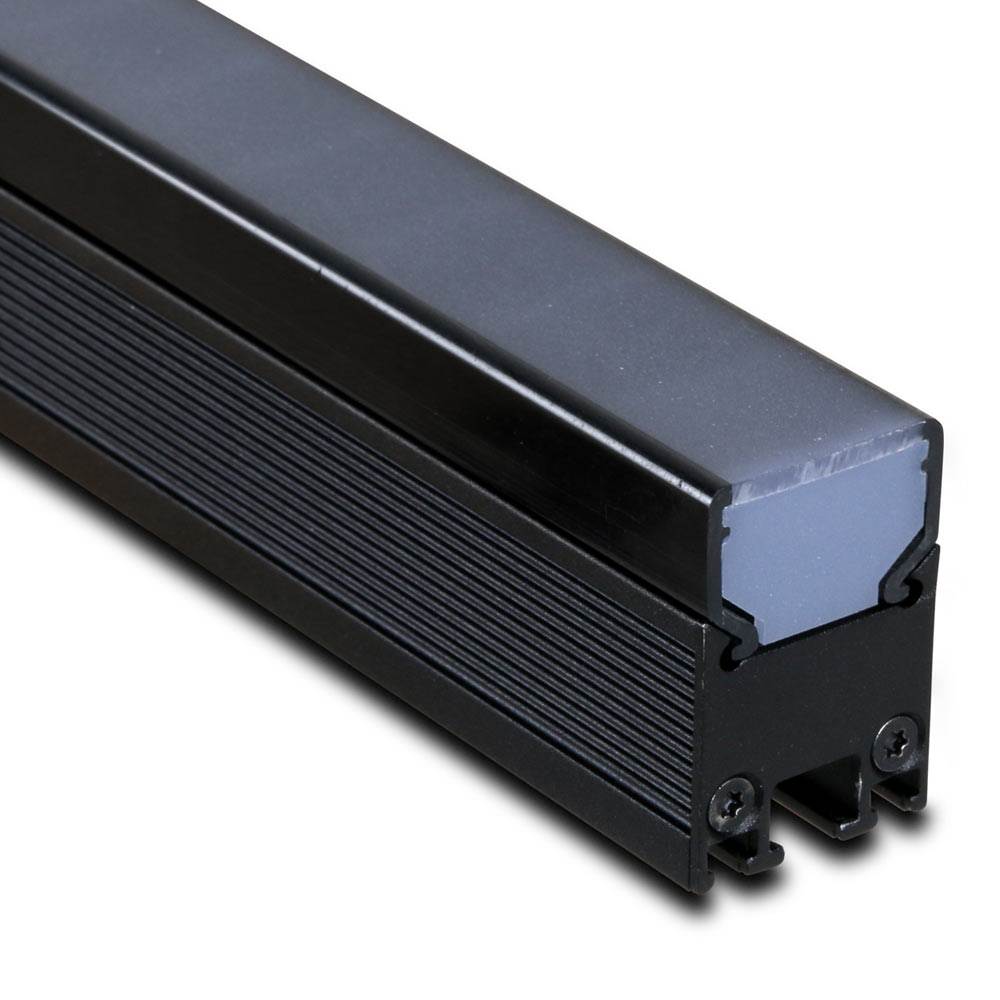

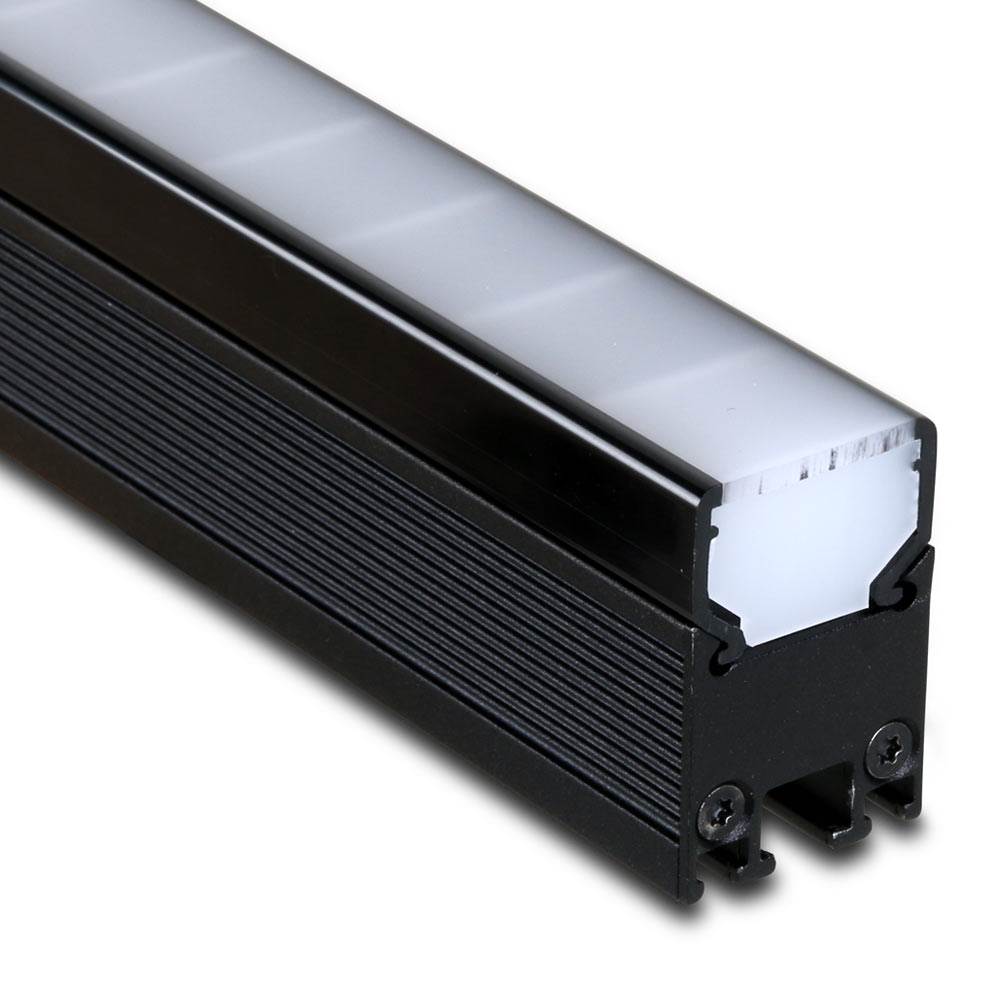

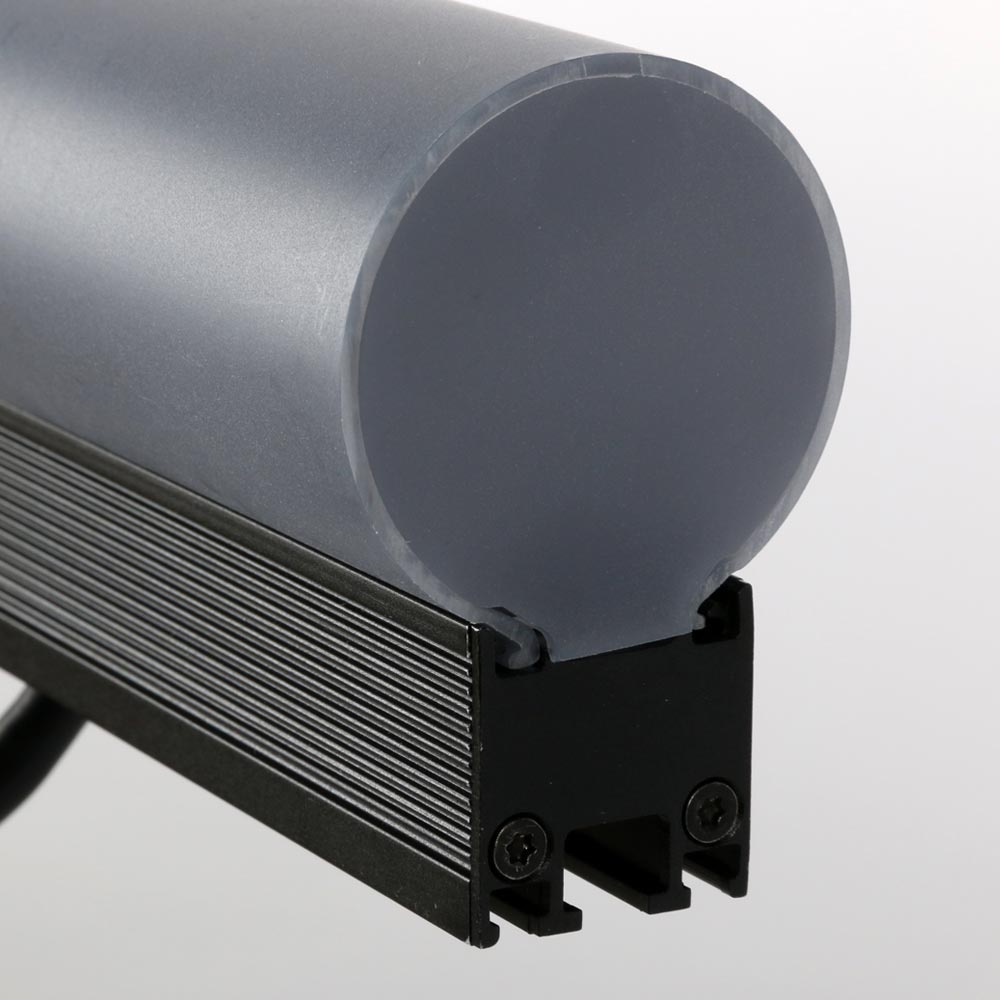

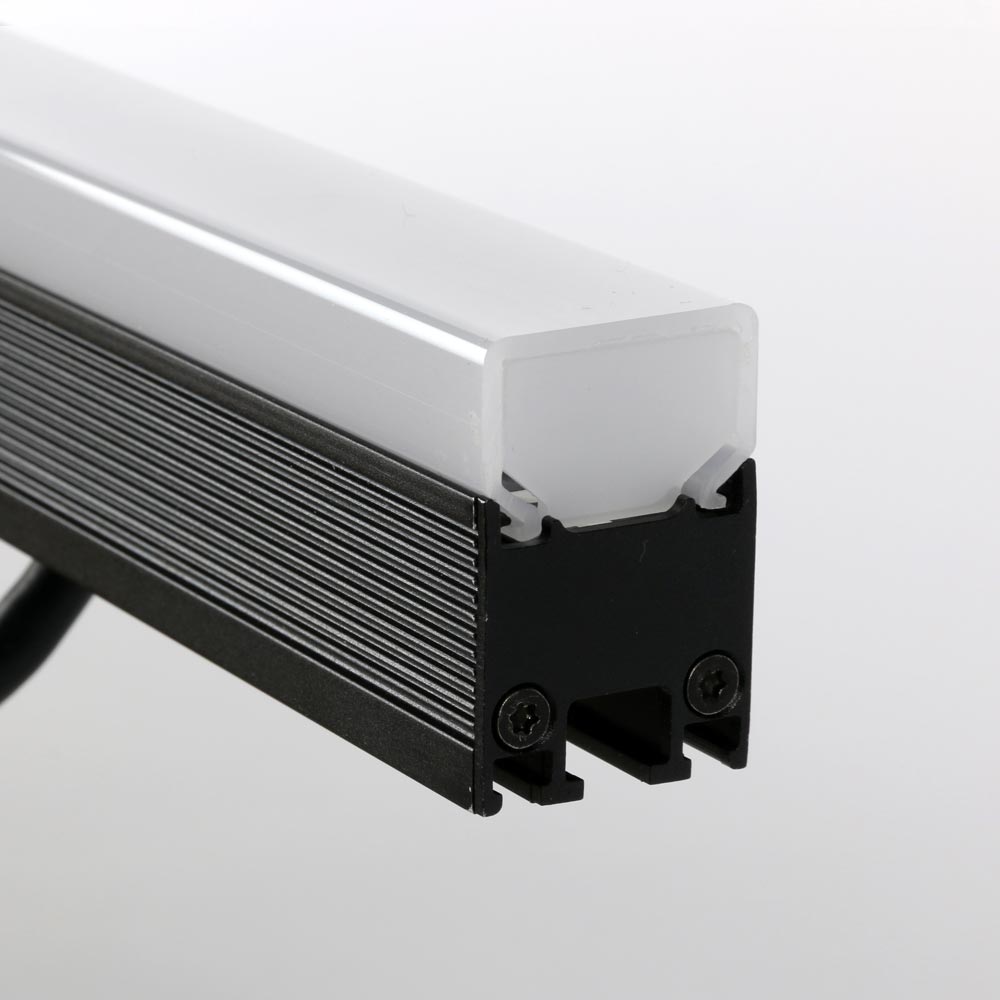

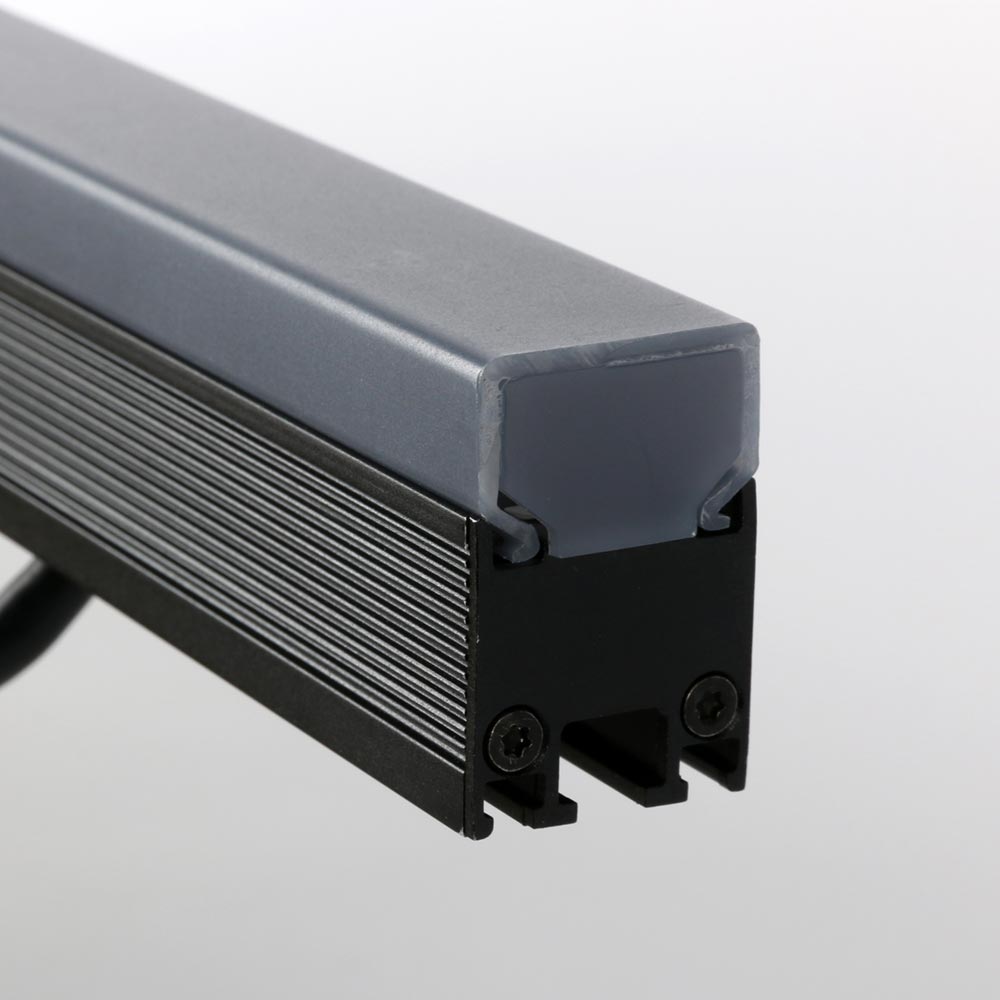

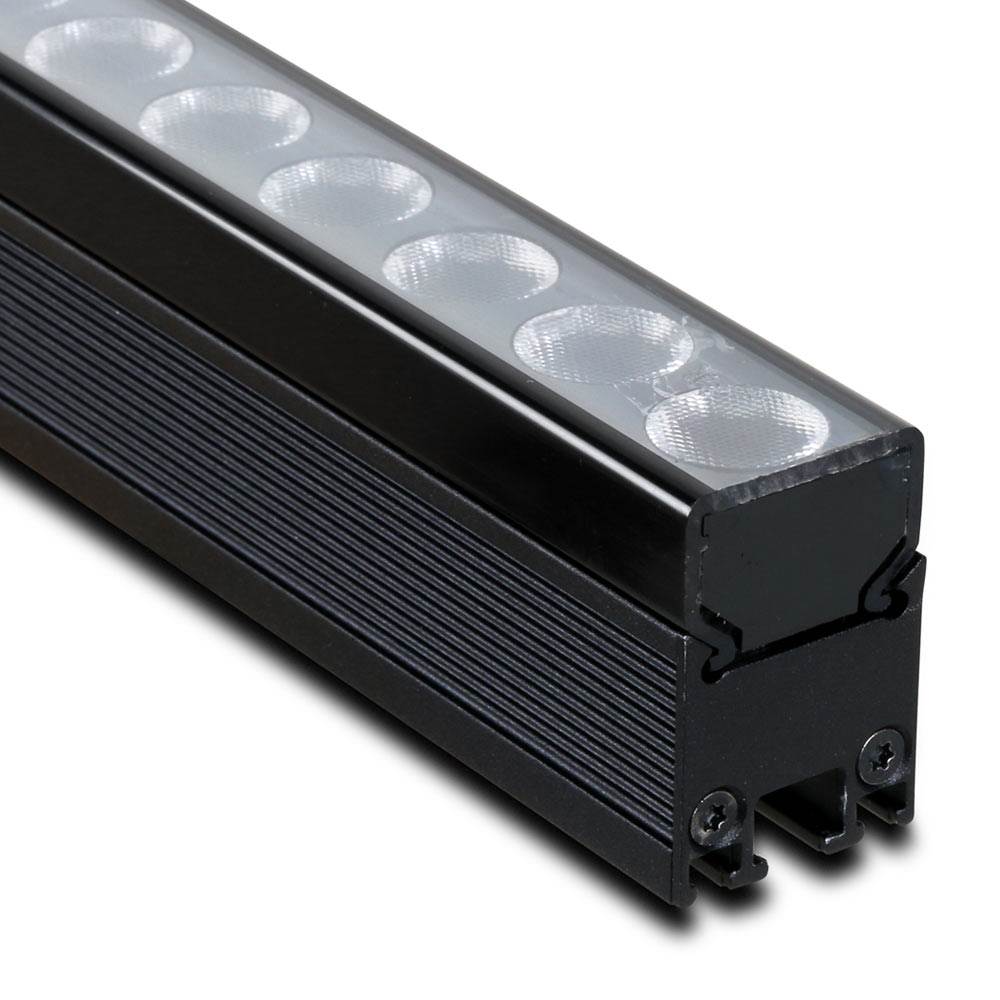

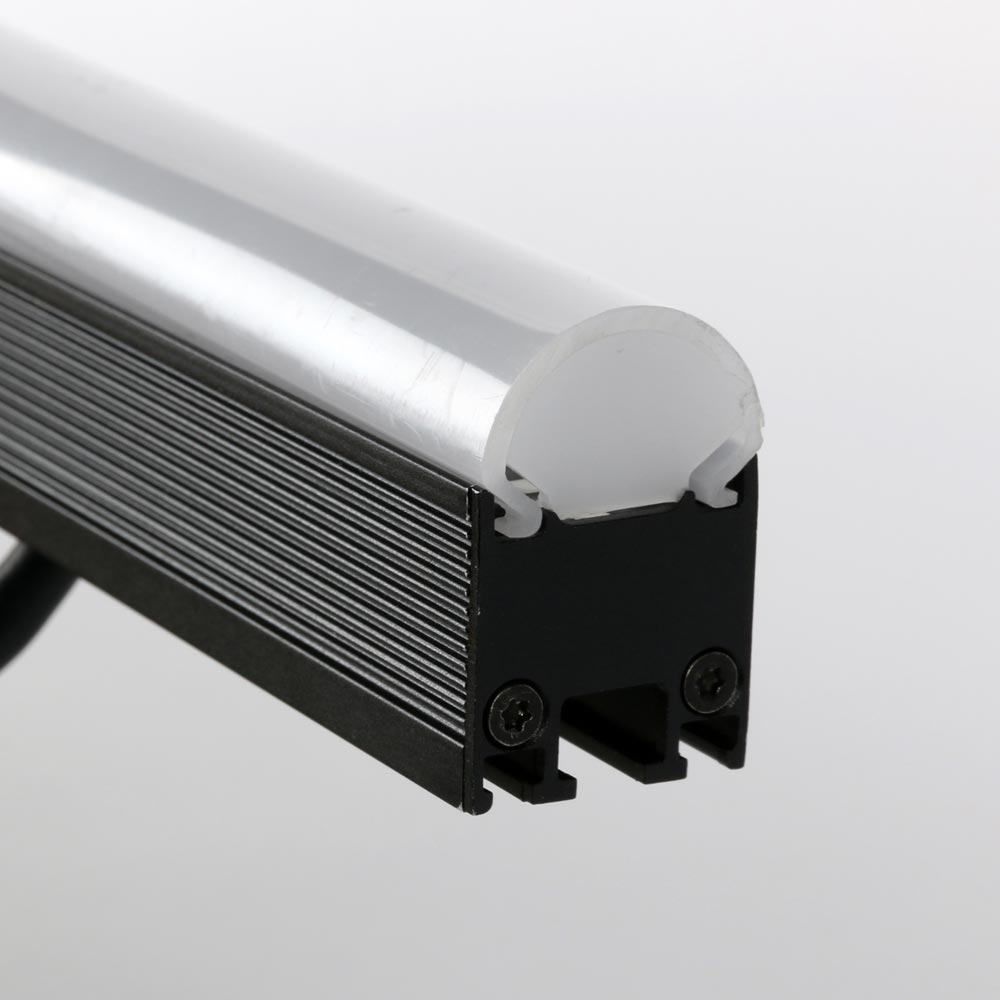

• Field-exchangeable diffusers and lenses
• IP65 rated for outdoor use

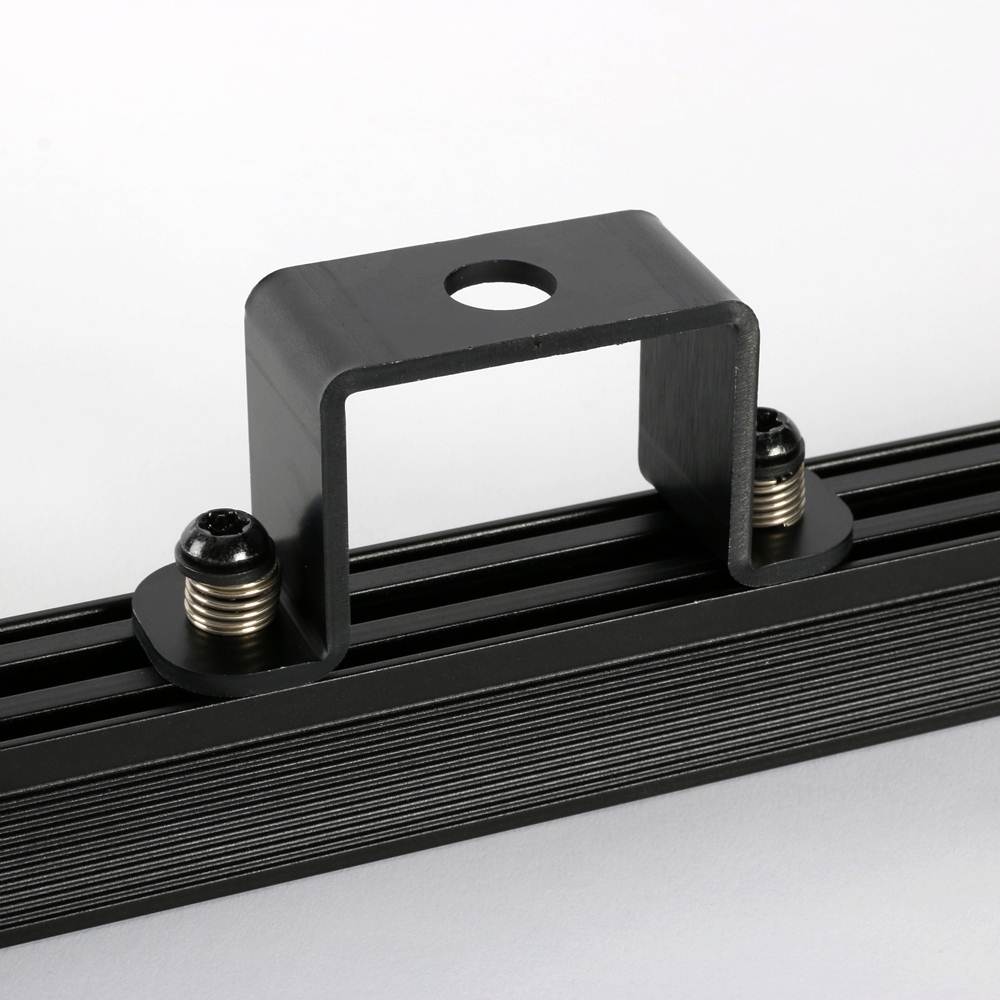

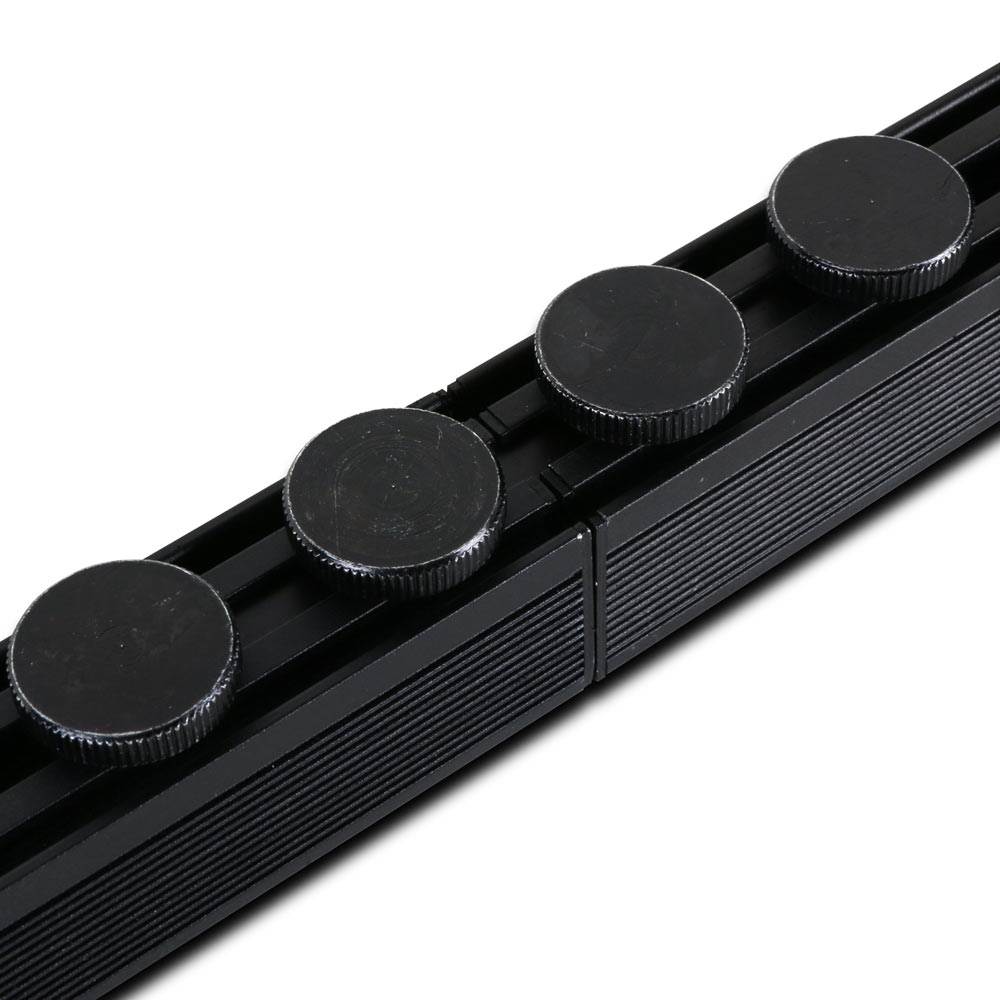

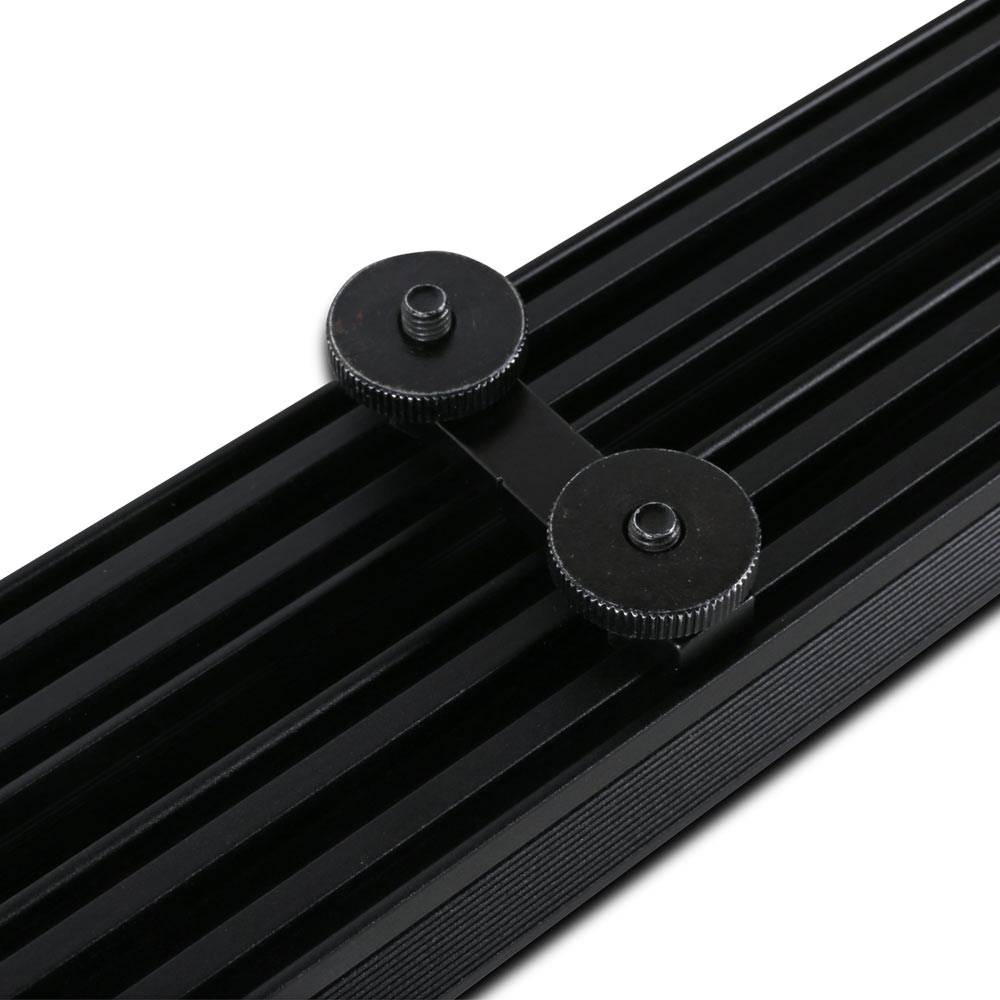

• Versatile rigging accessories
• Available in two lengths: 1000 mm and 320 mm

Physical:

• VDO Sceptron™ 40, 320 mm model:
• Length: 320 mm (12.6 in.)
• Width: 27 mm (1.06 in.)

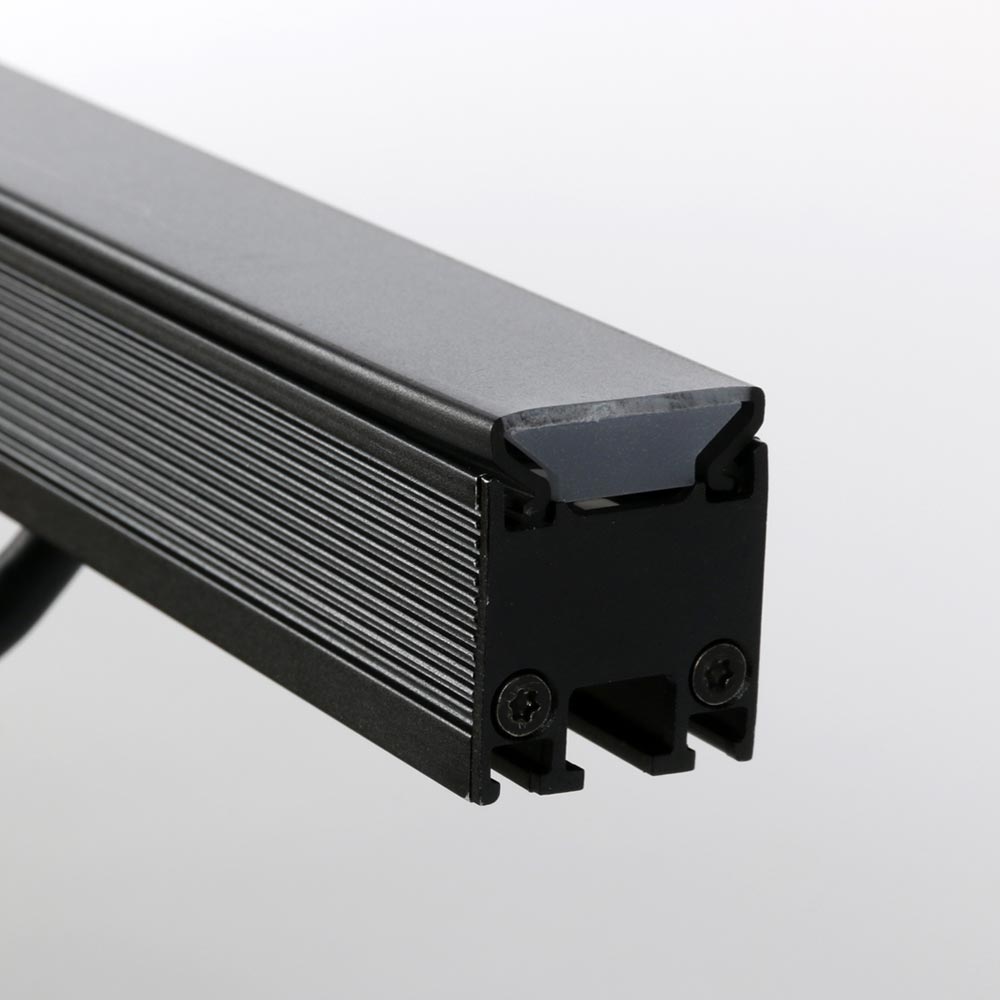

• Height without front: 28 mm (1.10 in.)

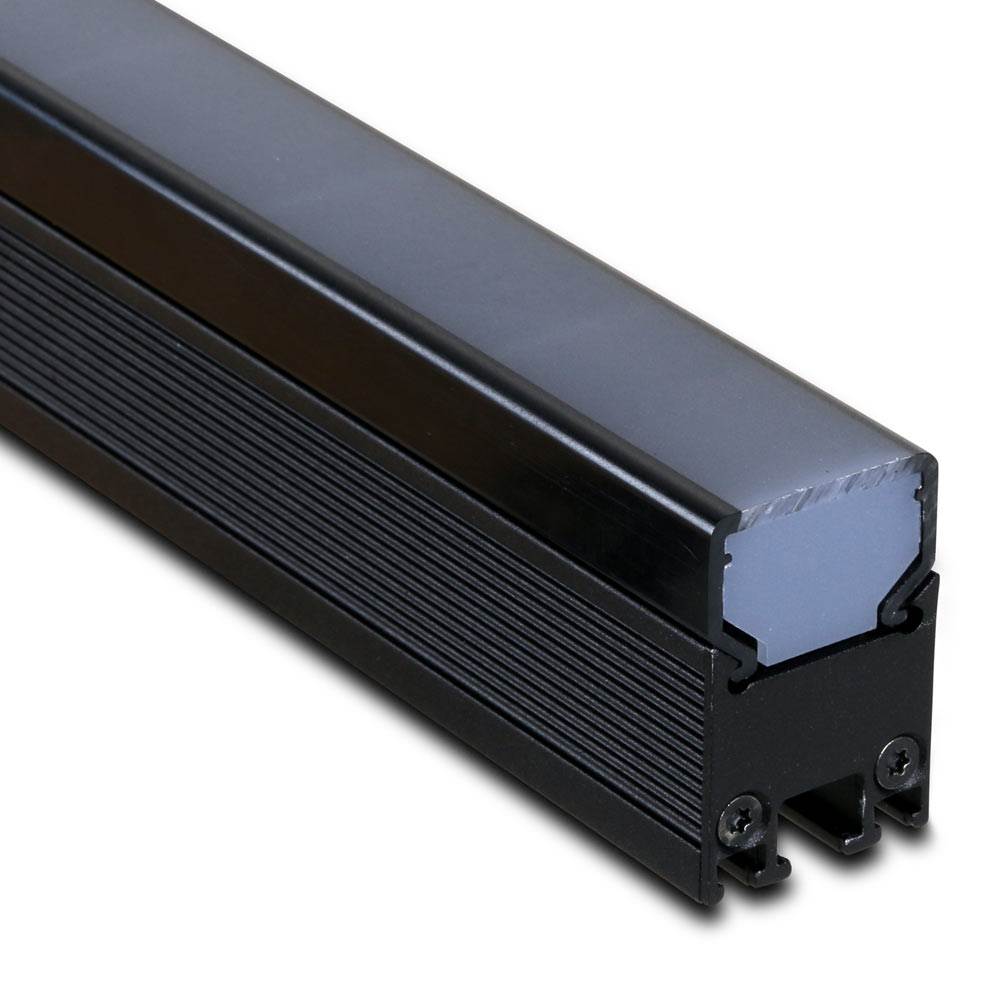

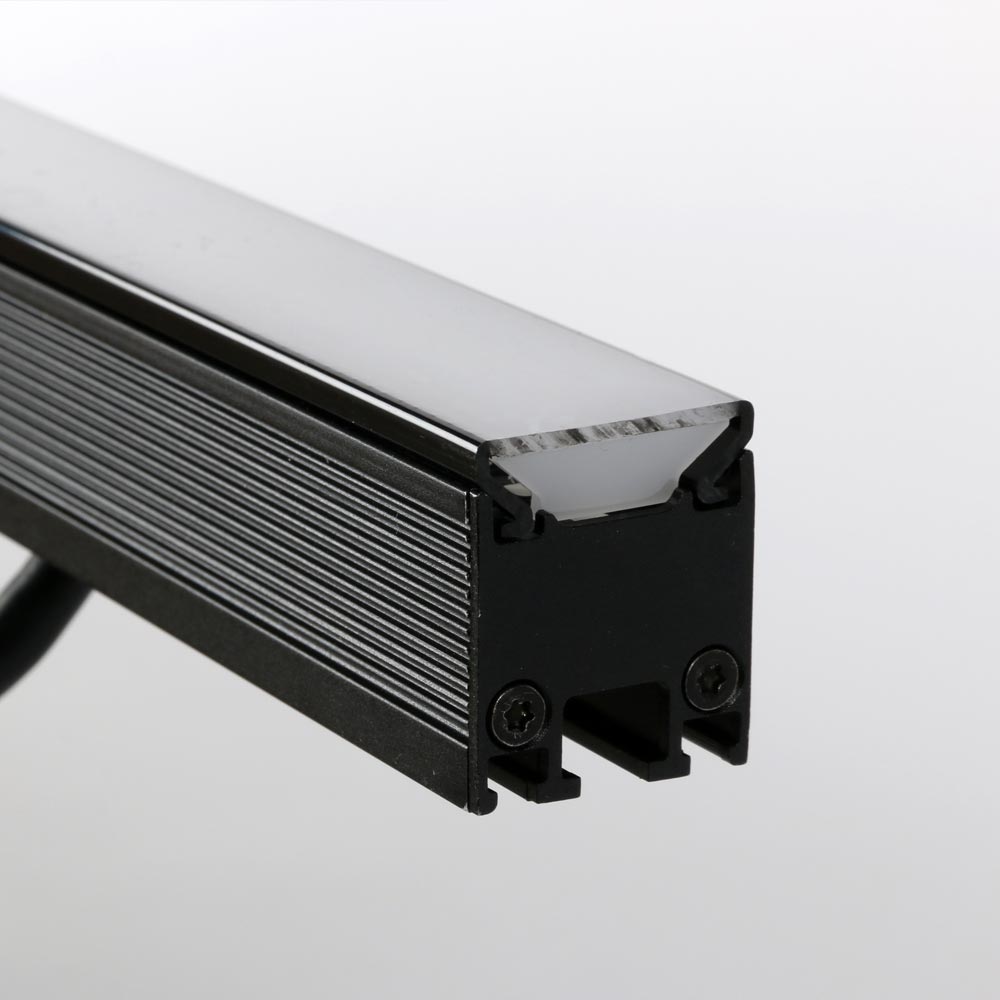

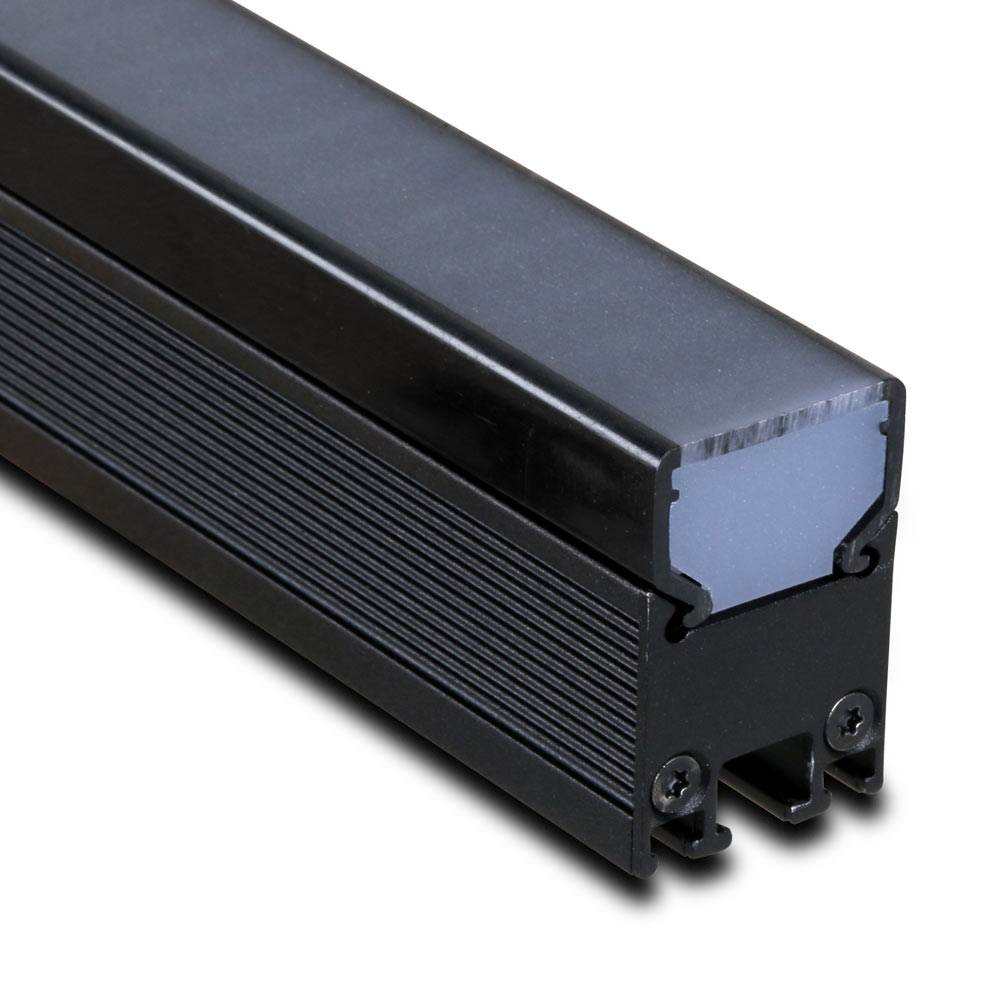

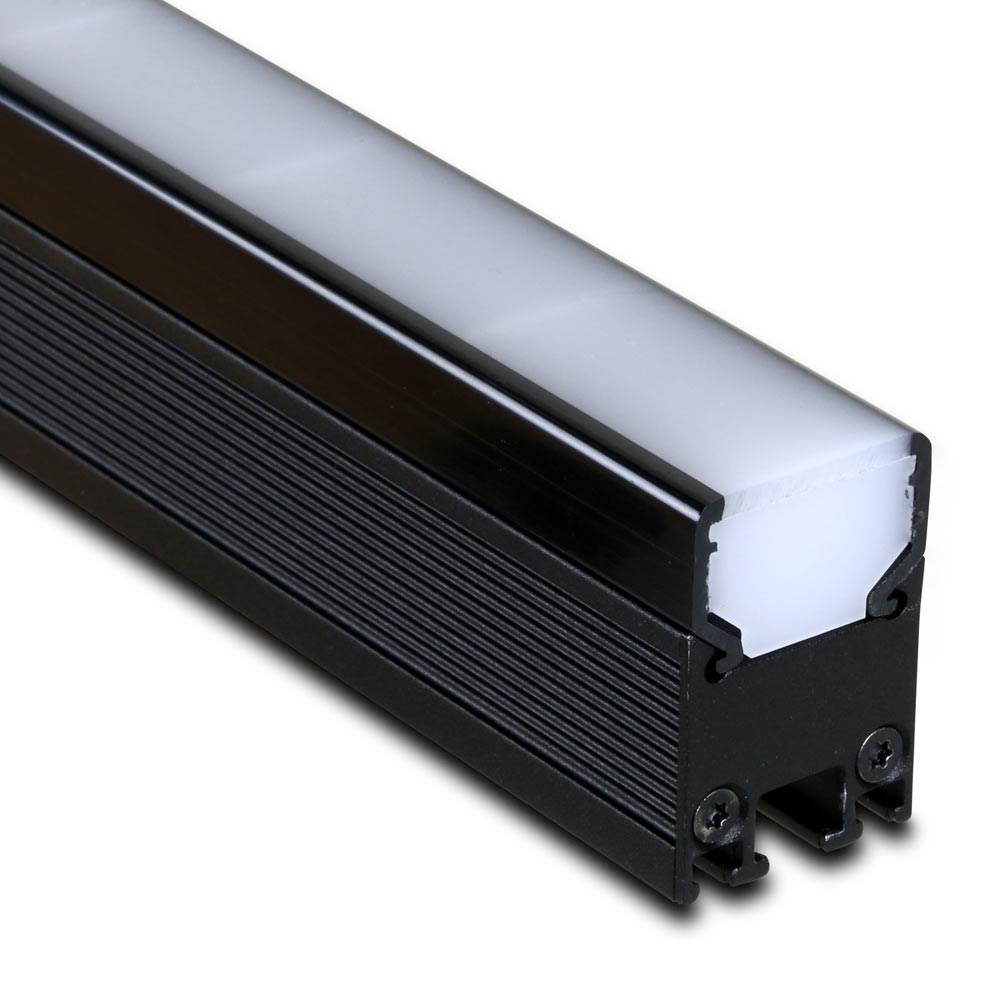

• Height with standard front (Square Diffuser): 42 mm (1.65 in.)
• Weight without front: 0.40 kg (0.9 lbs.)
• Weight with standard front (Square Diffuser): 0.50 kg (1.1 lbs.)

Electrical:

• Nominal input voltage: 48 VDC +/- 4%
• Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU
• Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 40, 320 mm: 2.5 W
• Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 40, 1000 mm: 7.5 W

Certifications / Qualifications:

• EU safety: EN 60950-1, EN 60950-22, EN 62471
• EU EMC: EN 55032, EN 55024
• US safety: UL 60950-1, UL 60950-22
• US EMC: FCC Part 15 Class A
• Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22
• Canadian EMC: ICES-003 Class A
• Australia/NZ: RCM
• India: BIS
