Sku: VOR100

Vortex

Regular price
$599.99
Regular price
Sale price
$599.99
Shipping calculated at checkout.
Vendor: Eliminator

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

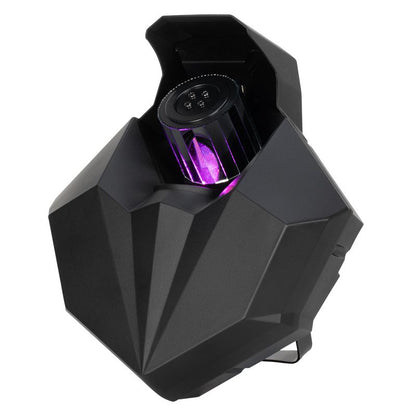

The Eliminator Vortex is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 5-degree beams of light powered by an 80W LED engine. It features 10 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.

The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degrees on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.

A great effect for those who love fast moving scanner, the Vortex is compact and lightweight, making it a great effect for venues with low ceilings or tight spaces, bars, lounges, roller rinks, jump parks and fun centers.



In the Box:

  • (1) Vortex
  • (1) Hanging Bracket
  • (1) Locking Power Cable

 Features:

  • Light Source: 80W White LED
  • Beam Angle: 5°
  • Dimming: Electronic
  • Strobe: 1-40Hz
  • Gobo/Color Wheel: 10 Color / Gobo combinations
  • Control Protocol: DMX & RDM
  • Operating Modes: DMX512, RDM, Sound and Show Mode
  • IP Grade: IP20

Tech Specs

Optics:

Light Source Type: White LED

Light Source Wattage: 80w

Minimum Beam Angle: 5.0°

Maximum Beam Angle: 5.0°

Control

DMX Channel Modes: 10 / 12

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: No

Physical:

Length: 12.3 in

Width: 11.11 in

Height: 6.2 in

Weight: 7.1 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 100w

Power Cable Connector - Fixture Side: PowerCON

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 1 Years
