4K HDMI 16x16 Matrix Switcher

The BZBGEAR BG-4K-1616MA 4K HDMI matrix switcher handles up to 16 inputs & outputs, whether you want multiple sources or a single source on all screens, with independent video and audio.

From the Manufacturer:

The BG-4K-1616MA 4K HDMI matrix switcher is designed to manage up to sixteen HDMI 2.0 inputs and sixteen HDMI 2.0 outputs, enabling the seamless distribution of multiple HDMI sources to various displays. Whether you need to switch between multiple sources or display a single source on all screens simultaneously, this matrix switcher offers the flexibility and control you need. Audio can also be independently routed. Experience professional-grade picture and audio quality with support for 4K resolutions and a wide range of high-quality audio formats.

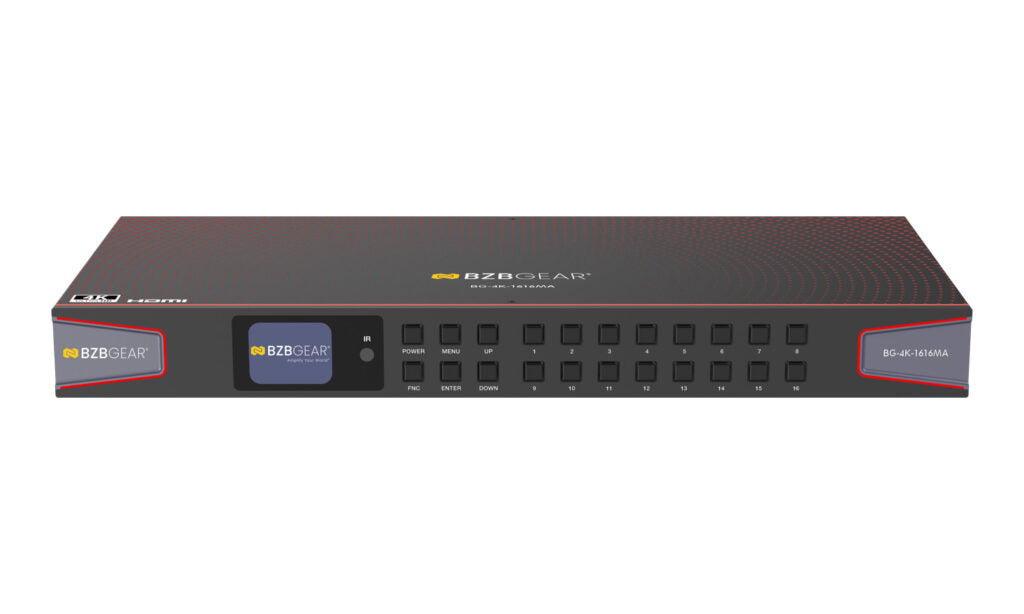

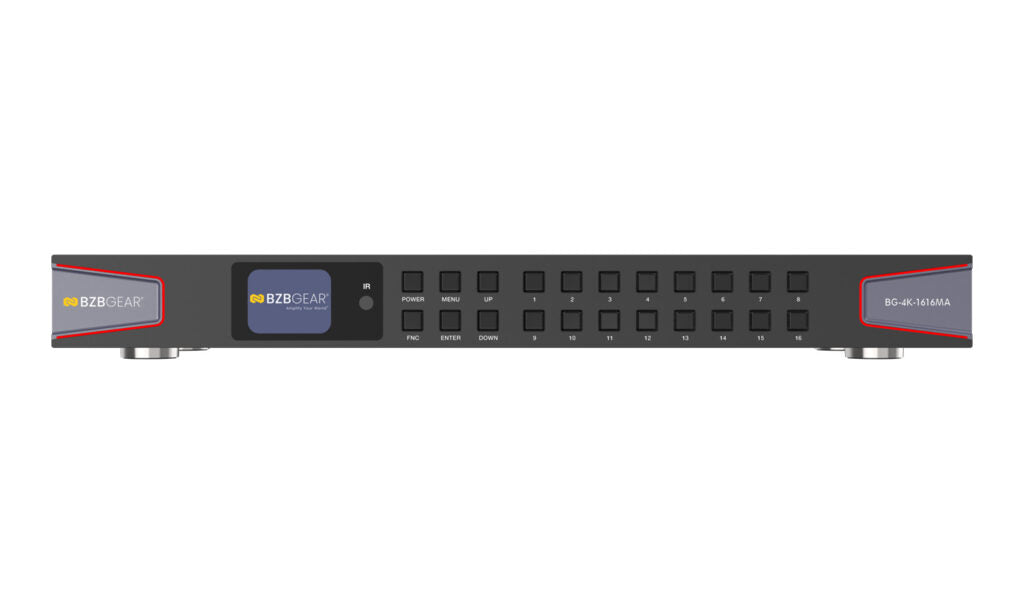

Enhanced Front Panel Control

The front panel of the BG-4K-1616MA is thoughtfully designed to blend cutting-edge functionality with contemporary aesthetics. Featuring a vibrant full-color LCD screen, it offers a crisp and detailed view of the system's menu. Navigation is both seamless and intuitive, enhanced by strategically placed backlit buttons conveniently located to the right of the display.

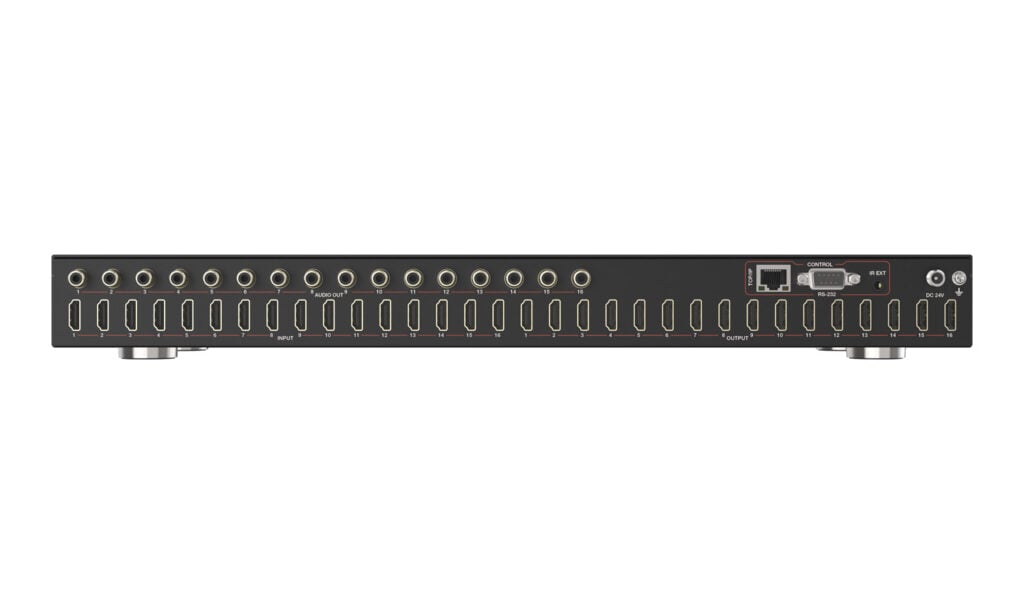

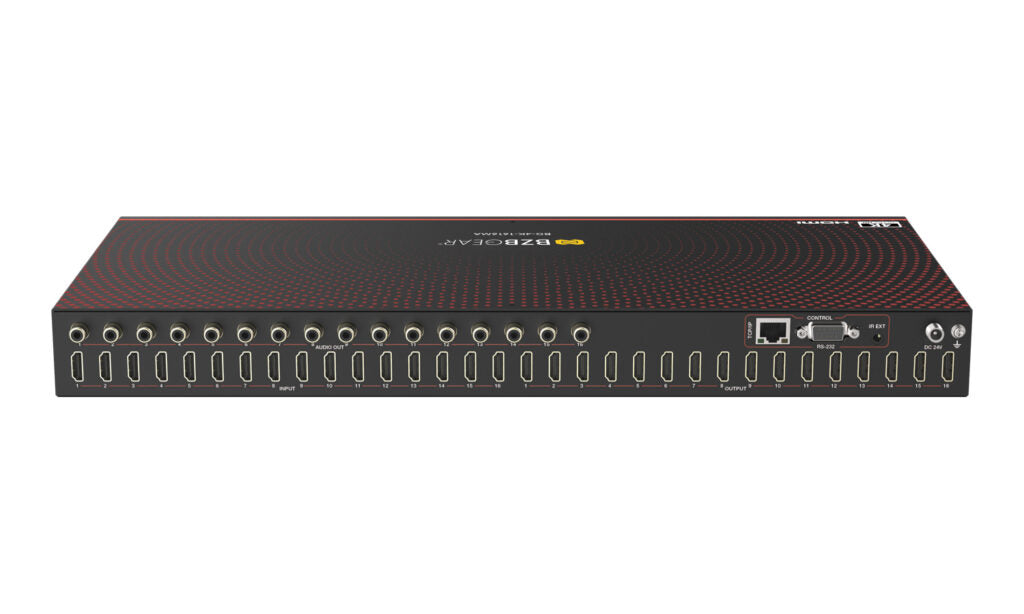

Intuitive HDMI Configuration

The back panel is equipped with 16 HDMI input ports and 16 HDMI output ports, all clearly labeled and numbered from 1 to 16 for easy identification. These HDMI ports are also readily accessible within the Web GUI and Control Software. Each port supports scalable resolutions, with a maximum capability of 4K60 4:4:4.

Streamlined Audio Support

The BG-4K-1616MA is equipped with 16 coaxial audio output ports, making audio connectivity straightforward and efficient. Each port allows for easy connections to audio output devices, such as amplifiers, using coaxial cables. The supported coaxial audio formats include LPCM 2.0, Dolby Digital, and DTS 5.1. Furthermore, HDMI audio pass-through supports a wide range of formats, including LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS.

Advanced Audio Matrixing

Our advanced audio matrixing feature offers unparalleled flexibility in routing and managing audio signals. With the ability to independently route and control each audio channel, you can tailor your setup to meet your exact requirements. This ensures seamless integration and optimal audio performance in any professional AV environment.

Features:

• HDCP Compliant: HDMI 2.0 (18Gbps) HDCP 2.2 (backward compatible with earlier versions)
• 4K Resolution: Supports up to 4K@60Hz 4:4:4 with HDR
• Audio Matrixing: The audio can be independently routed
• Control Options: Front panel, IR, RS-232, and TCP/IP (Web GUI) controls
• EDID management: Ensures seamless scaling for optimal display results
• HDR Support: HDR, HDR10, and Dolby Vision pass-through

Package Contents:

• 1x BG-4K-1616MA
• 1x 24V/3.75A Locking Power Adapter
• 1x AC Power Cord (1.5m)
• 1x IR Remote
• 1x 12V IR Wideband Receiver Cable (1.5m)
• 1x RS-232 Serial Cable (1.5m, male to female head)
• 4x 5-pin 3.81mm Phoenix Connectors
• 4x Machine Screws (KM3*4)
• 2x Mounting Ears
• 1x User Manual
