BreakIn Cable Power-DMX-Ethernet to PDE

A cable that merges Power, DMX and Ethernet into a single connector.

From the Manufacturer:

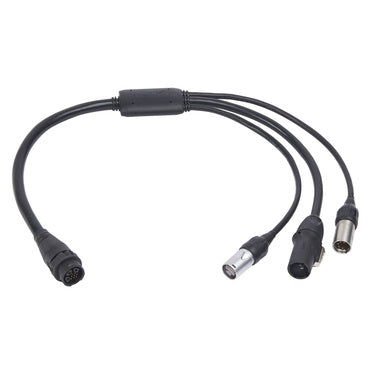

The Martin PDE BreakIn Cable merges Power, DMX & Ethernet signals into a single connector and cable system as used by the Martin VDO Atomic family of fixtures.

The cable is fully IP65 rated for outdoor use and features robust connectors.

Features:

• PowerCON TRUE1 TOP power input

• XLR 5 TOP DMX input

• EtherCON TOP Ethernet input

• Martin PDE Hybrid output

• IP65 rated

Specifications:

• Physical

• Length: 500 mm (19.7 in.)

• Weight: 325 g (0.52 lbs.)

• Construction

• Housing: PVC

• Color: Black

• Protection rating: IP65

• Cable Jacket: PVC

• Installation

• Location: indoor or temporary outdoor use

• Orientation: Any

• Connections

• AC power input: Neutrik powerCON TRUE1 TOP (IP65)

• Ethernet Input: Neutrik etherCON TOP (IP65)

• DMX input: Neutrik XLR 5-pin Male TOP (IP65)

• AC Power, DMX and Network out: PDE hybrid connector (IP65)

• All connections hot plugging compatible

• Electrical

• AC power: 100-240V AC nominal, 50/60Hz

• Thermal

• Maximum ambient temperature (Ta max.): 75° C

• Minimum ambient temperature (Ta min.): -15° C

• Environmental

• RoHS: Compliant

• REACH: Compliant
