Sku:
CONTROL 24C MICRO
CONTROL 24C MICRO
Regular price
$95.00
Regular price
Sale price
$95.00
Unit price
per
Shipping calculated at checkout.
Vendor: JBL
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

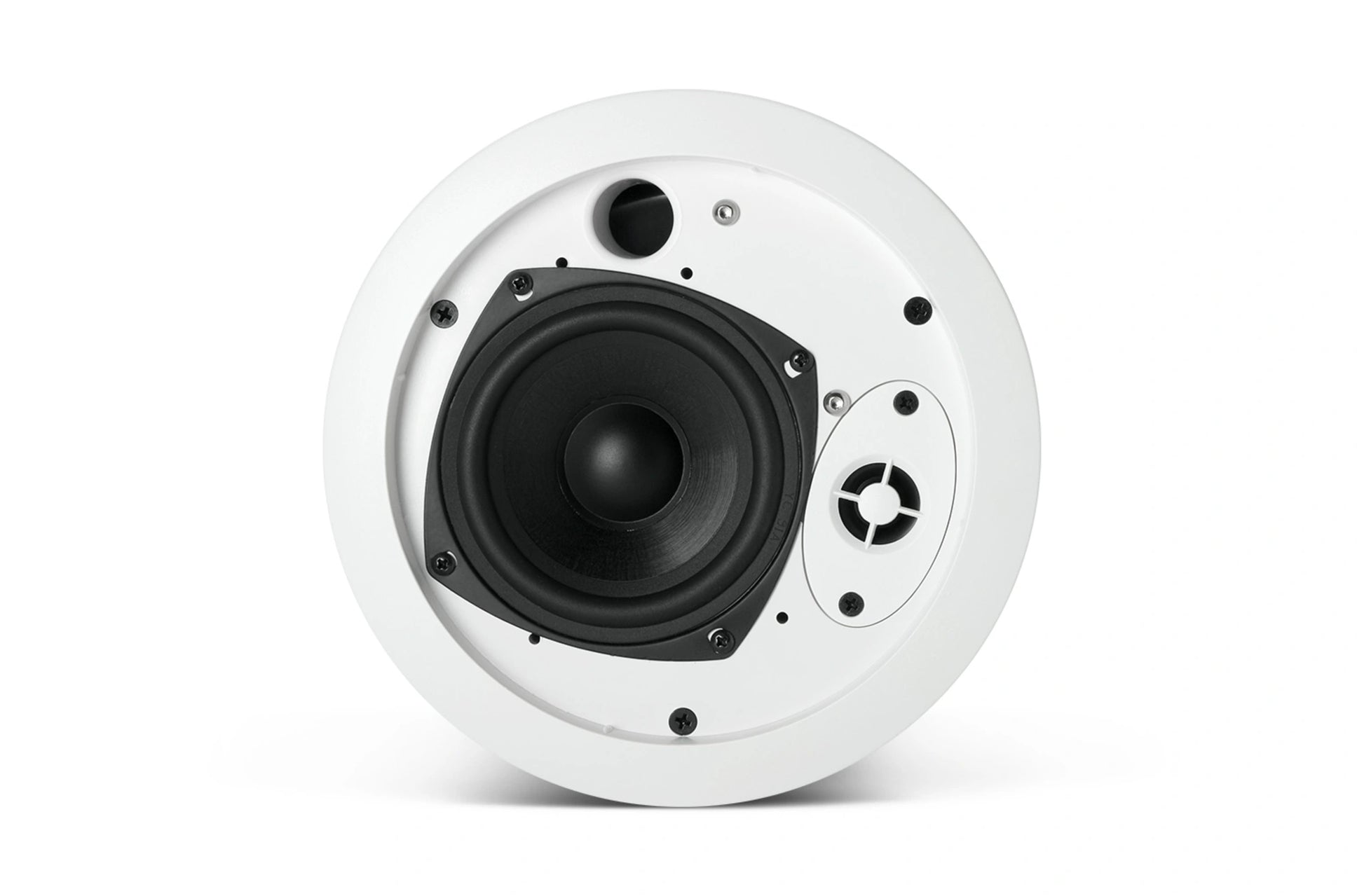

The JBL Control 24C Micro compact in-ceiling speaker is perfect for background music and music-plus-paging systems.
From the Manufacturer:
The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
Features:
- Extremely wide 150°coverage.
- Smooth frequency response.
- Components:
- 4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround.
- .5 in (12 mm) polycarbonate tweeter for extended response.
- Control 24C Micro is 8 ohms and handles 15 W.
- Shallow 4 in (100 mm) depth.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Specifications:
- Frequency Range: 85 Hz - 25 kHz
- Power Rating:
- IEC System Long-Term Ratings (low-Z direct):
- 30 Watts Continuous Program Power
- 15 Watts Continuous Pink Noise (60W peak), 100 hrs
- IEC System Long-Term Ratings (low-Z direct):
- Sensitivity: 86 dB (100 Hz - 10 kHz)
- Crossover Frequency: 3.5 kHz
- Maximum SPL (1m): 98 dB (104 dB peak)
- Coverage Angle: 150° conical
- Impedance: 7.1 ohms
- Input Connectors: Screw-down terminals.
- Drivers:
- LF Driver: 115 mm (4.5 in)
- HF Driver: 12 mm (0.5 in)
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (included "blind-mount")
- Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O
- Ceiling Cutout Size: 167 mm (6.6 in) diameter (cardboard cutout template included)
- Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
- Optional Accessories: MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
- Plenum Usage: Yes, backcan included
Tech Specs
View full details
