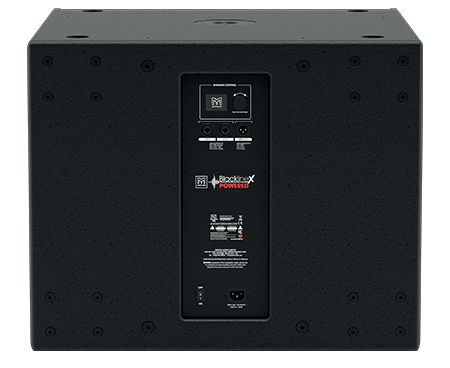

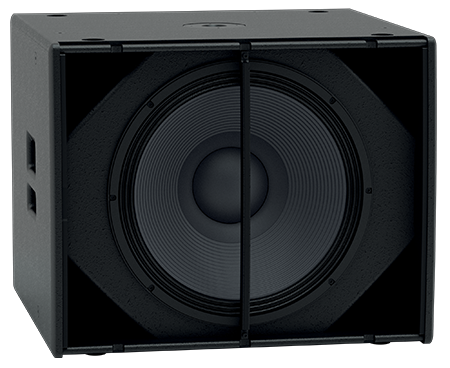

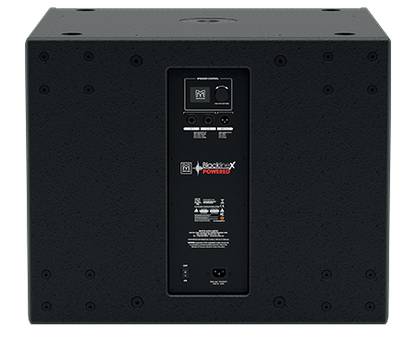

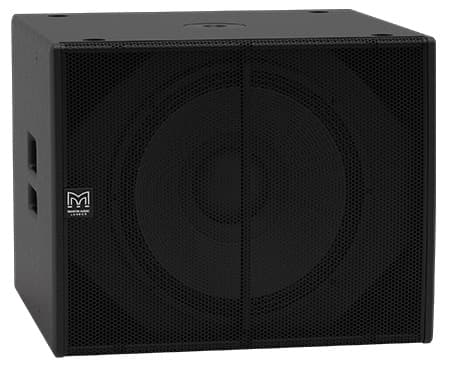

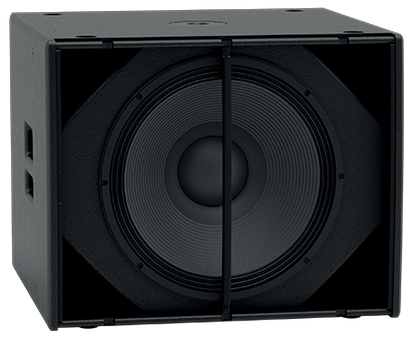

Backline XP118 1x18" Active Subwoofer

The XP118 is a high quality subwoofer  for use with BlacklineXP loudspeaker. It is a great option for medium sized installs or temporary events.

From the Manufacturer:

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets.

Features:

• Compact, self-powered subwoofer

• 1 x 18” (460mm) driver with 4” (100mm) voice coil

• 2000W of Class D amplification

• Global power supply with PFC (Power Factor Correction)

• Onboard DSP with rotary control interface

• Multi-function display for metering, control and function selection • Peak and RMS limiters

• Bluetooth® control and streaming option

• Durable plywood enclosure

• Screw-free, perforated steel grille

• Integral ergonomic handles

• 35mm pole-mount socket

Applications:

• Portable Sound Reinforcement

• Live Music Clubs

• Nightclubs, Bars and Restaurants

• Corporate AV

• Hotels and Casinos

• Mobile DJ’s

• Weddings and Parties

• HoW Installations

• Rehearsal Studios

Specifications:

• Type

• Compact, Self-powered Subwoofer

• Frequency Response

• 42Hz –150Hz ±3dB

• -10dB @ 38Hz

• Driver

• 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet

• Maximum SPL

• 131dB continuous, 137dB peak (half space)

• Dispersion (-6dB)

• Omnidirectional

• Crossover

• 100Hz, active

• Input Connectors

• 2 x female XLR/ 1⁄4” jack combo

• Mic/Line Input Impedance

• 8 kΩ balanced

• 1⁄4” Jack TS Input Impedance

• 1 MΩ unbalanced

• Mix Output Connector

• 1 x male XLR

• Mix Output Impedance

• 600Ω balanced

• Input channel EQ

• 3 band

• Speaker EQ

• 4 presets, including cardioid mode

• Protection

• Peak and RMS limiting, amplifier thermal protection

• Type

• Class D, Bridged Tied

• Peak Output Power

• 2000W total

• Average Efficiency

• 89%

• Cooling

• Convection

• Maximum Ambient Temperature

• 35°C (95°F) for full output

• Type

• Switch-mode, fixed frequency with PFC

• AC Input Operating Range

• 100 – 240V ~ AC, 50 - 60Hz

• Power Factor

• > 0.98

• Nominal Power Consumption

• 1000W Max

• Mains Connector

• 3-pin IEC

• Enclosure

• Birch/poplar ply

• Finish

• Black textured paint

• Protective Gille

• Black perforated steel

• Fittings

• 16 x M10 inserts, pole-mount socket

• 2 x bar handles, provision for castors

• Dimensions

• (W) 662mm x (H) 536mm x (D) 640mm

• (W) 26.1in x (H) 21.1in x (D) 25.2in

• Weight

• 44kg (97lbs)
