Sku:
BG-4KSH

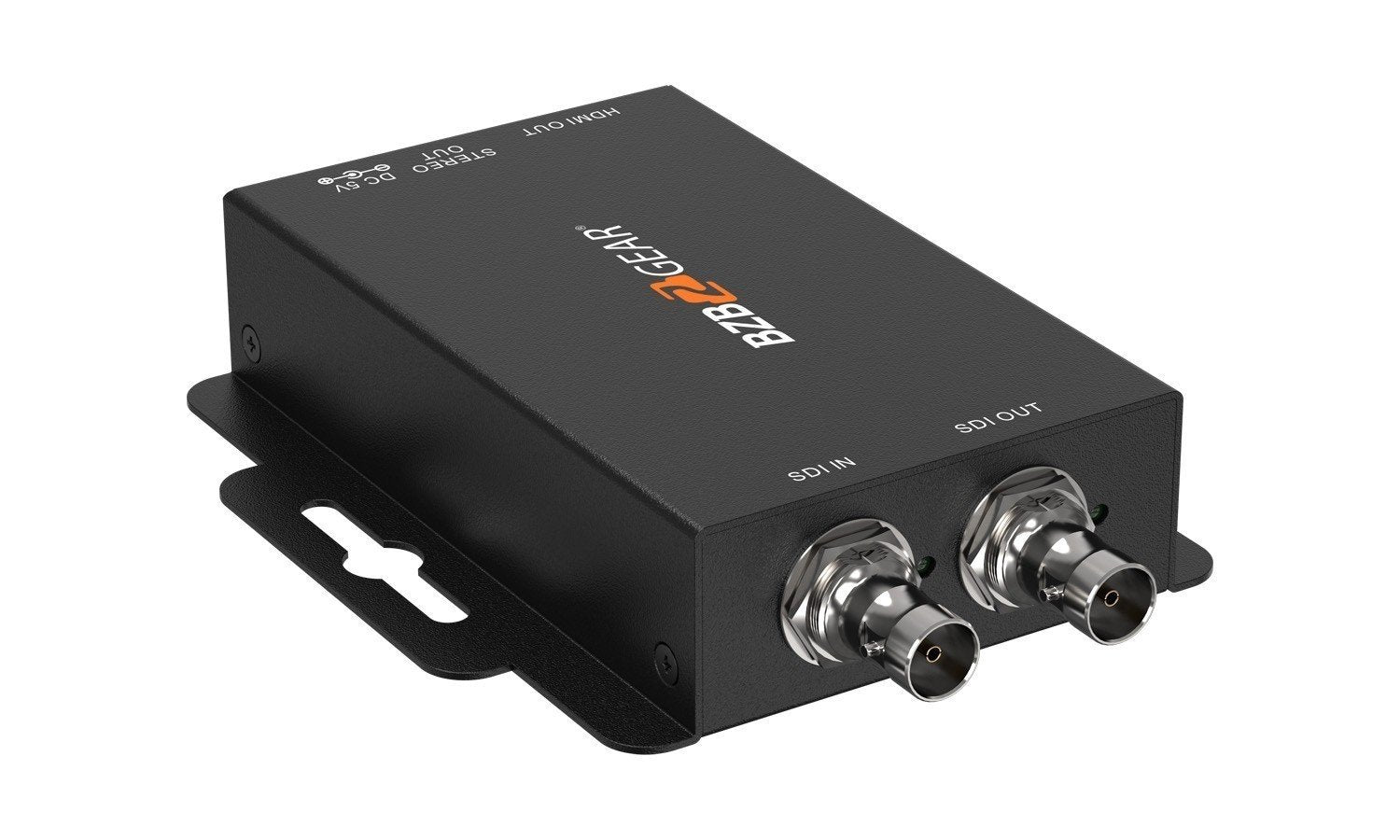

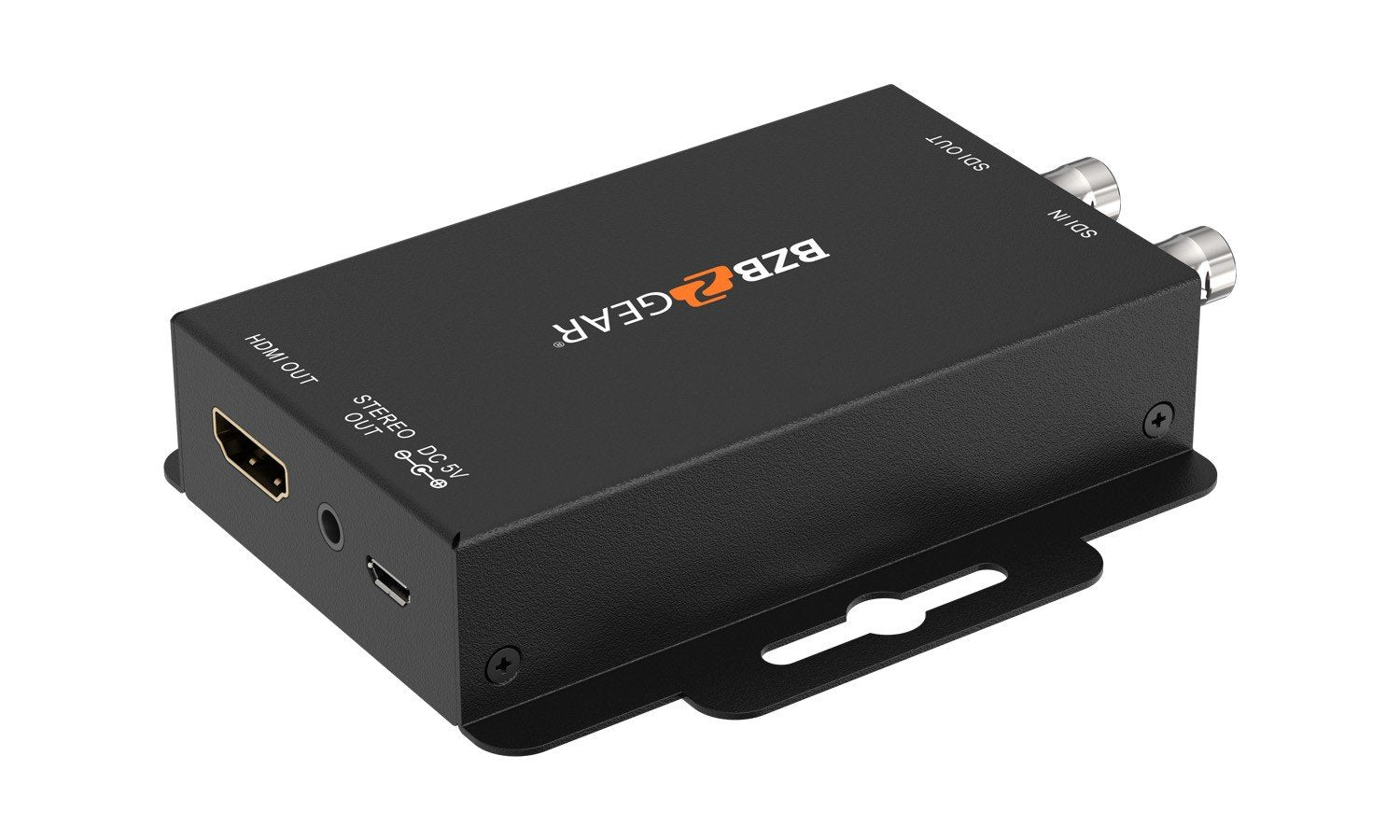

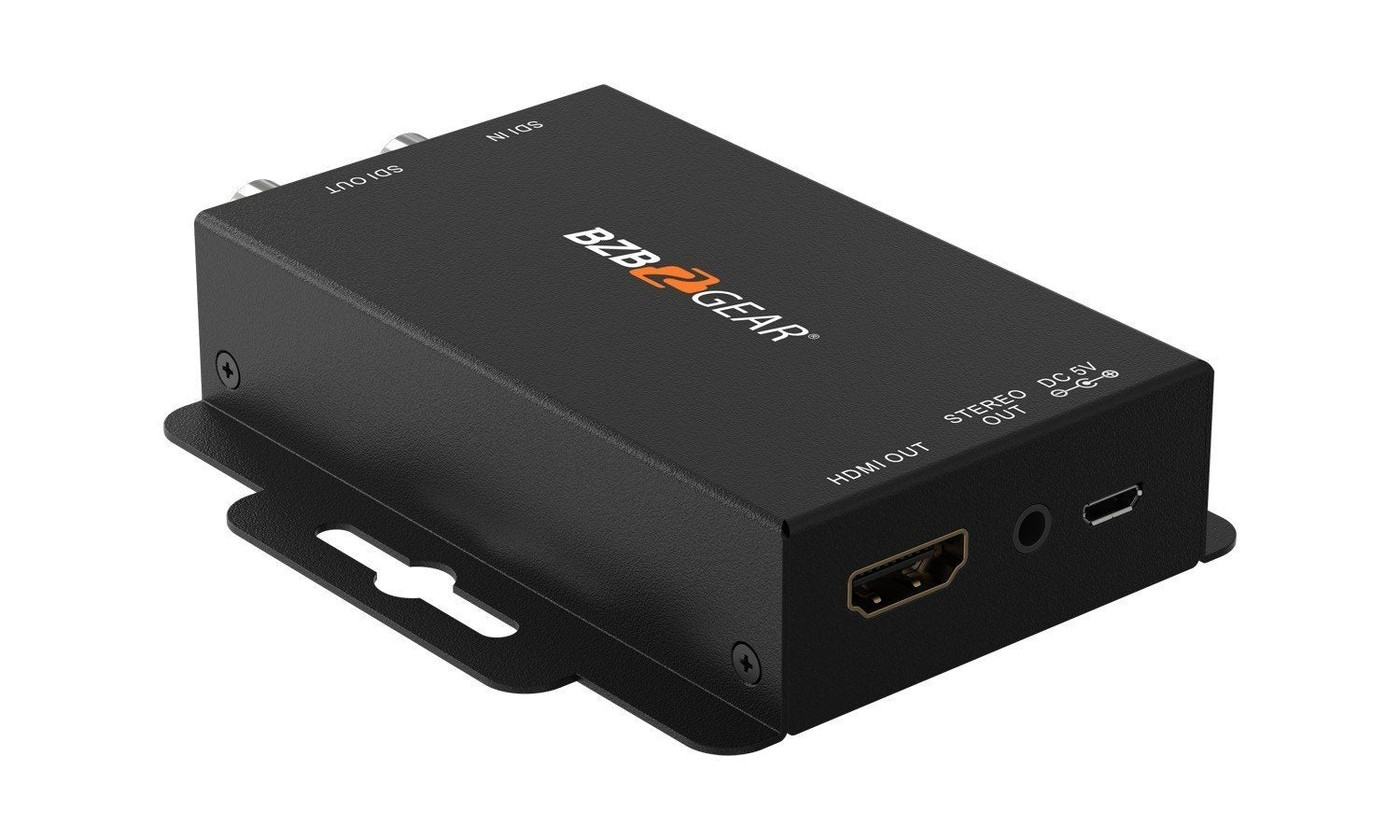

4KSH: 4K 12G-SDI to HDMI Converter with Audio Extraction
Regular price
$1,599.00
Regular price
Sale price
$1,599.00
Unit price
per
Shipping calculated at checkout.
Vendor: BZBGEAR
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The BZBGEAR BG-4KSH is a 12G/6G/3G/HD-SDI to HDMI 2.0 converter with audio extraction, for professional signal conversion.
From the Manufacturer:

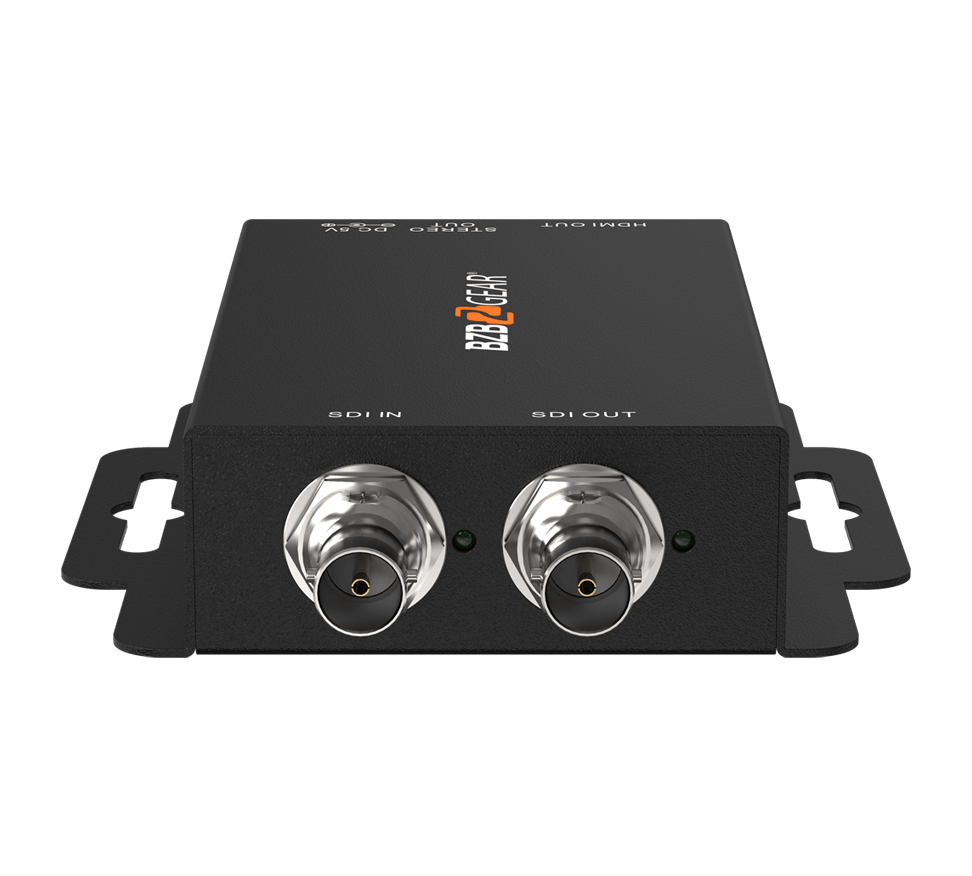

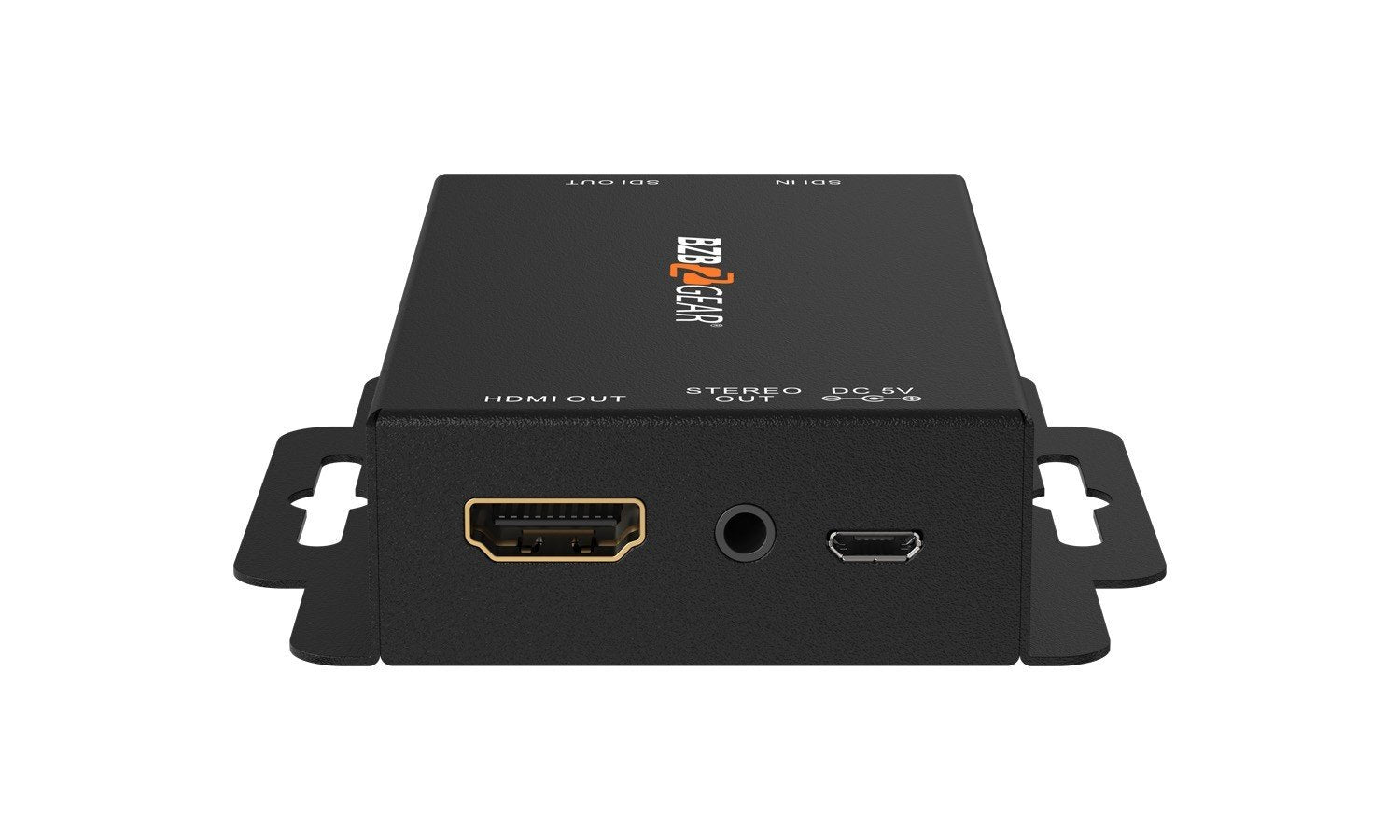

The BZBGEAR BG-4KSH is a 12G/6G/3G/HD-SDI to HDMI 2.0 converter with audio extraction. The SDI signal is digitally converted into HDMI, guaranteeing lossless conversion for both audio and video. Featuring up to 8 channels of audio, the BG-4KSH is compatible with 7.1 or 5.1 surround sound systems. The 3.5mm analog stereo output, SDI input, SDI loop-out, and HDMI output provides users convenient flexibility. With these robust features, the BG-4KSH can take SDI signals from professional or commercial AV equipment and effortlessly convert it to HDMI without compression for use of popular consumer-grade video interfaces.
Features:
- Crystal Clear Images: Stunning image quality up to 4K@60Hz
- HDMI Output: Convert SDI to HDMI the most popular video interface in the world
- SDI Loop-out: Loop out to view content locally at device
- Audio De-embedding: De-embed audio using a 3.5mm Stereo Mini input
- Status LEDs: See signal and power status at a glance with built in status lights

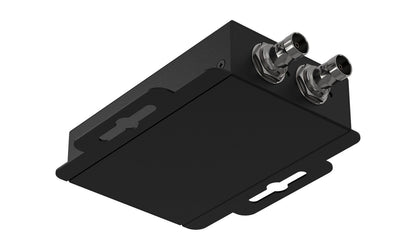

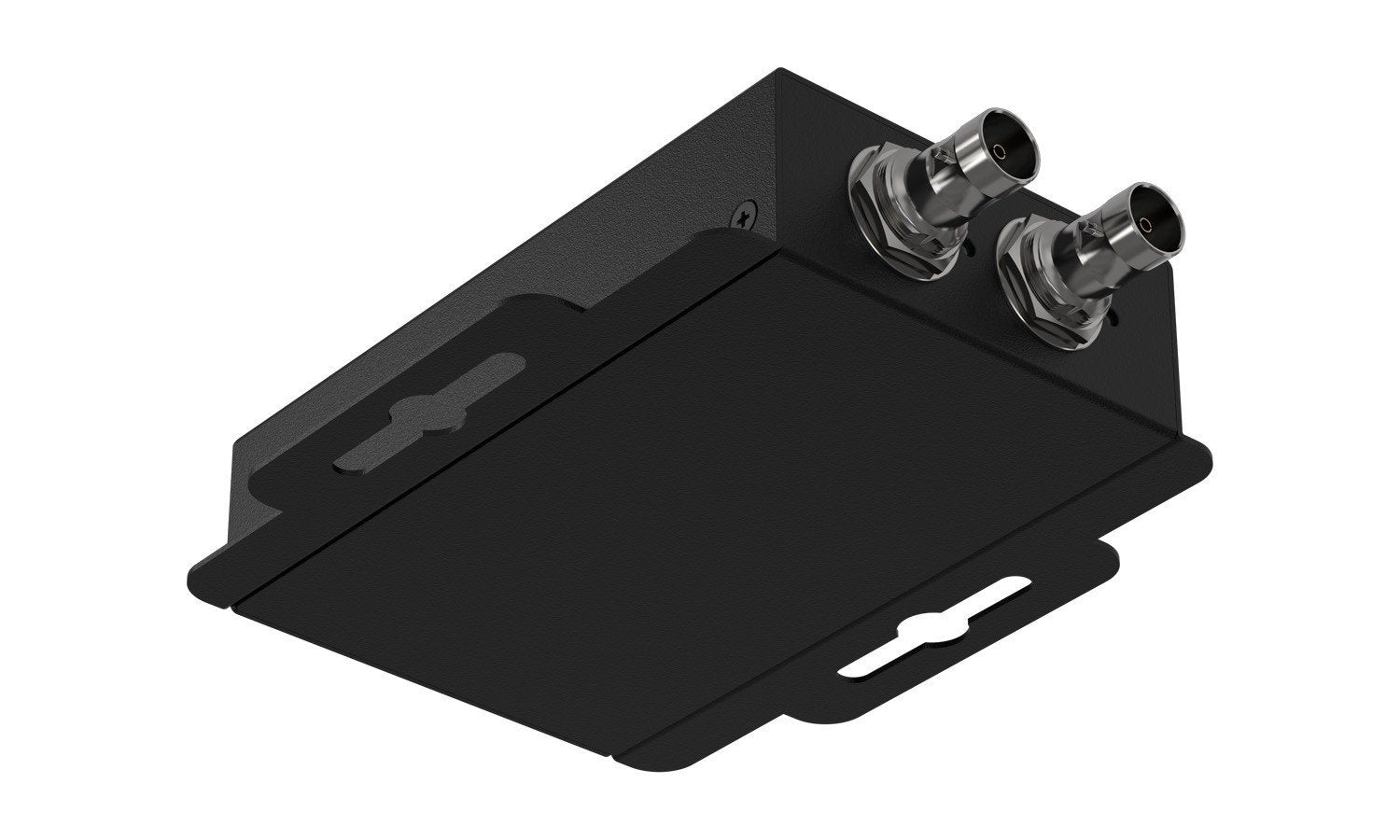

- Durable Metal Enclosure: Designed for years of reliable use
- 7.1 or 5.1 channel surround
- Convert signal from professional/commercial grade AV equipment to a more common interface
- Digital conversion of signal ensures lossless transformation for audio and video
Specifications:
- HDMI Compliance: 2.0
- SDI Formats:
- SMPTE 2082; 11.88 Gbps / 12G-SDI: 2160p at 50/59.95/60 Hz
- SMPTE 2081; 5.94 Gbps / 6G-SDI: 2160p at 25/29.97/30 Hz
- SMPTE 424M-2.97 Gbps / 3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2)
- SMPTE 274M-1.485 Gbps / HD-SDI: 1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz
- SMPTE 292M-1.485 Gbps / HD-SDI: 1080i at 30 Hz, 720p at 60 Hz
- SMPTE 296M-1.485 Gbps / HD-SDI: 720p at 23.98/24/25/29.97/30/50/59.94/60 Hz
- HDMI Formats: 4K UHD Video Standards / 2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
- UHD Video Standards / 1080p at 50/59.94/60 Hz (4:2:2)
- HD Video Standards / 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
- SDI Bitrate: 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps
- Video Sampling: 4:2:2
- Audio Sampling: 48 kHz & 24 bit
- Auto Switching: Auto switching between SD / HD / 3G / 6G / 12G-SDI
- Cable Reach:
- 12G-SDI up to 70m (233ft)
- 6G-SDI up to 100m (330ft)
- 3G-SDI up to 190m (627ft)
- HD-SDI up to 250m (825ft)
- Eye-patten Measurements:
- Amplitude: within 800mV
- Raise & Fall time: 45ps
- Alignment jitter: <0.3 (100kHz to 1188MHz)
- ESD Protection:
- 8 KV - Contact Discharge
- 15 KV - Air Discharge
- Housing Design: Metal

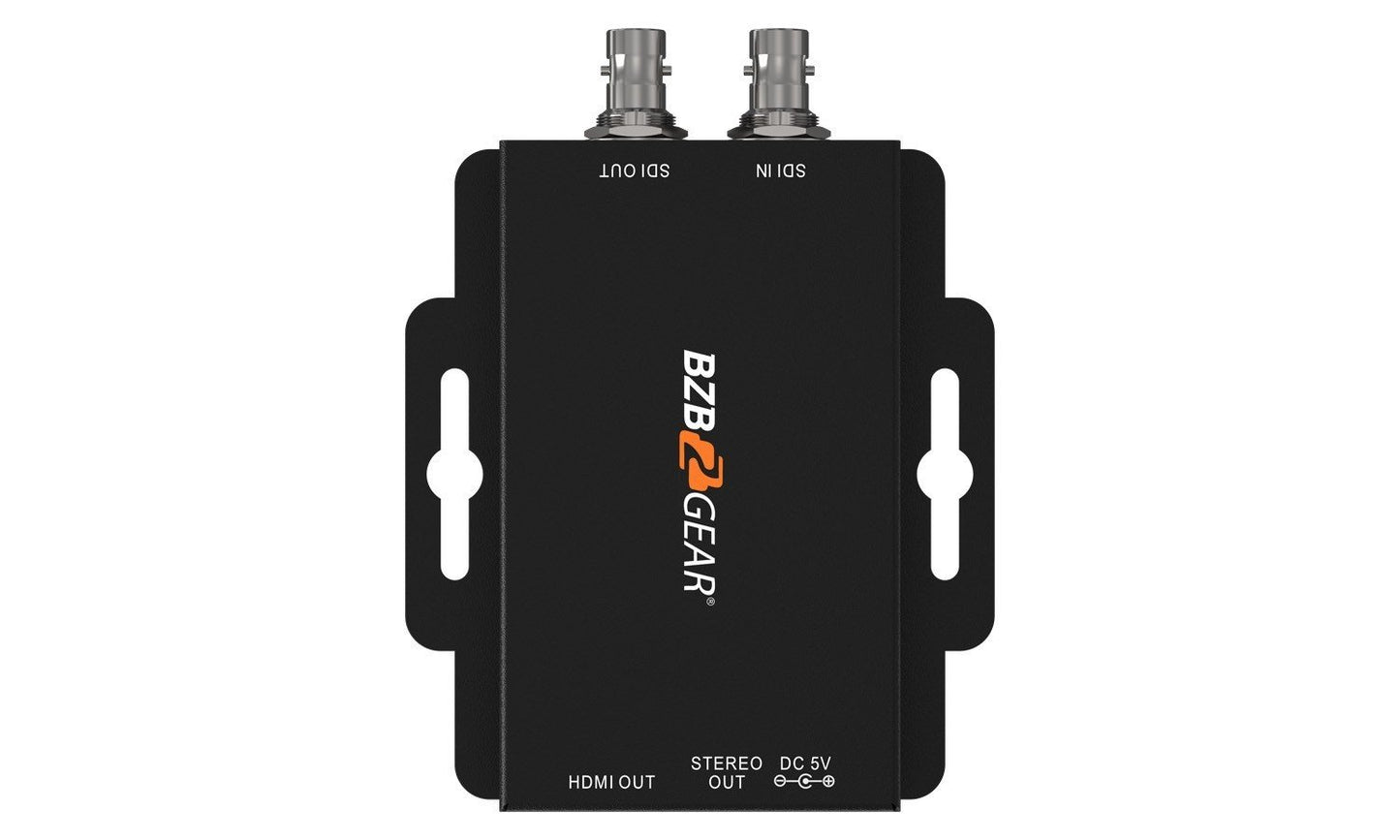

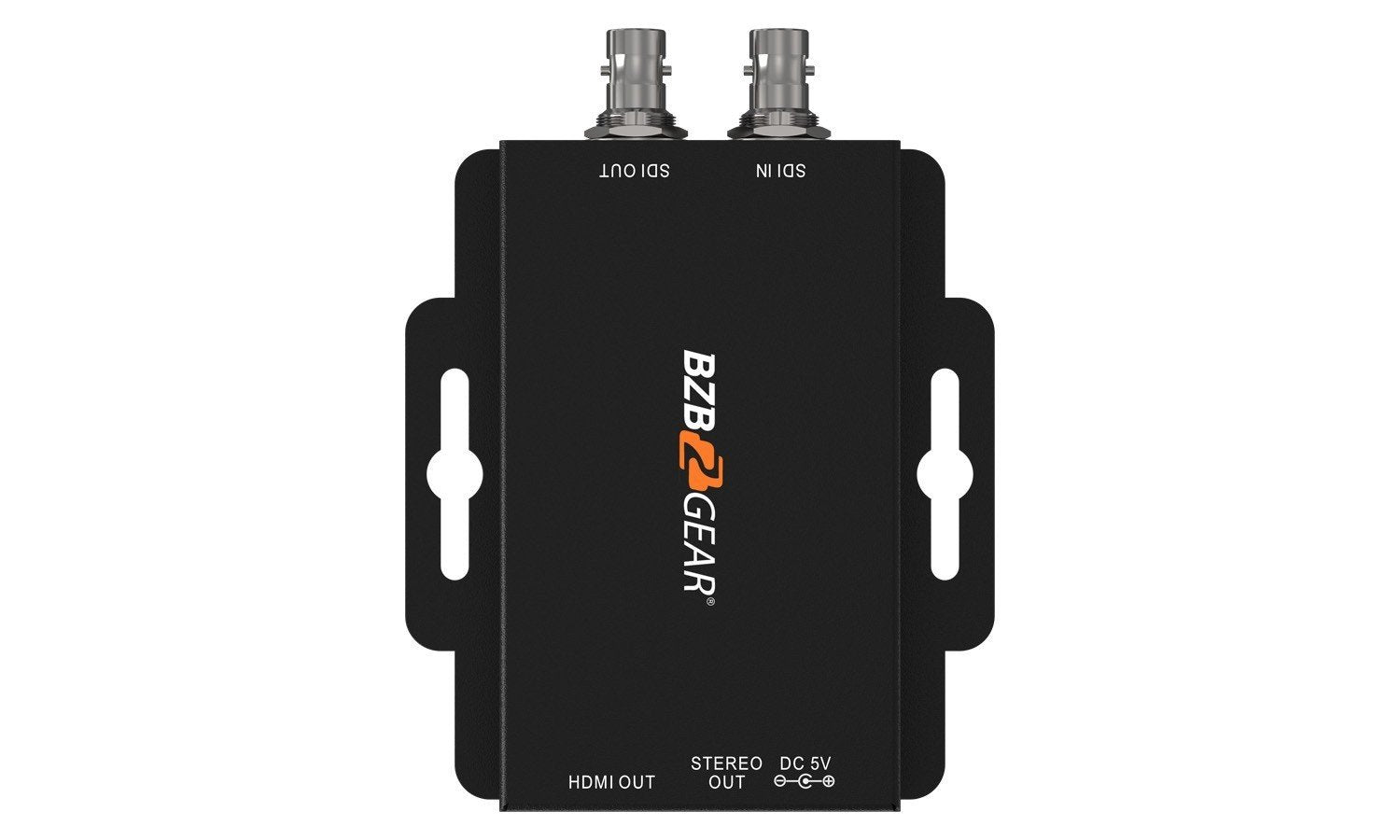

- Casing Style: Wall Mountable
- Power Connection: Micro-USB Port
- Power Supply: 5V DC, 1A
- Power Consumption: 2.5 Watts (Max.)
- Operating Humidity: 20-90% RH (no condensation)
- Operation temperature: 32~104°F / 0~40°C
- Product Weight: 0.39 lb (175g)
- Package Weight: 0.86 lb (390g)
- Certifications: CE, FCC, RoHS
