Sku: VX600

NovaStar VX600 Processor

Regular price
$1,499.00
Regular price
Sale price
$1,499.00
Shipping calculated at checkout.
Vendor: DVS LED

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

The Novastar VX600 is a complete processor with switching/scaling and loading of up to 2.3 million pixels.  It includes auto-fit functionality as well as a variety of useful inputs including SDI.

From the Manufacturer:

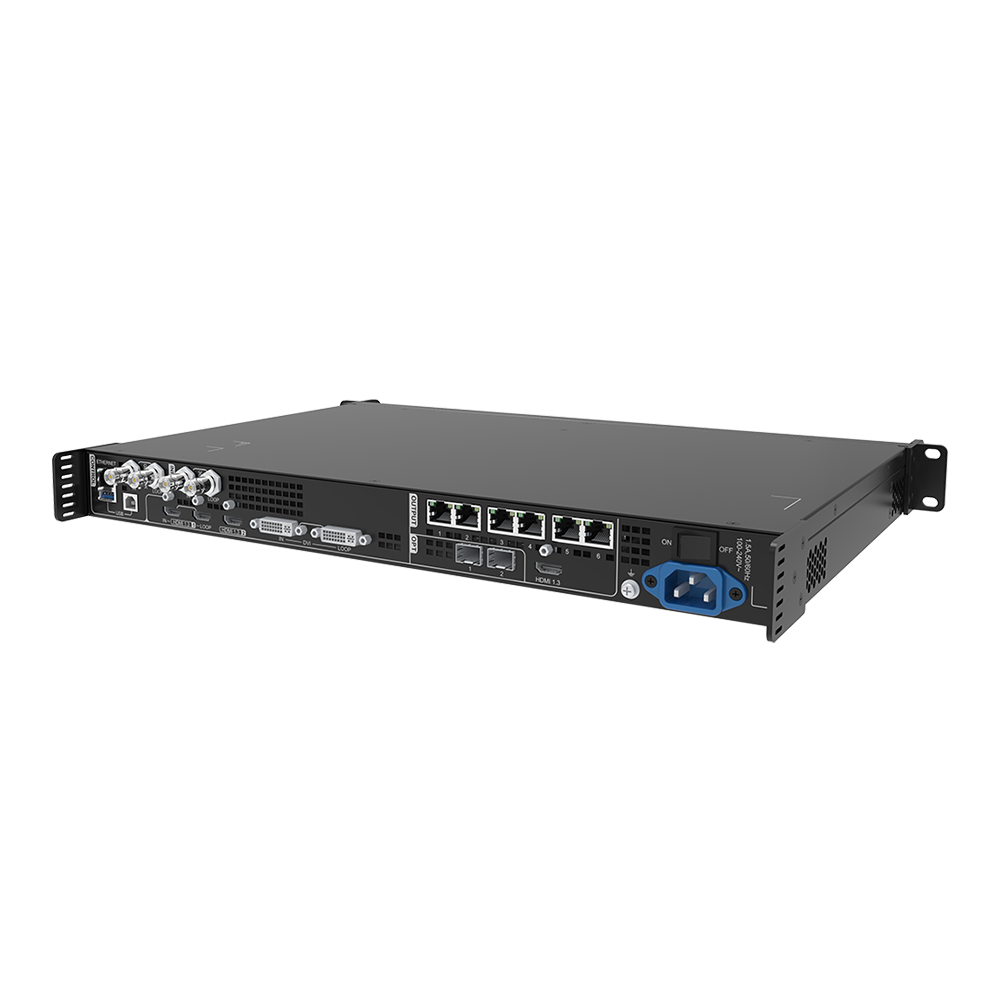

The VX600 is NovaStar’s all-in-one controller that integrates video processing and video control into a single. It features 6 Ethernet ports and supports video controller, fiber converter, and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience. Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Key Features:

  • Inputs :2x HDMI; 2x DVI + Loop, 1x 3G SDI + Loop, 1x 10G Opt
  • Outputs:Ethernet port × 6; 2x 10G OPT
  • Loading Capacity:3.9 million pixels
  • Scaling: Auto-Fit to Size
  • Low-Latency: Supported
  • No. of Layers: 3
  • Video Monitor: HDMI 1.3
  • Communication Mode: USB/LAN
  • Image Mosaic: Supported
  • Crop Settings: Supported
  • PIP: Supported
  • Power: Locking IEC In

If you haven't purchased an LED wall before, please request a quote after adding items to cart to ensure you build a complete system.

In the Box:

  • 1 x IEC Power Cable
  • 1 x HDMI to DVI Cable
  • 1 x USB Cable
  • 1 x Ethernet Cable
  • 1 x HDMI Cable
  • 1 x Quick Start Guide
  • 1 x Certificate of Approval
  • 1 x Safety Manual

Specifications:

  • # of outputs: 6
  • Scaler options: Auto-Fit and Manual Scaling
  • Video Input Types: SDI, HDMI, DVI, Optical
  • Video Output Types: HDMI
  • Rack Space: 1
  • Genlock: Yes

Control:

  • Control Protocol: Novastar
  • Max Supported Resolution: 1920x1080
  • Max. width: 3840 (3840×648@60Hz)
  • Max. height: 2784 (800×2784@60Hz)
  • Forced inputs supported: 600×3840@60Hz
  • Max Supported LEDs: 3.9 million

    Power:

    • Input Voltage: 100-240v




      Tech Specs

      Physical:

      Length: 11.76 in

      Width: 19 in

      Height: 1.72 in

      Weight: 8.82 lb

      Electrical

      Voltage Range: 100-240v

      Maximum Wattage: 35w

      Power Cable Connector - Fixture Side: Locking IEC

      Main Power Connector on Included Cable: Edison

      Warranty

      Warranty: 1 Year
