STUDIO SERVER

From the Manufacturer:

The ArKaos Studio Server is a powerful system designed for Professional Lighting Designers

Details:

• Smart Design

• Runs full HD video on up to four EDID managed outputs

• One HD-SDI input and fast SSD drive

• Large LED status strip for quick visual feedback on the server’s operation state

• Front display allows use of server without the need of additional screens

• Fast recovery system by Acronis allows extremely simple reset from the boot menu

• Pre-configured to work directly with all market-leading DMX lighting desks

• Blistering Performance

• Shock-resistant up to 2G

• Easy access to fans and filters

• Thoroughly tested in structural strength, and toleration of heat and vibration

Features:

• Plug and Play Simplicity

• Vast library of high quality digital media from world’s best visual content providers

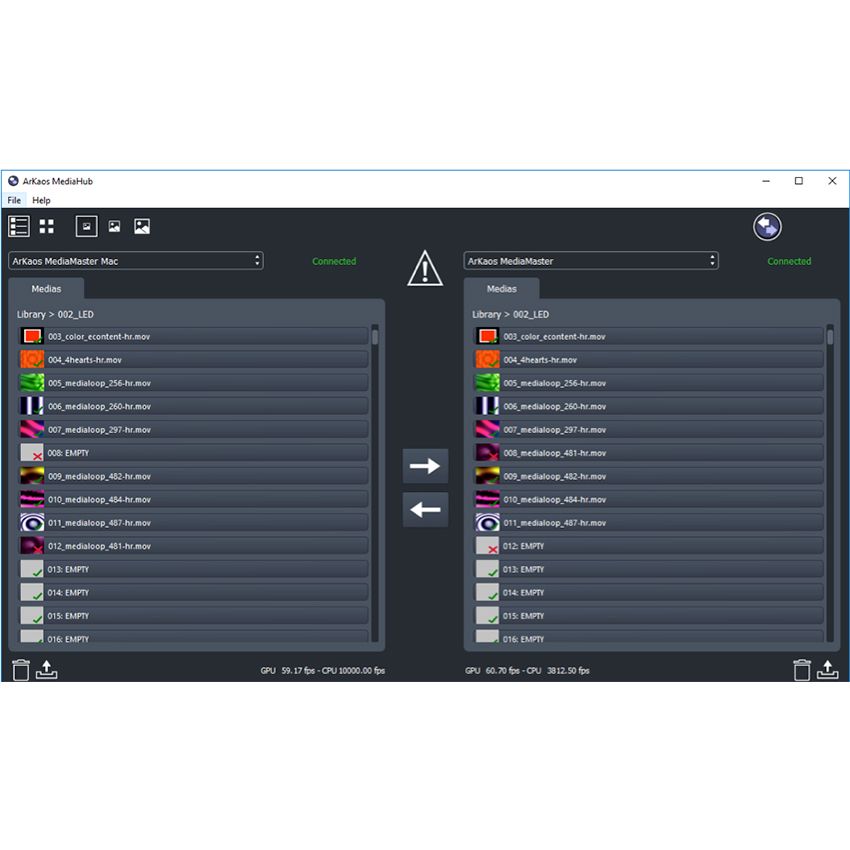

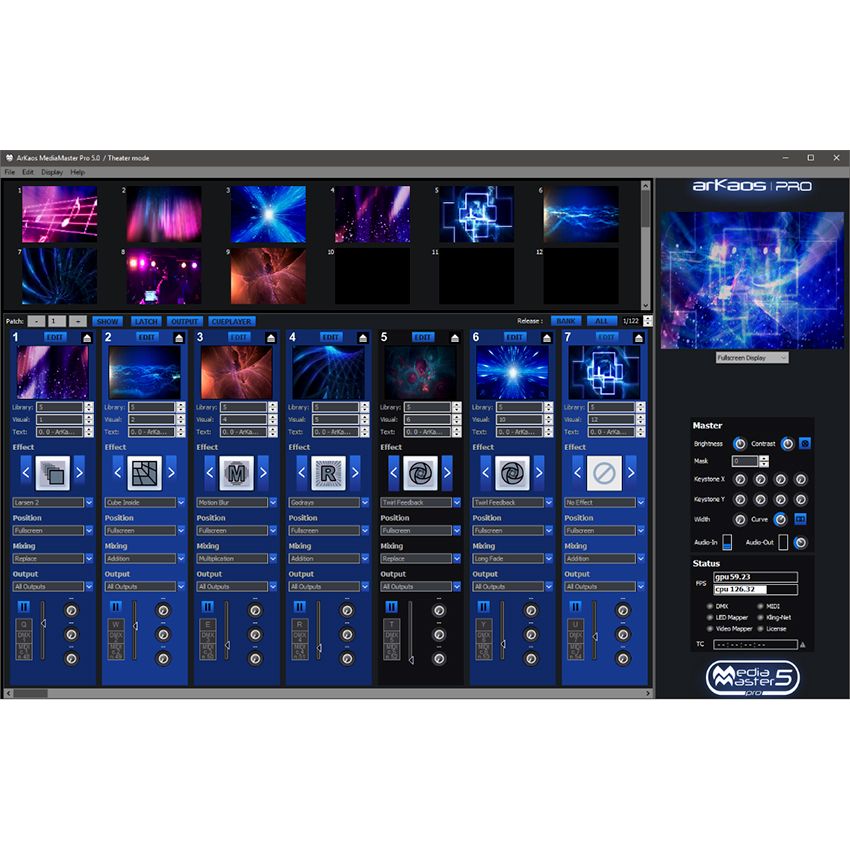

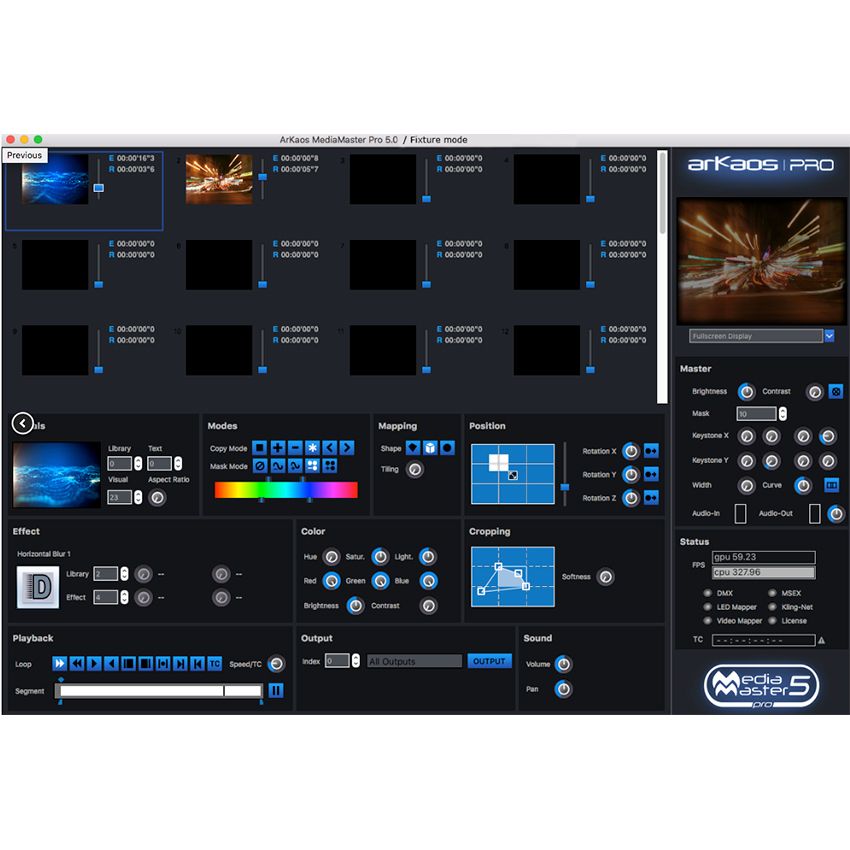

• Comes installed with MediaMaster Pro

Specifications:

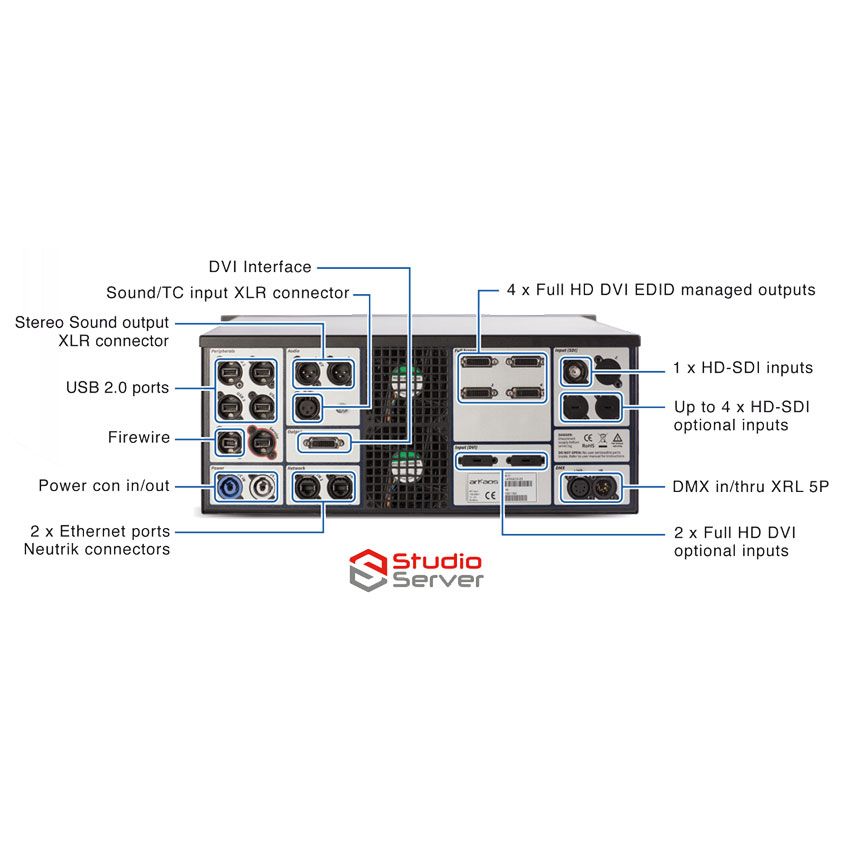

• Input/Output

• Interface Output: 1 (DVI)

• Output: 4 (DVI)

• EDID Management: Yes

• Input (Standard): 1x HD-SDI

• Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI

• Output Resolution: 4 x Full HD

• DMX 5pin Connectors: Yes

• Genlock: No

• Framelock: No

• USB: 2 x USB 3.0 + 4 x USB 2

• Balanced Audio In/Out (XLR): Yes

• Network: 2

• Storage

• System Drive: SSD 128 GB

• Separate Drive: SSD 256 GB

• Software

• MediaMaster: Pro

• CuePlayer (Theater mode): Yes

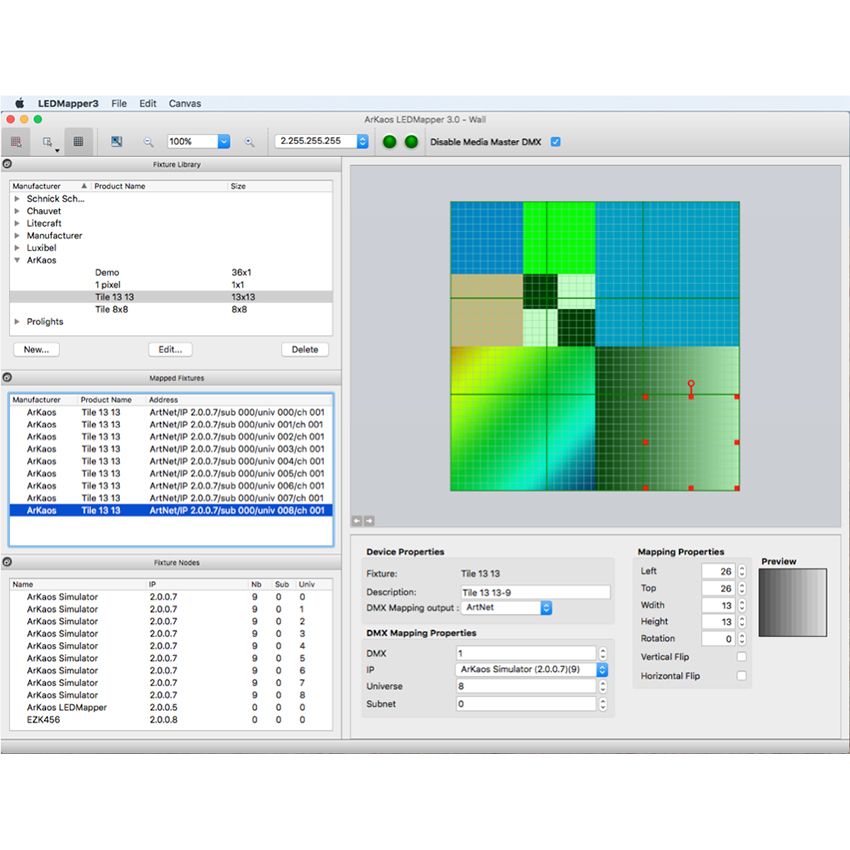

• LED Mapper: Yes

• Kling-Net Mapper: Yes

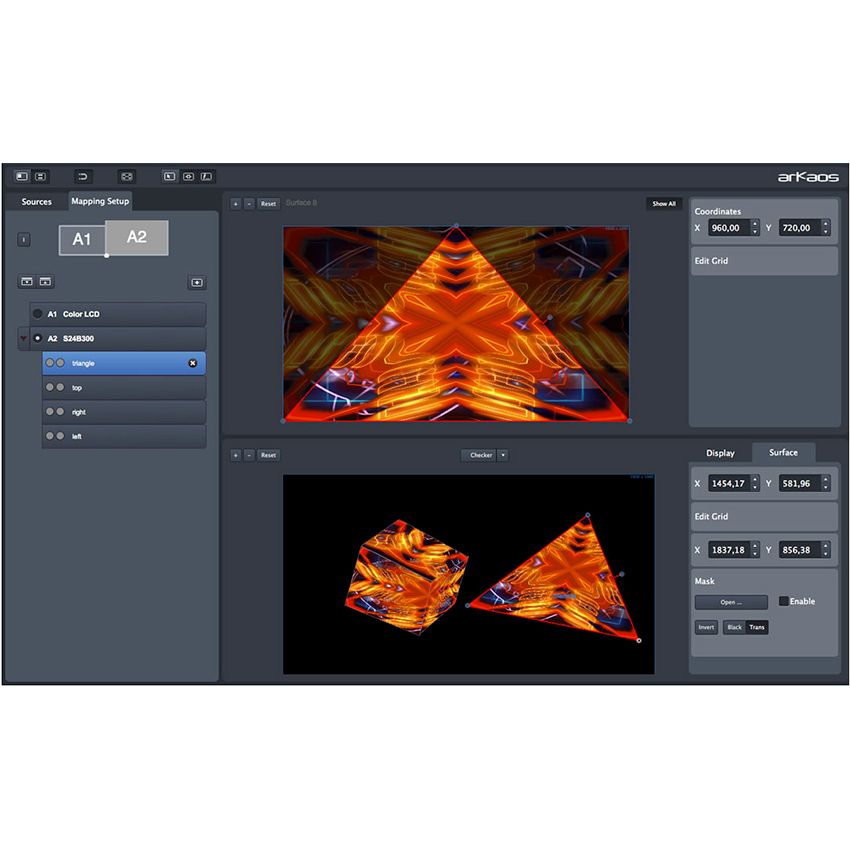

• Video Mapper: Yes

• Acronis Backup System: Yes

• Layers Full HD: Up to 12

• Layers HD: 12

• Soft-Edge / Geometrical Correction; Yes

• Control

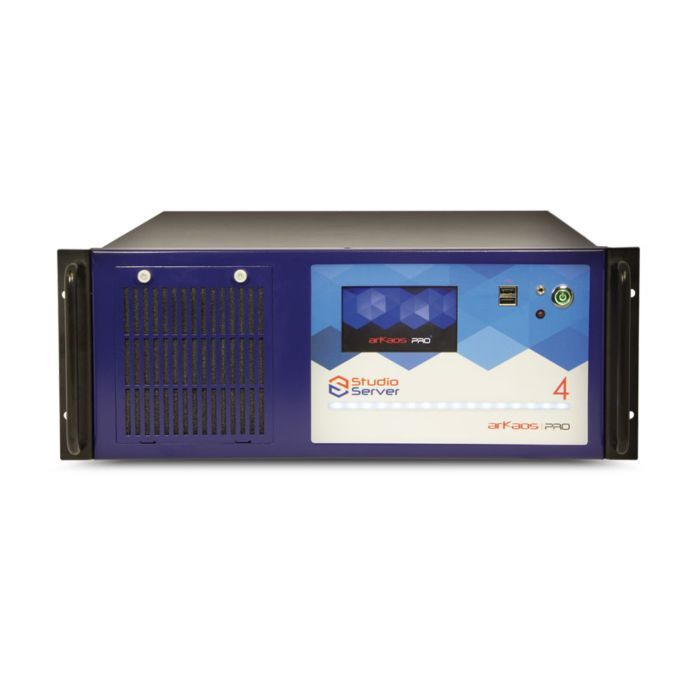

• Control Display (Front Panel): Yes
  LED Strip (Front Panel): Yes
  DMX / MIDI / Keyboard: Yes
  ArtNet / MA-Net: Yes

• HARDWARE

• Voltage: 107-240V Auto Switching
  Professional Connectors: Yes

• RDM (Remote Device Management): Yes

• Size

• Height: 6.9” (176mm)

• Length: 16.8” (426mm)

• Depth: 20.0” (510mm)

• Weight

• 55.1 lbs. (25kg)
