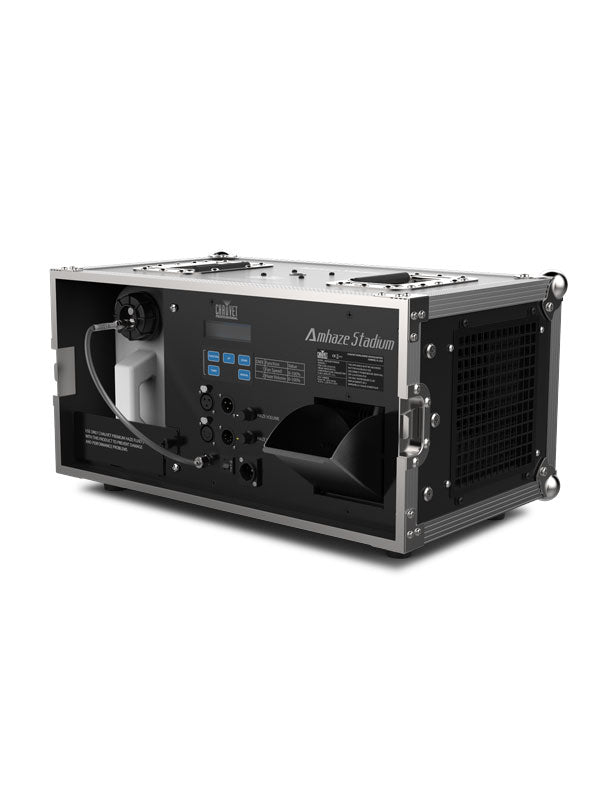

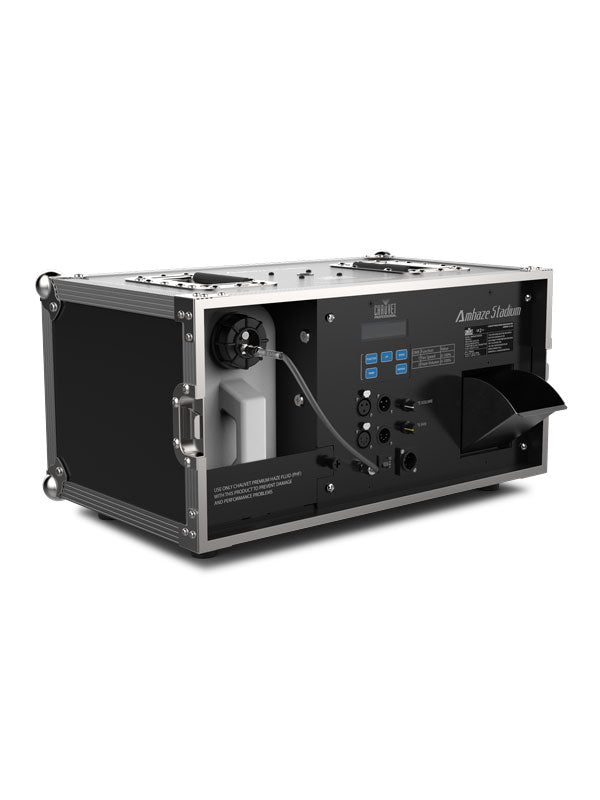

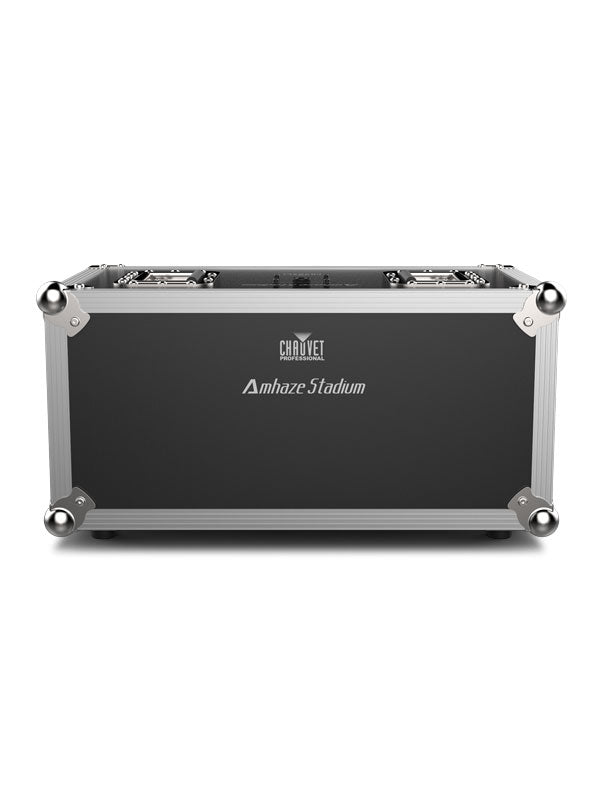

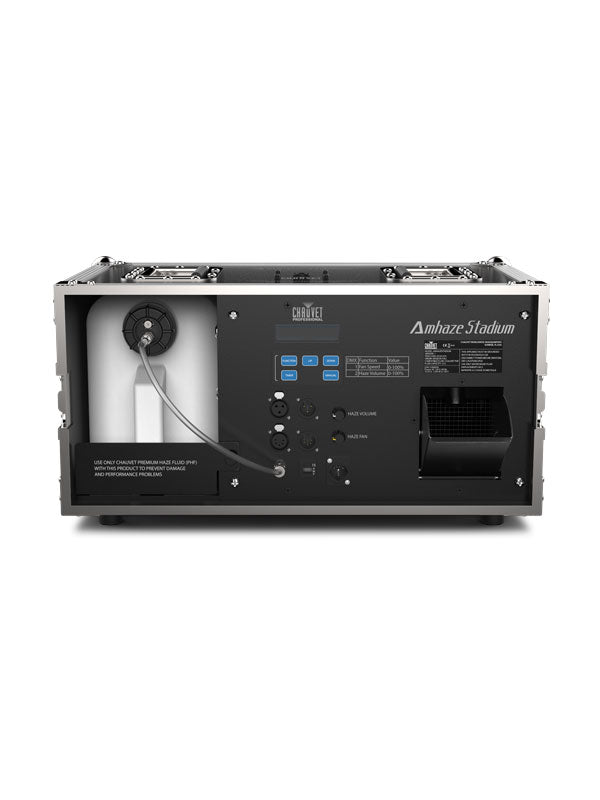

AMHAZE Stadium

From the Manufacturer

Amhaze Stadium is a tour-ready professional water-based haze machine ideal for large-scale applications. With an output of 157 cfm, the Amhaze Stadium boasts an impressive 30-second heat-up time. It also features a durable, low-profile road case to survive the rigors of touring and production. The output and speed of haze can be easily adjusted via DMX or the LCD screen, and the unit comes equipped with an M12 threaded insert for hanging.

Features

• Professional water-based haze machine
• 30-sec heat up time nearly eliminates wait time for operation
• Adjustable vent louver for directional haze flow
• Tour-ready with a rugged road case and M12 threaded rigging insert
• Efficient fluid consumption lasts up to 11 hours on a single fluid container
• Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

Dynamic Effects

• Fan Speed: 157 cfm
• Low Fluid Shutdown: Yes

Construction / Physical

• Dimensions: 20.60 in (523.42 mm) x 10.80 in (274.9 mm) x 15.97 (405.7 mm)
• Weight: 38.4 lb (17.4 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Tank Capacity: 1.3 gal (4.92l)
• Fluid Consumption: 9.5 ml/min (0.15 gallons/hour)
• Maximum Run time: >8.25 hours @ full volume

Connections

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX
• DMX Channels: 2
• Modes/Personalities: 1 personality
• On-Board Control: Yes

Electrical

• Input Voltage: 120 VAC, 50/60 Hz or 230 VAC, 50 Hz
• Power and Current: 1,230 W, 10.25 A @ 120 V, 50/60 Hz
• Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
• Heat-up Time: 30 sec

Certifications / Qualifications

• CE, MET, RCC, RoHS
• MET Listing Number: E115095
• US Safety: UL 499
• Canadian Safety : CSA C22.2 No. 64-10
• IP Rating: IP20, dry location
• Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
• Maximum exterior surface temperature (Tc): 127 °F (53 ℃)

What's Included

• Amhaze Stadium
• Seetronic Powerkon IP65 power cord
• Warranty Card
• Quick Reference Guide or User Manual

Required Accessories

• Compatible Mounting Options: M12 Bolt/Clamp
• PHF Haze Fluid
