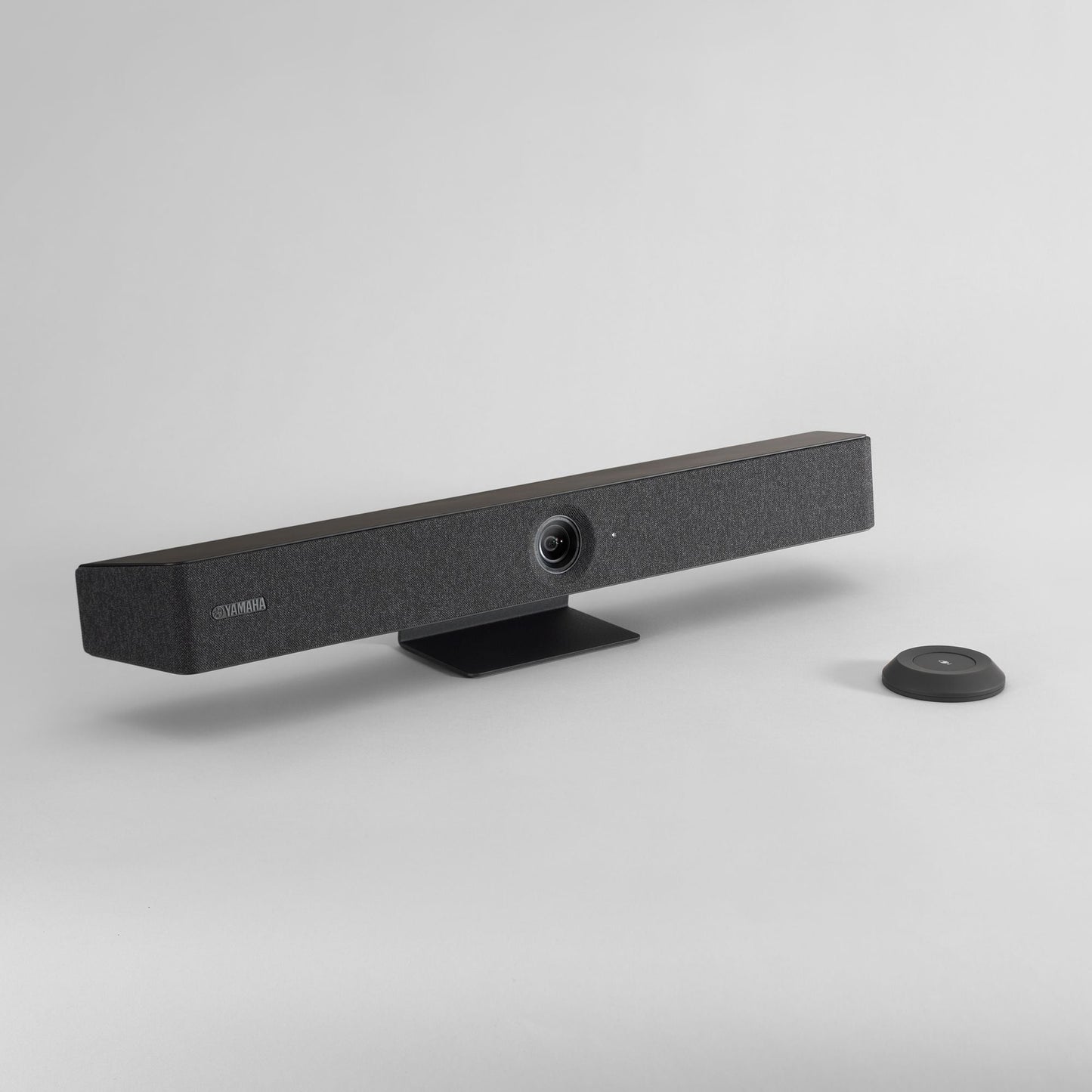

CS-800

The Yamaha CS-800 video sound bar is an all-in-one camera, microphone, and speaker system using the latest AI technology for real-time collaboration.

From the Manufacturer:

Yamaha’s newly developed SoundCap Eye™ technology pinpoints participant locations to deliver a seamless and immersive tracking experience unlike any other. It’s like a skilled movie director, cameraman and sound director working together behind the scenes!

With the added Easy Launch function and various mounting options, the CS series is tailor made to work seamlessly in any environment – even noisy open workspaces. Collaborate and connect with ease and without worry.

Features:

• Newly developed SoundCap Eye™
• 4K Camera with Smart Framing
• One-USB connection to start the collaboration
• Engineered Adaptive echo canceller and Noise reduction
• Hexa-microphone Beamforming
• 90 dBSPL (1 m) Embedded Speaker
• Iconic mute button of remote control
• Multiple installation options

Specifications:

• Dimensions: W 620 mm × D 90 mm × H 70 mm
• Weight: 1.7 kg
• Power Requirements: AC 100 - 240 V (50/60 Hz)
• Maximum Power Consumption: 42.0 W
• In Operation:
  • Temperature: 0 ℃ – 40 ℃
  • Humidity: 20 % – 85 % (No condensation)
  • Storage: Temperature: -20 ℃ – 60 ℃
  • Humidity: 20 % – 85 % (No condensation)
• Indicator: Status Indicator
• Accessories: Read this first, Safety Guide, Quick Guide, USB 2.0 cable (Type C-A, 5 m / 16.4 ft), HDMI cable (2 m / 6.6 ft), Remote control (RC-RBT1), Lens cap, Terminal cover, Coin battery (CR2032) × 2, AC adaptor with power cord (CW2002100), Table stand, Wall mounting bracket, Terminal cover screw (2.5 mm × 8 mm) × 2, Hexagonal screw (M3 × 8 mm) for table stand × 2, Screw (M3 × 8 mm) for wall mounting bracket × 1, Hexagonal wrench
• Options: Mounting Accessory BRK-WL1, Mounting Accessory BRK-TV1/BRK-TV2, USB 3.2 Gen 1 cable (A-C) 10 m CBL-L10AC, USB 3.2 Gen 1 cable (A-C) 25 m CBL-L25AC
• Supported OS: Windows 11, Windows 10, macOS 12, macOS 11, macOS 10.15, Chrome OS
• Interface: USB (Type-C): USB 2.0/3.2 Gen 1, UAC 2.0, UVC 1.1, DisplayLink, HDMI: Version 1.4, Resolution: 720 x 480, 1,280 x 720, 1,366 x 768, 1,920 x 1,080, Frame rate: 30 fps, HDCP: Version 1.4, HDMI-CEC: Power control / Input selection, Bluetooth, Wi-Fi network
• Installation: Tabletop installation: Table stand (accessory), Wall mount installation: Wall mounting bracket (accessory), Display mount installation: BRK-TV1/BRK-TV2 (option)

Audio

• Speakers: Full-range speaker x 1
• Maximum volume: 90 dBSPL (1 m)
• Microphones: Hexa-microphone (6x MEMS)
• Microphone Coverage: Frontward 110 degrees audio pickup, Max distance: 6.0 m (19.6 ft, Face focus beamforming off) / 3.0 m (9.8 ft, Face focus beamforming on)
• Frequency bandwidth: Speaker frequency response 100 Hz – 20 kHz, Microphone frequency response 100Hz – 16kHz
• Signal processing: Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, SoundCap Eye (Face focus beamforming, Self-silence, Self volume balancer)

Camera and Video

• Field of View: (4K) Diagonal:120 degrees, Horizontal: 110 degrees
• Focus Distance: 0.5 m (1.6 ft) to ∞
• Frame Rate: 6 fps, 7.5 fps, 10 fps, 15 fps, 30 fps
• Resolution: 3,840 x 2,160, 2,560 x 1,440, 1,920 x 1,080, 1,280 x 720, 640 x 360 *When using 3,840 x 2,160, 2,560 x 1,440 resolution, optional cables (CBL-L10AC or CBL-L25AC) that is USB 3.0 or greater is needed.
• USB Output Format: YUY2, MJPEG, NV12
• Frame Control: Smart framing (Group, Individual, Speaker tracking) or manual, pan-tilt-zoom (PTZ), configurable preset x 2, Maximum zoom ratio: 5.0x, People detection max distance: 4.5 m

User Interface

• Remote Control: Power, Microphone mute x 2, Speaker volume, Camera ePTZ, Smart framing ON/OFF, Camera preset x 2, OSD menu control
• OSD Menu: Meeting area, Smart framing mode, Camera preset, Mic, Speaker, Bluetooth
• Yamaha CS Manager: Supported OS: Windows 11, Windows10 (64 bit), macOS 12, macOS 11, macOS 10.15
• Functions: Device status monitor, Security setting, Power setting, Audio setting, Camera setting, Smart framing setting, Bluetooth setting, HDMI screen setting, Network(Wi-Fi) setting, NTP setting, Firmware upgrading, Factory default setting, Logs retrieving
