4 Port Genius Receiver

The Experience Lights 4 Port Genius Receiver is a simple, easy-to-use lighting control solution for commercial or hobby use.

From the Manufacturer:

The 4 Output Genius Receiver can control up to 4 strings of connected 5V-12V pixel lights via the fused spring terminals. It can handle up to 1,600 pixels per output, and does not require any termination at the end of a chain.

The Genius line of products were created to bring innovative, reliable, easy-to-use and cost-effective options to the lighting industry. Genius is based on a core-principle of “don’t make me think”. Genius products are not Pi Hats, or BeagleBone capes; Genius are standalone products that do not require secondary hardware to function.
The Genius product line is ideal for commercial lighting installations that need no-nonsense reliable solutions that ‘just work’! The Genius product line is also great for customers who are new to the lighting hobby and want a controller that works without having to learn all the intricacies and confusion that are common with other products in the industry.

Features:

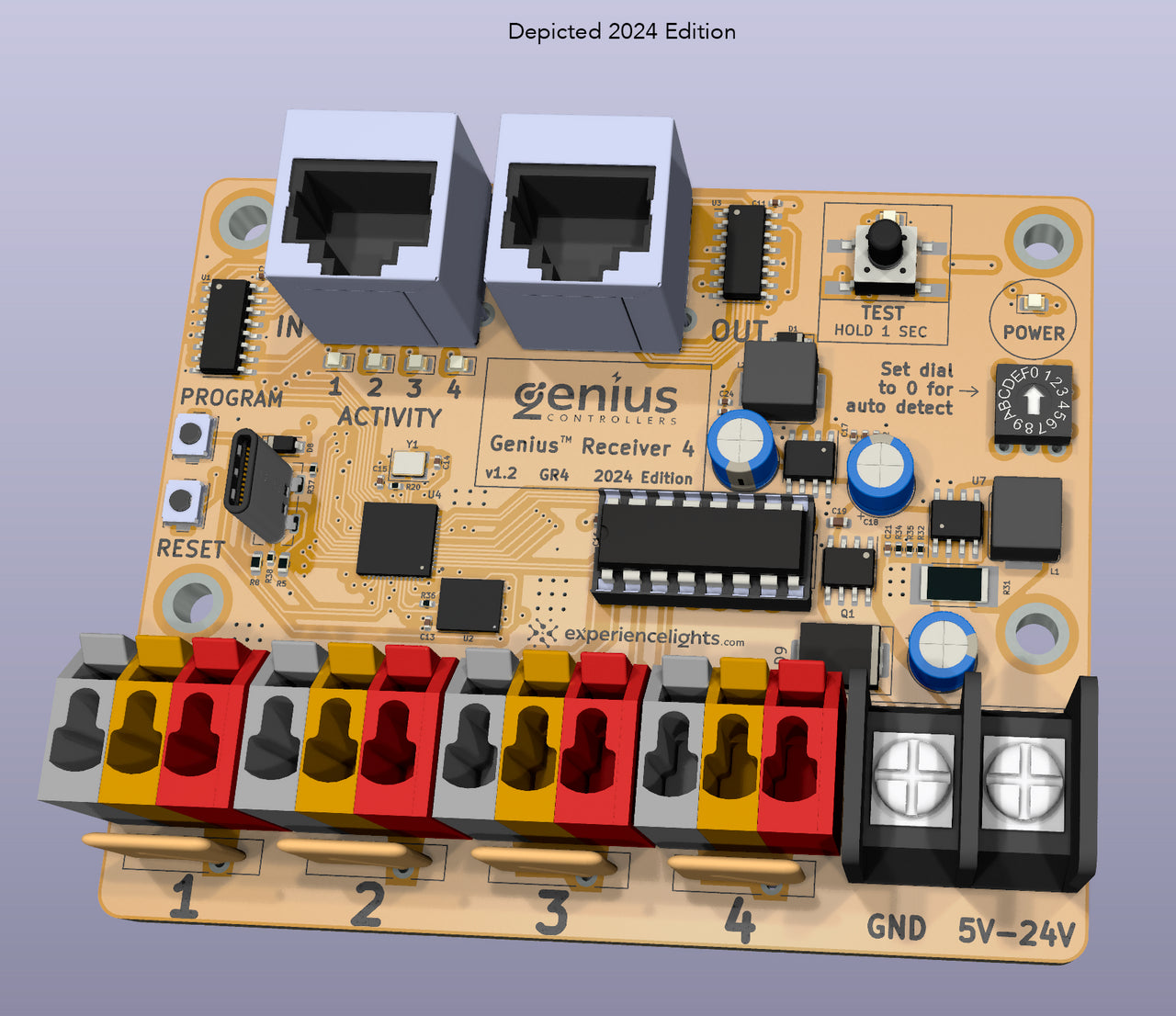

New in the 2024 Edition:

• Spring connectors replaced with clever lock connectors.
• Solder build-up removed from back side.
• RJ45 jacks changed from plastic to stronger Metal RJ45.
• USB jack changed from USB Micro to USB-C
• Full range 5V-24V supported voltage

Firmware Updates

• Instructions: https://experiencelights.com/firmware
• Master Genius Firmware List https://docs.google.com/spreadsheets/d/1EpIc1IoBcz8VZ_v9NqO6HwNh3JkDPr5gPylhlOVwKck/edit?usp=sharing

Specifications:

• 2 x RJ45 ports for long range connection; supports daisy-chaining
• 1 power input, with reverse polarity protection (5V-12V 2022-2023 Editions, 5V-24V 2024 Edition)

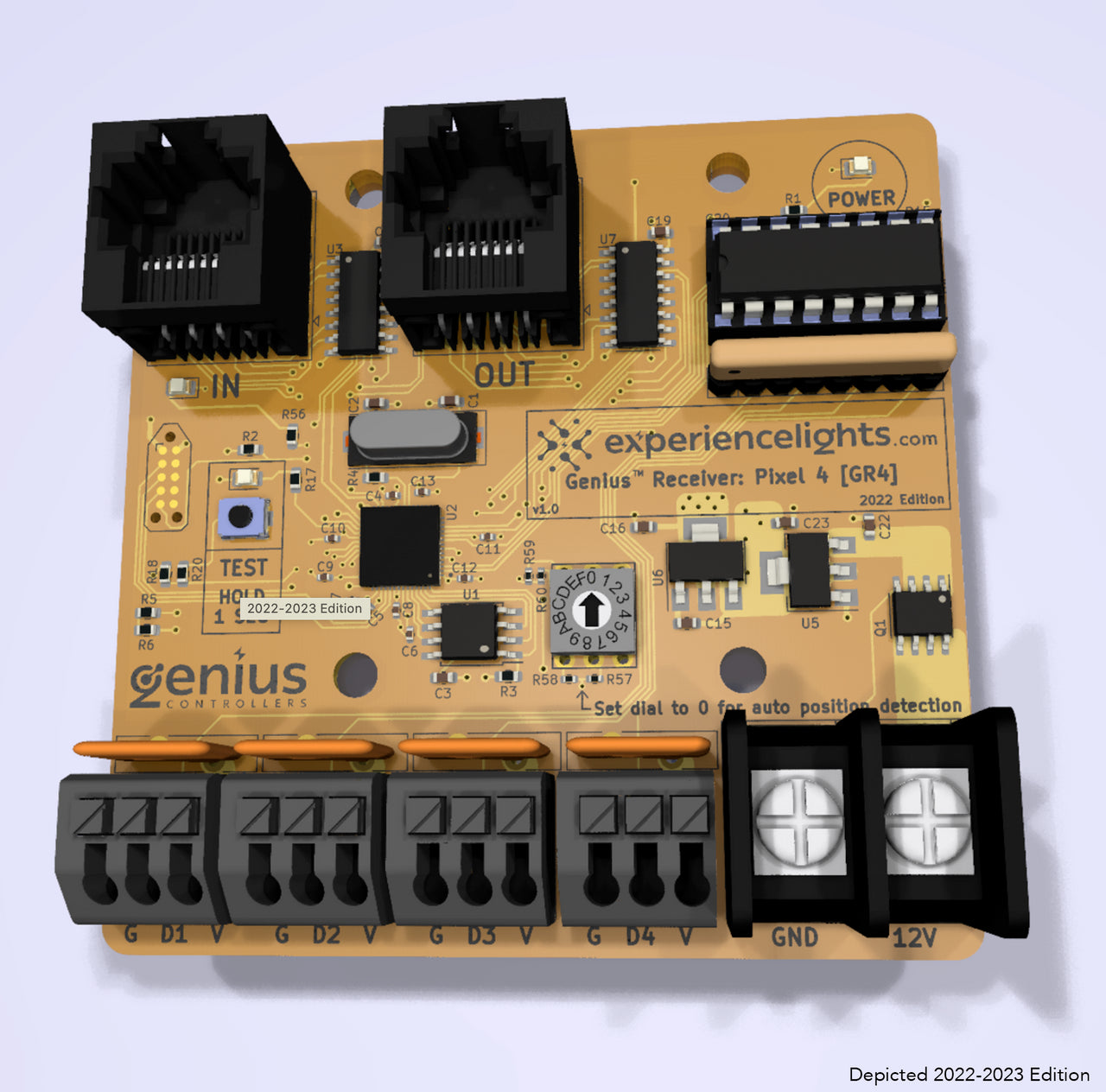

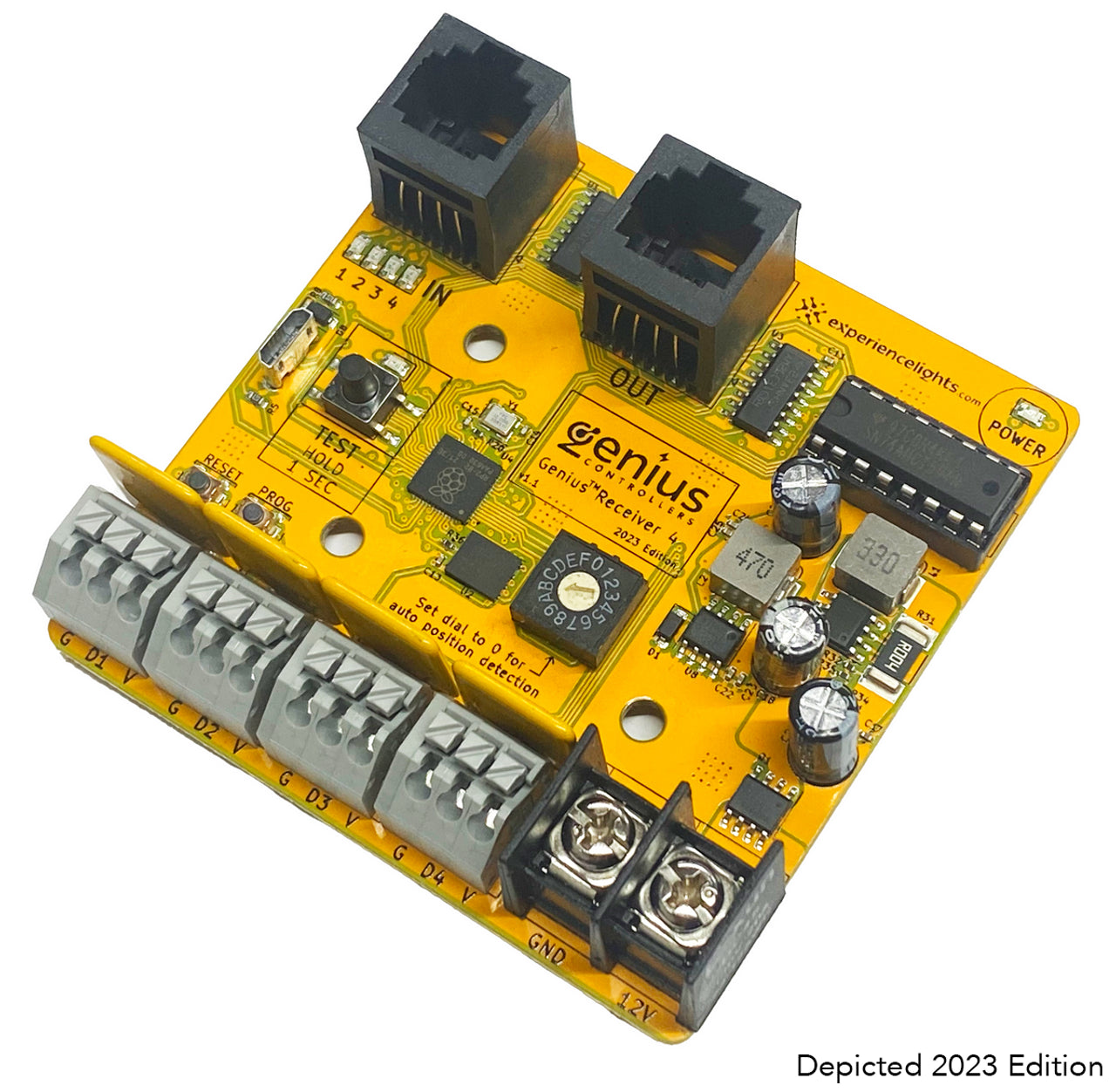

• 4 x 3-pin connectors [Spring loaded terminals 2022-2023 Editions, Clever Lock connectors 2024 Edition]
  No phoenix connectors or screw down terminals.

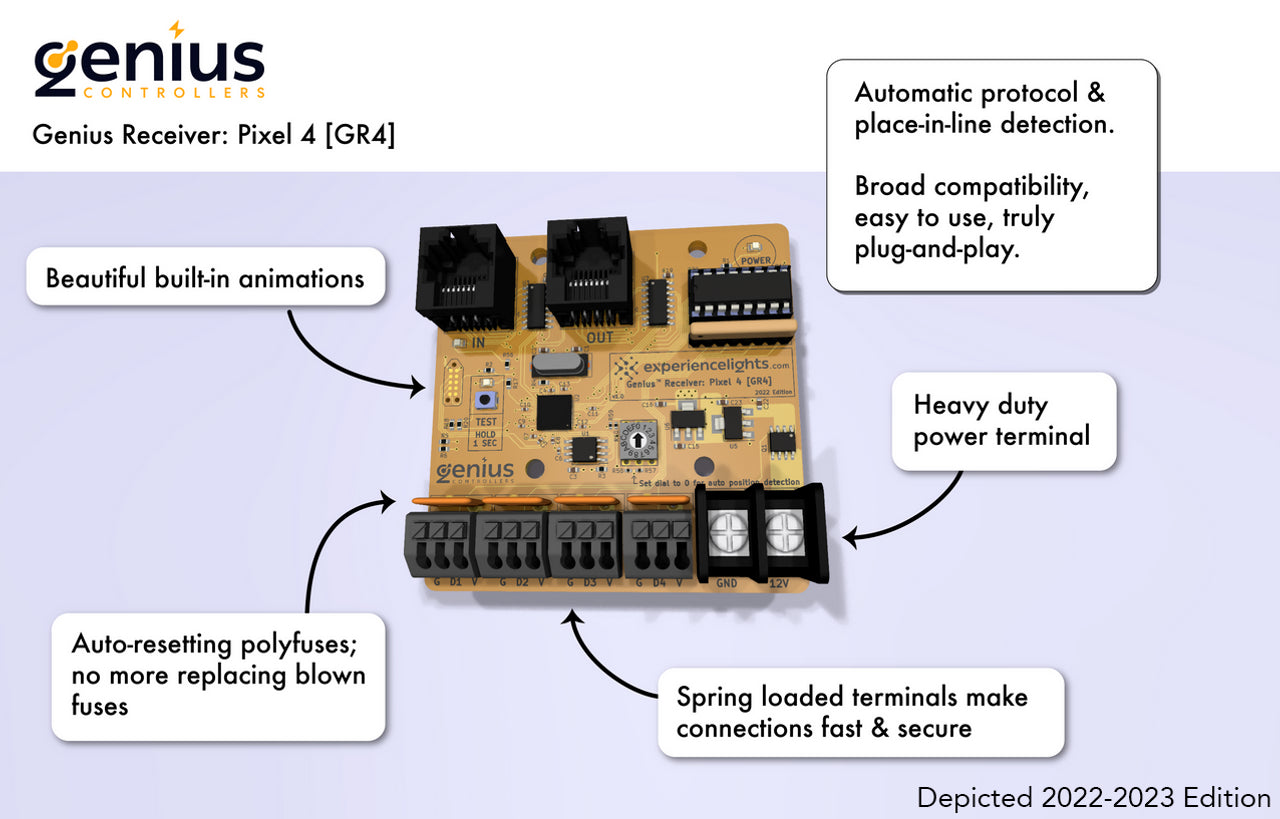

• 4 x automatically resettable fuses (no replacing tripped fuses)
• Seamless integration with existing differential driving controllers (Dumb, FPP, Falcon V3 & V4). No system lock-in. Mix and match with other equipment
• Auto detection of "Dumb", "FPP" (Falcon Pi Player) or "Smart V3 Falcon" or "Smart V4 Falcon" or "Genius". No switches to toggle, or software to configure
• Works with WS281X differential signals only

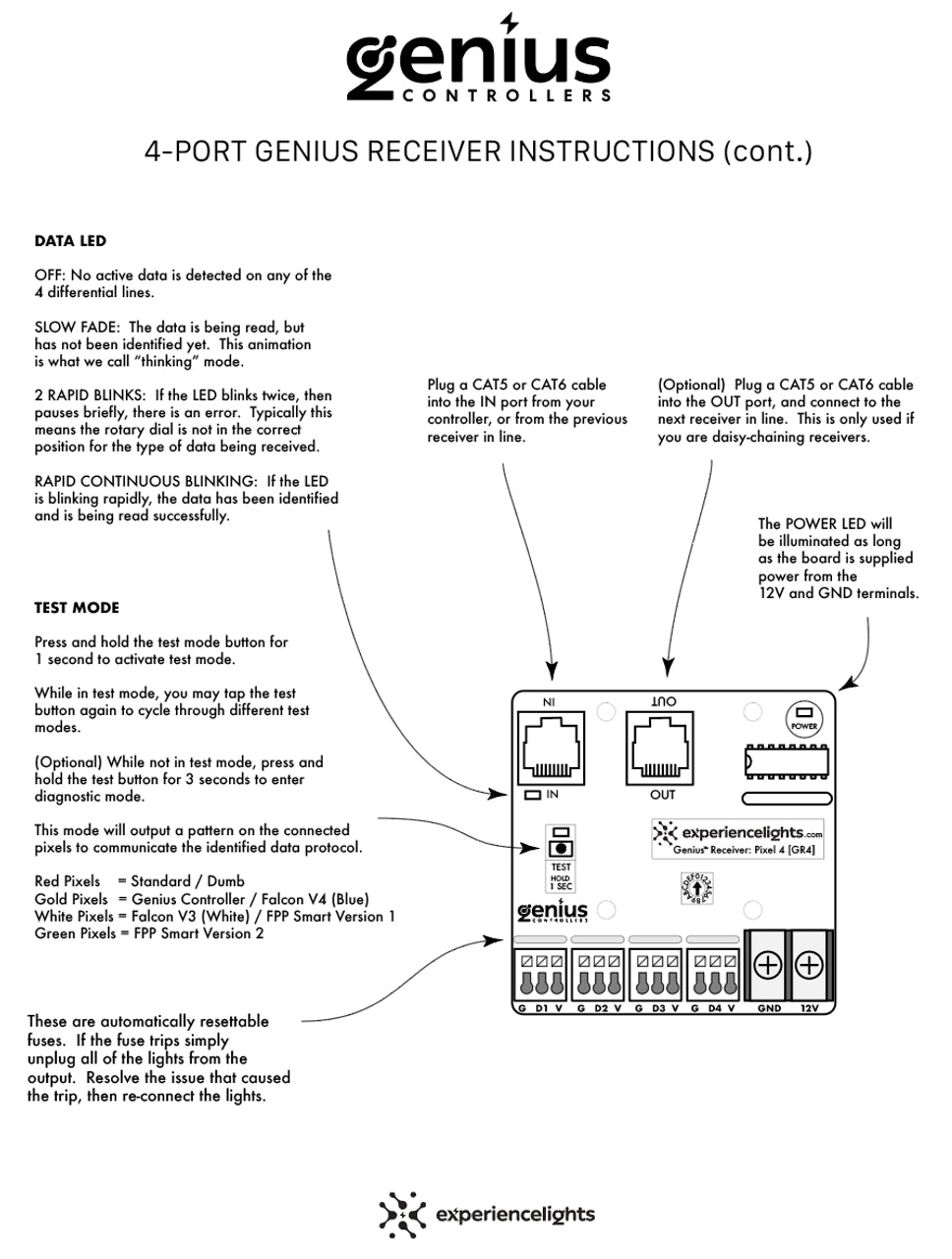

• Built-in test mode animations

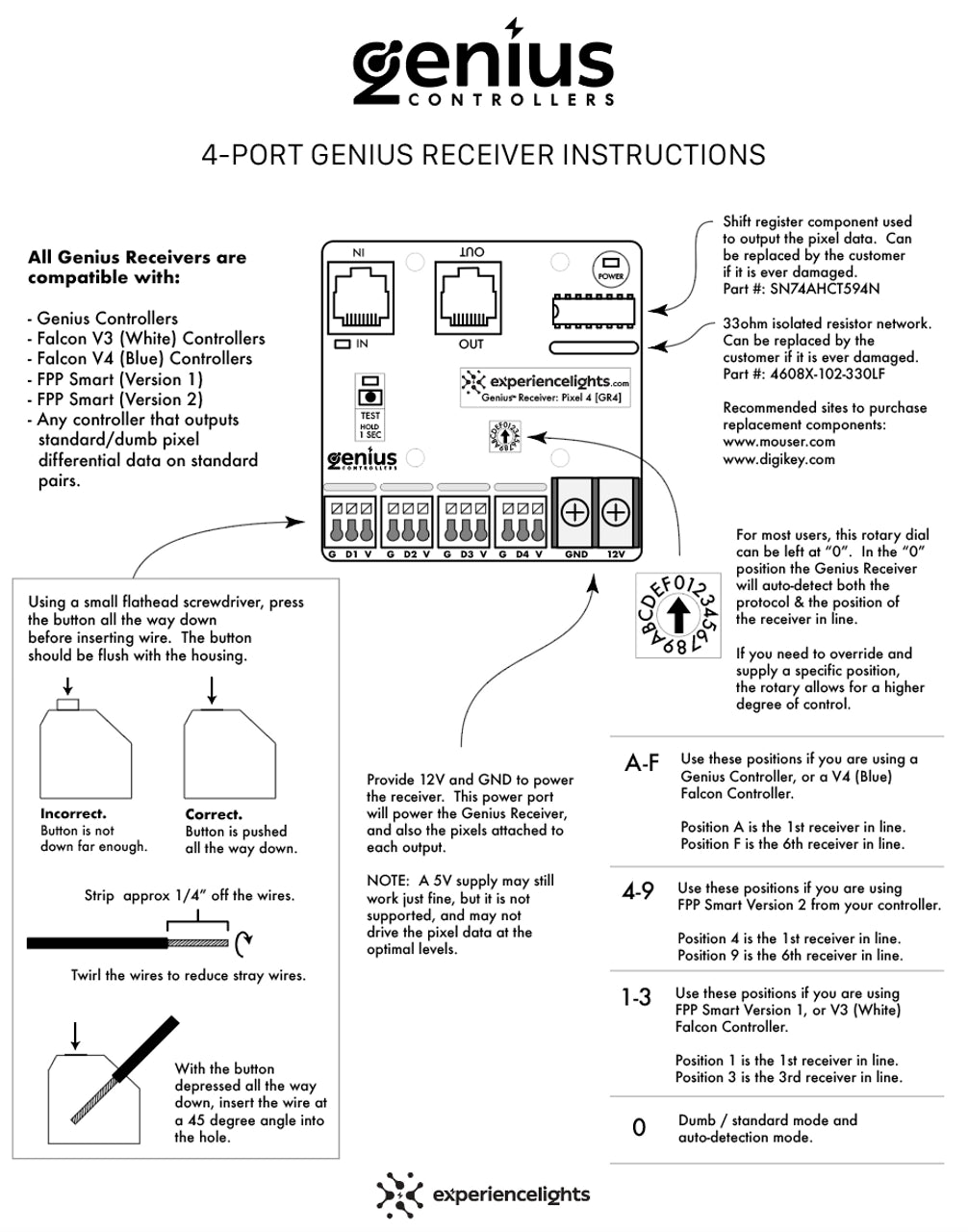

• Auto positioning determines the receiver's "place in line". Will detect if it's an A-F receiver without the need for dip switches on each receiver
• If you need to manually set a receivers position (A-F), there is an on-board rotary dial to optionally override
• MAX 20A per board, or 5A per output
