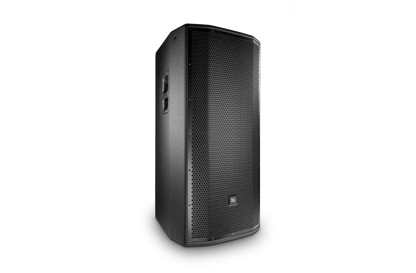

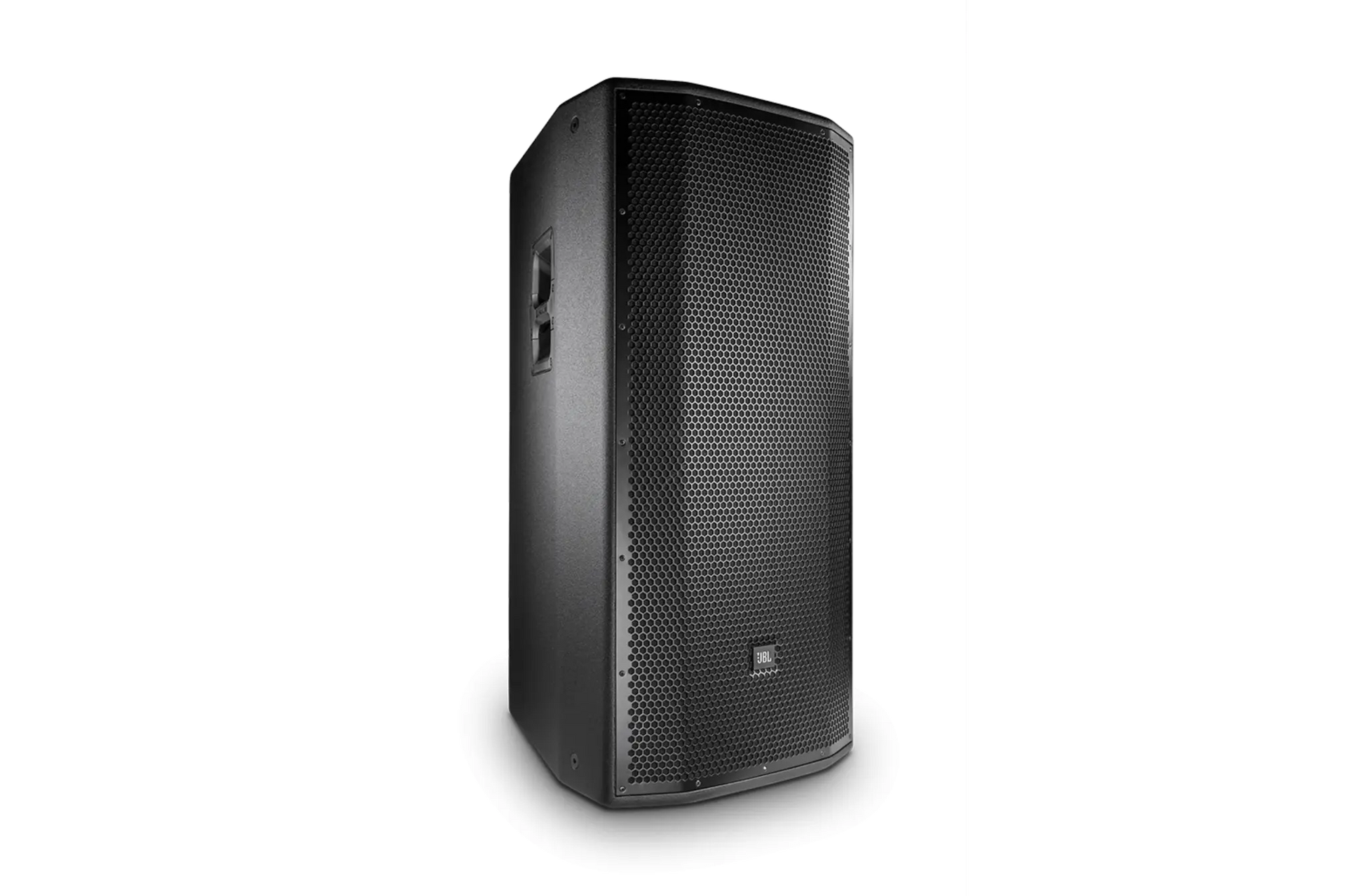

PRX835W

The PRX835W is a compact  portable speaker for smaller productions or DJ's. With the PRX835W's WiFi capability. it makes for a clean and quick setup process.

From the Manufacturer:

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor.

Features:

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue

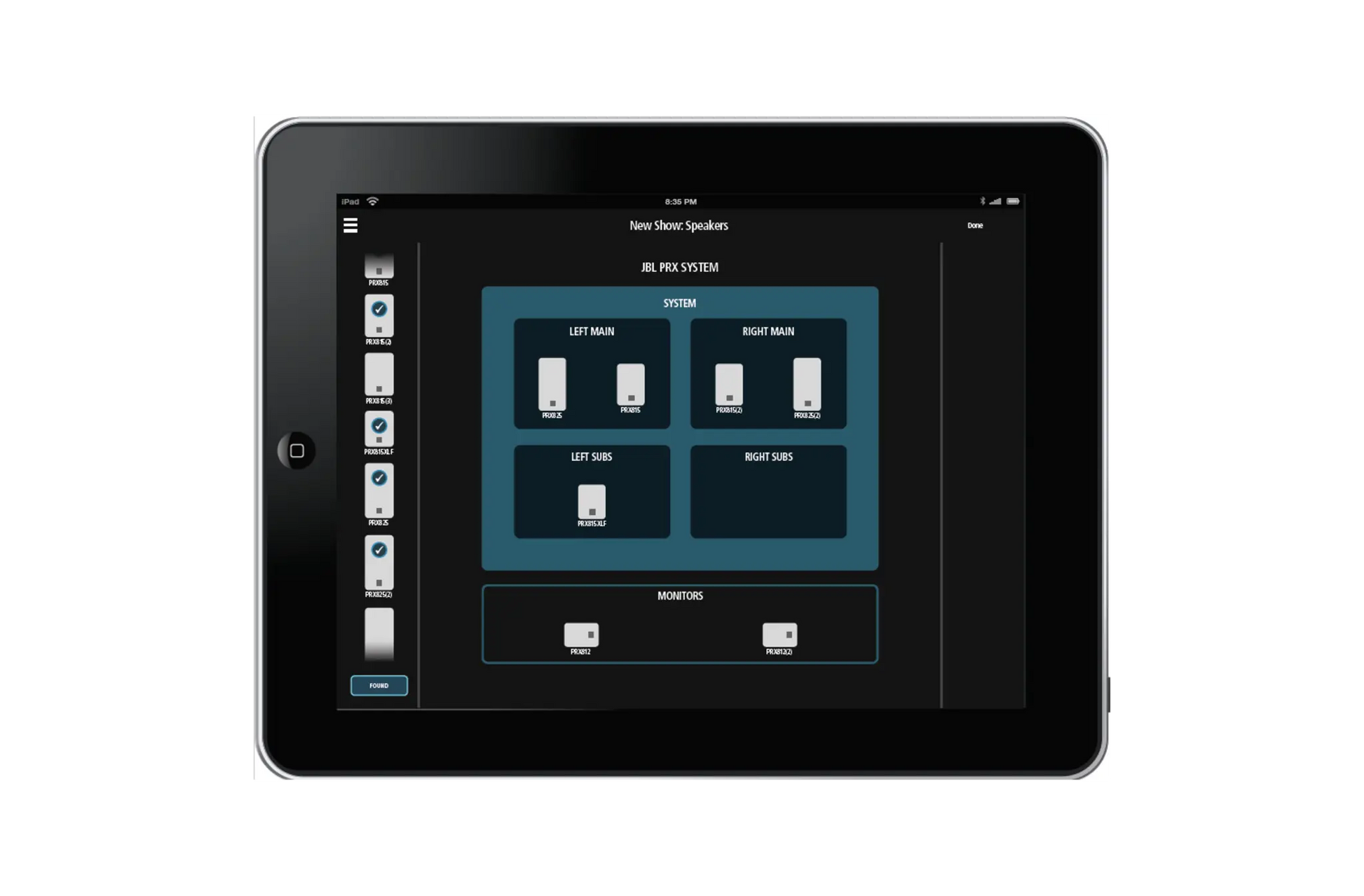

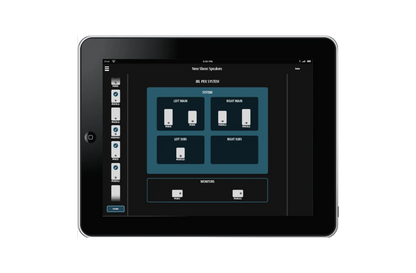

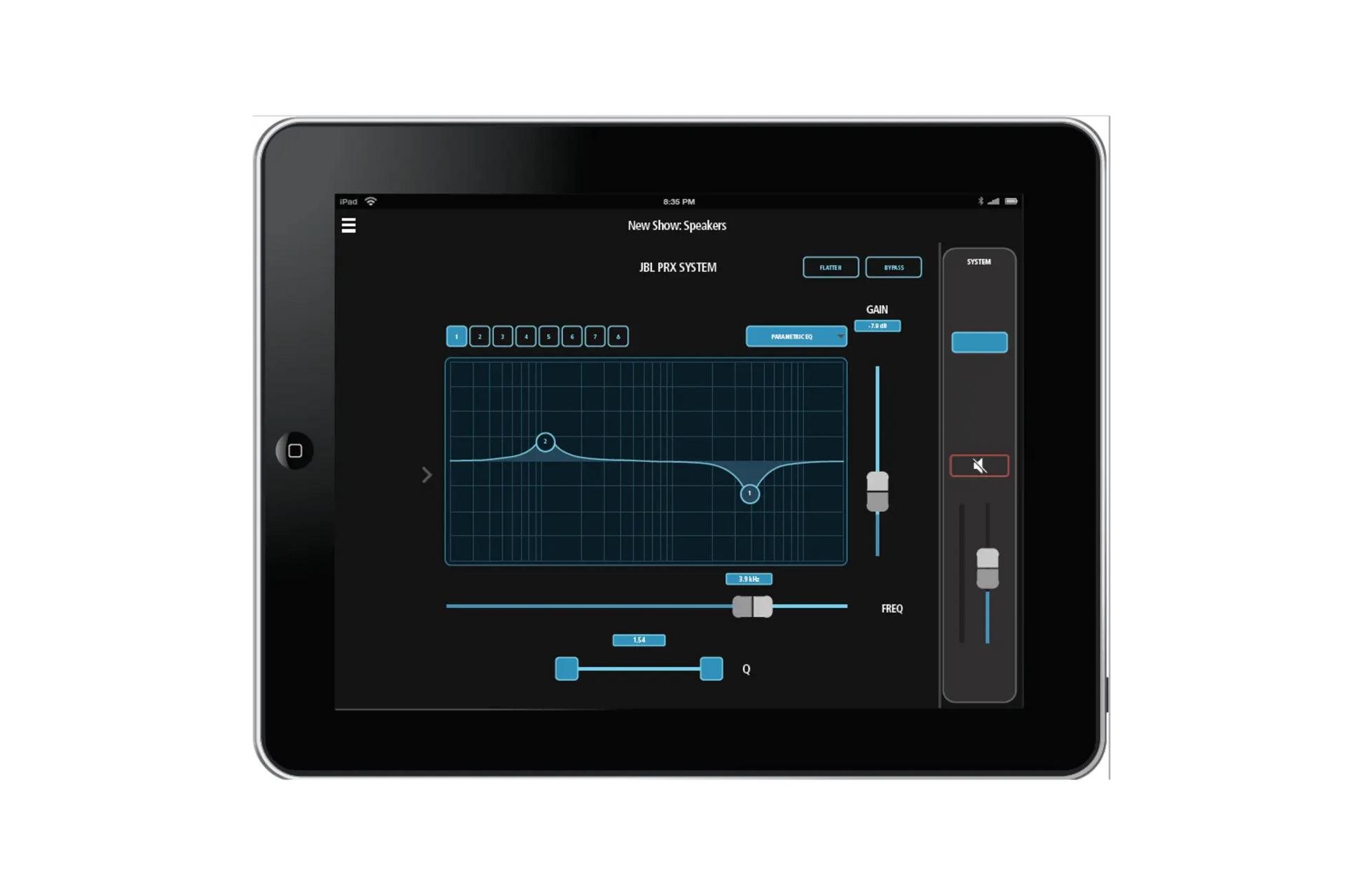

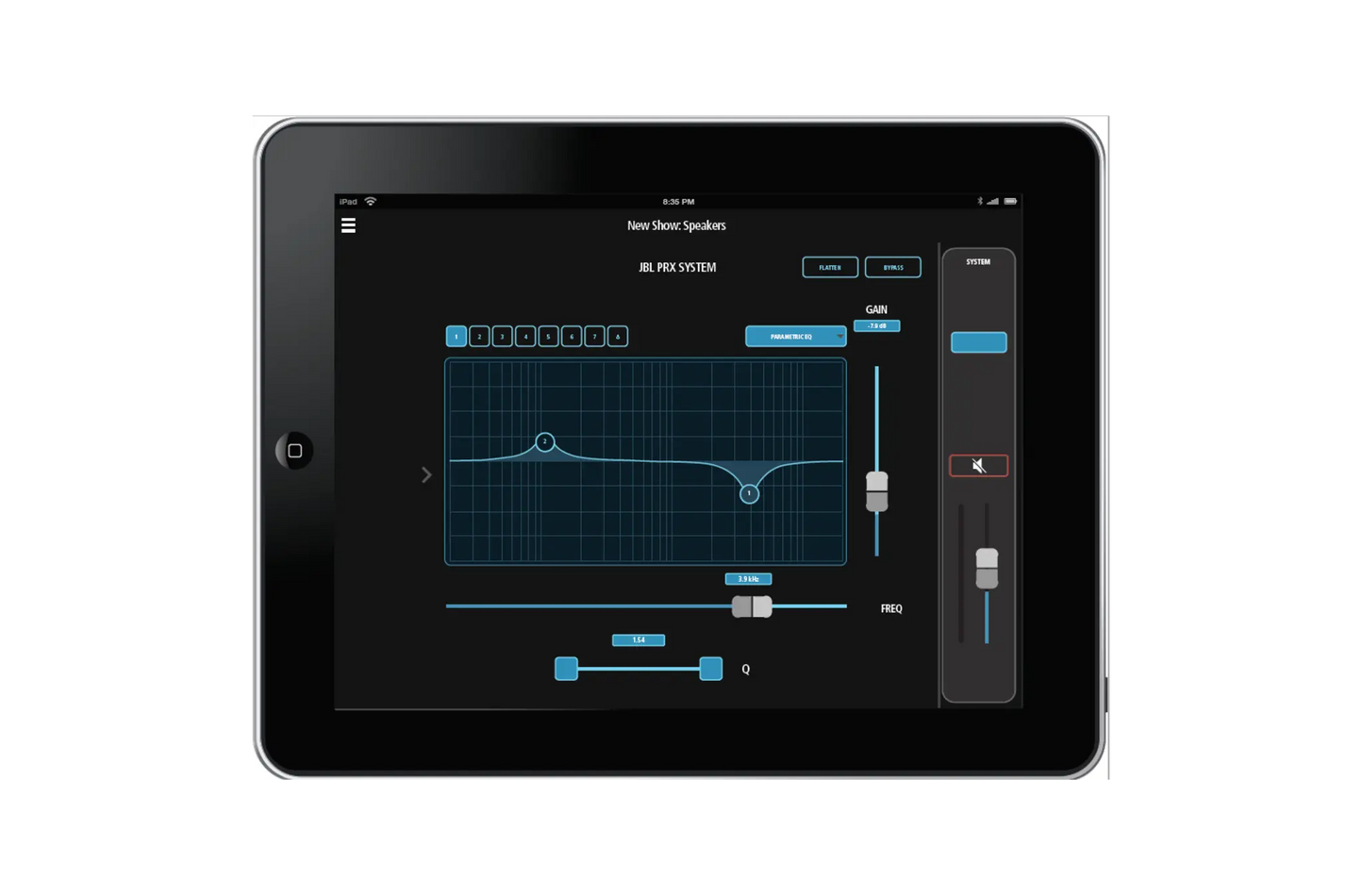

• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

• Class-leading 1500-watt amplifier delivers ample power to fill your venue

• JBL Differential Drive® transducers for higher SPL in a lightweight design

• Next-generation JBL neodymium compression drivers

• Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through

• Intelligent variable-speed fan activates only when needed to reduce noise

• Updated tuning delivers flat frequency response and smooth off-axis behavior

• Integrated 12 x M10 Suspension Points

• Universal power supply for worldwide compatibility

• dbx Type IV™ limiting ensures clear, accurate sound at high volumes

• Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications:

• This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

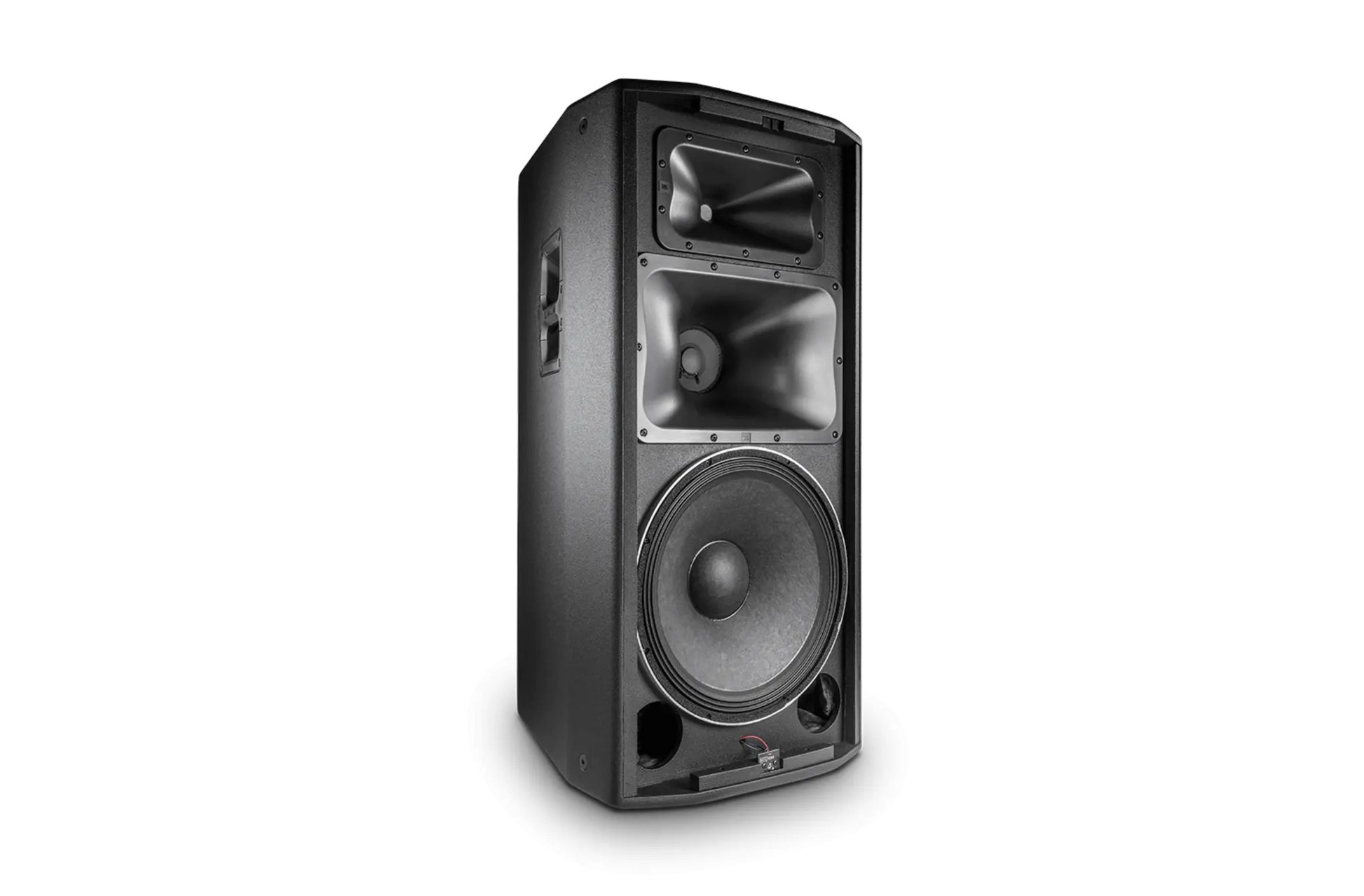

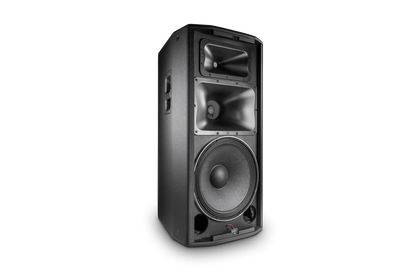

• The PRX835 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth with remote Wi-Fi control of onboard DSP EQ parameters. The PRX835 is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

• All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. The PRX835 feautres a standard 35mm pole cup that will work with most speaker poles and tripods. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. Each.

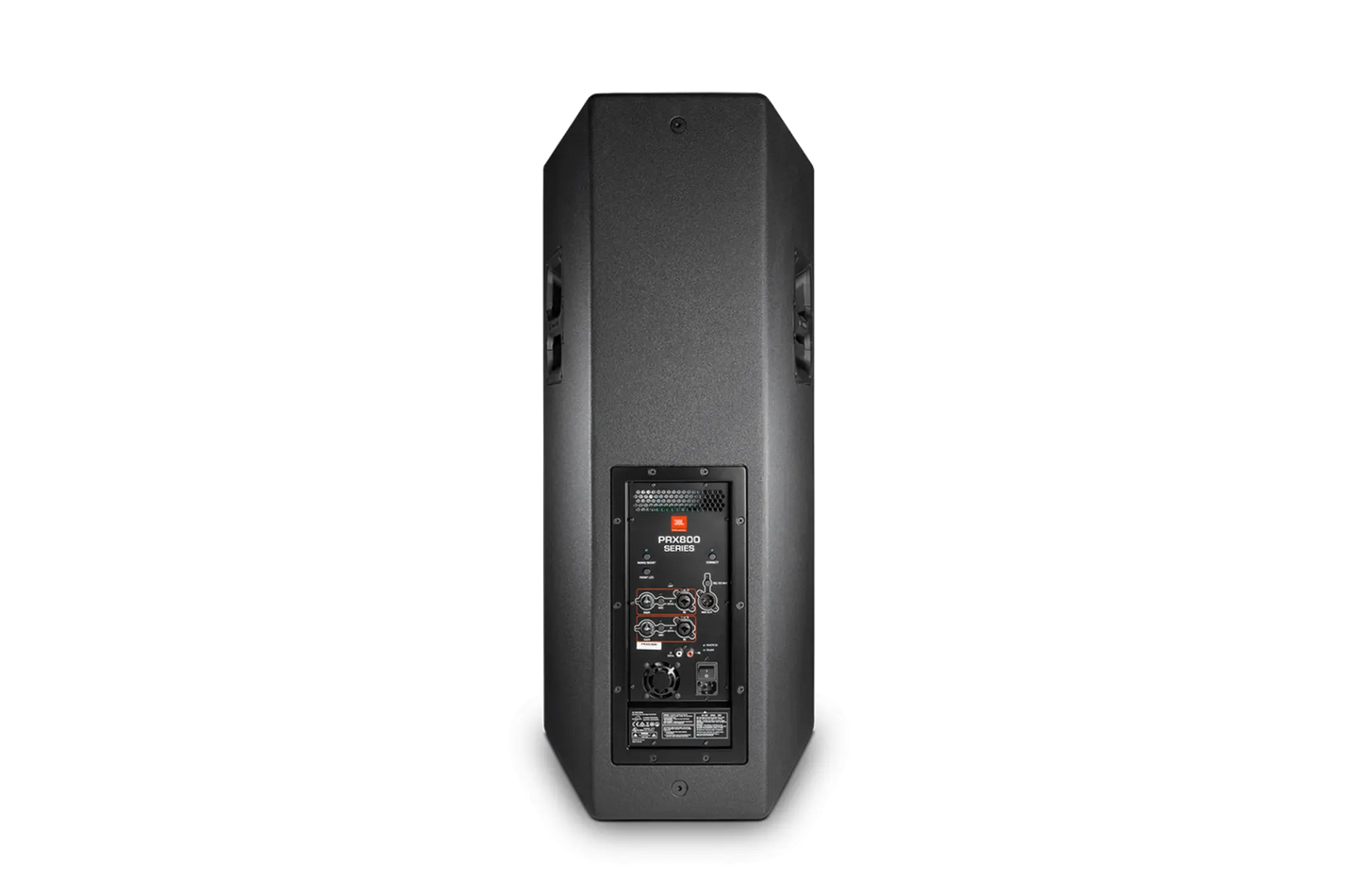

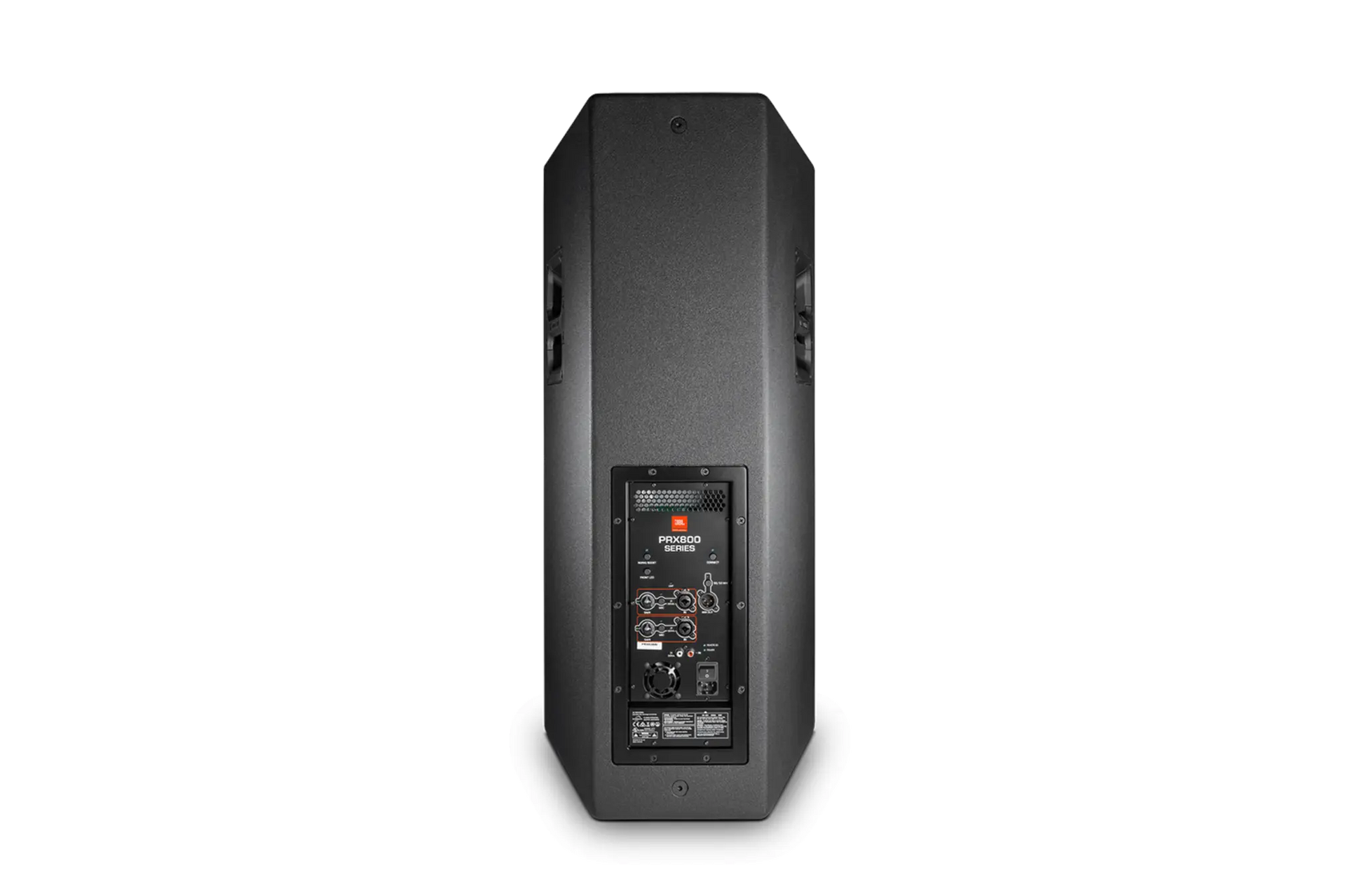

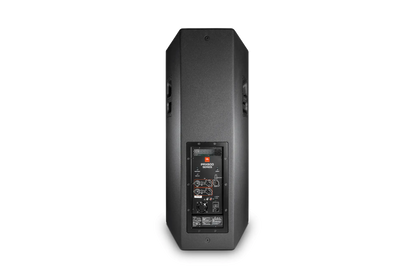

• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

Specifications:

• System Type

• Self Powered 15”, three-way, bass-reflex

• Maximum SPL Output

• 138 dB peak

• Frequency Range (-10dB)

• Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz

• Frequency Response (±3 dB)

• Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz

• Inputs

• 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

• Input Impedance

• 20K Ohms (balanced), 10K Ohms (unbalanced)

• Signal Indicators

• Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.

• EQ

• User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.

• Dynamic Control (Input)

• dbx Type IV™ limiter circuit

• Crossover Frequency

• 580 Hz, 2.1 kHz

• Design

• Highly efficient Class-D amplifier

• Power Rating

• 1500W (750W x 2)

• AC power input

• 100V - 240V ~ 50/60 Hz

• LF Driver

• 1 x JBL 275G 380 mm (15 in) woofer

• MF Driver

• 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer

• HF Driver

• 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver

• Coverage Pattern

• 90° x 50° nominal

• Directivity Index (DI)

• 10.5 dB

• Directivity Factor (Q)

• 11.2

• Enclosure

• Trapezoidal, 18 mm, Duraflex coated plywood

• Suspension / Mounting

• 12 M10

• Transport

• 2 x integrated handles with injection molded backing cup

• Finish

• Obsidian DuraFlex™ finish

• Grille

• Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

• Dimensions (H x W x D)

• 938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in)

• Net Weight

• 32.38 kg

• 71.4 lb

• Gross Weight

• 38.6 kg

• 85.0 lb

• Mic Inputs

• 2

• Phantom Power

• No

• Effects

• 25 parametric EQ's and speaker delay

• Outputs

• 1 x XLR (mix out)
