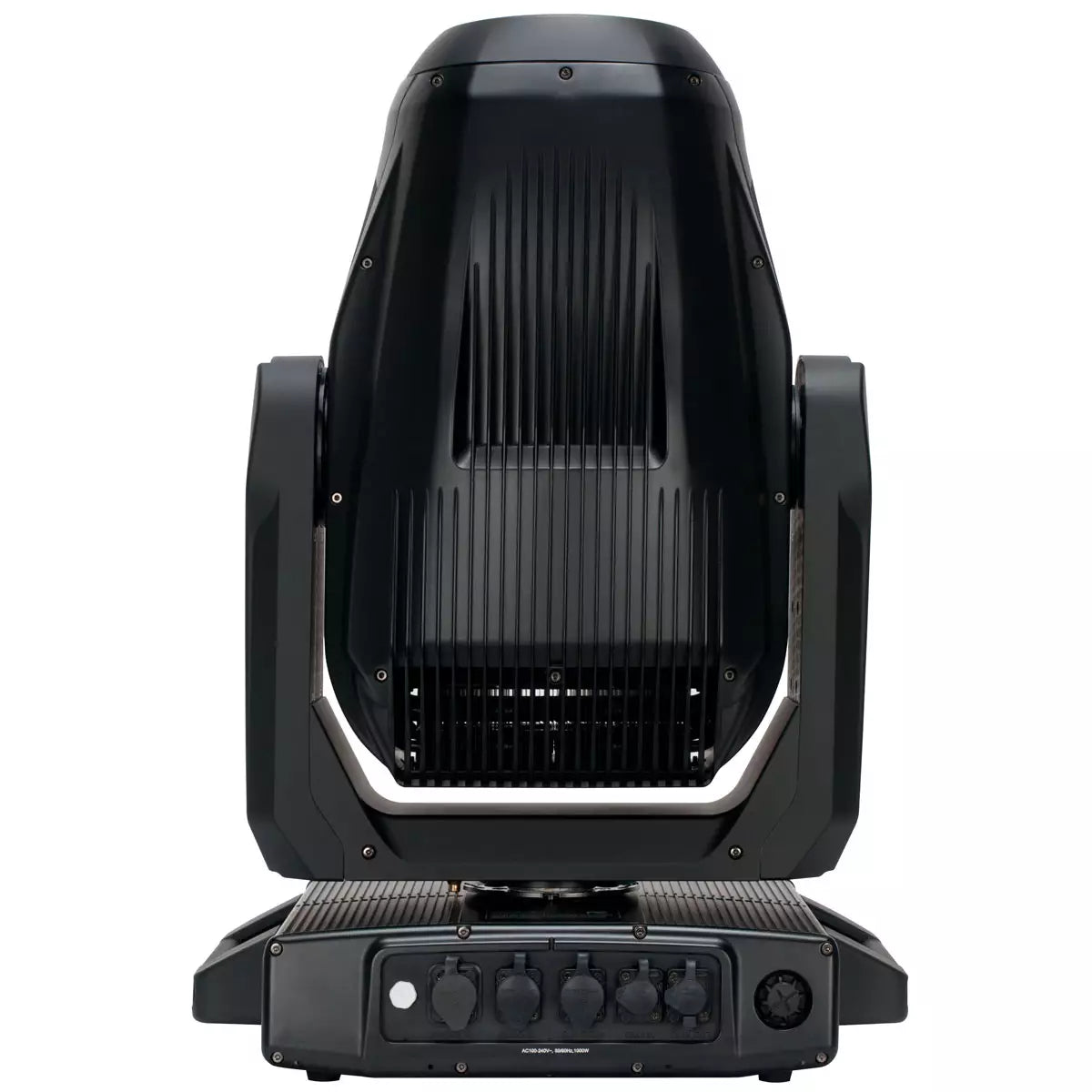

The PROTEUS LUCIUS™ is a powerful yet compact IP65-rated LED profile fixture offering outstanding projection and beam qualities in any environment.

Providing up to 33,500 lumens output from its custom-designed Peak Field 580W 6,500K LED engine, the PROTEUS LUCIUS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS LUCIUS has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.

The PROTEUS LUCIUS ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.


In the Box:

  • (1) Proteus Lucius
  • (2) Omega Brackets
  • (1) IP65 Rated 5pin DMX Cable
  • (1) IP65 Rated RJ45 Cable (Fixture to Fixture Interconnect Use Only!)
  • (1) IP65 Rated Power Cable



Features:

  • Light Source: 580W White LED
  • Color Temperature: 6,500K
  • CRI: 71+ (85+ with HCRI Filter)
  • Beam Angle: 5.5° to 50° Motorized Zoom
  • Dimming: Variable 16-bit Dimming Curve Modes
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: CMY Color Mixing and Variable CTO
  • Color Wheel: 5-Position Color Wheel with High CRI Filter
  • Rotating Gobo Wheel 1: 6 Rotating Gobos
  • Rotating Gobo Wheel 2: 7 Rotating Gobos
  • Static Gobo Wheel: 7 Static Gobos
  • Framing Shutter: 4 Rotating Full Blackout Framing Blades
  • Effects:
    • Animation Wheel
    • 4-Facet and Linear Rotating Prisms
    • Motorized Iris
    • 2 Variable Frost Filters (Light and Wash)
  • Control Protocol: DMX, RDM, Art-NET, sACN
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP65



Tech Specs

Optics:

Light Source Type: White LED

Light Source Wattage: 580w

Minimum Beam Angle: 5.5°

Maximum Beam Angle: 50.0°

Control

DMX Channel Modes: 43 / 68

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 18.41 in

Width: 14.57 in

Height: 26.8 in

Weight: 89.9 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 950w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
