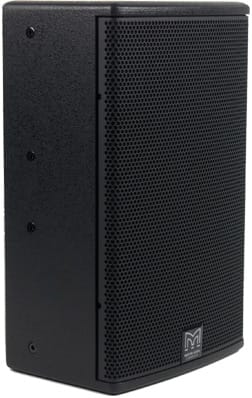

X8 8" 2-Way Passive Loudspeaker System with 90x50 Horn

The Blackline X8 is a passive  and compact high output speaker.  It can be used in a vertical or horizontal position thanks to it's rotatable horn.

It is a great option for use in a small portable sound system that rivals other 10" or even 12" speakers at a much smaller size!

From the Manufacturer:

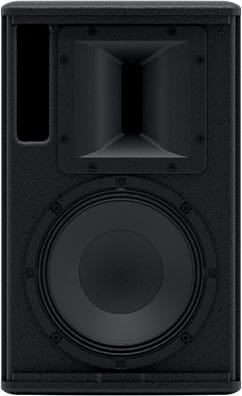

The Blackline X8 is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements. Its very small size gives no indication of its high output capability.

Features:

• Ultra-Compact passive two-way system

• Symmetrical multi-angle plywood enclosure

• User-rotatable 90° x 50° horn

• Vertical and horizontal orientation

• Screw-free, cloth-backed perforated steel grille

• Integral ergonomic handle

• Pole-mount bung maintains clean lines

• 8Ω nominal impedance

• Twin NL4 connectors

• Flexible mounting options via M8 inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Unobtrusive stage monitoring

• Corporate AV events and conferences

• Weddings and parties

• Main PA infill

• Secondary stages at festivals

• HoW, leisure centers and retail outlets

Specifications:

• Type

• Ultra-Compact, passive two-way system

• Frequency Response

• 70Hz-20kHz ± 3dB, -10dB @ 60Hz

• Driver

• LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system

• HF: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver

• Rated Power

• 200W AES, 800W peak

• Sensitivity

• 92dB

• Maximum SPL

• 115dB continuous, 121dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 0° H x 50° V (user-rotatable)

• Crossover

• 2.9kHz passive

• Enclosure

• Multi-angle birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Connectors

• 2 x NL4 type

• Pin Connections  (Input)

• 1+/1-

• Pin Connections (Link)

• 1+/- to 1+/-

• Fittings

• 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle

• Dimensions

• (W) 257mm x (H) 422mm x (D) 243mm

• (W) 10.1ins x (H) 16.6ins x (D) 9.6ins

• Weight

• 8kg (17.6lbs)

Included Accessories:

• Wall Bracket

• Eyebolts
