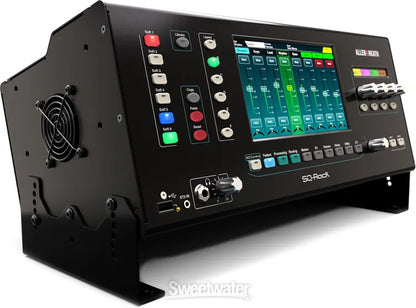

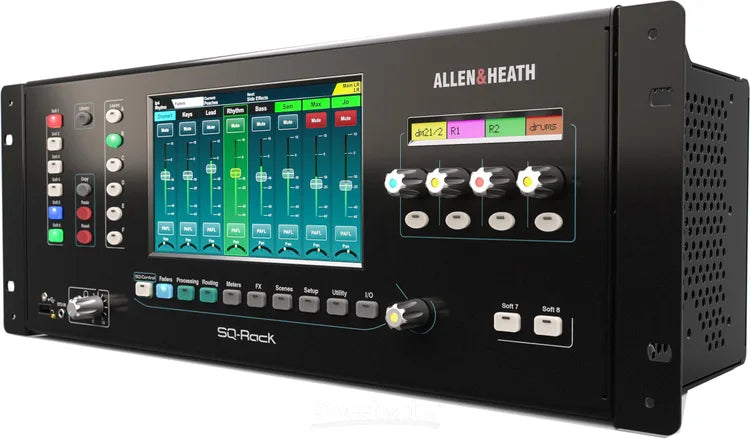

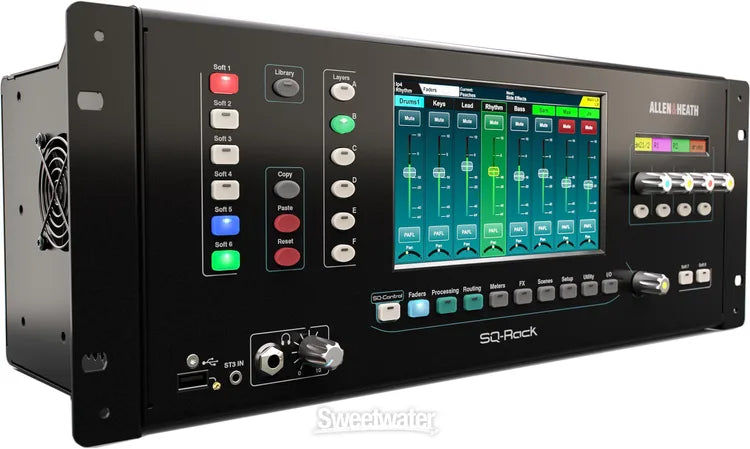

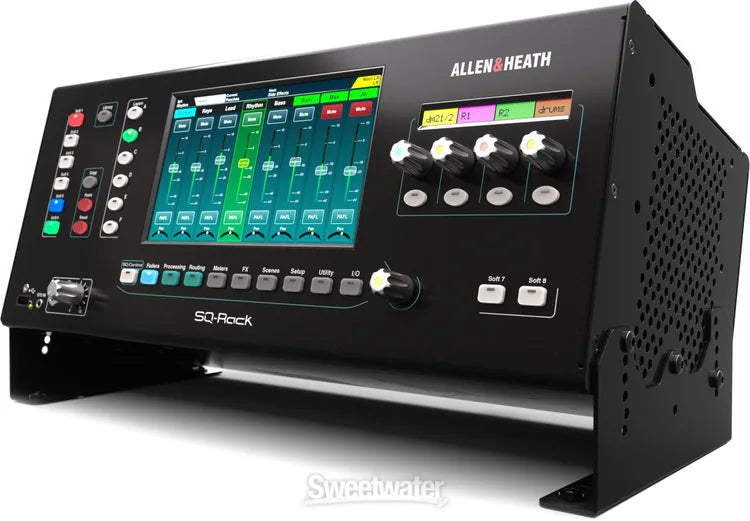

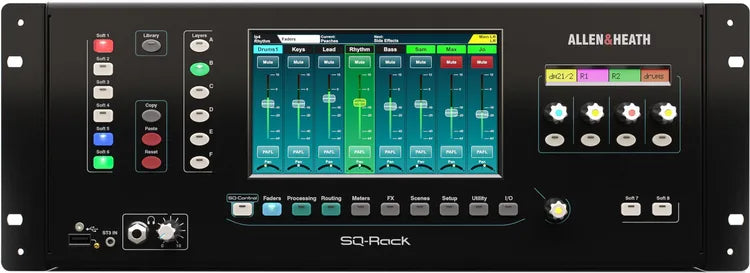

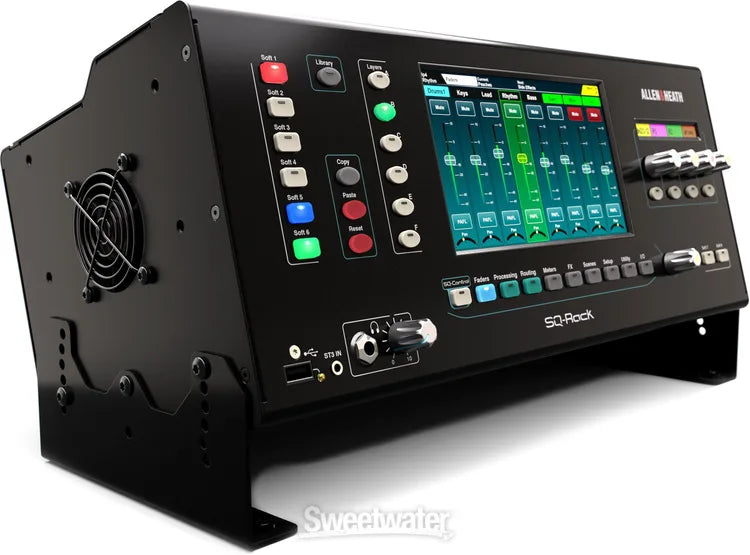

AH-SQ-RACK

The Allen & Heath SQ-Rack is a compact rack-mountable digital mixer and audio processing system designed for live sound, installed audio, broadcast, and AV applications. Powered by Allen & Heath's 96kHz XCVI FPGA engine, it delivers exceptional audio quality, ultra-low latency, and extensive processing capabilities in a space-saving rack format. Its flexible control options make it ideal for both fixed installations and portable production systems.

From The Manufacturer:

The SQ-Rack brings the acclaimed SQ mixing platform into a compact 4U rack-mount design. Featuring Allen & Heath's powerful XCVI processing core, extensive I/O capabilities, and seamless integration with the SQ ecosystem, it provides professional mixing, routing, and processing for a wide range of audio applications.

Key Features:

• 96kHz XCVI FPGA processing engine

• Rack-mountable 4U design

• 48 input channels

• 36 mix buses

• 12 stereo mixes

• 8 stereo FX engines

• Remote control via SQ apps

• SLink intelligent connection port

• Expandable I/O architecture

• Integrated audio recording and playback via USB

• Compatible with Allen & Heath Everything I/O ecosystem

Specifications:

• Mixer Type: Digital Rack Mixer

• Processing Engine: XCVI FPGA

• Sample Rate: 96kHz

• Input Channels: 48

• Mix Buses: 36

• Stereo FX Engines: 8

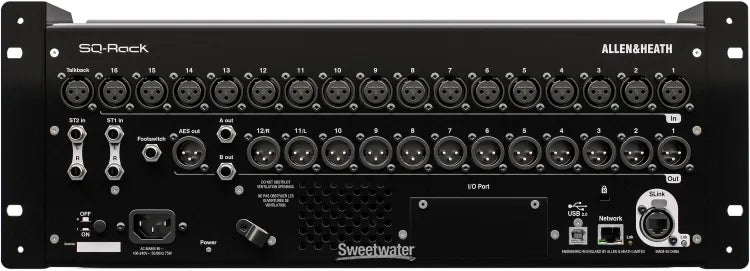

• Local Inputs: 16 XLR Mic/Line Inputs

• Local Outputs: 12 XLR Outputs

• AES Output: 1 Stereo AES Output

• SLink Port: Yes

• USB Audio Interface: 32 × 32

• Touchscreen: No (remote operation)

• Rack Size: 4U

Included:

• Allen & Heath SQ-Rack

• IEC Power Cable

• Rack Mount Hardware

• User Documentation

Applications:

• Live sound reinforcement

• Houses of worship

• Installed audio systems

• Corporate AV

• Broadcast production

• Theatre sound systems

• Touring and rental applications

Included Accessories:

• IEC power cable

• Rack mounting hardware

• User documentation

Accessories (Not Included):

• Remote control tablet

• Audio stage boxes

• Network switch

• Audio cables

• Flight case

Size:

• 482.6 × 198 × 221 mm

Weight:

• 5.8 kg

Electrical/Thermal:

• Power Supply: 100–240V AC, 50/60Hz

• Internal universal power supply

• 96kHz XCVI FPGA processing

• Active cooling system

• USB 32 × 32 audio interface
