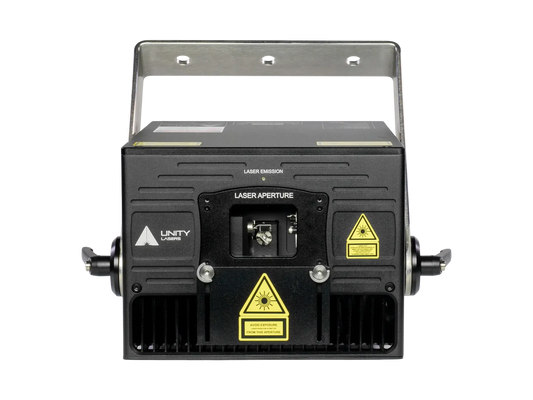

The Unity ELITE PRO FB4 is a full-color RGB professional laser light show projector series with an integrated Pangolin FB4 media server, available in power levels from 3W to 120W (with 100W and 120W models for large-scale outdoor and stadium use), designed for lighting professionals in hire, touring, and permanent installation applications.

From the Manufacturer

Built for lighting professionals who need precision without the premium price tag, the ELITE PRO FB4 delivers rich color, sharp graphics, and reliable scanning performance. Compared to the RAW series, it uses upgraded diode sources, optics, and XY scanners — giving you brighter, bolder projection and better image resolution, all in a sleek pro-grade housing. All systems use semiconductor laser diodes, are full-color RGB with analog modulation, and are integrated into robust housing suitable for permanent installations, touring, and rental situations.

The ELITE PRO FB4 series includes Pangolin's QuickShow laser design software and the free MoboLaser mobile app (Apple and Android) for designing, creating, and controlling laser shows from a lighting console, PC, or in standalone auto mode. With full Ethernet, ArtNet, DMX, sACN, and ILDA connectivity, the ELITE PRO FB4 integrates seamlessly into any professional lighting network.

Features

Full-color RGB semiconductor diode laser system with analog modulation for precise, vibrant color output
Integrated Pangolin FB4 media server for comprehensive show control from any lighting console, PC, or in auto mode
Control via Ethernet, ArtNet, DMX, sACN, and ILDA — compatible with any professional lighting desk
Free Pangolin QuickShow laser design software included with every unit
Free MoboLaser mobile app for Apple and Android for wireless control of cues, live controls, and geometric correction
Beam show, text, graphics, logo, and projection mapping capable across all models
Available in 3W, 5W, 10W, 20W, 30W, 40W, 60W, 100W, and 120W output levels to match any venue or application
10W and above feature IP65-rated weatherproof housing for outdoor and touring use
Digitally managed color, X/Y axes, size, position, and safety settings via the FB4 control system
High-speed scanning system (up to 35,000 points per second) for sharp, detailed laser output
Comprehensive laser safety features including keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, and adjustable aperture masking plate
Fully complies with EN 60825-1 and FDA laser safety regulations
Backed by world-class 7-day-a-week customer support, local repair facilities, and rigorous pre-shipment testing
Recommended use: Clubs, theaters, corporate events, houses of worship, sports arenas, festivals, concerts, outdoor shows, touring, rental, permanent installation, city-scale projections (120W model)

Specifications

ELITE 3 PRO FB4

Guaranteed Optical Output: >3.1W
Suitable For: Medium indoor venues, clubs, theater, house of worship, gymnasium (up to 3,000 people)
R | G | B Output: 610mW | 800mW | 1,760mW
Scanning System: 30,000 points per second @ 8°
Scan Angle: 50°
Beam Size: 2mm x 4mm
Max Power Consumption: 150W
Ingress Rating: IP4X
Weight: 8kg
Dimensions (D x W x H): 238mm x 246mm x 175mm

ELITE 5 PRO FB4

Guaranteed Optical Output: >5W
Suitable For: Larger indoor venues, clubs, theater, house of worship, gymnasium (up to 5,000 people), small outdoor shows
R | G | B Output: 1,800mW | 1,600mW | 2,000mW
Scanning System: 35,000 points per second @ 8°
Scan Angle: 45°
Beam Size: 6mm x 5mm
Max Power Consumption: 250W
Ingress Rating: IP4X
Weight: 9kg
Dimensions (D x W x H): 300mm x 307mm x 181mm

ELITE 10 PRO FB4 (IP65)

Guaranteed Optical Output: >10W
Suitable For: Large indoor venues (up to 10,000 people), medium outdoor shows
R | G | B Output: 3,200mW | 3,200mW | 4,000mW
Scanning System: 35,000 points per second @ 8°
Scan Angle: 45°
Beam Size: 6mm x 6mm
Max Power Consumption: 300W
Operation Temperature: -10°C to 45°C
Ingress Rating: IP65
Weight: 12.7kg
Dimensions (D x W x H): 328mm x 338mm x 191mm

ELITE 20 PRO FB4 (IP65)

Guaranteed Optical Output: >20W
Suitable For: Arena-sized venues (up to 30,000 people), outdoor shows
R | G | B Output: 6,400mW | 6,400mW | 8,000mW
Scanning System: 35,000 points per second @ 8°
Scan Angle: 45°
Beam Size: 6mm x 6mm
Max Power Consumption: 400W
Operation Temperature: -10°C to 45°C
Ingress Rating: IP65
Weight: 15.5kg
Dimensions (D x W x H): 385mm x 338mm x 191mm

ELITE 30 PRO FB4 (IP65)

Guaranteed Optical Output: >30W
Suitable For: Arena-sized venues (up to 40,000 people), larger outdoor shows
R | G | B Output: 9,000mW | 10,000mW | 12,000mW
Scanning System: 35,000 points per second @ 8°
Scan Angle: 45°
Beam Size: 6mm x 6mm
Max Power Consumption: 700W
Operation Temperature: -10°C to 45°C
Ingress Rating: IP65
Weight: 21kg
Dimensions (D x W x H): 439mm x 408mm x 211mm

ELITE 40 PRO FB4 (IP65)

Guaranteed Optical Output: >40W
Suitable For: Arena-sized venues (up to 50,000 people), larger outdoor shows
R | G | B Output: 11,000mW | 14,000mW | 16,000mW
Scanning System: 30,000 points per second @ 8°
Scan Angle: 45°
Beam Size: 6mm x 6mm
Max Power Consumption: 750W
Operation Temperature: -10°C to 45°C
Ingress Rating: IP65
Weight: 22kg
Dimensions (D x W x H): 439mm x 408mm x 211mm

ELITE 60 PRO FB4 (IP65)

Guaranteed Optical Output: >59.5W
Suitable For: Stadiums and arenas (over 40,000 people), huge outdoor shows
R | G | B Output: 19,500mW | 20,000mW | 20,000mW
Scanning System: 30,000 points per second @ 8°
Scan Angle: 45°
Beam Size: 7mm x 7mm
Max Power Consumption: 1,200W
Operation Temperature: -10°C to 45°C
Ingress Rating: IP65
Weight: 32kg
Dimensions (D x W x H): 509mm x 455mm x 226mm

ELITE 100 PRO FB4 (IP65)

Guaranteed Optical Output: >100W
Suitable For: Stadiums and arenas (over 40,000 people), huge outdoor shows
R | G | B Output: 30,000mW | 35,000mW | 40,000mW
R | G | B Wavelength: 638nm | 525nm | 450nm
Scanning System: 26,000 points per second @ 8°
Scan Angle: 40°
Beam Size: 8mm x 10mm
Max Power Consumption: 1,500W
Operation Temperature: -10°C to 40°C
Ingress Rating: IP65
Weight: 40.5kg
Dimensions (L x W x H): 583mm x 502mm x 229mm

ELITE 120 PRO FB4 (IP65)

Guaranteed Optical Output: >120W
Suitable For: Stadiums, arenas, huge outdoor shows, cityscape and landmark projections (visible for kilometers/miles away)
R | G | B Output: 30,000mW | 40,000mW | 50,000mW
Scanning System: 25,000 points per second @ 8°
Scan Angle: 40°
Beam Size: 7.5mm x 7.5mm
Max Power Consumption: 1,600W
Operation Temperature: -10°C to 45°C
Ingress Rating: IP65
Weight: 58kg
Dimensions (D x W x H): 705mm x 576mm x 273mm

All Models — Shared Specifications

Type of Laser: Full-color, semiconductor diode laser system
Control Signal: Pangolin FB4 DMX — Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App (Apple & Android)
Beam Divergence: <1.2mrad (full angle)
Modulation: Analog 100kHz
Power Requirements: 100–240V / 50Hz
Operation Temperature (3W & 5W models): 10–40°C
Operation Temperature (10W–120W models): -10°C to 45°C
Safety Compliance: EN 60825-1 and FDA regulations
Laser Safety Features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate

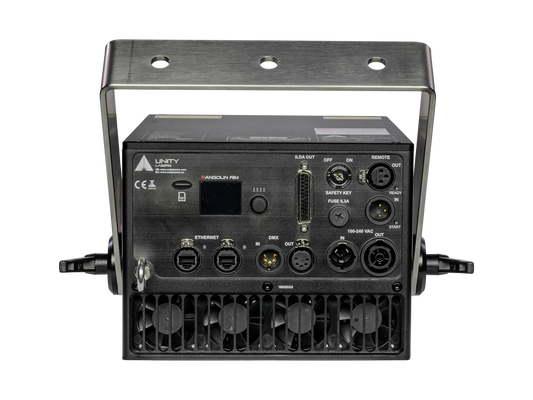

System Features: All adjustments (color output, X/Y invert, X/Y size and position, safety) managed digitally via the FB4 control system. Ethernet in/out, power in/out, DMX in/out, E-stop in/out

What's in the Box

Laser projector with integrated FB4 DMX media server
Pangolin QuickShow laser control software

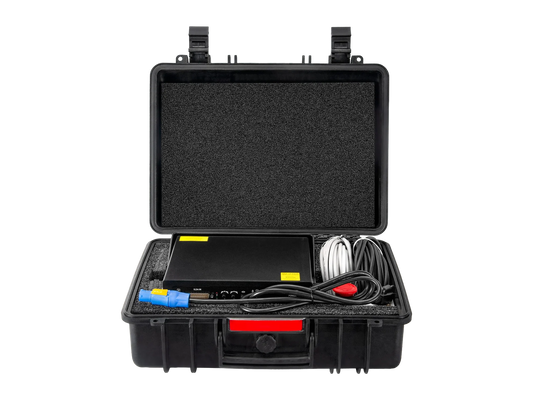

Heavy-duty flight case
E-stop box
E-stop XLR cable (10M / 30ft)
Ethernet cable (10M / 30ft)
Power cable (1.5M / 4.5ft)
Safety interlock
Set of 4 safety keys
Manual
Quick start guide
Variance card
Quality certificate
Outdoor RJ45 connectors (IP65 models only)
*Service dongle (included for units shipped outside the US)
