Sku:
UNI-RAW-1.7
Raw DMX+ILDA Lasers
Regular price
$1,194.00
Regular price
Sale price
$1,194.00
Unit price
per
Shipping calculated at checkout.
Vendor:
Unity Lasers
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The Unity Lasers RAW (DMX+ILDA) is a full-color laser light show projector for clubs, DJs, and entertainment professionals seeking beam effects, text, graphics, and projection mapping with native DMX and ILDA control.
From the Manufacturer
Step up your lighting game with the Unity RAW (DMX+ILDA) — a powerful and affordable laser light show projector built for emerging professionals and passionate hobbyists alike. Whether you're lighting up a club, DJing a backyard rave, or experimenting in your home studio, this compact beast has you covered. With full DMX and ILDA control, the RAW delivers stunning aerial beam effects, as well as crisp text, logos, graphics, and projection mapping. Available in power levels from 1.7W to 10W, it's a serious upgrade from a basic laser projector without the "serious" price tag.
Features
- Full-color RGB laser system using high-quality semiconductor diode technology
- Available in four power levels — 1.7W, 3W, 5W, and 10W — to match any venue size or application
- Beam show, text, graphics, logo, and projection mapping capable
- Native DMX control with DMX in/out connectivity for seamless integration into any lighting rig
- ILDA in/out for full laser show programming (Pangolin FB3QS and QuickShow recommended)
- Sound active mode for music-reactive performances without a controller
- 30,000 points per second scanning system for sharp, detailed output
- Compact and portable design with LCD display for DMX address and settings
- Multi-projector connectivity via DMX and ILDA daisy-chaining
- On-board adjustments for RGB color channels and X/Y size, position, and invert
- Comprehensive laser safety features including keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, and adjustable aperture masking plate
- Fully complies with EN 60825-1 and FDA laser safety regulations
- Backed by world-class 7-day-a-week customer support, local repair facilities, and rigorous pre-shipment testing
- Recommended use: Clubs, DJ performances, live events, indoor venues, home and hobby use, beam shows, laser mapping, themed entertainment
Specifications
RAW 1.7 (DMX+ILDA)
- Type of Laser: Full-color, semiconductor diode laser system
- Guaranteed Optical Output: >1.7W
- Suitable For: Clubs, DJs, smaller indoor venues, home and hobby use
- R | G | B Output: 350mW | 500mW | 1,000mW
- R | G | B Wavelength: 638nm | 520nm | 450nm
- Scan Angle: 45°
- Max Power Consumption: 100W
- Weight: 5.3kg
- Dimensions (D x W x H): 238mm x 192mm x 126mm

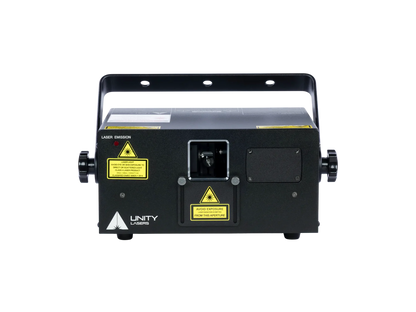

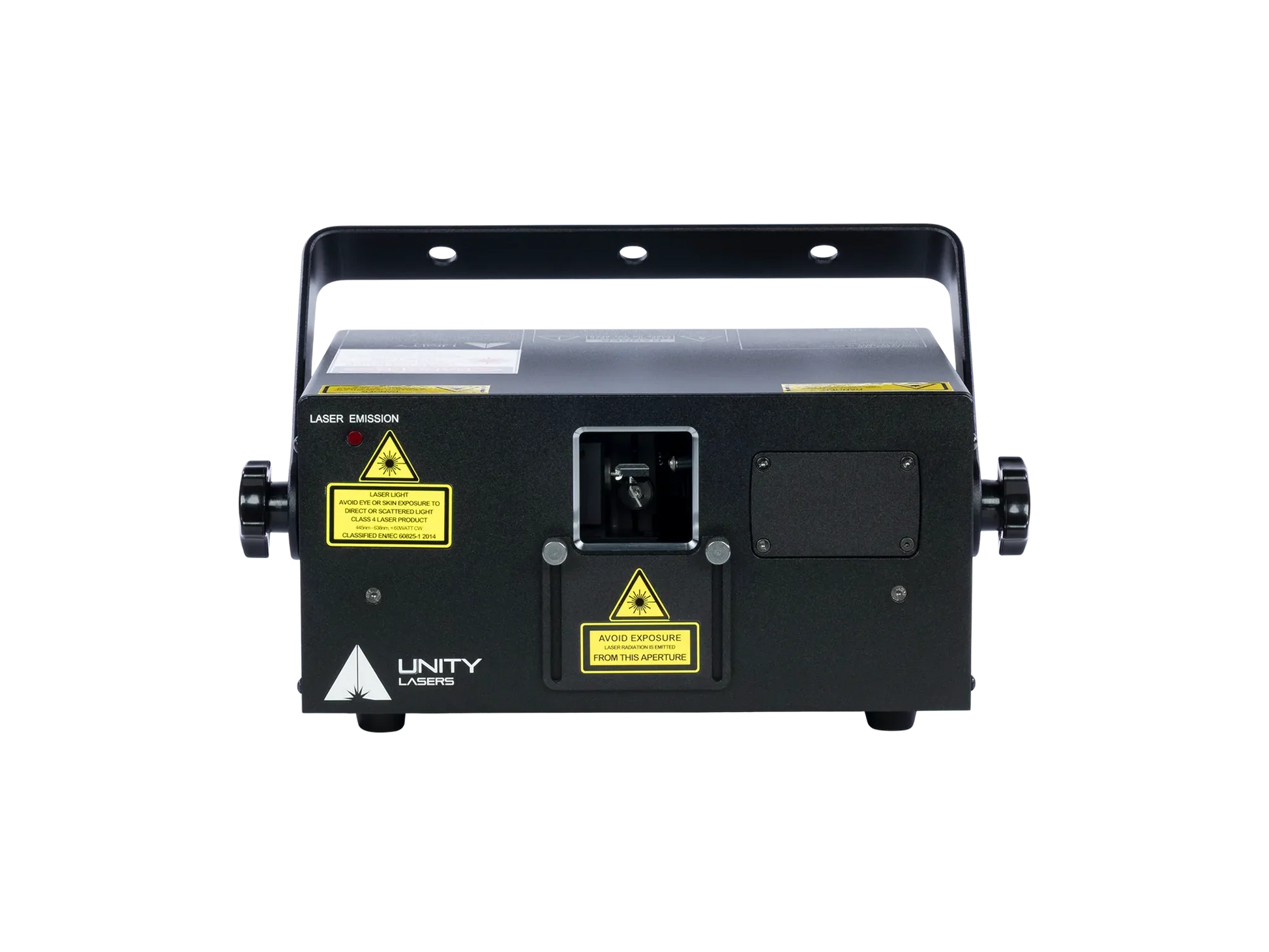

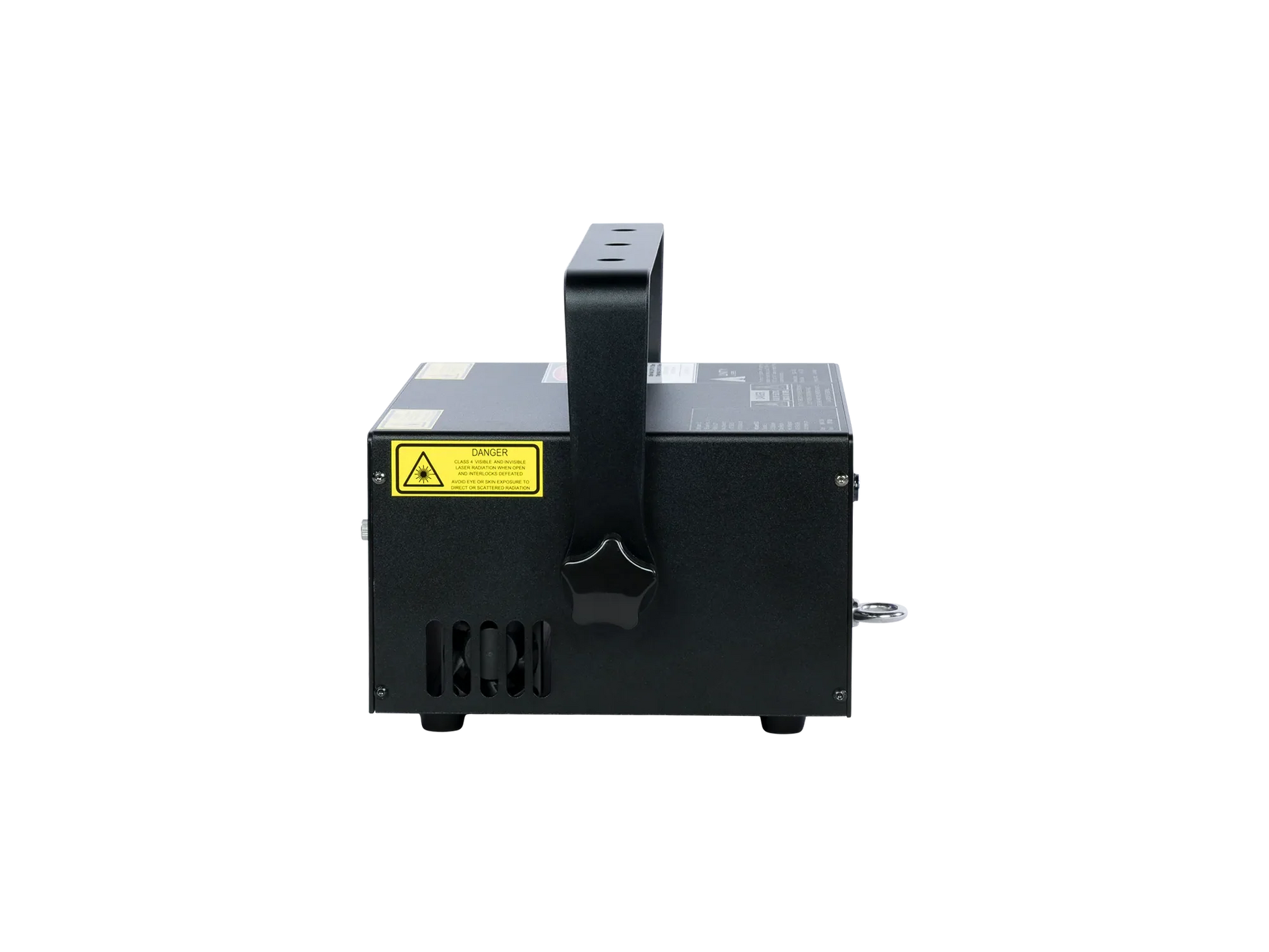

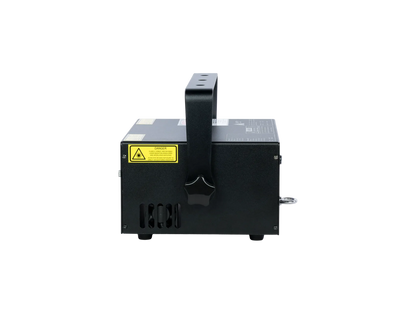

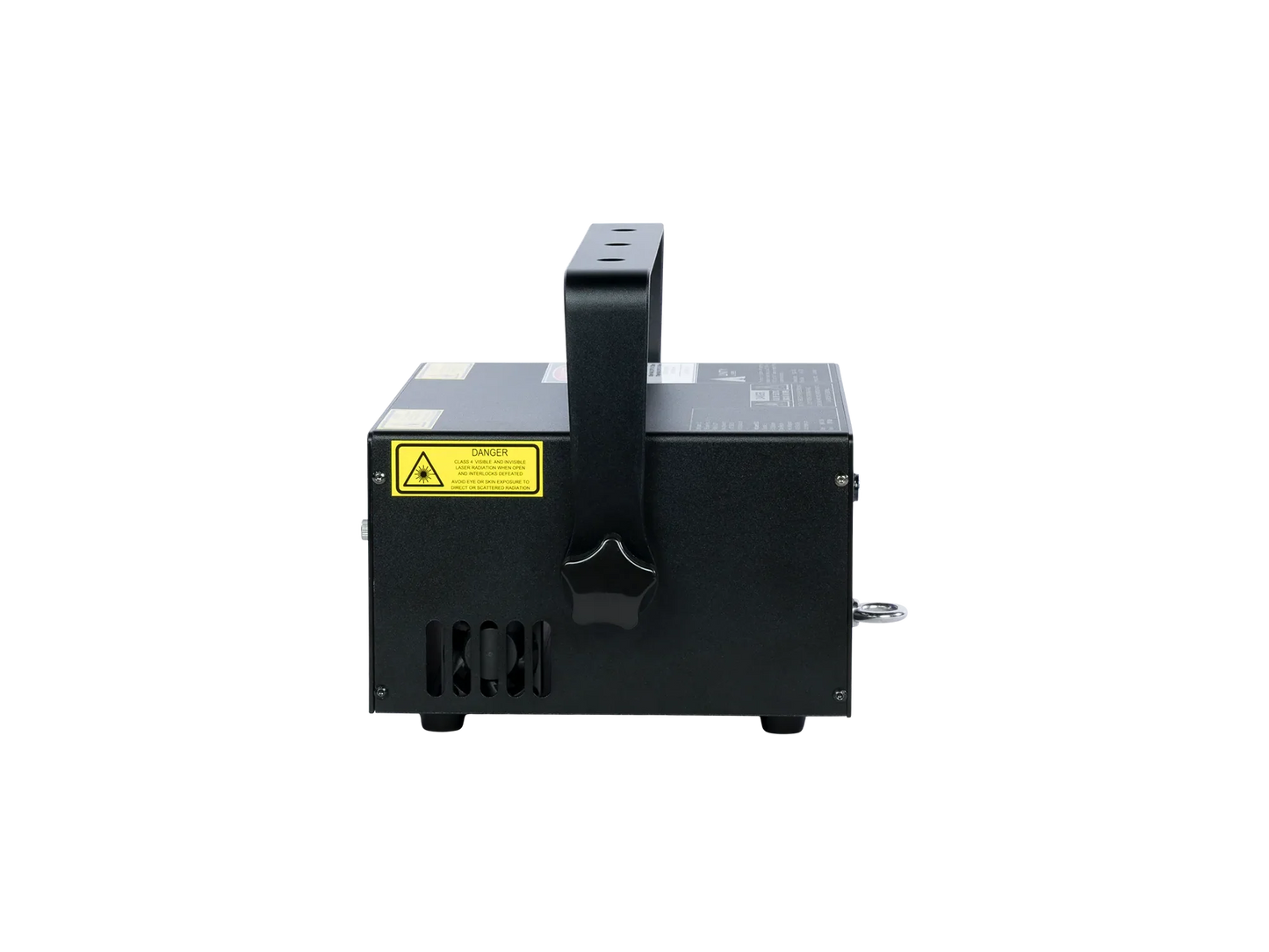

RAW 3 (DMX+ILDA)
- Type of Laser: Full-color, semiconductor diode laser system
- Guaranteed Optical Output: >3W
- Suitable For: Clubs, DJs, medium indoor venues (up to 3,000 people), home and hobby use
- R | G | B Output: 500mW | 800mW | 1,700mW
- R | G | B Wavelength: 638nm | 525nm | 455nm
- Scan Angle: 45°
- Max Power Consumption: 100W
- Weight: 5.3kg
- Dimensions (D x W x H): 238mm x 192mm x 126mm

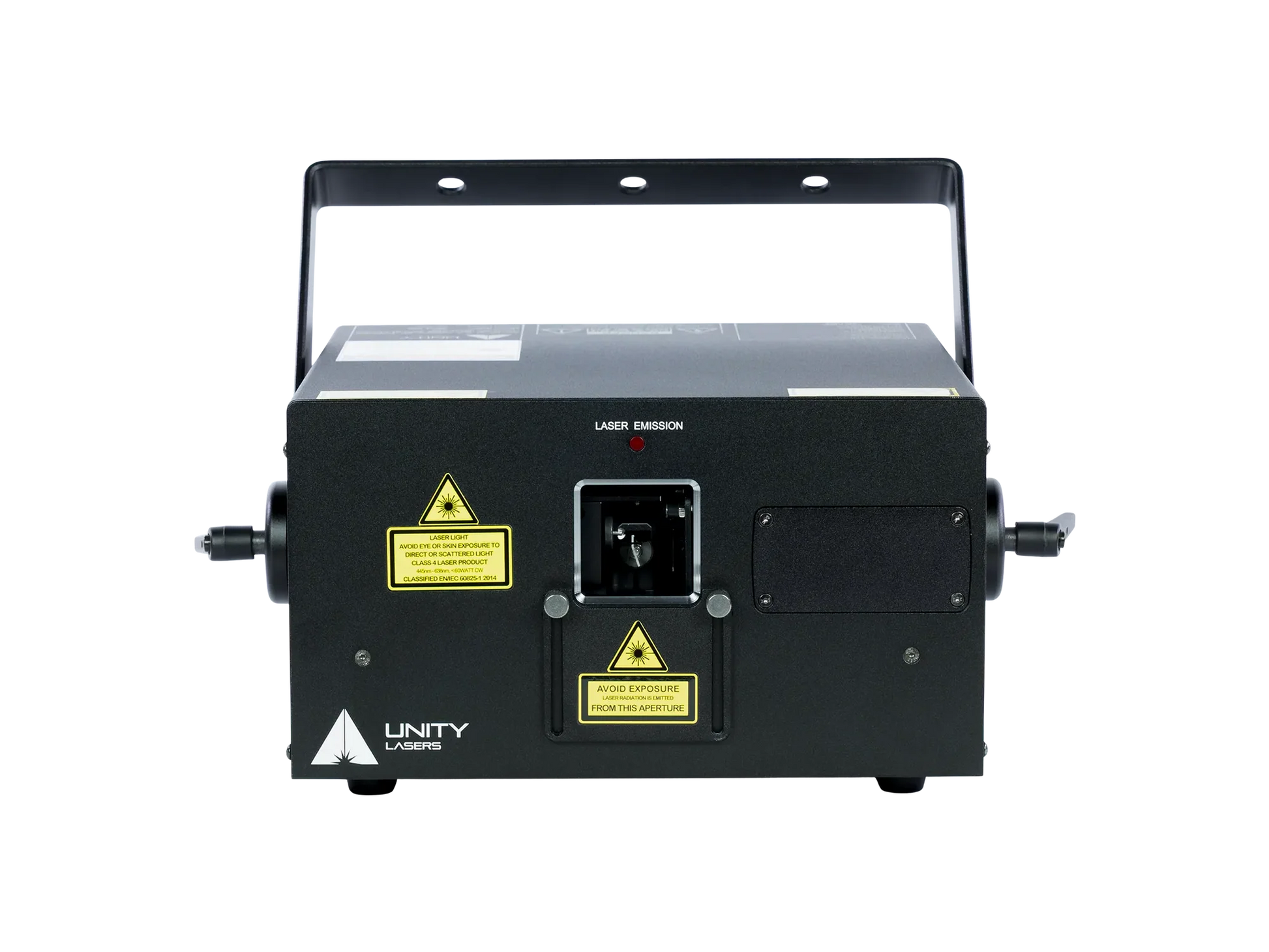

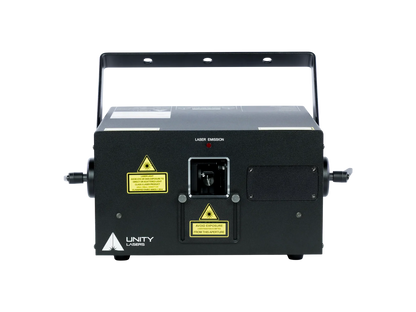

RAW 5 (DMX+ILDA)
- Type of Laser: Full-color, semiconductor diode laser system
- Guaranteed Optical Output: >5W
- Suitable For: Clubs, DJs, large indoor venues (up to 5,000 people), small outdoor shows
- R | G | B Output: 1,200mW | 1,000mW | 2,800mW
- R | G | B Wavelength: 638nm | 525nm | 455nm
- Scan Angle: 50°
- Max Power Consumption: 150W
- Weight: 8kg
- Dimensions (D x W x H): 252mm x 247mm x 148mm

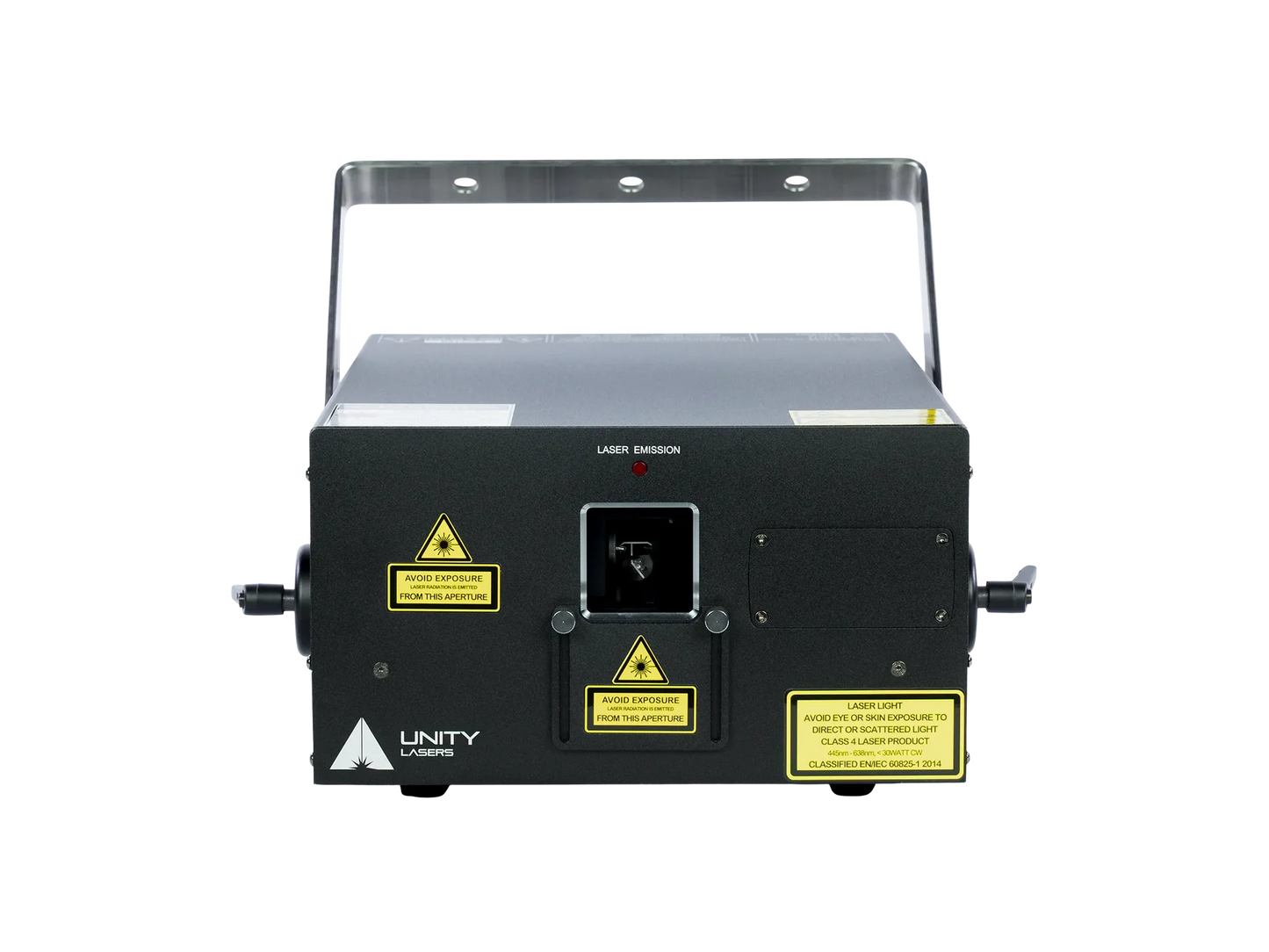

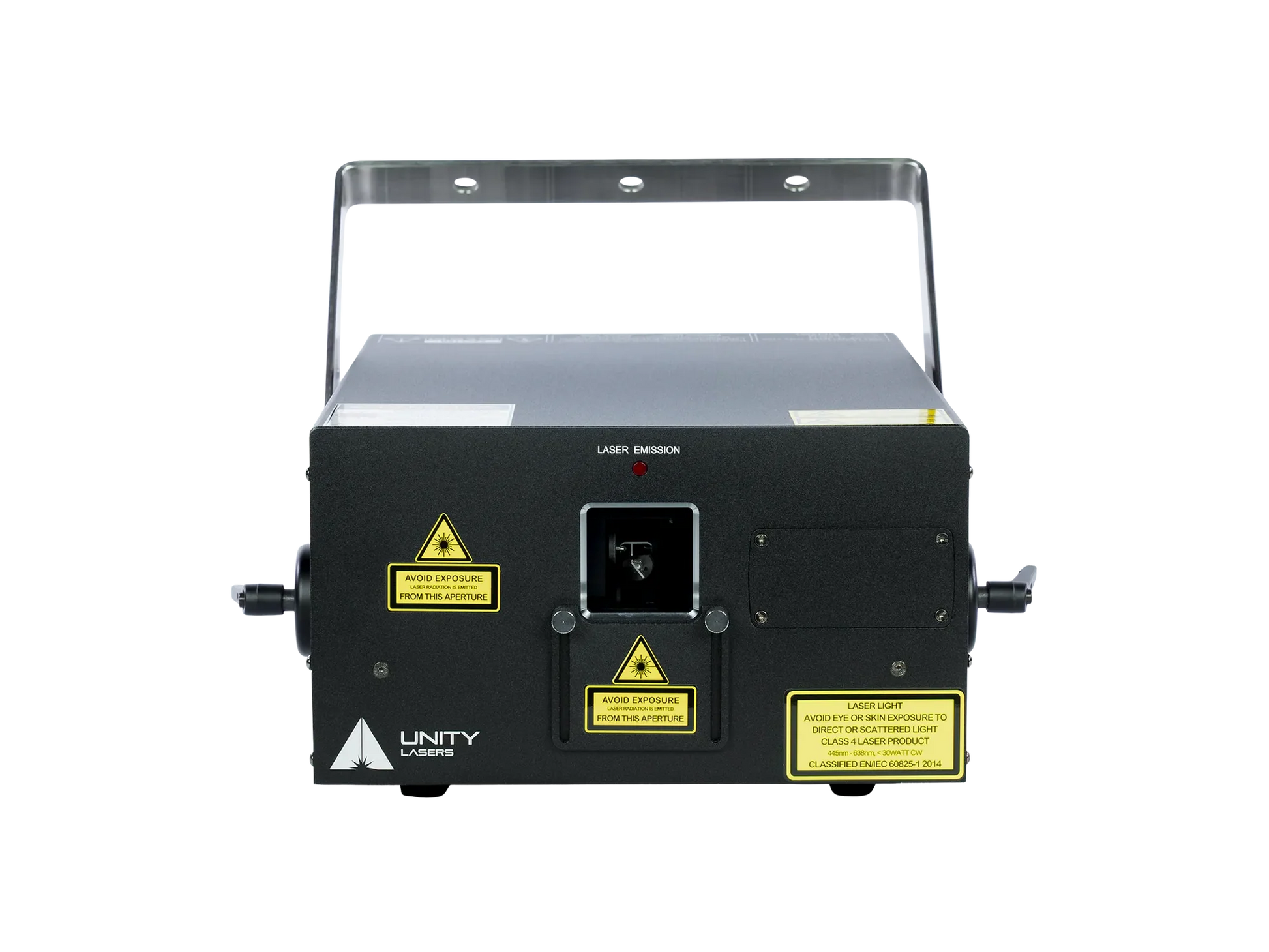

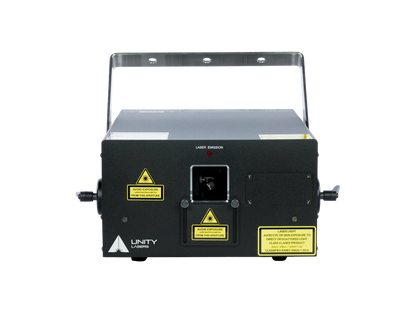

RAW 10 (DMX+ILDA)
- Type of Laser: Full-color, semiconductor diode laser system
- Guaranteed Optical Output: >10W
- Suitable For: Clubs, DJs, large indoor venues (over 5,000 people), medium outdoor shows
- R | G | B Output: 2,700mW | 2,700mW | 4,800mW
- R | G | B Wavelength: 638nm | 525nm | 455nm
- Scan Angle: 50°
- Max Power Consumption: 350W
- Weight: 12kg
- Dimensions (L x W x H): 340mm x 247mm x 148mm
All Models — Shared Specifications
- Control Signal: DMX mode, sound active mode, ILDA mode
- Scanning System: 30,000 points per second @ 8°
- Beam Size: 5mm x 3mm
- Beam Divergence: <1.1mrad (full angle)
- Modulation: Analog 50kHz
- Power Requirements: 100–230V / 50Hz
- Operation Temperature: 10–40°C
- Ingress Rating: IP4X
- Safety Compliance: EN 60825-1 and FDA regulations
- Laser Safety Features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate

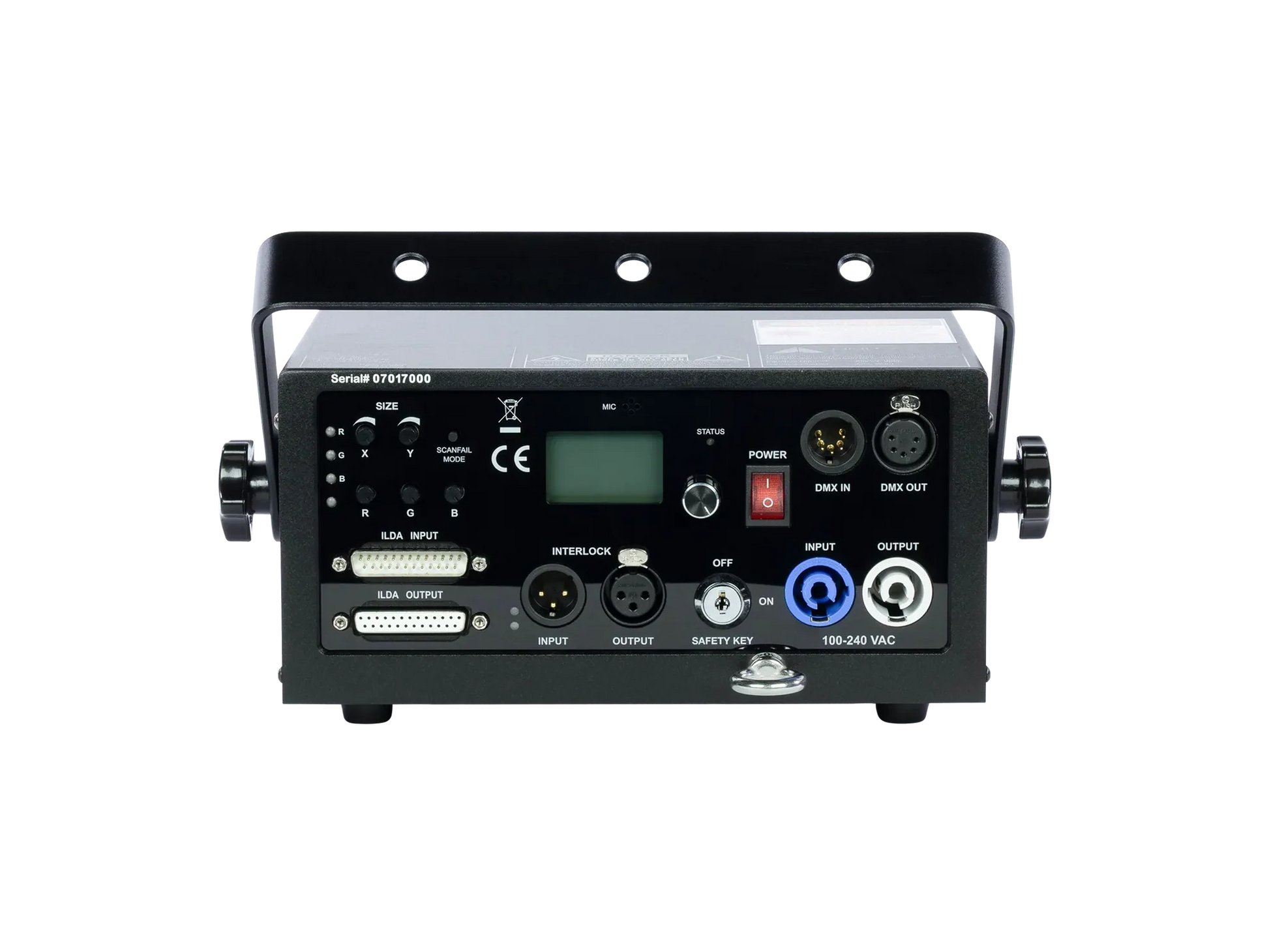

- System Features: Adjustments for RGB color channels, X/Y size/position/invert, DMX in/out, ILDA in/out, E-stop in/out, power in/out, sound active mode, digital display for DMX address and settings
What's in the Box
- Laser projector
- E-stop box
- E-stop cable (10M / 30ft)
- ILDA cable (10M / 30ft)
- Power cable (1.5M / 4.5ft)
- Safety interlock
- Safety keys
- Manual
- Quick start guide
- Variance card
- Carton packaging
- *Service dongle (included for units shipped outside the US)
