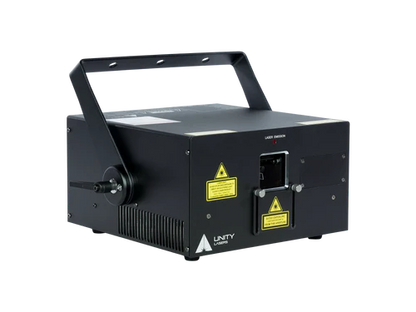

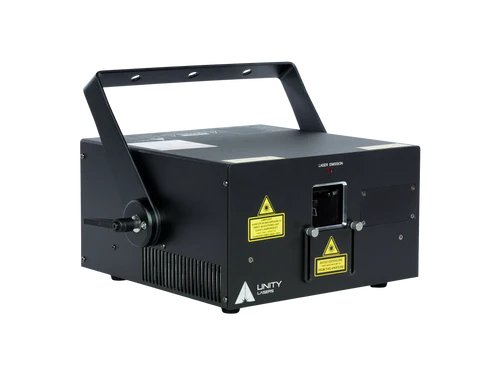

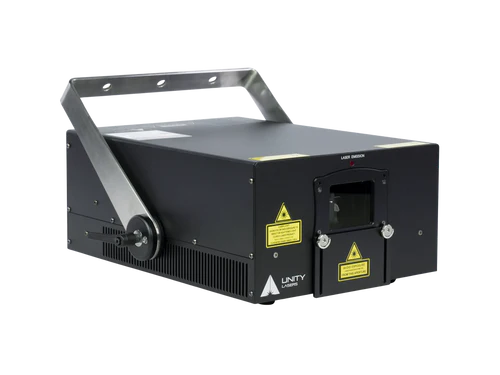

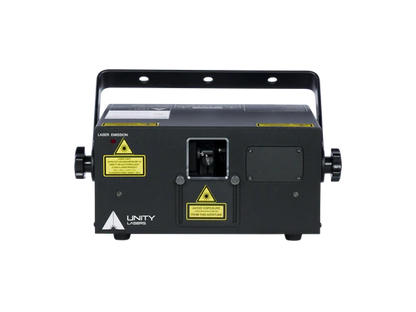

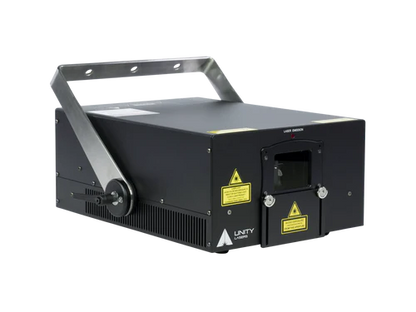

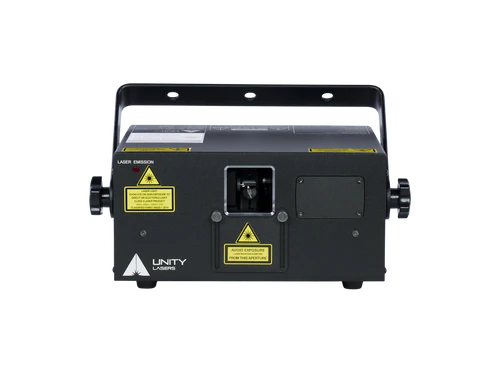

Raw FB4 Lasers

The Unity RAW FB4 is a professional-grade, full-color RGB laser projector series with built-in Pangolin FB4 control hardware, available in 3W, 5W, and 10W — delivering powerful aerial beam effects, graphics, text, and mapping with DMX, Art-Net, sACN, and ILDA control right out of the box.

From the Manufacturer

The Unity RAW FB4 is a high-impact laser light show projector designed for lighting professionals who want full control without the premium price tag. With the Pangolin FB4 hardware built directly into every unit, you get the same control infrastructure used by the world's leading laser companies — direct integration with any lighting console, PC, or stand-alone auto mode, and support for all major protocols including DMX, Art-Net, sACN, and timecode. Pangolin's QuickShow laser design software is included at no extra cost, and the free MoboLaser app (Apple and Android) gives you mobile control from anywhere on the network.

Available in 3W, 5W, and 10W power levels to suit venues from clubs and theaters to small arenas and outdoor shows, the RAW FB4 is a pure diode-based system with a vibrant, balanced white output and true analog modulation at 50kHz for smooth, seamless fade-in and fade-out transitions. Multiple units can be easily linked over Ethernet, Art-Net, or DMX for synchronized multi-projector shows. All settings — color output, X/Y axes, size, position, safety, and geometric correction — are managed digitally through the FB4 control system and its built-in display.

Features

• Built-in Pangolin FB4 control hardware — no external controller required for DMX, Art-Net, sACN, ILDA, or timecode control
• Available in 3W, 5W, and 10W power levels — scalable to clubs, theaters, and small outdoor shows
• Pure diode-based RGB laser with balanced white output and true analog modulation at 50kHz for smooth color transitions
• 30,000 points per second scanning speed at 8° — smooth animations, graphics, and beam effects
• 50° scan angle for wide coverage
• Capable of beam shows, atmospherics, text, graphics, logos, and laser mapping
• Control via PC (QuickShow/BEYOND), lighting console (DMX/Art-Net), or stand-alone auto mode
• Multi-projector synchronization over Ethernet, Art-Net, or DMX
• Digital FB4 display for on-unit adjustment of color output, X/Y axes, size, position, rotation, and geometric correction
• Includes Pangolin QuickShow software (free) — the world's most popular laser show design software
• Includes MoboLaser app (free, Apple and Android) for mobile control of QuickShow and BEYOND
• Sound-active mode for real-time music synchronization
• Comprehensive laser safety: keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, and adjustable aperture masking plate
• E-stop (emergency stop) with manual reset — box and cable included
• Compliant with EN 60825-1 and FDA laser safety regulations
• IP4X ingress rating — protected against dust and solid objects

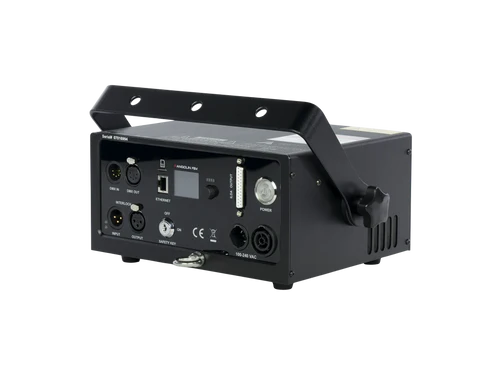

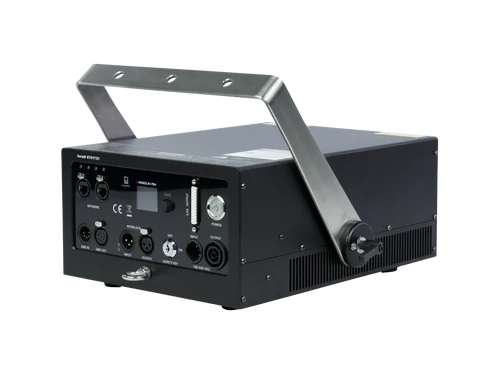

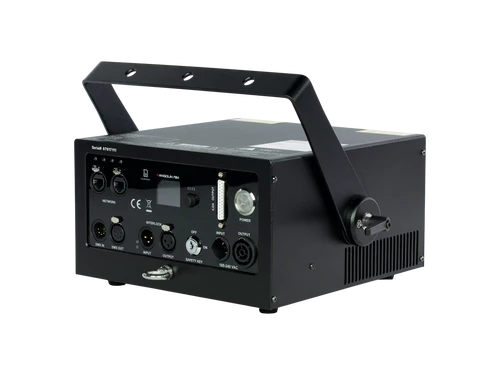

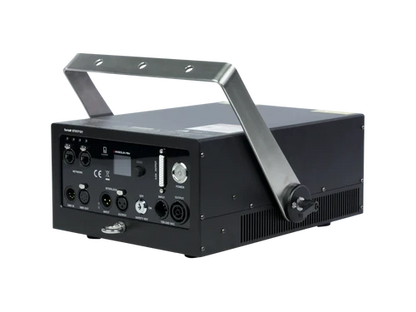

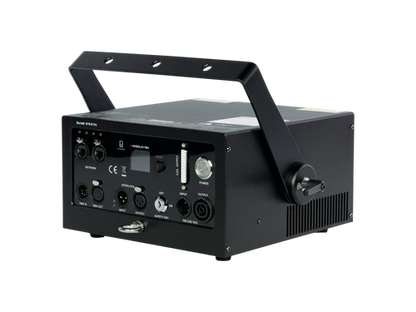

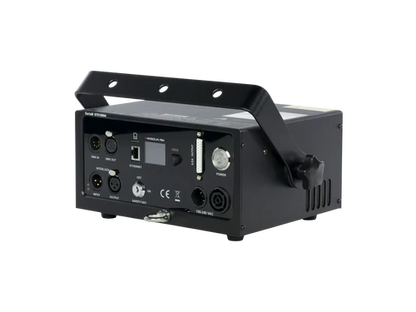

• Connectivity: Ethernet in/out, power in/out, DMX in/out, E-stop in/out, ILDA out
• Compact aluminum housing for easy transport and rigging
• Recommended use: Clubs, DJs, theaters, corporate events, small arenas, and small-to-medium outdoor shows

Specifications

Optical (3W model)

• Total Output Power: 3W
• Red Diode: 500mW @ 638nm
• Green Diode: 800mW @ 520nm
• Blue Diode: 1,700mW @ 450nm
• Output Type: Balanced white (full-color RGB)

Scanning

• Scan Speed: 30,000 points per second @ 8°
• Scan Angle: 50°
• Modulation: True analog, 50kHz

Control

• Control System: Pangolin FB4 DMX (built-in)
• Protocols: DMX, Art-Net, sACN, ILDA, timecode
• Control Modes: PC (QuickShow/BEYOND), lighting console, stand-alone auto, mobile app
• Software Included: Pangolin QuickShow (free download)
• Mobile App: MoboLaser (free, Apple and Android)

Connectivity

• Data: Ethernet in/out (with integrated network switch on 5W and 10W), DMX in/out, ILDA out
• Power: Power in/out
• Safety: E-stop in/out

Safety

• Safety Features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate
• Emergency Stop: E-stop input with manual reset
• Compliance: EN 60825-1, FDA regulations
• Ingress Rating: IP4X

Physical

• Housing: Aluminum
• Dimensions (3W): 238 mm x 192 mm x 126 mm (9.37 x 7.55 x 4.96 in.)

What's in the Box

• Unity RAW FB4 laser projector
• Protective carry case
• E-stop box
• E-stop cable (10M / 30ft)
• Ethernet cable (10M / 30ft)
• Power cable (1.5M / 4.5ft)
• Interlock with keys
• User manual and quickstart guide
• Variance card
• Pangolin QuickShow software license (free download)
