Sku:
UNI-EL3-PRO

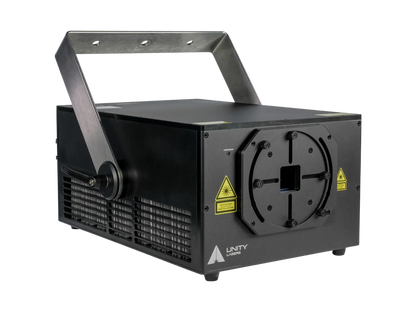

Elite Pro FB4
Regular price
$2,514.00
Regular price
Sale price
$2,514.00
Unit price
per
Shipping calculated at checkout.
Vendor:
Unity Lasers
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

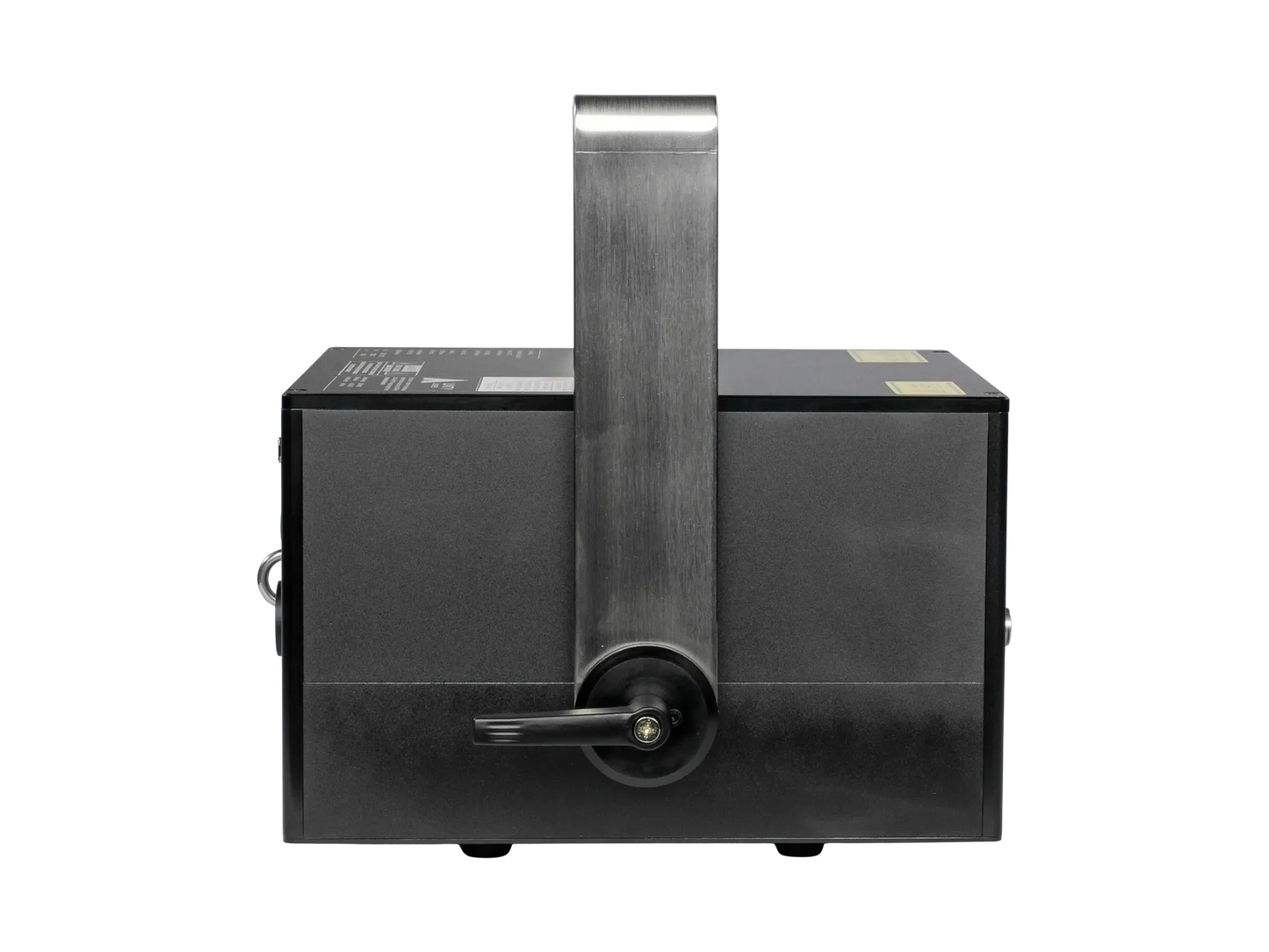

The Unity ELITE PRO FB4 is a full-color RGB professional laser light show projector series with an integrated Pangolin FB4 media server, available in power levels from 3W to 120W (with 100W and 120W models for large-scale outdoor and stadium use), designed for lighting professionals in hire, touring, and permanent installation applications.
From the Manufacturer
Built for lighting professionals who need precision without the premium price tag, the ELITE PRO FB4 delivers rich color, sharp graphics, and reliable scanning performance. Compared to the RAW series, it uses upgraded diode sources, optics, and XY scanners — giving you brighter, bolder projection and better image resolution, all in a sleek pro-grade housing. All systems use semiconductor laser diodes, are full-color RGB with analog modulation, and are integrated into robust housing suitable for permanent installations, touring, and rental situations.
The ELITE PRO FB4 series includes Pangolin's QuickShow laser design software and the free MoboLaser mobile app (Apple and Android) for designing, creating, and controlling laser shows from a lighting console, PC, or in standalone auto mode. With full Ethernet, ArtNet, DMX, sACN, and ILDA connectivity, the ELITE PRO FB4 integrates seamlessly into any professional lighting network.
Features
- Full-color RGB semiconductor diode laser system with analog modulation for precise, vibrant color output
- Integrated Pangolin FB4 media server for comprehensive show control from any lighting console, PC, or in auto mode
- Control via Ethernet, ArtNet, DMX, sACN, and ILDA — compatible with any professional lighting desk
- Free Pangolin QuickShow laser design software included with every unit
- Free MoboLaser mobile app for Apple and Android for wireless control of cues, live controls, and geometric correction
- Beam show, text, graphics, logo, and projection mapping capable across all models
- Available in 3W, 5W, 10W, 20W, 30W, 40W, 60W, 100W, and 120W output levels to match any venue or application
- 10W and above feature IP65-rated weatherproof housing for outdoor and touring use
- Digitally managed color, X/Y axes, size, position, and safety settings via the FB4 control system
- High-speed scanning system (up to 35,000 points per second) for sharp, detailed laser output
- Comprehensive laser safety features including keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, and adjustable aperture masking plate
- Fully complies with EN 60825-1 and FDA laser safety regulations
- Backed by world-class 7-day-a-week customer support, local repair facilities, and rigorous pre-shipment testing
- Recommended use: Clubs, theaters, corporate events, houses of worship, sports arenas, festivals, concerts, outdoor shows, touring, rental, permanent installation, city-scale projections (120W model)
Specifications

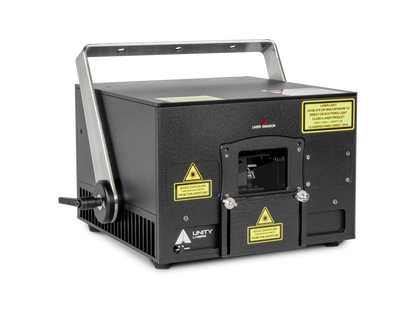

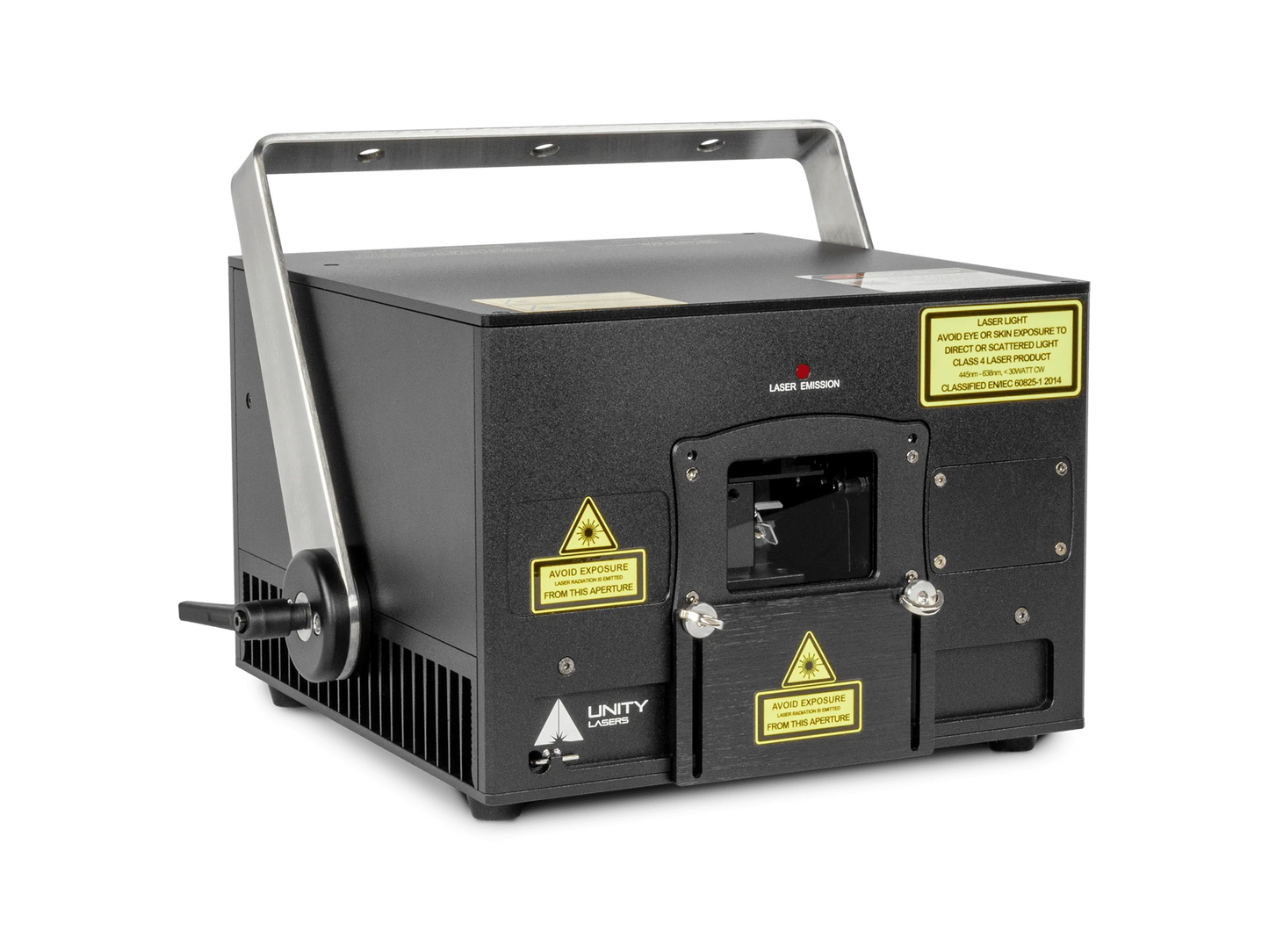

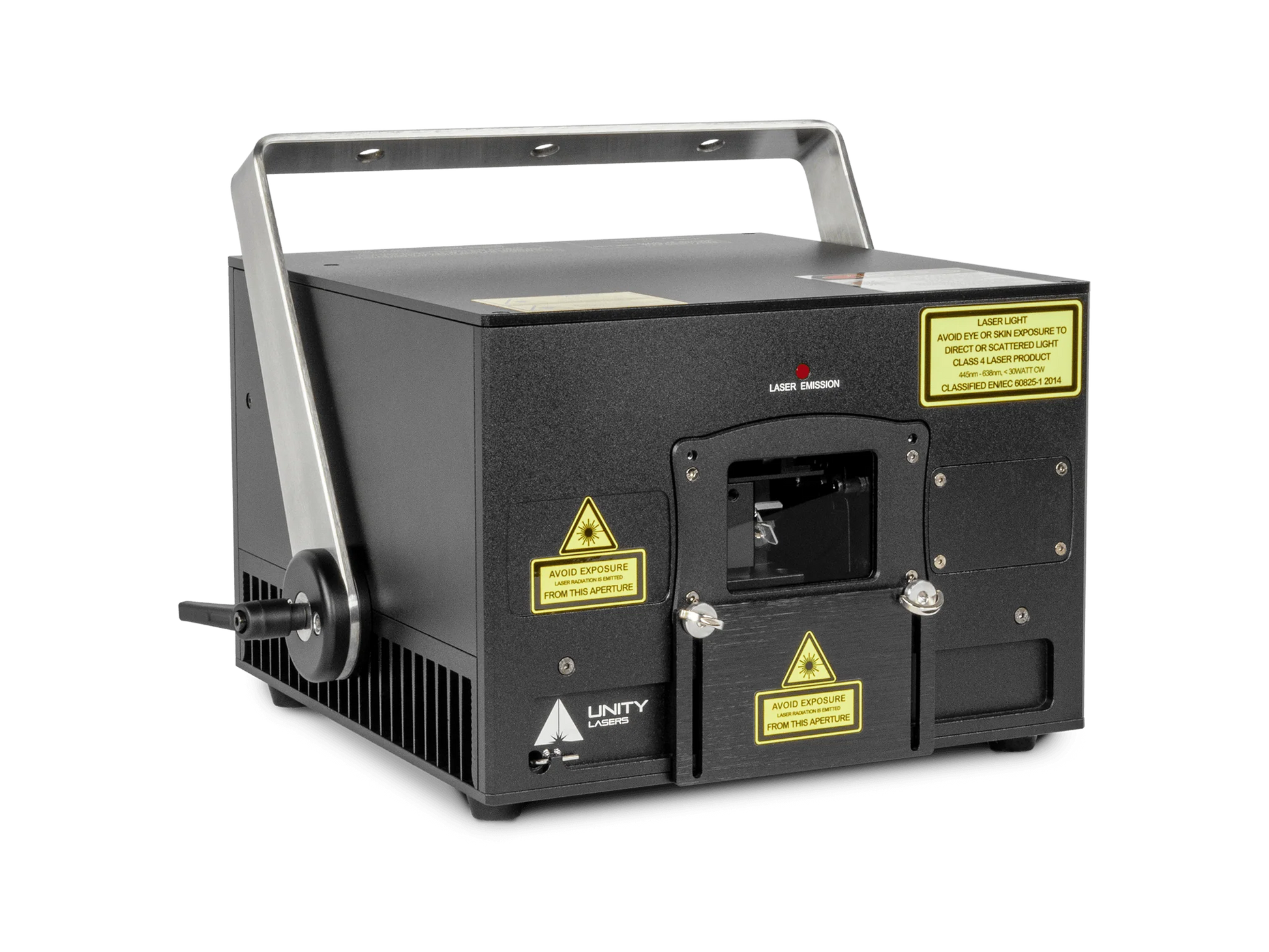

ELITE 3 PRO FB4
- Guaranteed Optical Output: >3.1W
- Suitable For: Medium indoor venues, clubs, theater, house of worship, gymnasium (up to 3,000 people)
- R | G | B Output: 610mW | 800mW | 1,760mW
- Scanning System: 30,000 points per second @ 8°
- Scan Angle: 50°
- Beam Size: 2mm x 4mm
- Max Power Consumption: 150W
- Ingress Rating: IP4X
- Weight: 8kg
- Dimensions (D x W x H): 238mm x 246mm x 175mm

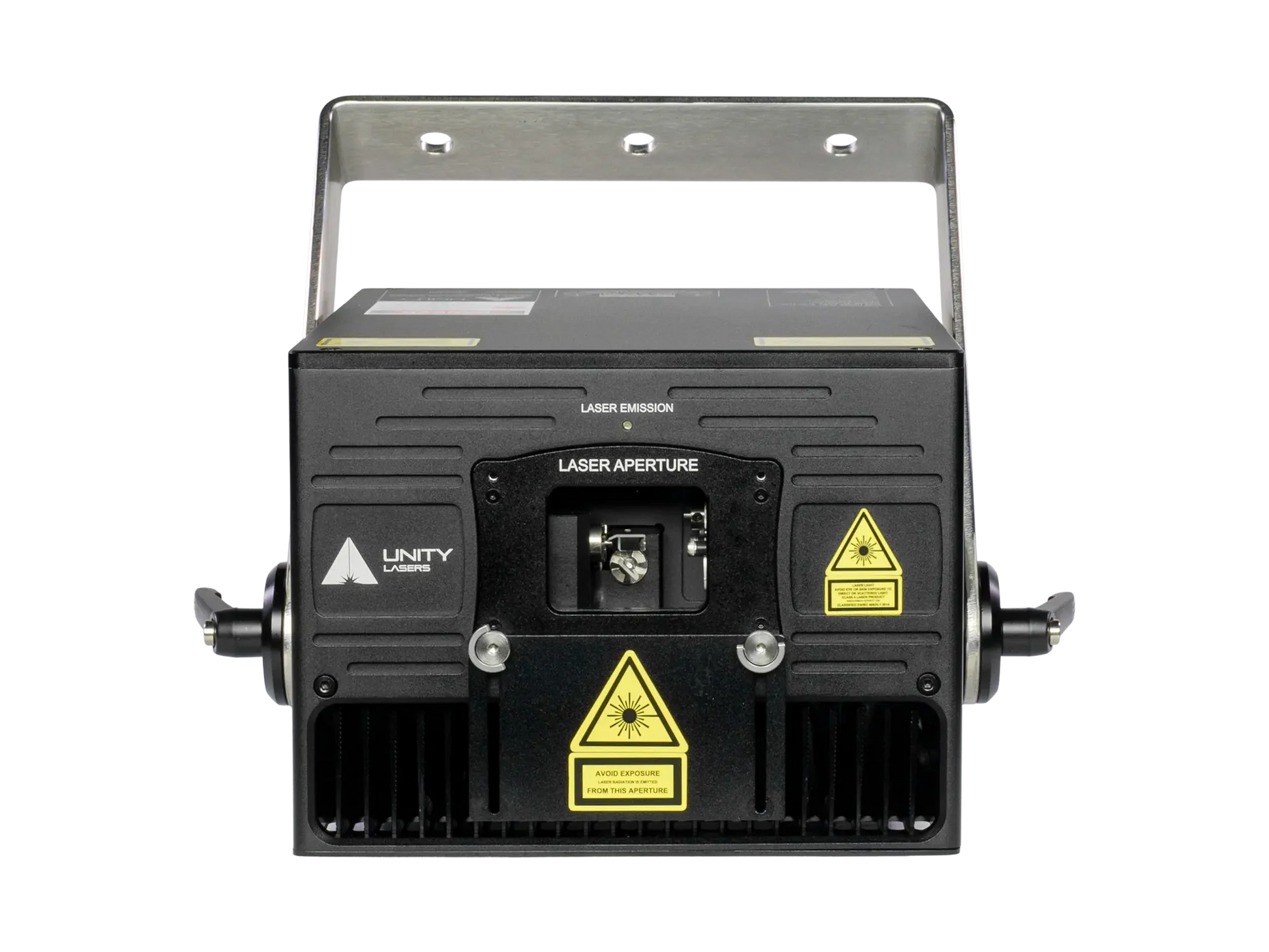

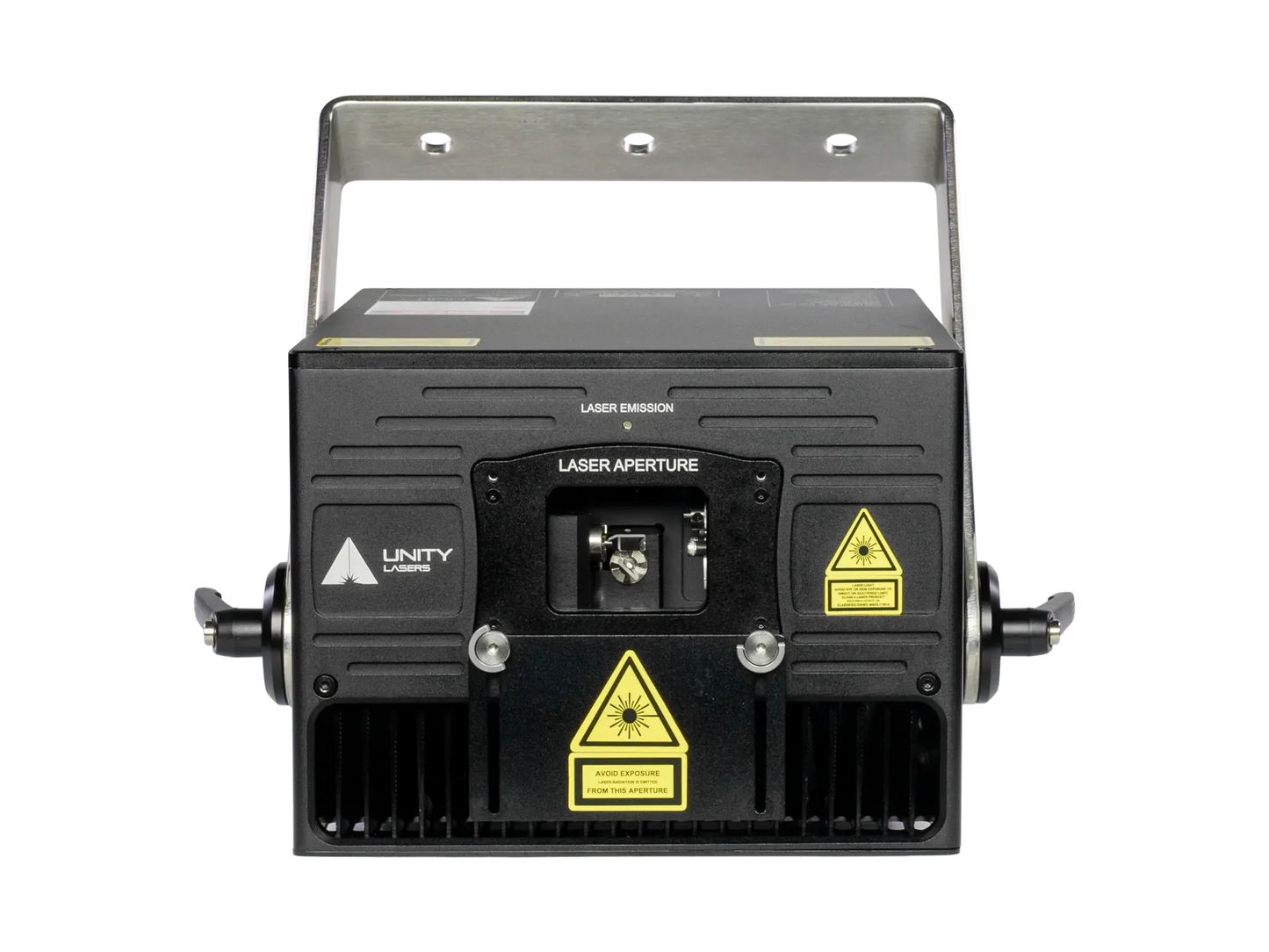

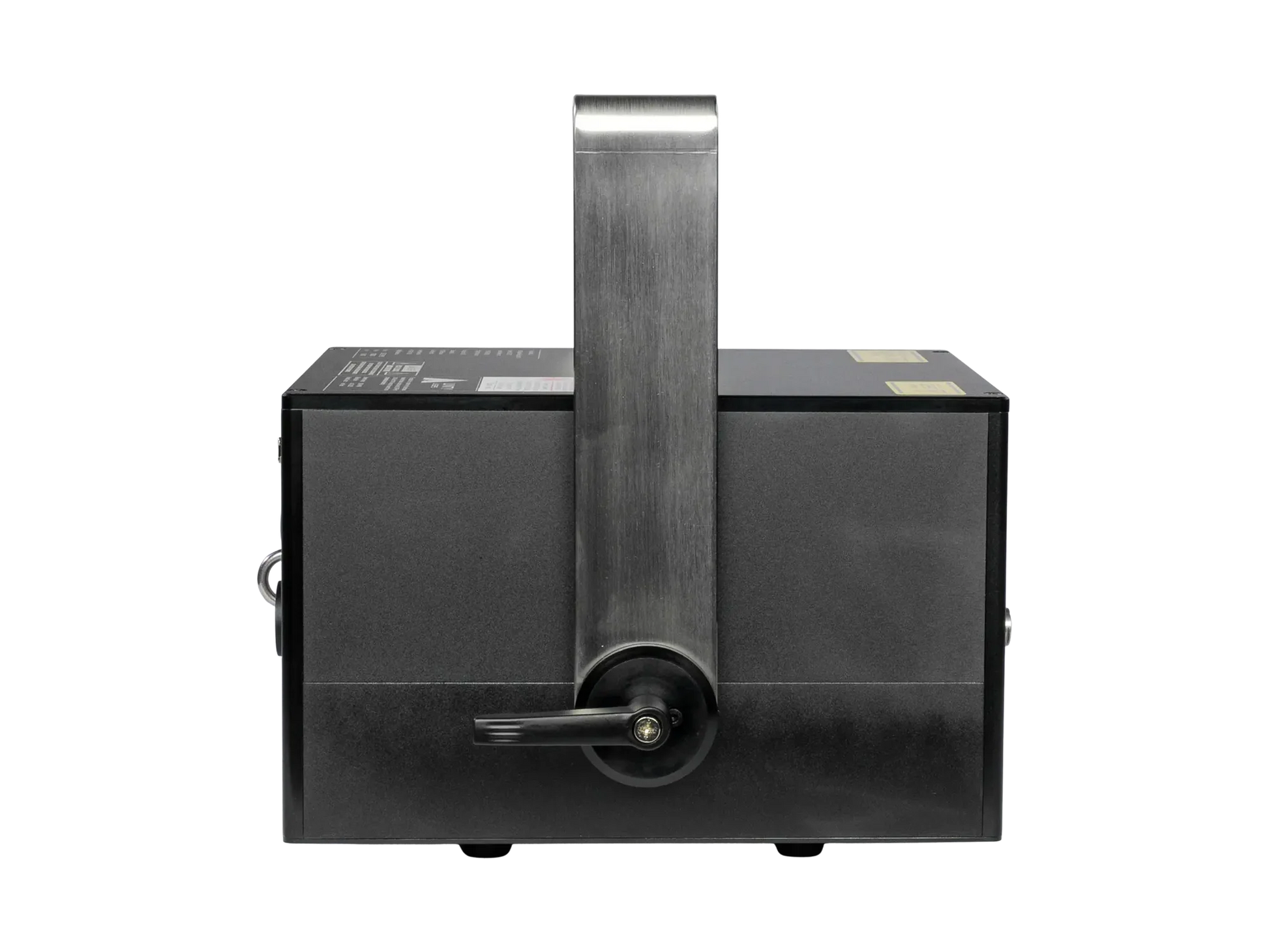

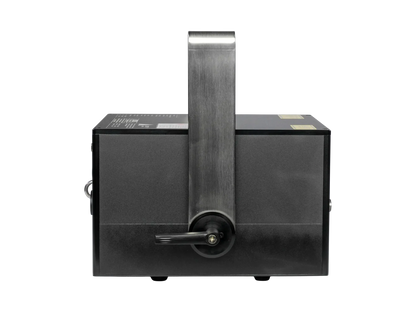

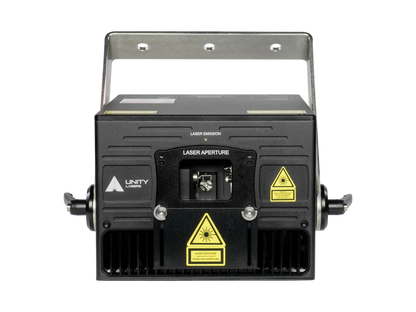

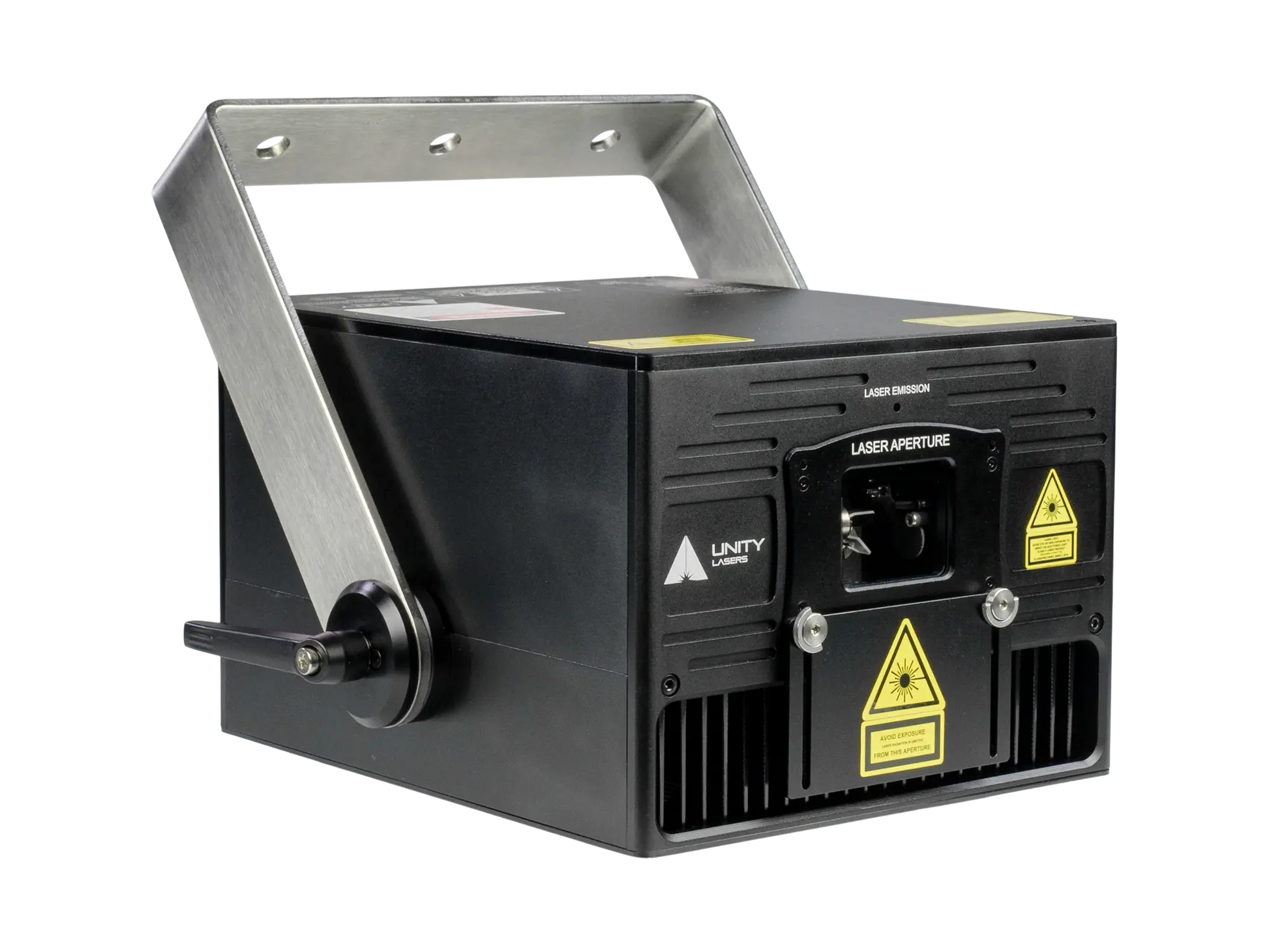

ELITE 5 PRO FB4
- Guaranteed Optical Output: >5W
- Suitable For: Larger indoor venues, clubs, theater, house of worship, gymnasium (up to 5,000 people), small outdoor shows
- R | G | B Output: 1,800mW | 1,600mW | 2,000mW
- Scanning System: 35,000 points per second @ 8°
- Scan Angle: 45°
- Beam Size: 6mm x 5mm
- Max Power Consumption: 250W
- Ingress Rating: IP4X
- Weight: 9kg
- Dimensions (D x W x H): 300mm x 307mm x 181mm

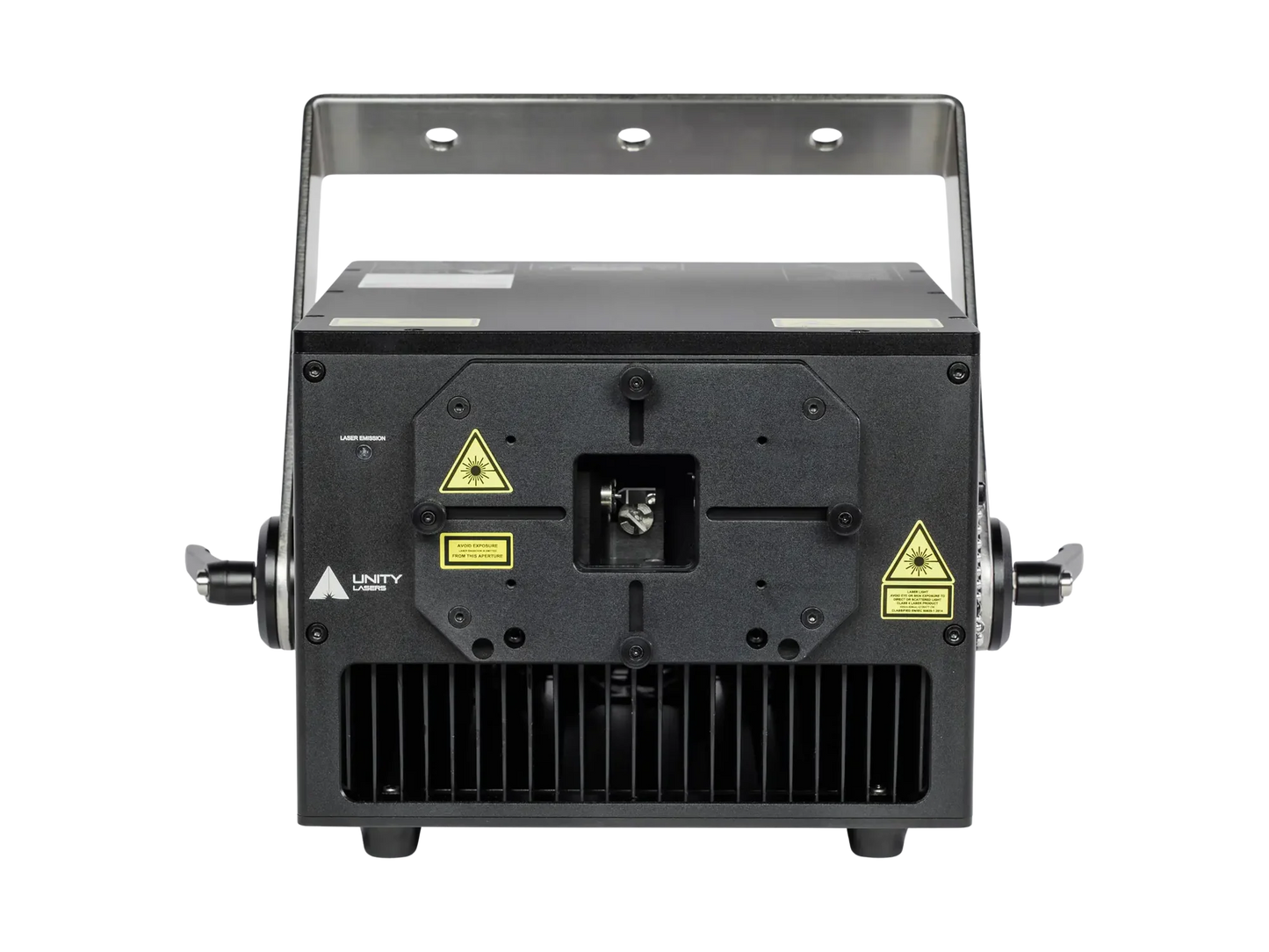

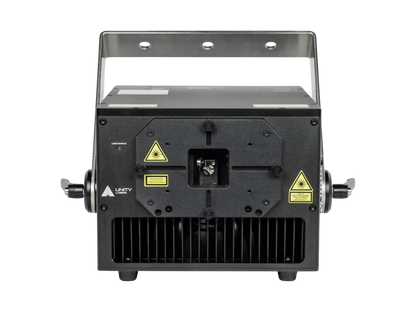

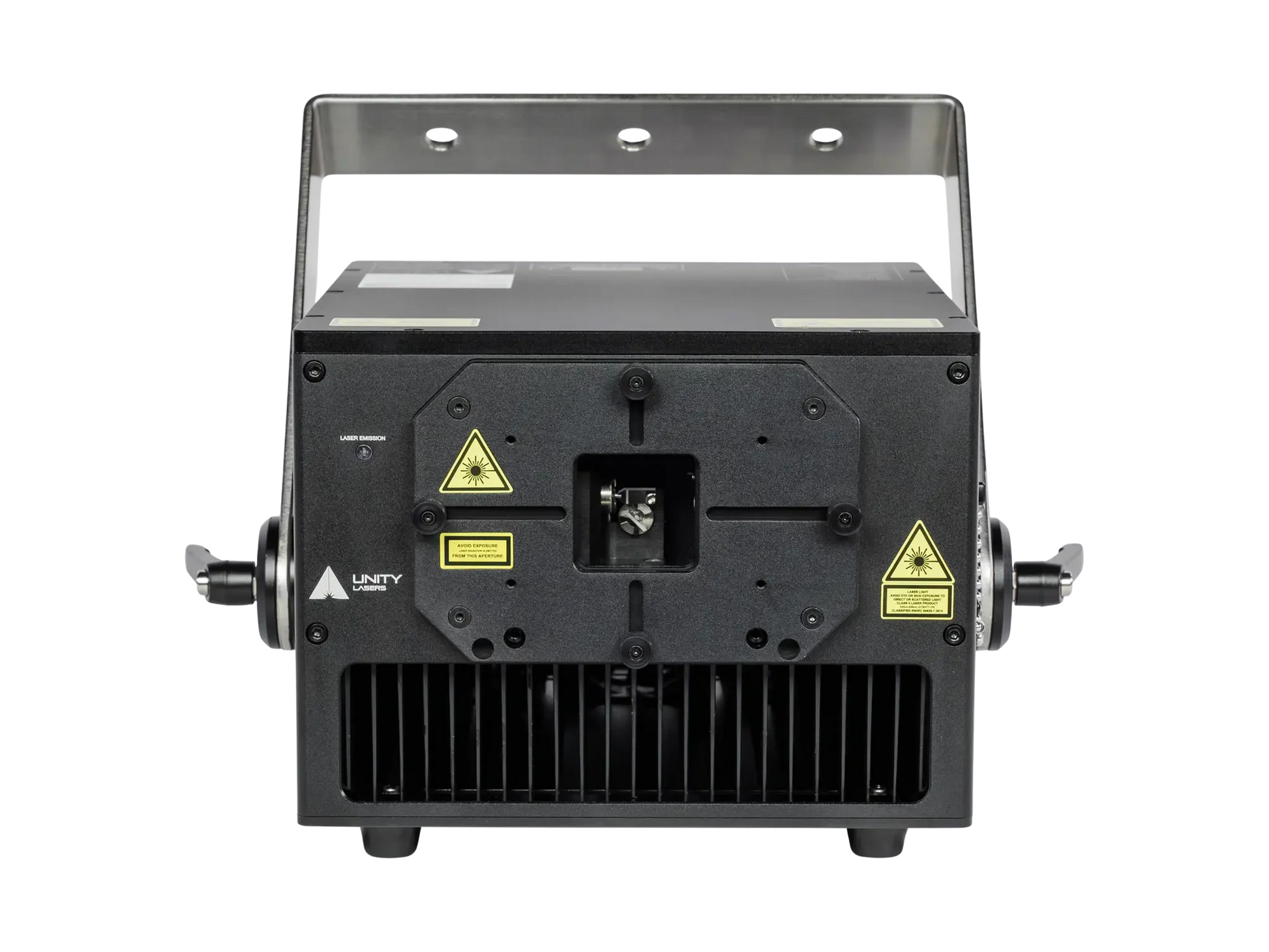

ELITE 10 PRO FB4 (IP65)
- Guaranteed Optical Output: >10W
- Suitable For: Large indoor venues (up to 10,000 people), medium outdoor shows
- R | G | B Output: 3,200mW | 3,200mW | 4,000mW
- Scanning System: 35,000 points per second @ 8°
- Scan Angle: 45°
- Beam Size: 6mm x 6mm
- Max Power Consumption: 300W
- Operation Temperature: -10°C to 45°C
- Ingress Rating: IP65
- Weight: 12.7kg
- Dimensions (D x W x H): 328mm x 338mm x 191mm

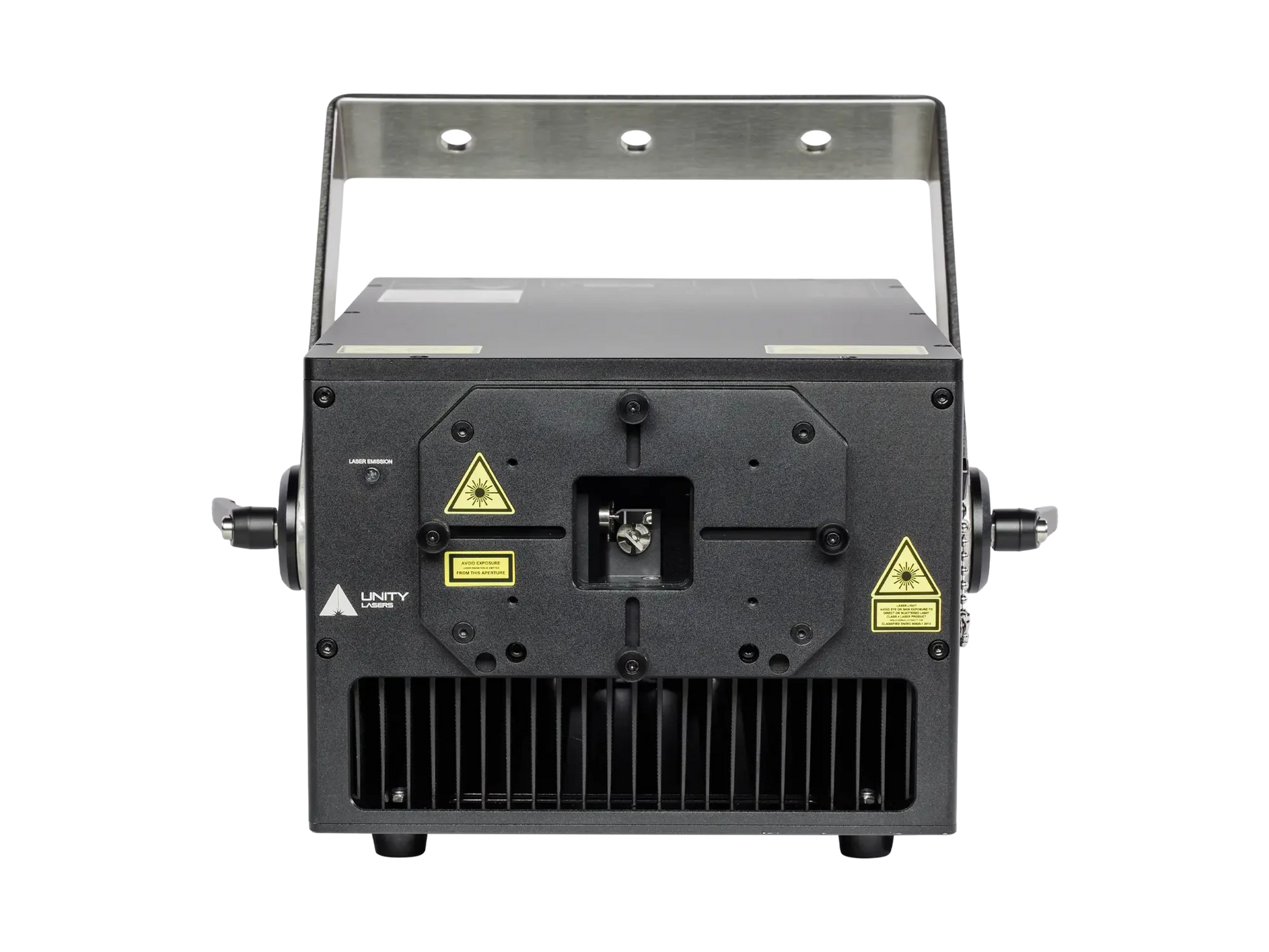

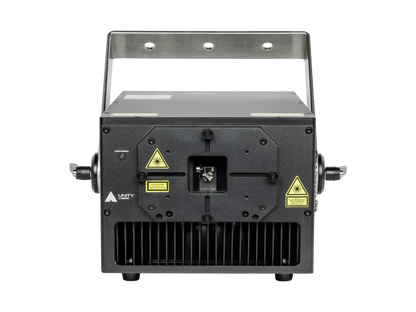

ELITE 20 PRO FB4 (IP65)
- Guaranteed Optical Output: >20W
- Suitable For: Arena-sized venues (up to 30,000 people), outdoor shows
- R | G | B Output: 6,400mW | 6,400mW | 8,000mW
- Scanning System: 35,000 points per second @ 8°
- Scan Angle: 45°
- Beam Size: 6mm x 6mm
- Max Power Consumption: 400W
- Operation Temperature: -10°C to 45°C
- Ingress Rating: IP65
- Weight: 15.5kg
- Dimensions (D x W x H): 385mm x 338mm x 191mm

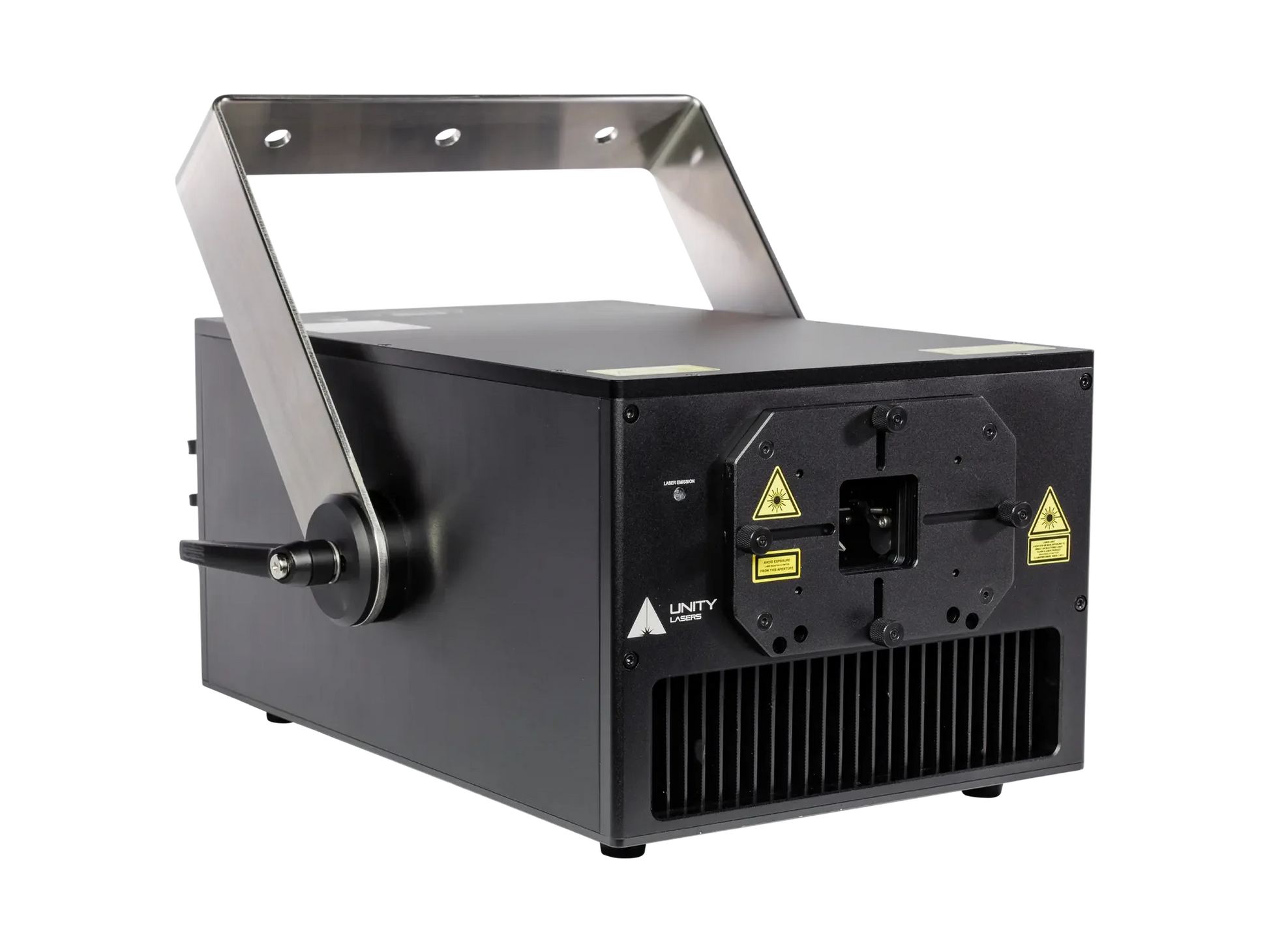

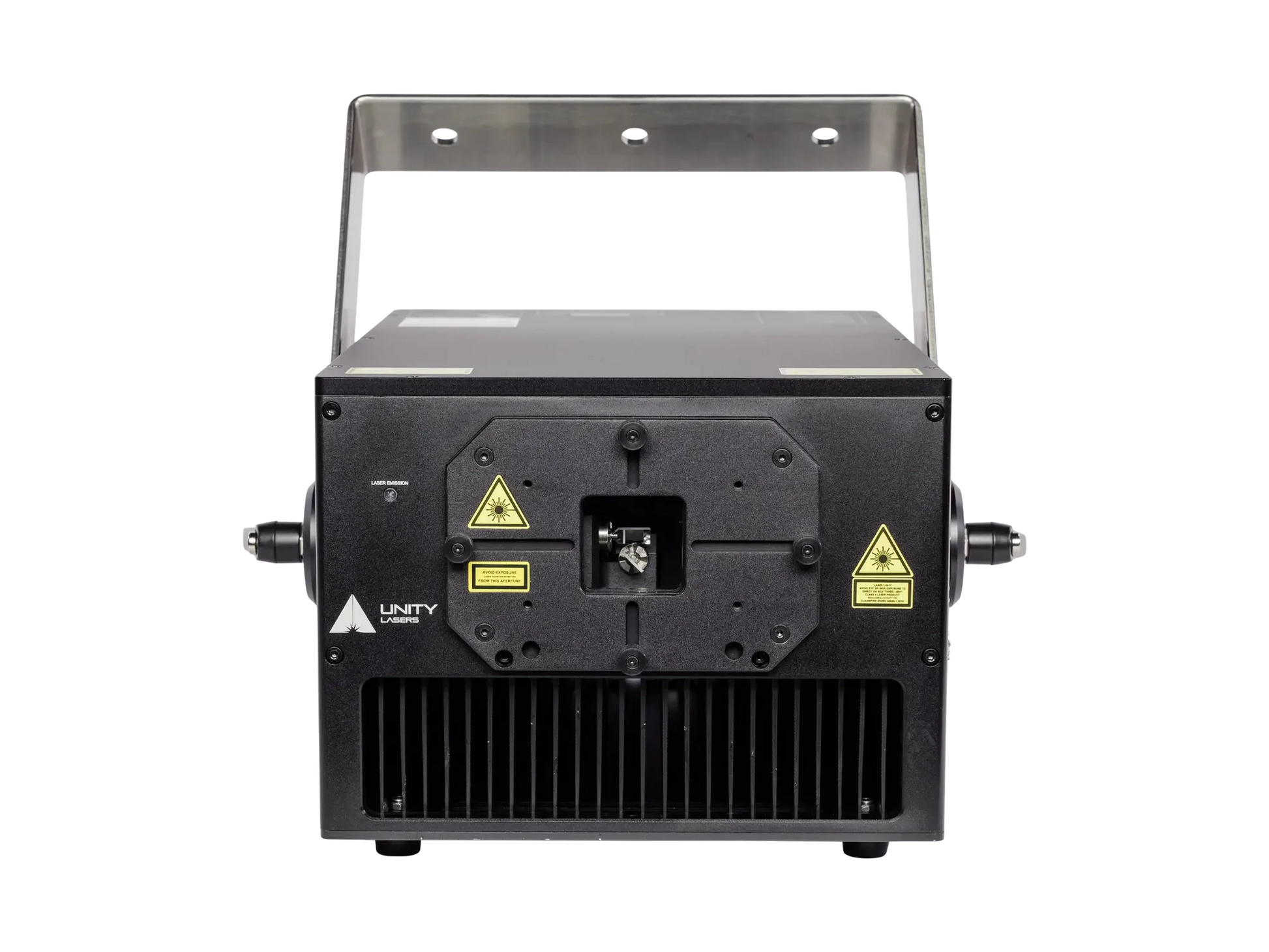

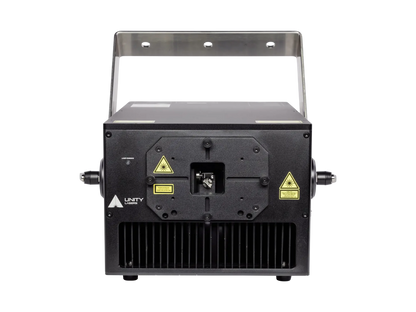

ELITE 30 PRO FB4 (IP65)
- Guaranteed Optical Output: >30W
- Suitable For: Arena-sized venues (up to 40,000 people), larger outdoor shows
- R | G | B Output: 9,000mW | 10,000mW | 12,000mW
- Scanning System: 35,000 points per second @ 8°
- Scan Angle: 45°
- Beam Size: 6mm x 6mm
- Max Power Consumption: 700W
- Operation Temperature: -10°C to 45°C
- Ingress Rating: IP65
- Weight: 21kg
- Dimensions (D x W x H): 439mm x 408mm x 211mm
ELITE 40 PRO FB4 (IP65)
- Guaranteed Optical Output: >40W
- Suitable For: Arena-sized venues (up to 50,000 people), larger outdoor shows
- R | G | B Output: 11,000mW | 14,000mW | 16,000mW
- Scanning System: 30,000 points per second @ 8°
- Scan Angle: 45°
- Beam Size: 6mm x 6mm
- Max Power Consumption: 750W
- Operation Temperature: -10°C to 45°C
- Ingress Rating: IP65
- Weight: 22kg
- Dimensions (D x W x H): 439mm x 408mm x 211mm

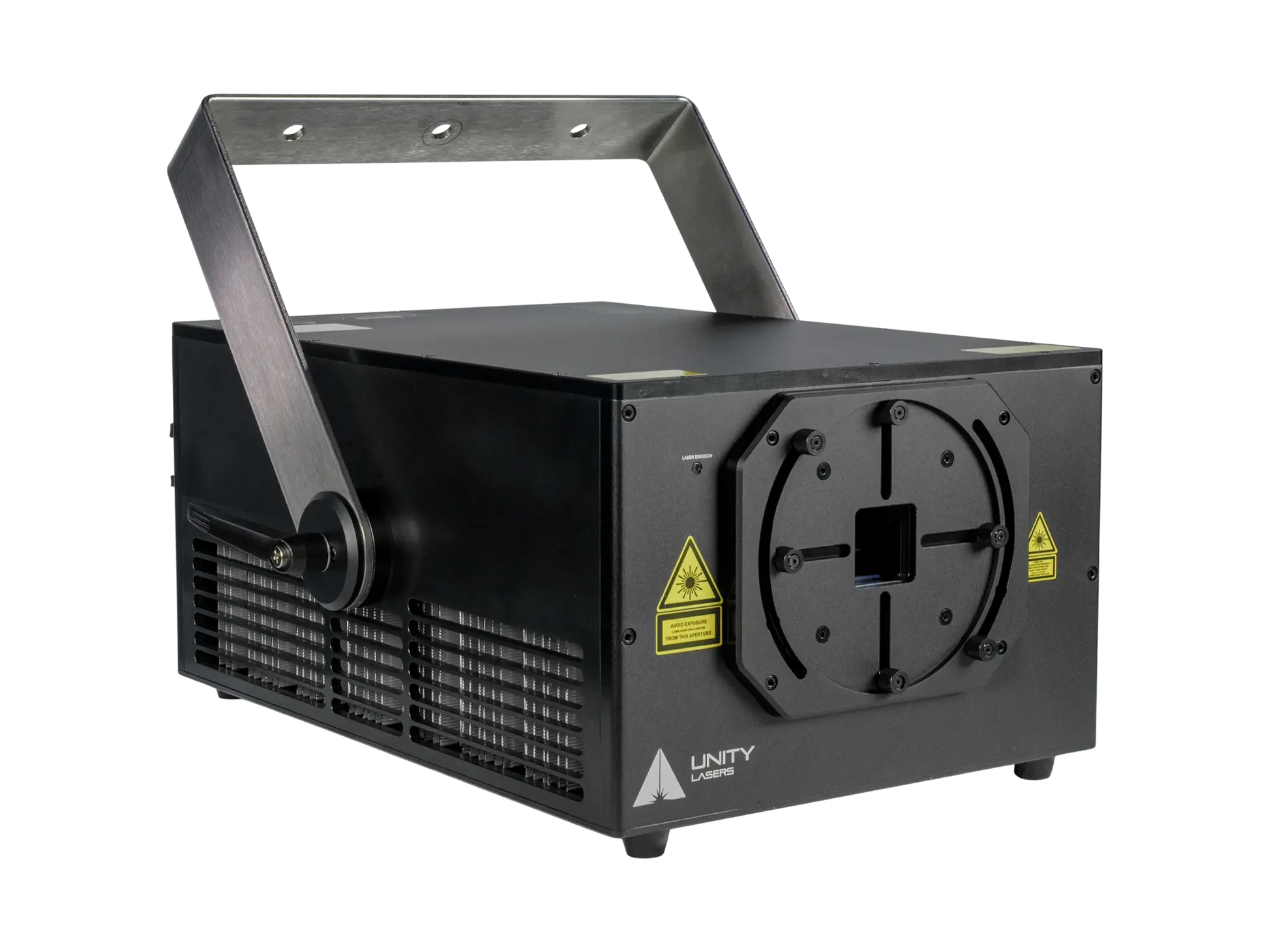

ELITE 60 PRO FB4 (IP65)
- Guaranteed Optical Output: >59.5W
- Suitable For: Stadiums and arenas (over 40,000 people), huge outdoor shows
- R | G | B Output: 19,500mW | 20,000mW | 20,000mW
- Scanning System: 30,000 points per second @ 8°
- Scan Angle: 45°
- Beam Size: 7mm x 7mm
- Max Power Consumption: 1,200W
- Operation Temperature: -10°C to 45°C
- Ingress Rating: IP65
- Weight: 32kg
- Dimensions (D x W x H): 509mm x 455mm x 226mm

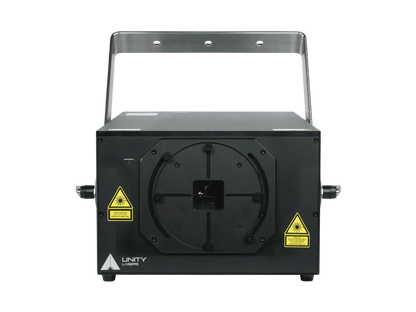

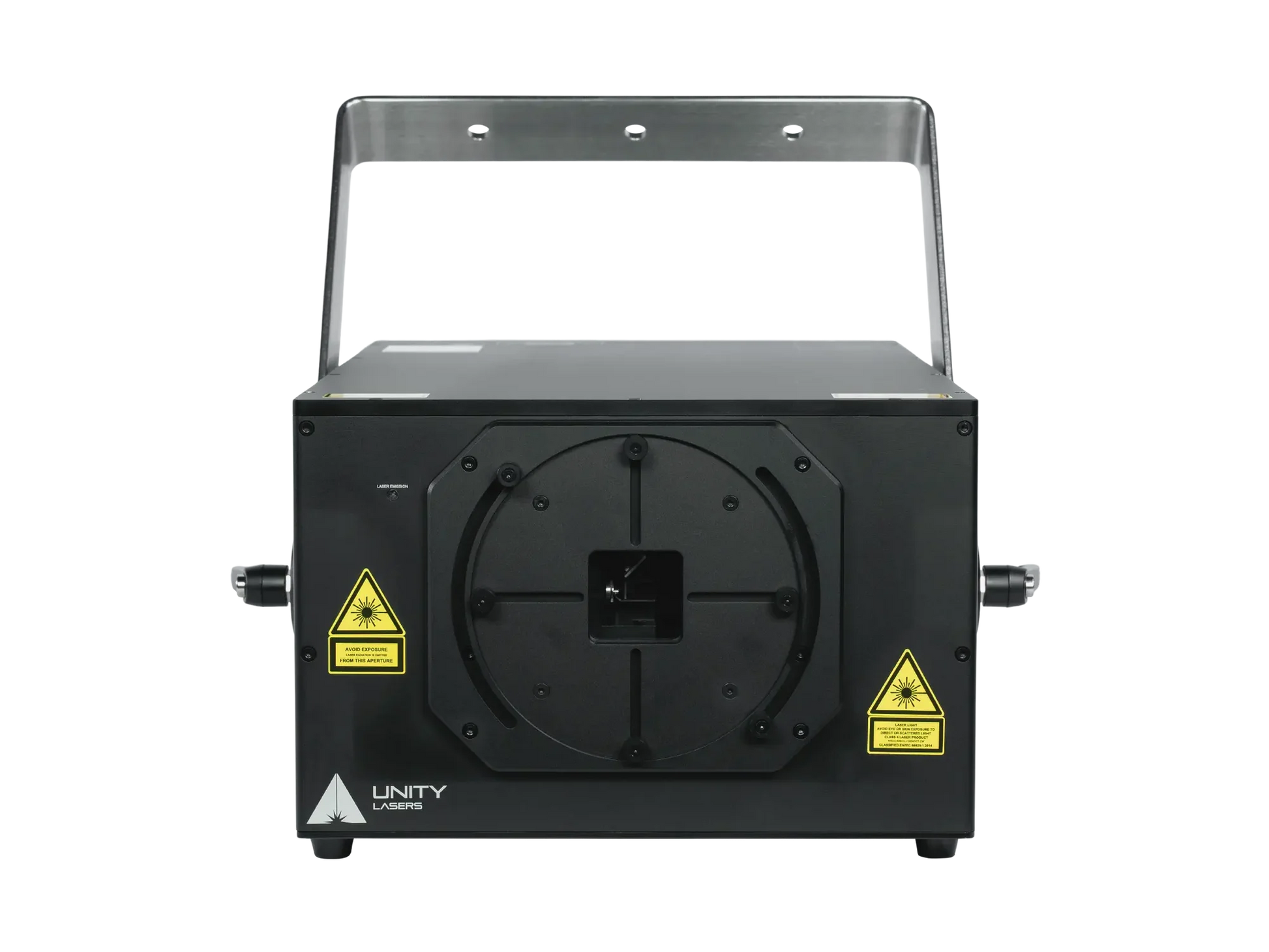

ELITE 100 PRO FB4 (IP65)
- Guaranteed Optical Output: >100W
- Suitable For: Stadiums and arenas (over 40,000 people), huge outdoor shows
- R | G | B Output: 30,000mW | 35,000mW | 40,000mW
- R | G | B Wavelength: 638nm | 525nm | 450nm
- Scanning System: 26,000 points per second @ 8°
- Scan Angle: 40°
- Beam Size: 8mm x 10mm
- Max Power Consumption: 1,500W
- Operation Temperature: -10°C to 40°C
- Ingress Rating: IP65
- Weight: 40.5kg
- Dimensions (L x W x H): 583mm x 502mm x 229mm

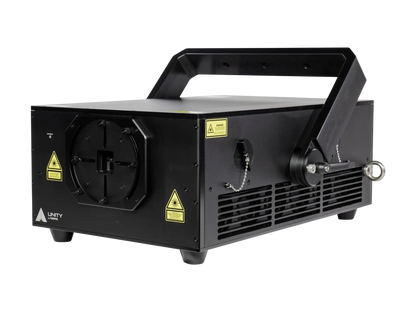

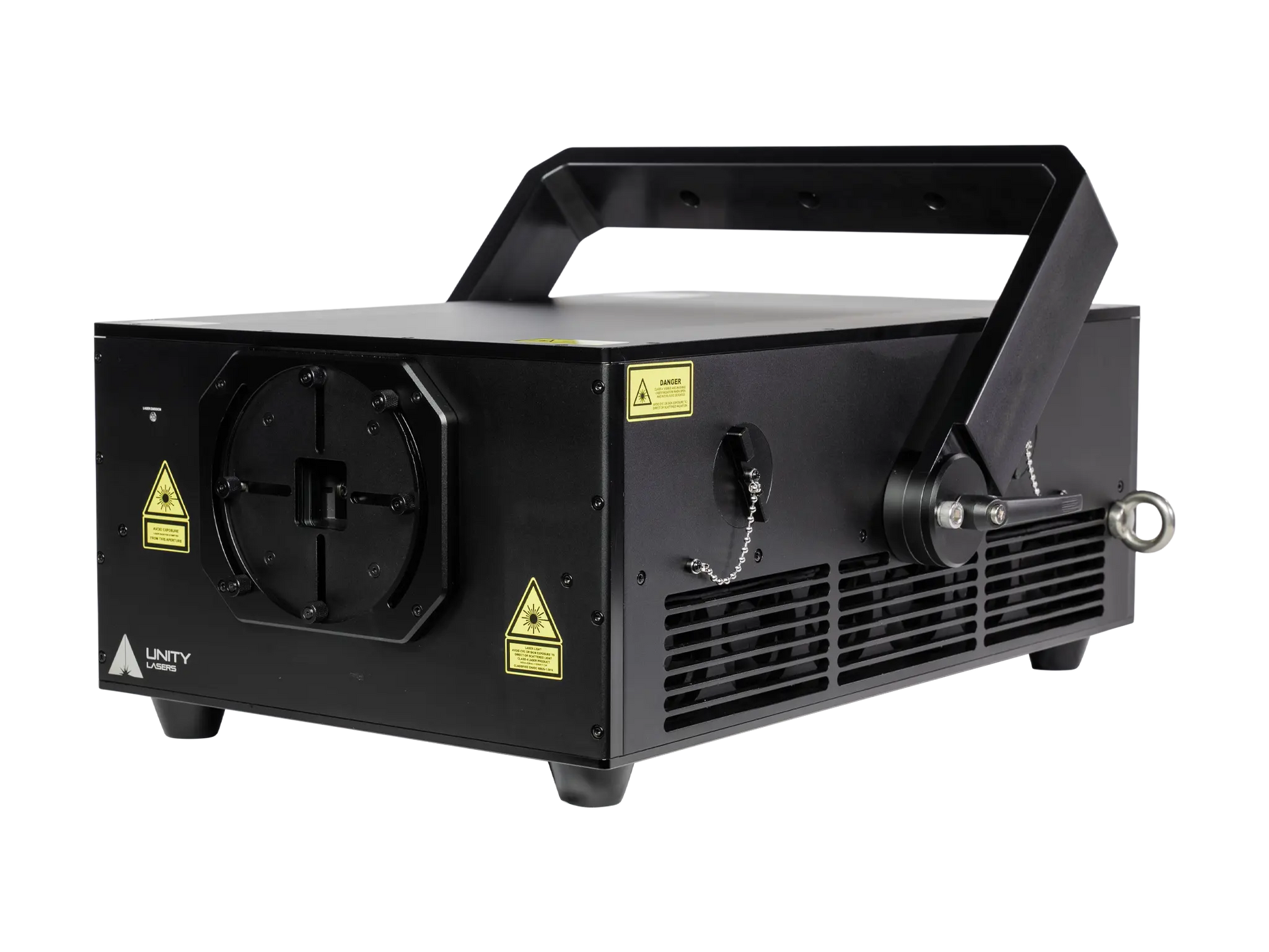

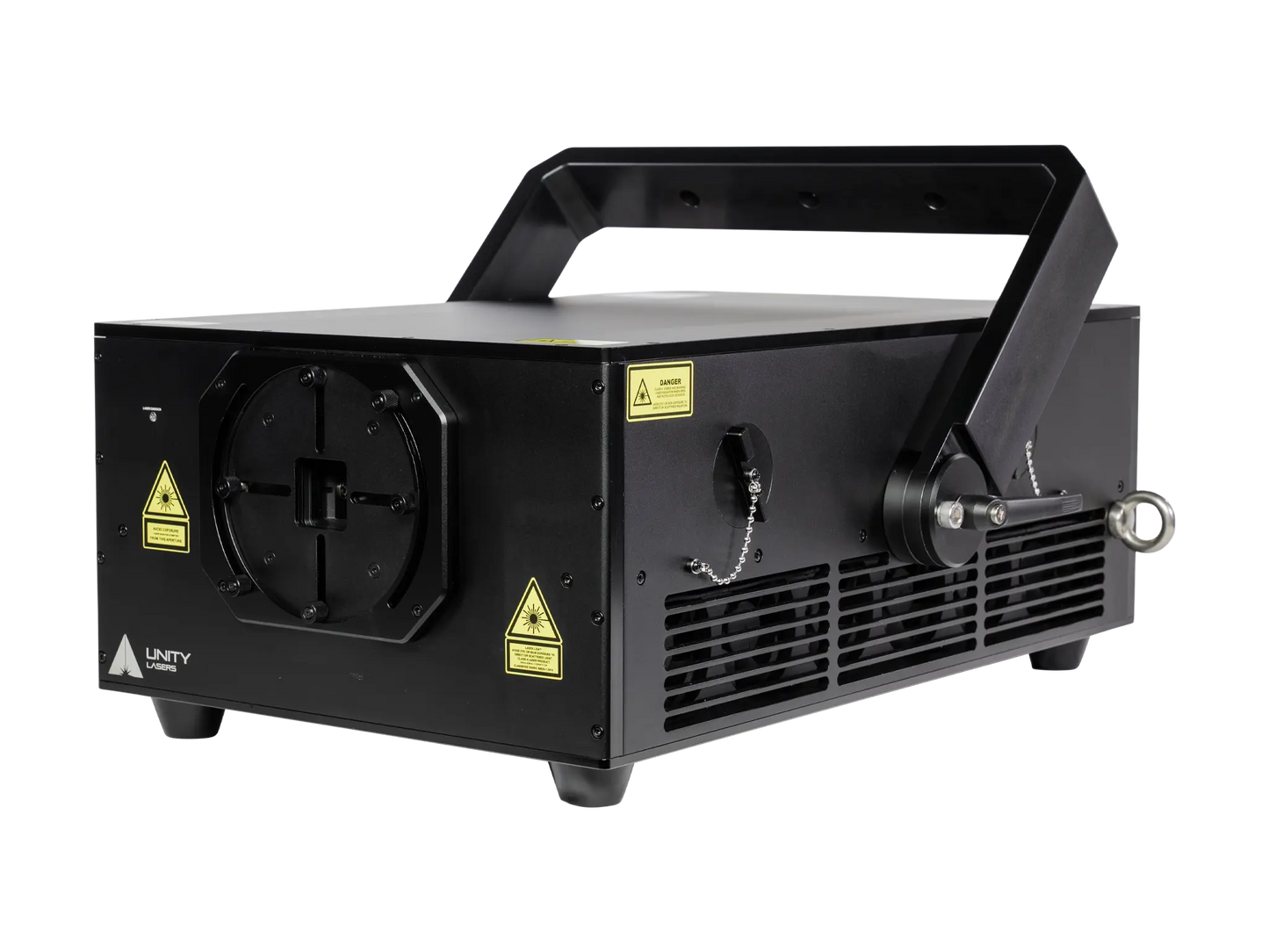

ELITE 120 PRO FB4 (IP65)
- Guaranteed Optical Output: >120W
- Suitable For: Stadiums, arenas, huge outdoor shows, cityscape and landmark projections (visible for kilometers/miles away)
- R | G | B Output: 30,000mW | 40,000mW | 50,000mW
- Scanning System: 25,000 points per second @ 8°
- Scan Angle: 40°
- Beam Size: 7.5mm x 7.5mm
- Max Power Consumption: 1,600W
- Operation Temperature: -10°C to 45°C
- Ingress Rating: IP65
- Weight: 58kg
- Dimensions (D x W x H): 705mm x 576mm x 273mm
All Models — Shared Specifications
- Type of Laser: Full-color, semiconductor diode laser system
- Control Signal: Pangolin FB4 DMX — Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App (Apple & Android)
- Beam Divergence: <1.2mrad (full angle)
- Modulation: Analog 100kHz
- Power Requirements: 100–240V / 50Hz
- Operation Temperature (3W & 5W models): 10–40°C
- Operation Temperature (10W–120W models): -10°C to 45°C
- Safety Compliance: EN 60825-1 and FDA regulations
- Laser Safety Features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate

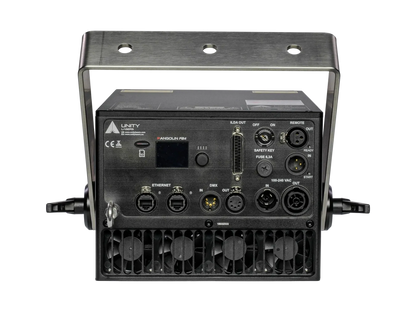

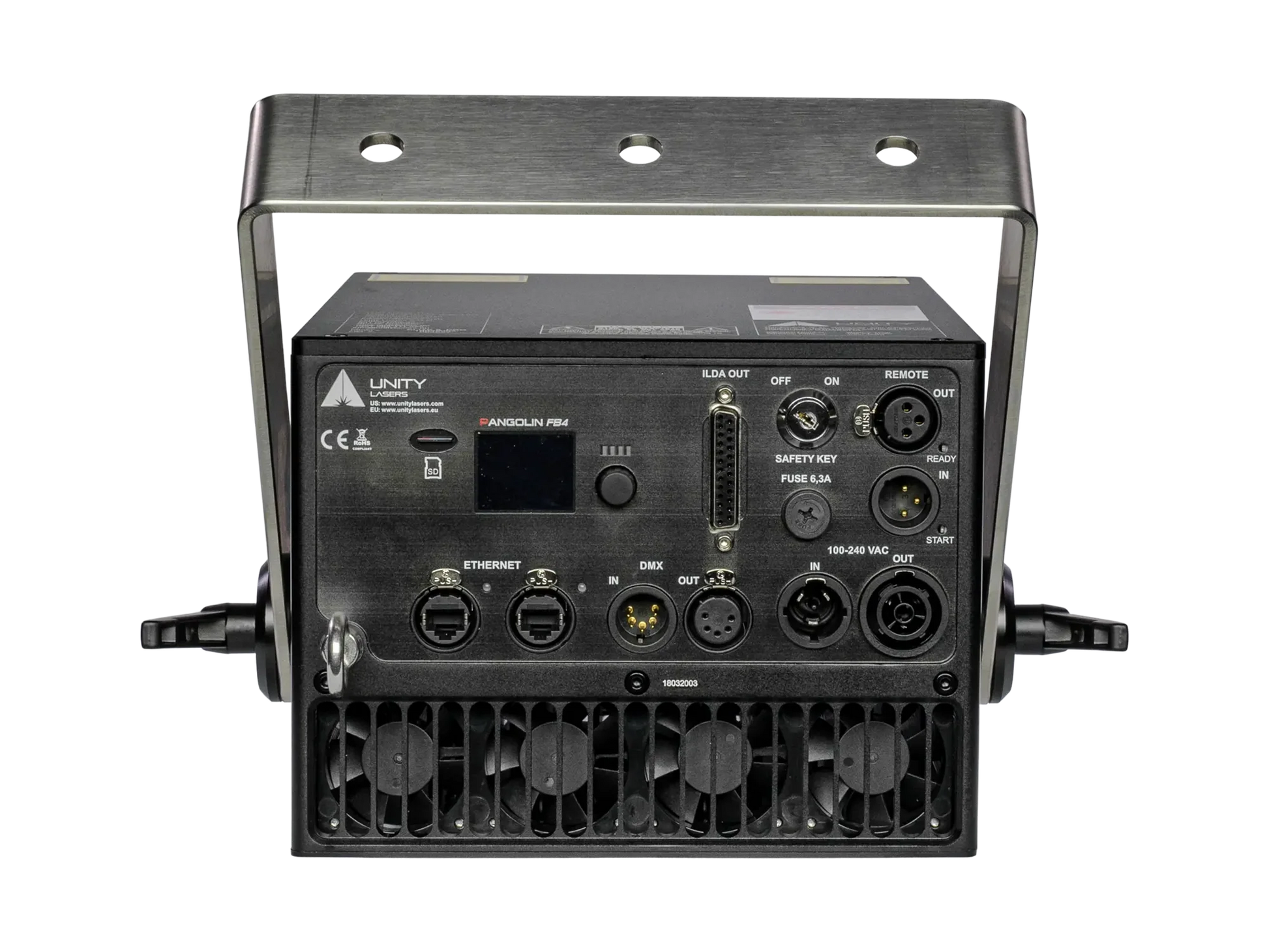

- System Features: All adjustments (color output, X/Y invert, X/Y size and position, safety) managed digitally via the FB4 control system. Ethernet in/out, power in/out, DMX in/out, E-stop in/out
What's in the Box
- Laser projector with integrated FB4 DMX media server
- Pangolin QuickShow laser control software
- Heavy-duty flight case
- E-stop box
- E-stop XLR cable (10M / 30ft)
- Ethernet cable (10M / 30ft)
- Power cable (1.5M / 4.5ft)
- Safety interlock
- Set of 4 safety keys
- Manual
- Quick start guide
- Variance card
- Quality certificate
- Outdoor RJ45 connectors (IP65 models only)
- *Service dongle (included for units shipped outside the US)
