AH-WZ412:2

Compact professional 12-channel analogue mixing console featuring high-quality mic preamps, 4-band EQ with dual swept mids, six auxiliary sends, built-in effects, and flexible installation options for live sound, recording, and installed audio applications.

From The Manufacturer:

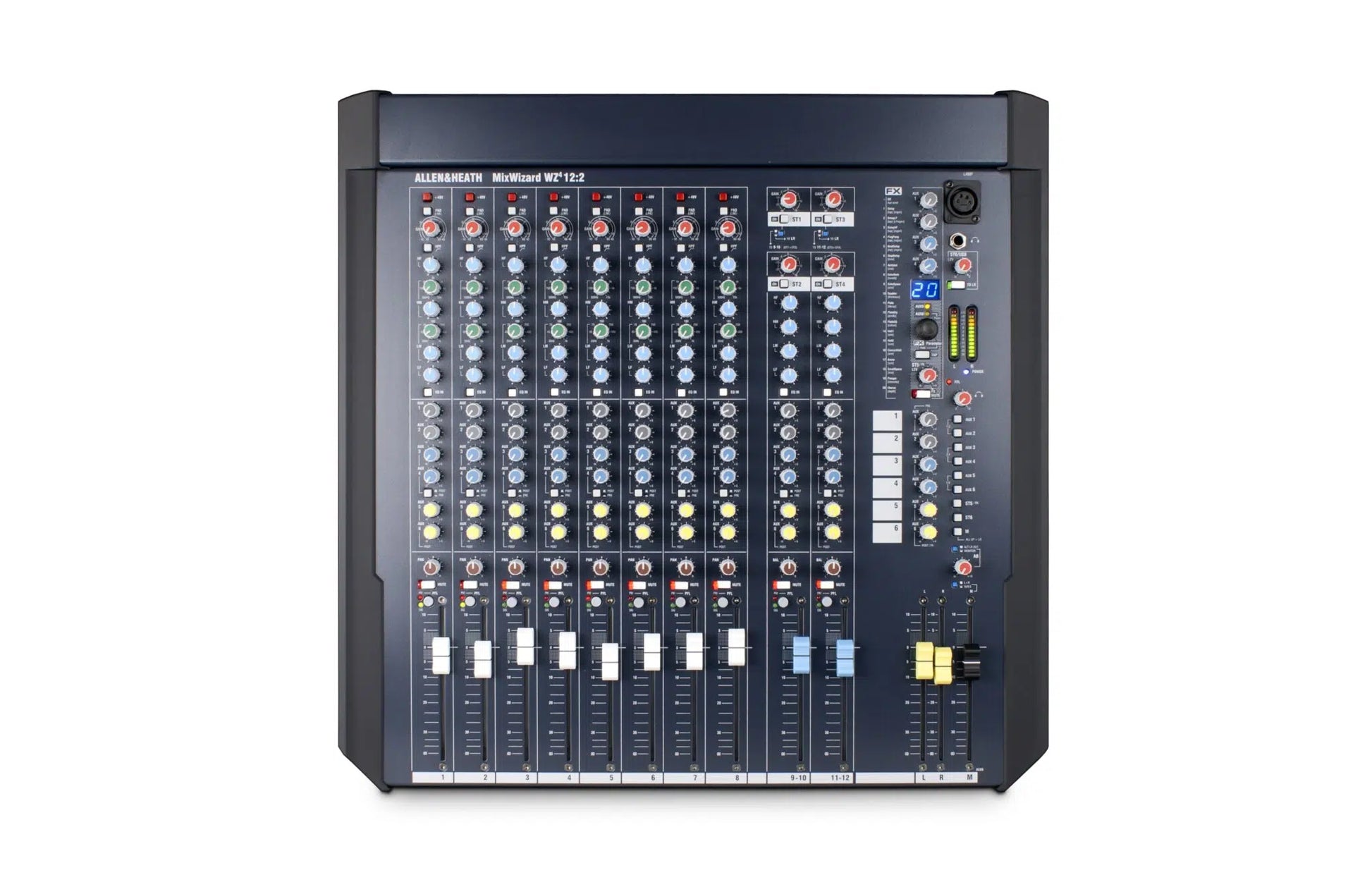

The MixWizard4 12:2 is a compact analogue mixer designed to deliver the renowned Allen & Heath audio quality and flexibility in a smaller format. Featuring 8 mono mic/line inputs and 2 stereo channels, the mixer includes the acclaimed 4-band EQ with two sweepable mid-frequency controls, six auxiliary sends, dual digital effects engines, and direct outputs for recording applications. Its rugged construction and versatile mounting options make it ideal for live sound, churches, conference facilities, and portable audio systems.

Key Features:

• 8 mono microphone/line input channels

• 2 stereo input channels

• High-headroom Allen & Heath mic preamps

• 4-band EQ with dual swept mid frequencies

• 6 auxiliary sends

• Dual internal digital FX processors

• 20 onboard effects presets

• Direct outputs on mono channels

• High-pass filters on mono inputs

• +48V phantom power

• High-quality 100mm faders

• Stereo main outputs

• Dedicated mono output

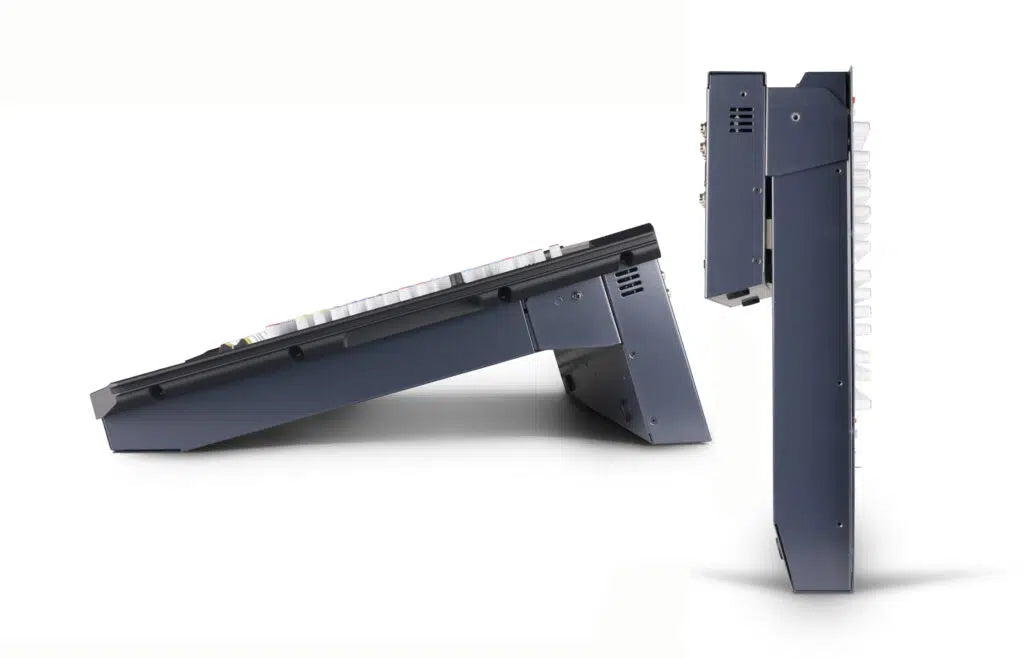

• Rackmount, desktop, or flight-case mounting options

• Optional USB multitrack recording interface

• Professional-grade analogue signal path

Specifications:

• Mixer Type: Analogue Mixing Console

• Input Channels: 12 (8 Mono + 2 Stereo)

• Mic Preamps: 8

• EQ: 4-Band EQ with 2 Sweepable Mid Bands

• Aux Sends: 6

• Built-In Effects: 2 FX Engines

• Effects Presets: 20

• Direct Outputs: 8

• Phantom Power: +48V

• Faders: 100mm

• High-Pass Filter: 80Hz

• Frequency Response: 20Hz – 30kHz (+0/-0.5dB)

• THD+N: <0.004% @ 1kHz

• Maximum Output Level: +26dBu

• Power Supply: 100–240V AC, 50/60Hz

• Rack Size: 10U

• Dimensions: 440 × 530 × 194 mm

Included:

• Allen & Heath MixWizard4 12:2 Mixer

• Power Cable

• User Documentation
