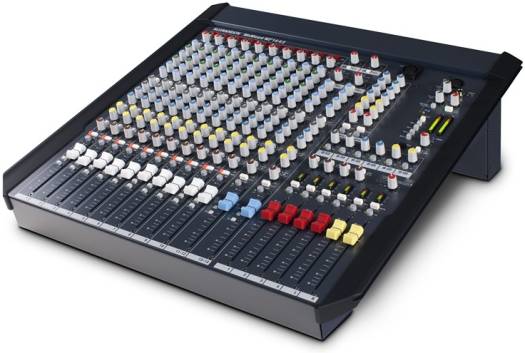

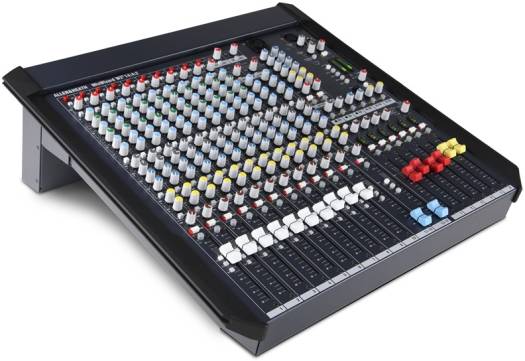

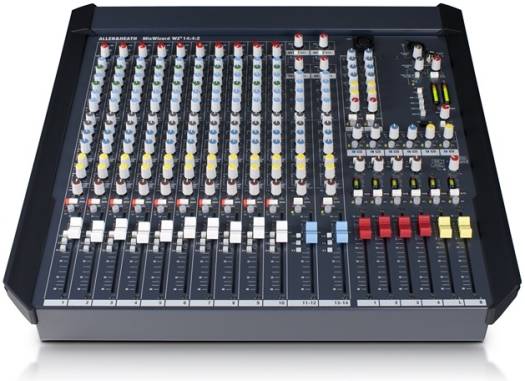

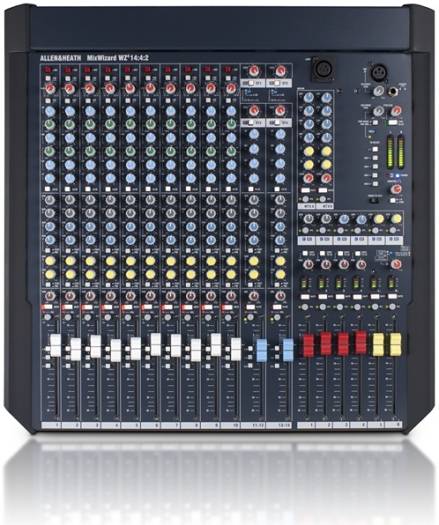

AH-WZ414:4:2

Professional 14-input analogue mixing console designed for front-of-house, monitor mixing, broadcast, and recording applications. Featuring 4 audio groups, 6 aux sends, a 6×2 matrix, premium mic preamps, and flexible rackmount or desktop installation.

From The Manufacturer:

A uniquely versatile live sound mixer, the WZ4 14:4:2 is equally at home at Front of House, on monitors, or doubling up to fill both roles at once. It features 10 mic/line inputs, 2 dual stereo inputs, 6 aux sends, a 6×2 matrix, and Allen & Heath's renowned clean and detailed preamp design. The console can be configured for FOH, monitor, or dual operation, making it one of the most flexible analogue mixers in its class.

Key Features:

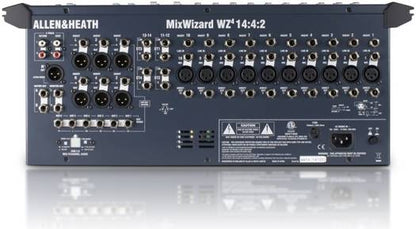

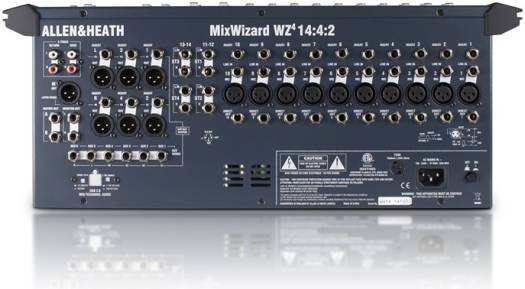

• 10 mic/line inputs with balanced XLR/TRS connections

• 2 dual stereo input channels

• 4 audio groups with inserts and dedicated outputs

• 6 auxiliary sends

• 6×2 matrix routing system

• 4-band EQ with 2 sweepable mid bands

• High-quality 100mm faders

• +48V phantom power

• Tri-colour 12-segment metering

• Direct outputs on all mono channels

• Talkback microphone input with trim control

• Oscillator and pink noise generator

• Optional 16-channel USB recording interface

• QCC connector system for desktop, rack, or flightcase mounting

• Configurable for FOH, monitor, or dual-mode operation

Specifications:

• Mixer Type: Analogue Mixing Console

• Input Channels: 14 (10 Mono + 2 Dual Stereo Channels)

• Mic Preamps: 10

• Groups: 4 Audio Groups

• Aux Sends: 6

• Matrix Outputs: 6×2 Matrix

• EQ: 4-Band EQ with 2 Sweepable Mids

• Direct Outputs: 10

• Main Outputs: Stereo L/R + Mono

• Metering: 12-Segment Tri-Colour LED

• Phantom Power: +48V

• Faders: 100mm

• High-Pass Filter: 80Hz, 12dB/octave

• Frequency Response: 10Hz – 30kHz ±0.5dB

• THD+N: <0.004% @ 1kHz

• Signal-to-Noise Ratio: 99dB

• Power Supply: 100-240V AC, 50/60Hz

• Rack Size: 10U

• Dimensions (Desktop): 507 × 530 × 194 mm

• Dimensions (Rack): 483 × 122 × 444 mm

• Weight: 11 kg

Included:

• Allen & Heath MixWizard4 14:4:2 Mixer

• AC Power Cord

• User Documentation
