CP Rack Rails (2pc)

A compact rack designed to store and transport lighting fixtures easily.

From the Manufacturer:

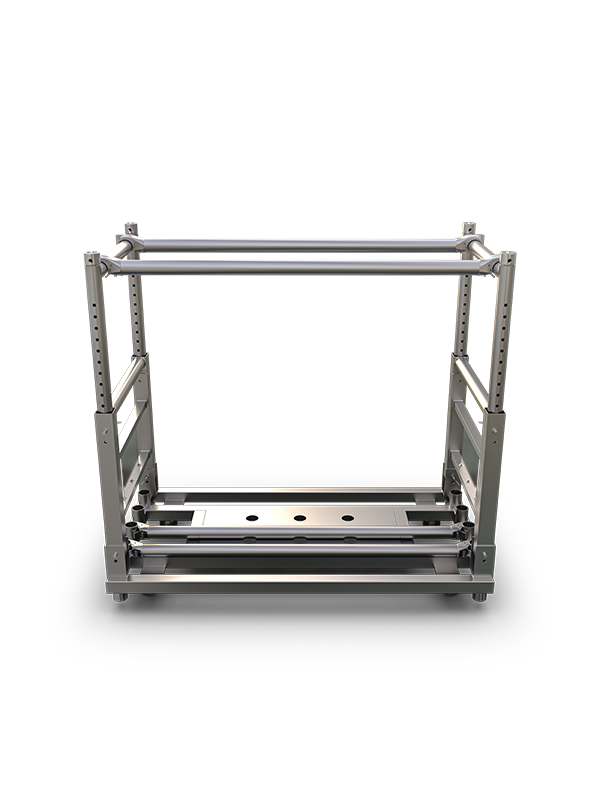

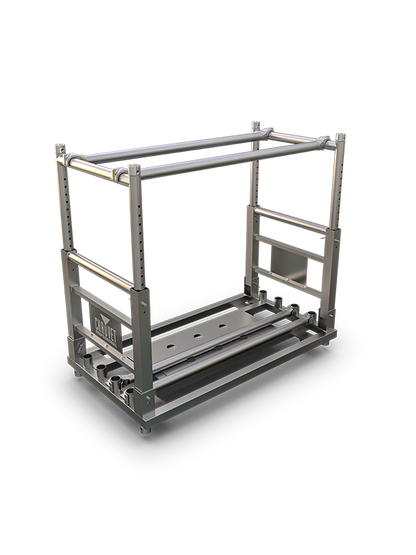

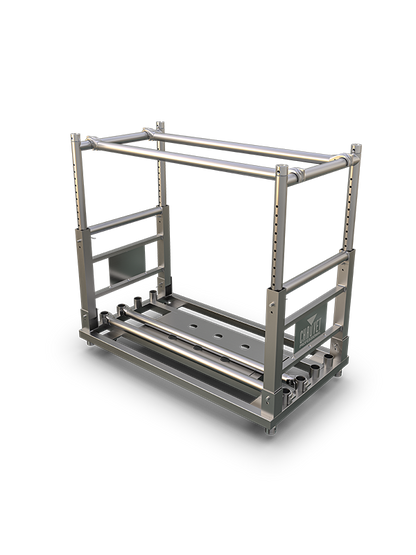

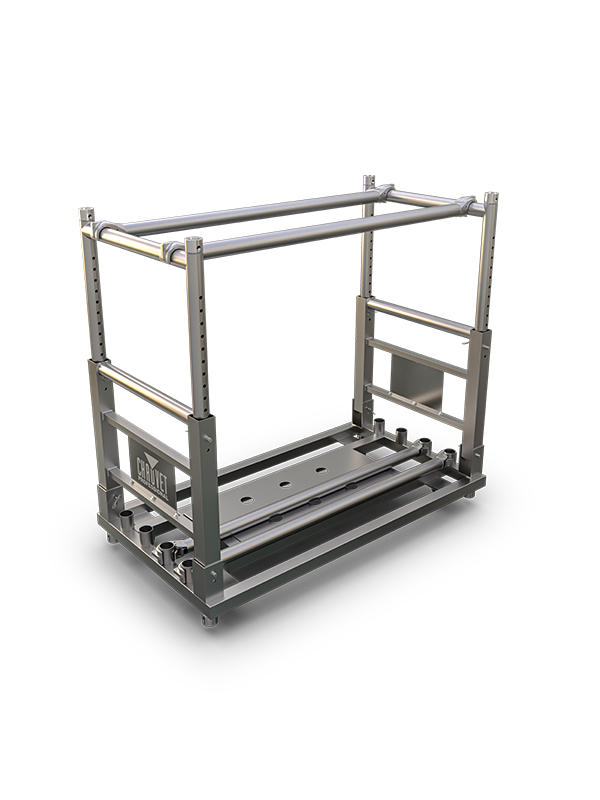

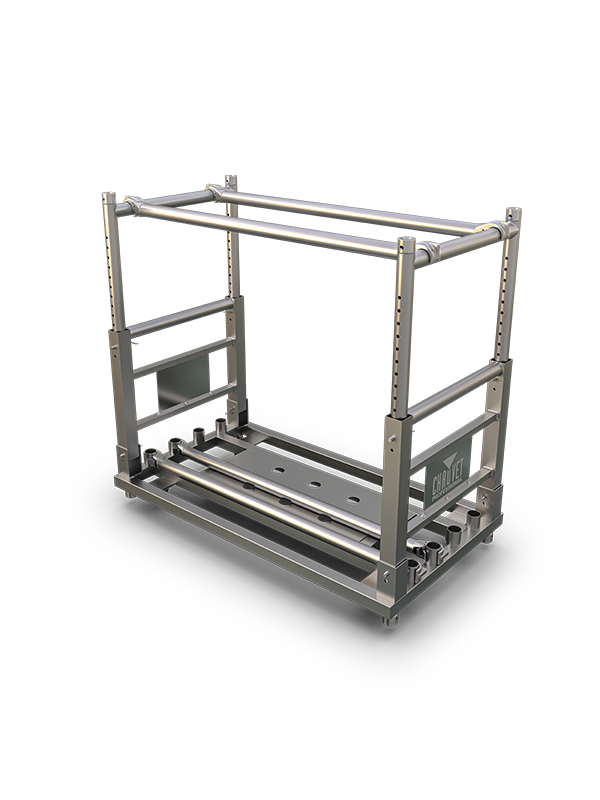

A compact and lightweight rack designed to hold up to 1,000 lbs (453kg) of lighting fixtures with the ability to raise and lower its overall height and fold down when not in use for easy storage. CP Rack can be stacked two-high, allowing for better space utilization when transporting. Designed for global use, the CP Rack is both US and EU Truck pack ready (3 wide) and and at a height of just over 4 feet (1.38m) it fits easily in small elevators, through ADA doors, and can navigate hallways to ballrooms and other potentially hard-to-get-to installations.

Once CP Rack is fully assembled, it can be configured and reconfigured to best suit the type of fixtures being mounted. Examples of possible configurations include:

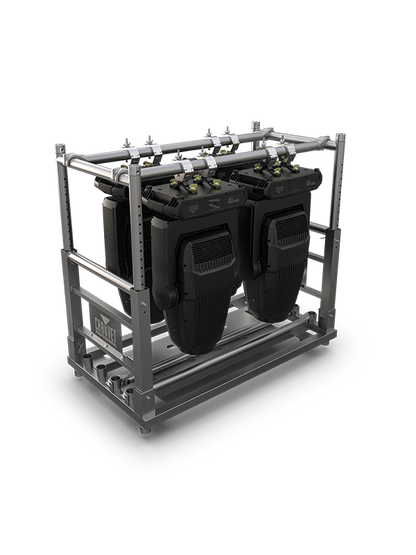

• Four (4) large moving heads (e.g., Maverick Storm 4 Profile / Force 3 Profile)

• Six (6) mid-size moving heads (e.g., Maverick Storm 2 Profile / Force S/1/2 Profiles/Spots)

• Twelve to sixteen (12-16) small moving wash fixtures (e.g., Rogue Outcast 1 BeamWash / Rogue R2X Wash)

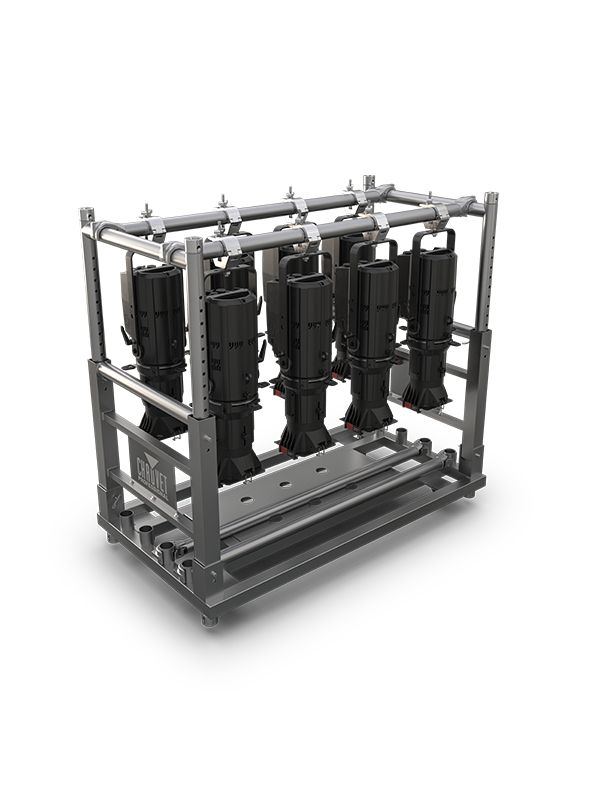

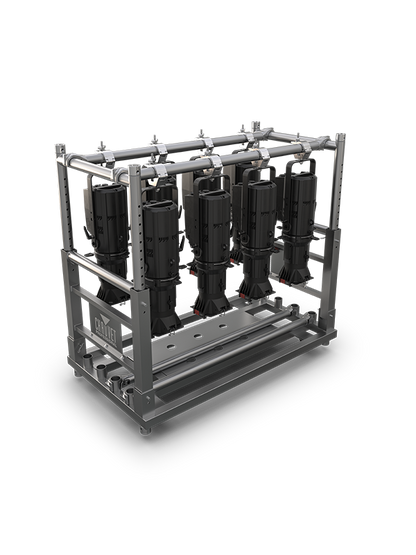

• Eight to ten (8-10) Ovation ellipsoidals with lenses

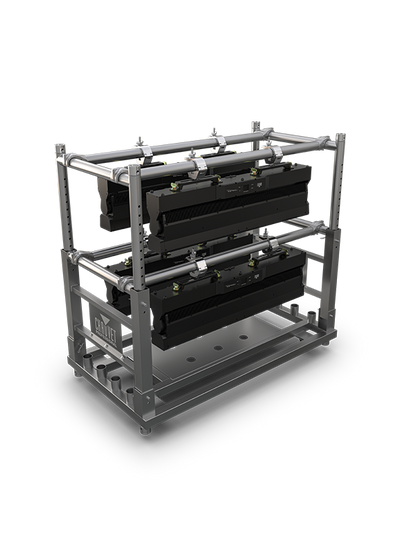

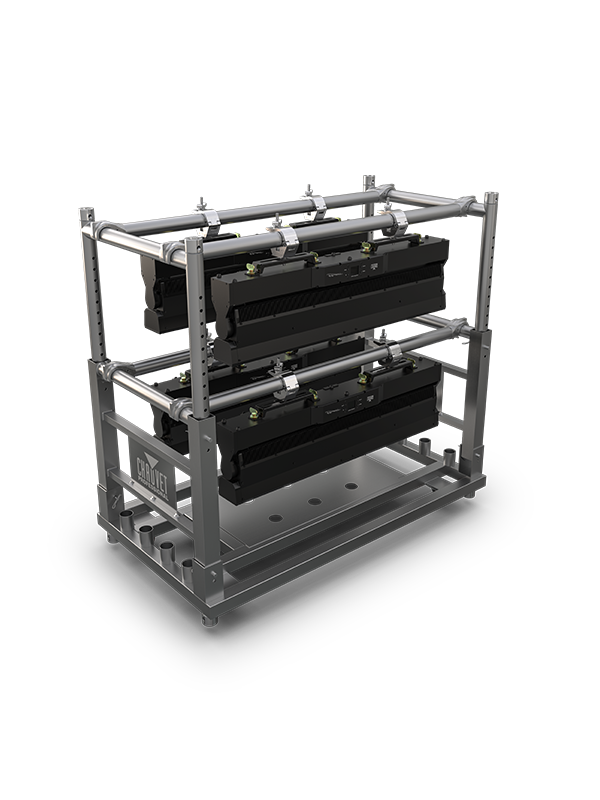

• Four (4) COLORado PXL Bar 16 (with clamps) or Eight (8) COLORado PXL Bar 8 (with clamps)

• Six (6) STRIKE Array 4 or Twelve (12) STRIKE Array 2

Specifications:

• Specifications

• Construction / Physical

• Frame Material: aluminumTube Material: aluminumExterior Color: silverDimensions at maximum height: 54.3 x 31.5 x 43.83 in (1.38 x 0.80 x 1.11 m)Dimensions folded: 54.3 x 31.5x 12.6 in (1.38 x 0.80 x 0.33 m)Weight: 75.5 lb (34.25 kg)Load capacity: 1,000 lb (453kg)Castor capacity: 1,102 lb (500 kg)Maximum Stacking: 2 high

• Certifications / Qualifications

• CE, TVU tested

Included Accessories:

• CP rack

• Cover
