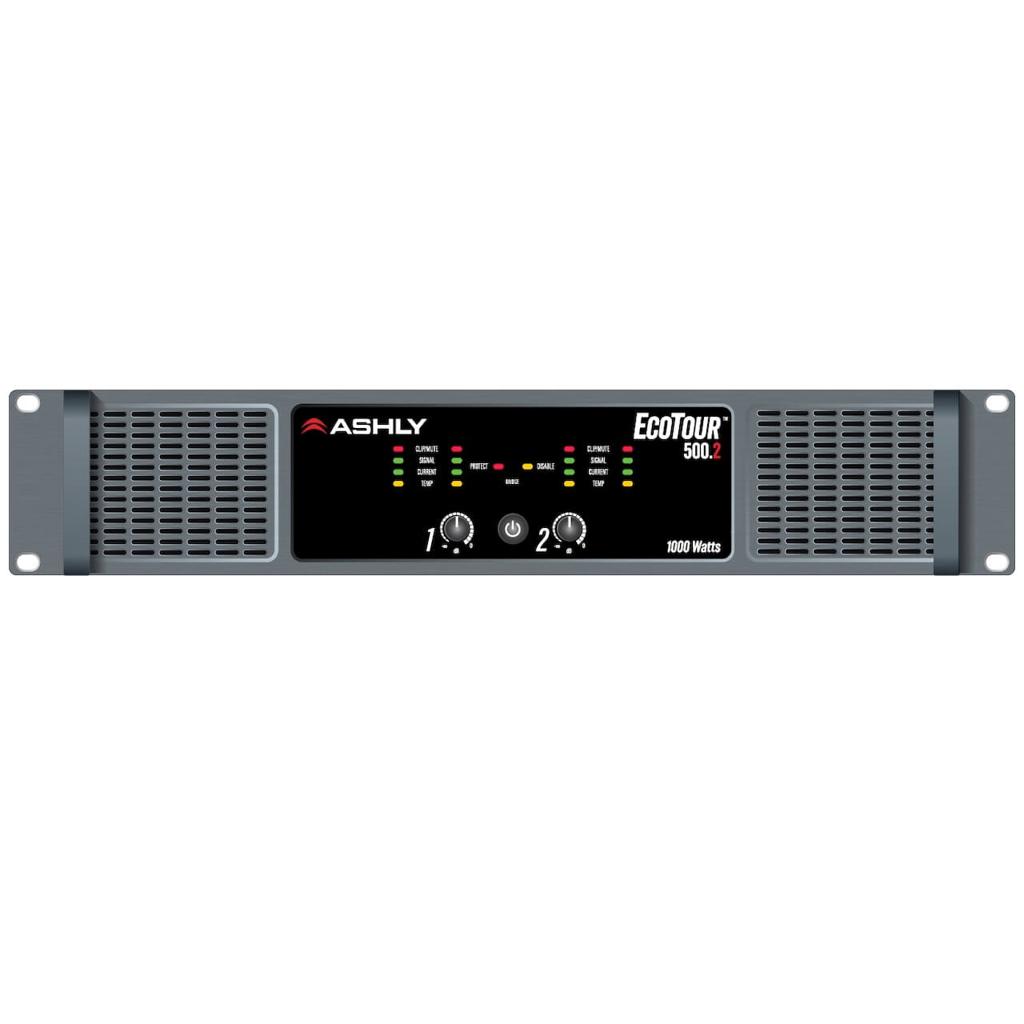

EcoTour™ 500.2

The Ashly EcoTour™ 500.2 is a high-efficiency, two-channel Class-D power amplifier designed for professional live sound, touring, and fixed audio installations. Delivering 500 watts per channel into 2-ohm or 4-ohm loads, it combines flexible speaker connectivity, selectable gain, switchable high-pass filters, and clip limiters in a rugged 2U rackmount chassis.

From The Manufacturer:

The Ashly EcoTour™ series is designed to deliver reliable, efficient amplification for demanding professional audio applications. Its Class-D amplifier architecture and Dynamic Power Factor Correction (DPFC) support efficient operation, while the proprietary SailFlow cooling design helps manage heat during extended use. The series supports low-impedance loudspeakers and constant-voltage applications, with front-panel controls and configurable protection features for flexible system integration.

Key Features:

1. Two-channel professional power amplifier.

2. High-efficiency Class-D amplifier design.

3. 500 W per channel at 2 Ω and 4 Ω.

4. 250 W per channel at 8 Ω.

5. Bridged operation delivering up to 1,000 W.

6. Supports compatible 70 V and 100 V constant-voltage applications in the specified bridged configuration.

7. Dynamic Power Factor Correction (DPFC).

8. Selectable amplifier gain settings per channel.

9. Adjustable front-panel input gain with lockout capability.

10. Switchable 80 Hz high-pass filter per channel.

11. Switchable clip limiter per channel.

12. XLR, 1/4-inch TRS, and Euroblock input connections.

13. Neutrik speakON speaker outputs.

14. Bi-lateral SailFlow cooling system.

15. Rugged 2U rackmount chassis.

16. Five-year manufacturer warranty, subject to the manufacturer's terms.

Specifications:

• Brand: Ashly

• Product Series: EcoTour™

• Model: 500.2

• Manufacturer Part Number: ECOTOUR500.2-120V-U

• Product Type: Professional power amplifier

• Amplifier Class: Class D

• Number of Channels: 2

• Power Output at 2 Ω: 2 × 500 W

• Power Output at 4 Ω: 2 × 500 W

• Power Output at 8 Ω: 2 × 250 W

• Bridged Output at 4 Ω: 1 × 1,000 W

• Bridged Output at 8 Ω: 1 × 1,000 W, as listed in the manufacturer's series specifications

• 70 V Operation: 1 × 1,000 W bridged

• 100 V Operation: Confirm the required operating configuration against the current manufacturer documentation before installation.

• Frequency Response: 20 Hz–20 kHz, ±0.05 dB

• Damping Factor: Greater than 250 at 8 Ω, below 1 kHz

• Input Connectors: XLR/1/4-inch combo connectors and 3.5 mm Euroblock

• Output Connectors: Neutrik speakON

• Input Gain Settings: Selectable 26 dB, 32 dB, 38 dB, or 1.4 V sensitivity

• High-Pass Filter: Switchable 80 Hz filter per channel

• Clip Limiter: Switchable per channel

• Cooling: Fan-assisted SailFlow cooling

• Rack Format: 2U

• Dimensions (W × H × D): 19 × 3.5 × 16.1 in (483 × 89 × 409 mm)

• Unit Weight: 18.5 lb (approximately 8.4 kg)

Included Accessories:

• Ashly EcoTour™ 500.2 power amplifier.

• Detachable AC power cable.

• Input Euroblock connectors, subject to the supplied package configuration.

Applications:

• Live sound reinforcement.

• Touring and mobile PA systems.

• Houses of worship.

• Theatres and performance venues.

• Conference centres and auditoriums.

• Fixed commercial audio installations.

• Driving passive full-range loudspeakers and subwoofers within their rated requirements.

• Compatible constant-voltage audio systems when configured as specified by the manufacturer.

Included Accessories:

The amplifier uses a detachable AC power cable and supports Euroblock input connections. Confirm the exact supplied connectors and accessories with the distributor.

Accessories (Not Included):

• Passive loudspeakers and subwoofers.

• Audio signal cables.

• speakON speaker cables.

• Equipment rack and rack hardware.

• External audio processors, crossovers, or DSP units, where required.

• Additional installation accessories.

Size:

• Width: 19 in (483 mm)

• Height: 3.5 in (89 mm)

• Depth: 16.1 in (409 mm)

• Rack Height: 2U

Weight:

• Unit Weight: 18.5 lb (approximately 8.4 kg)

Electrical/Thermal:

• Amplifier Technology: High-efficiency Class D.

• Power Factor Technology: Dynamic Power Factor Correction (DPFC).

• Input Voltage: Check the rating label on the supplied unit; the manufacturer part number identifies the 120 V version.

• Cooling: Fan-assisted SailFlow cooling.

• Protection Features: Thermal protection, output fault protection, and other amplifier protection functions as detailed in the operating manual.

• Current Draw: Manufacturer lists approximately 1.5 A with all channels driven at one-eighth power using a 120 V AC supply.

• Operating Environment: Provide adequate ventilation and follow the manufacturer's installation instructions.
