Sku:
ELE700
ElectraPix Par 7
Regular price
$1,149.99
Regular price
Sale price
$1,149.99
Unit price
per
Shipping calculated at checkout.
Vendor: ADJ
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
From the Manufacturer

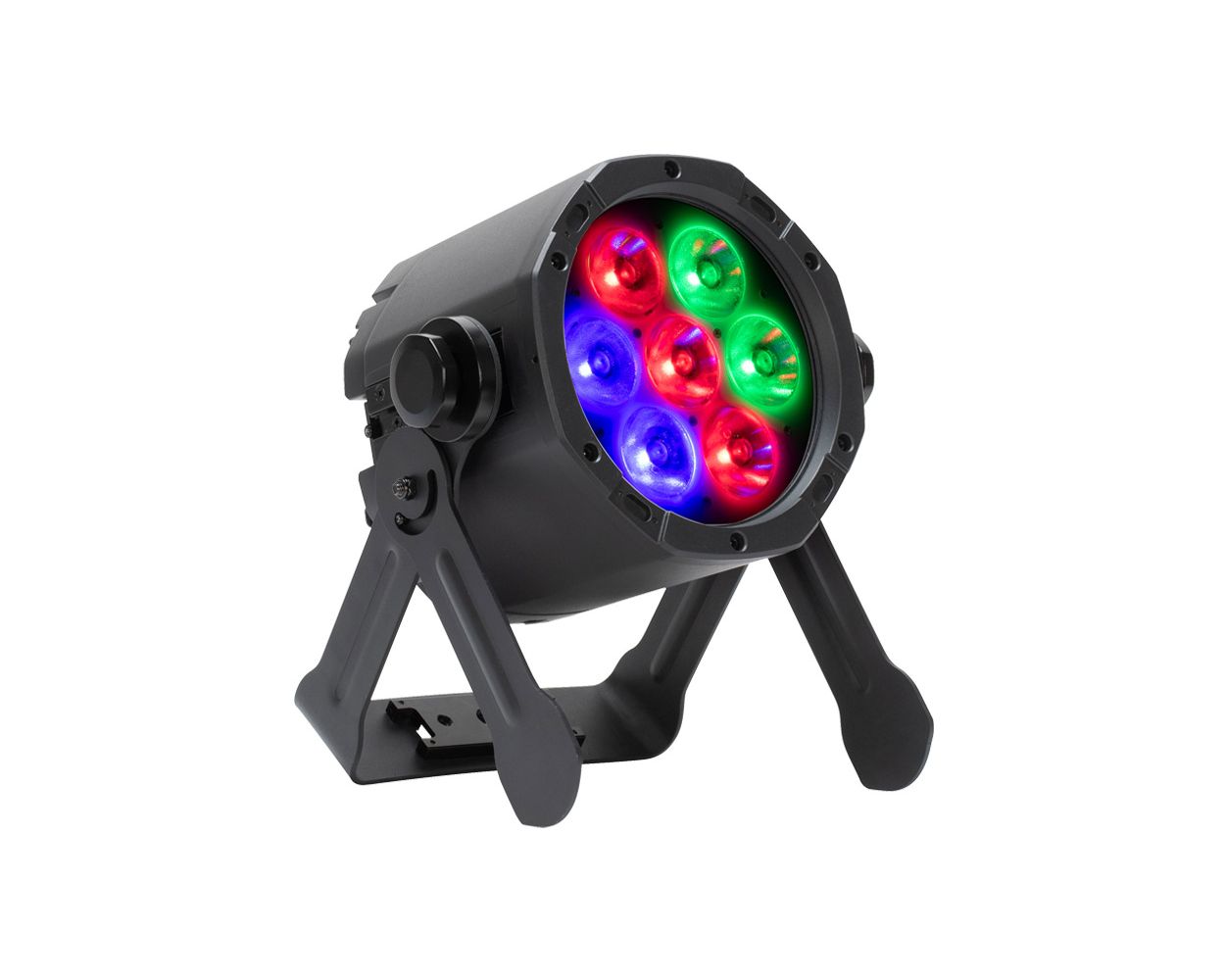

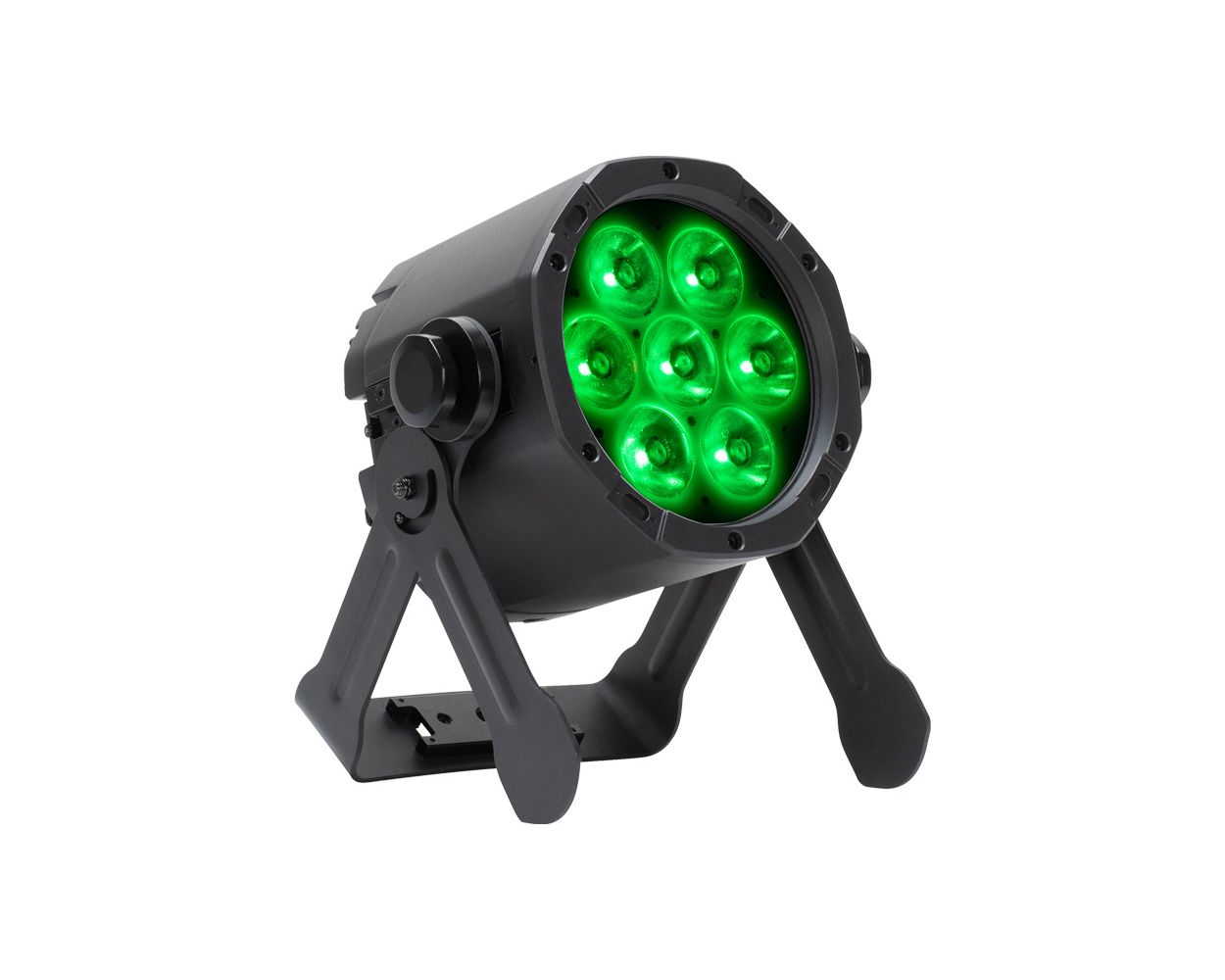

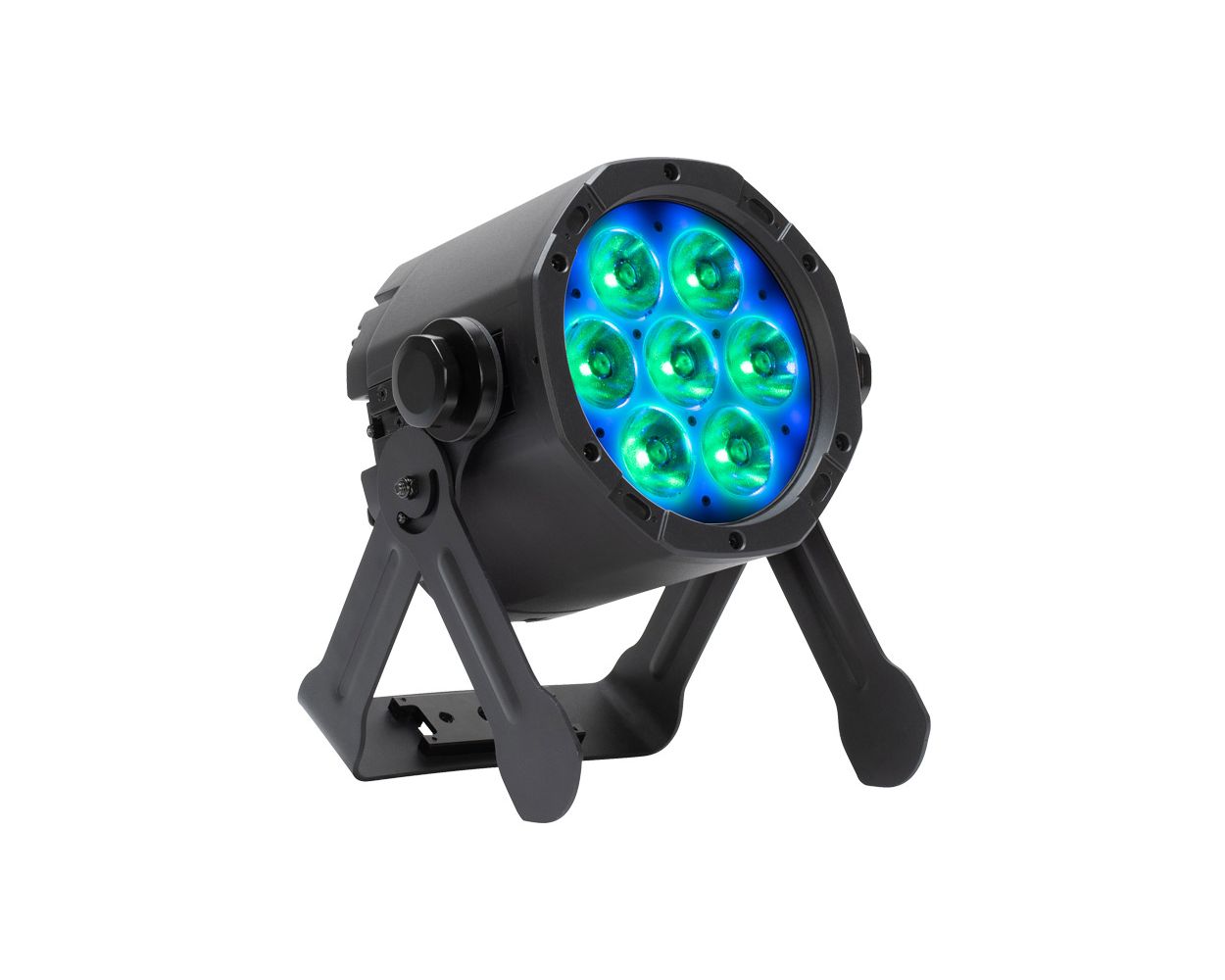

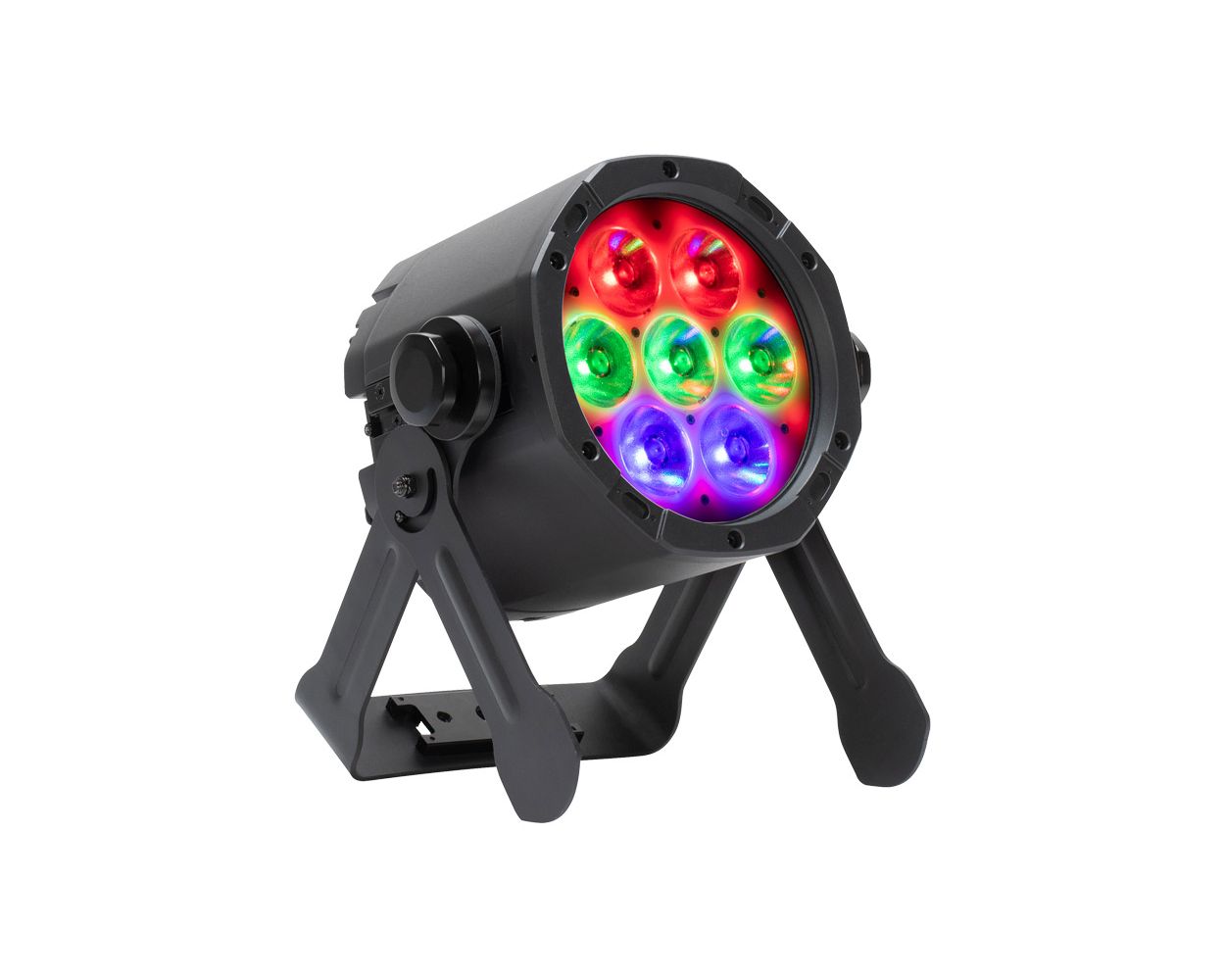

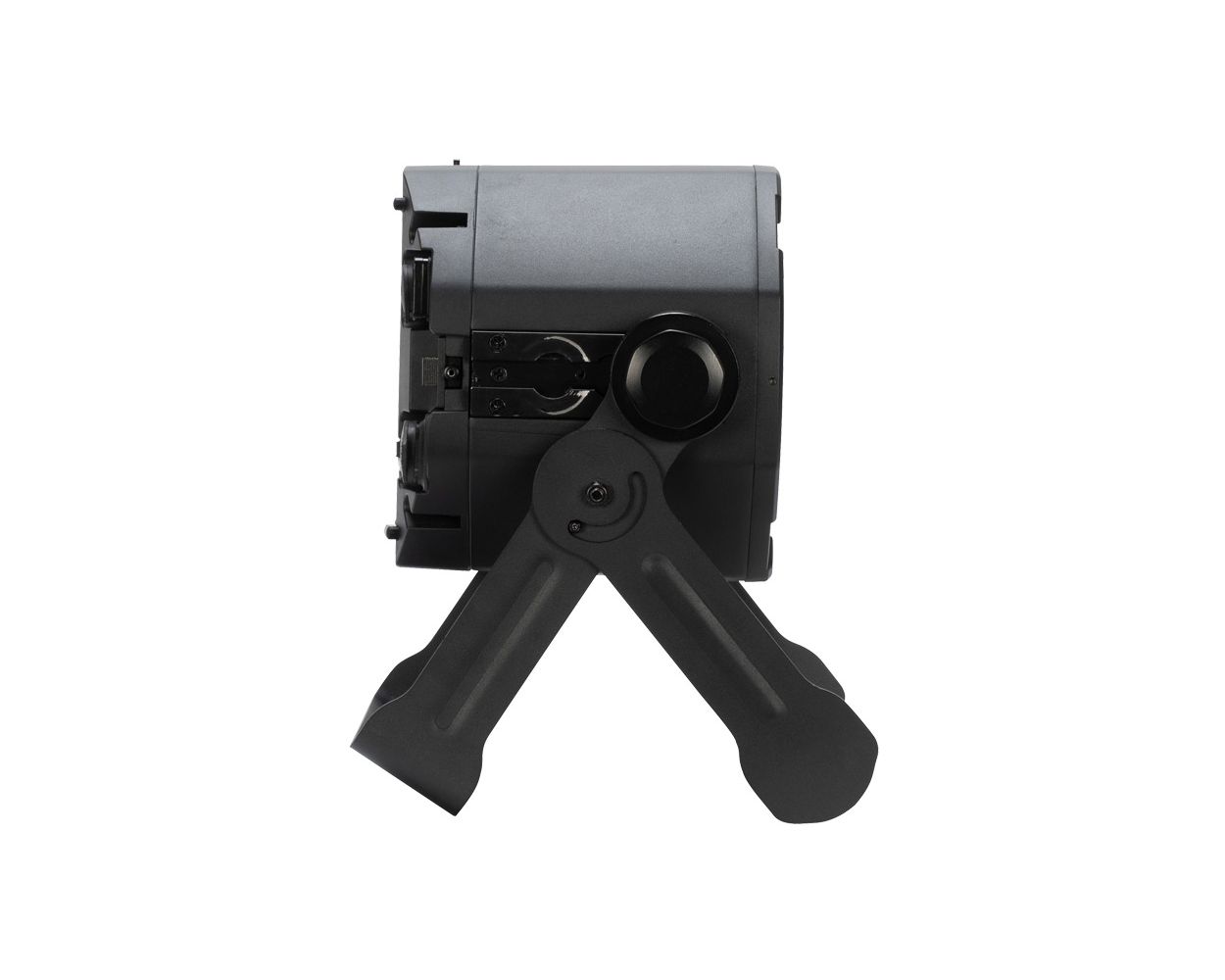

The ADJ Lighting ElectraPix Par 7 is a IP65-rated, battery powered, wireless DMX LED fixture. It features seven 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX and has a battery life up to 20 hours.
Features
- 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
- Battery or Wall Powered
- Battery operation can be selected by the user for durations ranging from 5 to 20 hours
- Individual Pixel Control
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Color Temperature Control (2,700K ~ 9,900K)
- English & Spanish User Menu
- Built-In Alarm
- Color Calibrated LED's
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (0.3Hz ~ 11Hz)
- Electronic Dimming
Source:
- (7) 20W Hex Color RGBAL+UV Foreground LED's
- (29) 0.2W RGB Background LED's
- 50,000 Hour Average Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
- 2,300K ~ 9,900K White Color Temperature Range
- 17° Beam Angle
- 45mm Lens Diameter x8
Physical:
- IP65 Housing
- OLED Digital display
- L Track system for locking accessories / rigging
- Gel Frame Holder

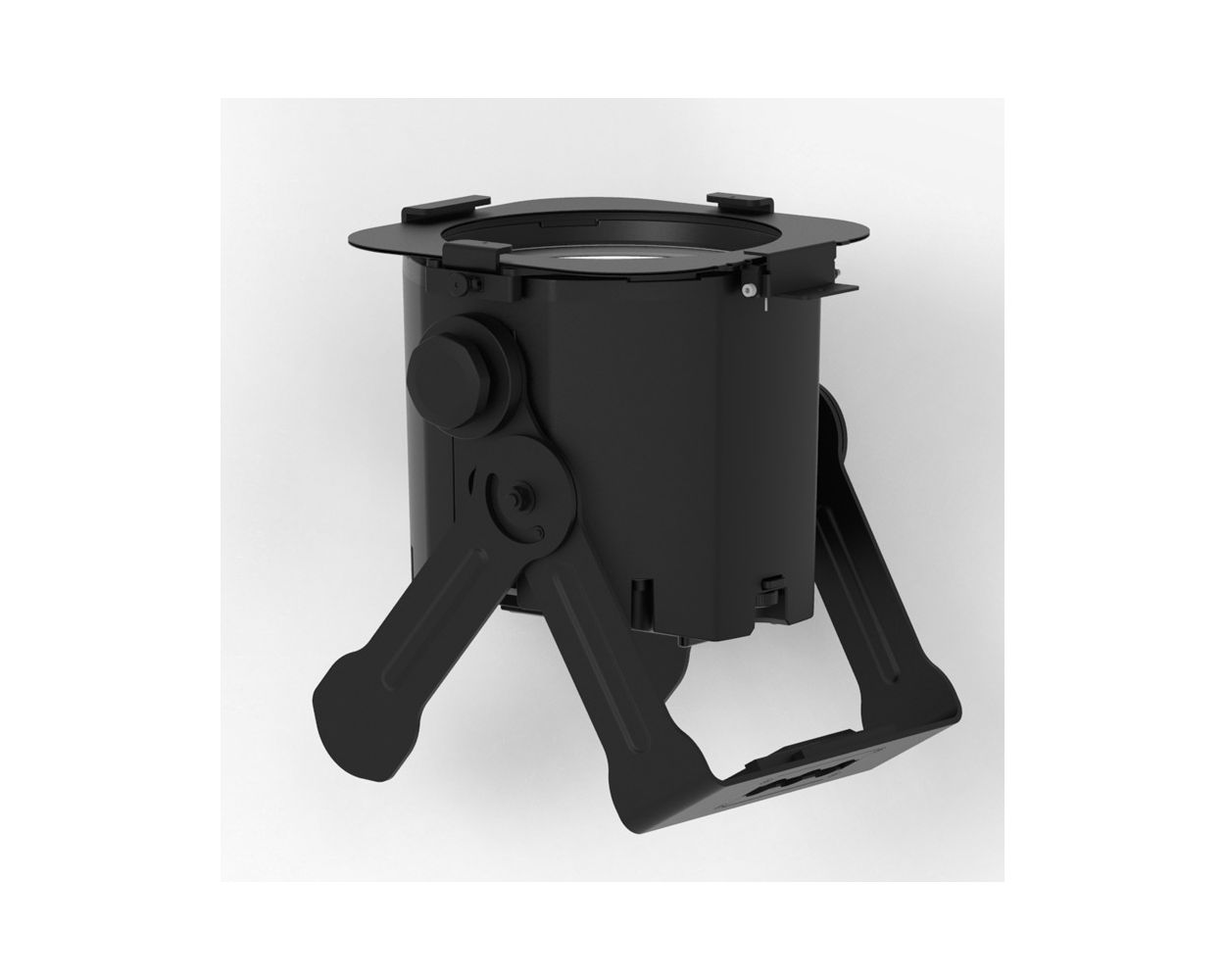

- Adjustable, hanging / kick stand bracket
Control:
- DMX512
- Aria X2 Wireless DMX
- Bluetooth
- RDM and RDM Net Compatible
- IR (Includes UCIR24 wireless remote)
- (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 54 Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode

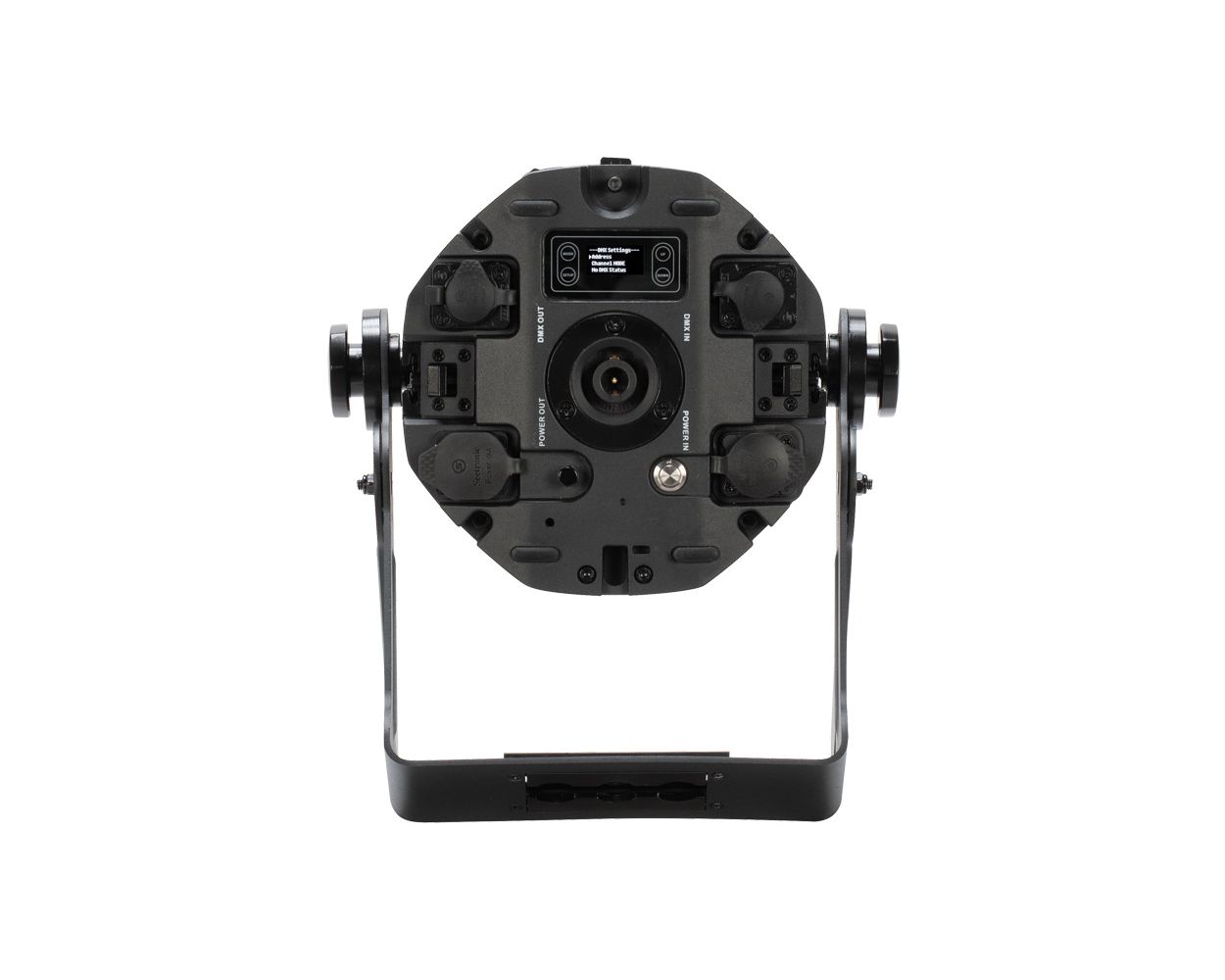

Connections:
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- Outdoor Locking Power Sockets
- Battery Charging Socket
Dimensions & Weight:
- Length: 11.11” (282.1mm)
- Width: 9.77” (590.3mm)
- Height: 7.46” (189.5mm)
- Weight: 15.4 lbs. (7 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 60W Power Consumption
- Link 15 pieces @120VAC or 28 pieces @ 230VAC
Battery:
- Rechargeable Lithium ion
- Battery Capacity: 7,000mAh
- Battery Voltage: 22.2V
- Charge Time: 6 Hours (To Full)
- Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
- Battery Cycles: 500
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
- CE
- cETLus (Pending)
- FCC
- IP65
Included Accessories:
- (1) Outdoor Locking Power Cable
- (1) Floor Stand / Mounting Bracket
- (1) UCIR24 Remote
- (1) Gel Frame
- (1) 20° Diffusion Filter
Optional Accessories:
- LTrack A2 (LTrack Adapter Only)
- LTrack CA2 (LTrack Adapter with Narrow Clamp)

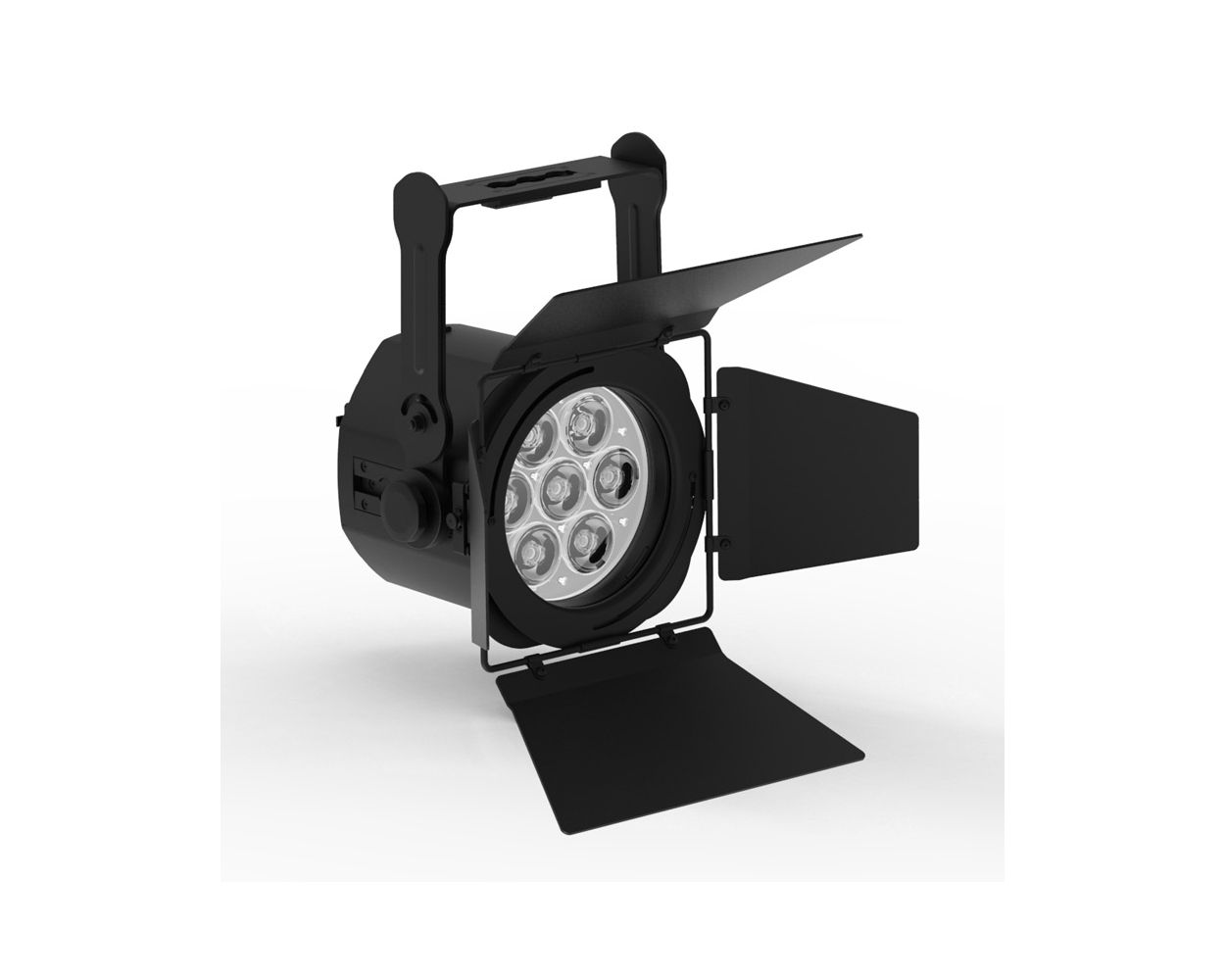

- ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
- ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7
- ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7
- ELPIX7L30X60: 30x60° linear filter for the ElectraPix Par 7
- ELPIX7L10X40: 10x40° linear filter for the ElectraPix Par 7
- ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7
- EPIX P7 IPCB: replacement charging base and power supply
