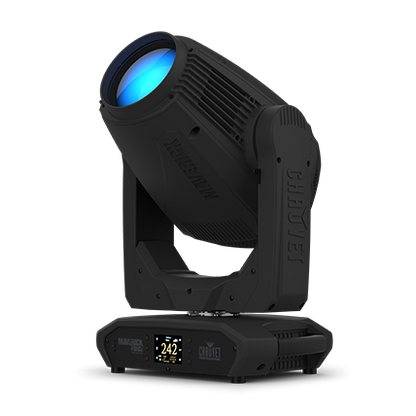

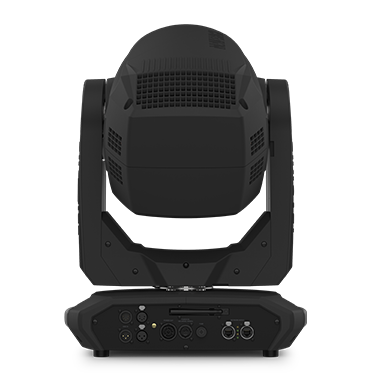

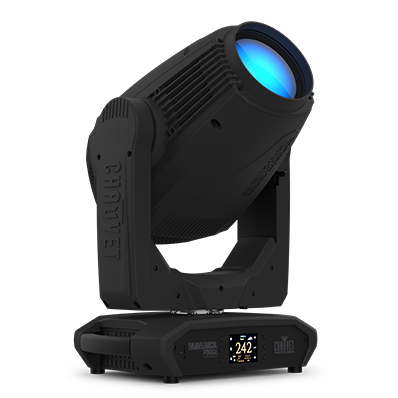

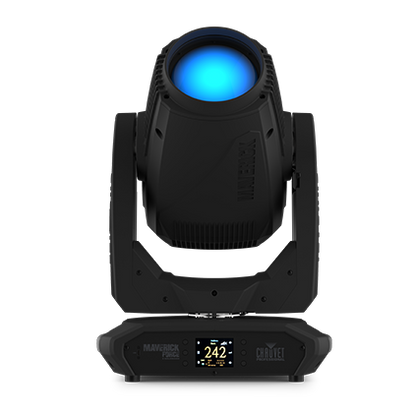

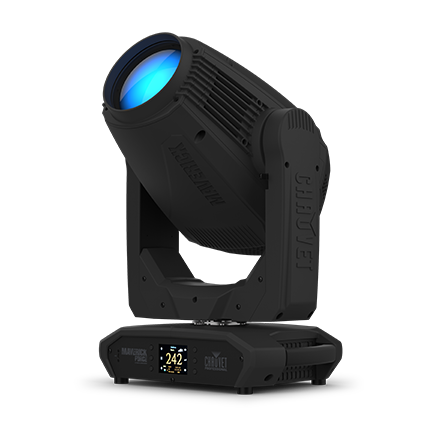

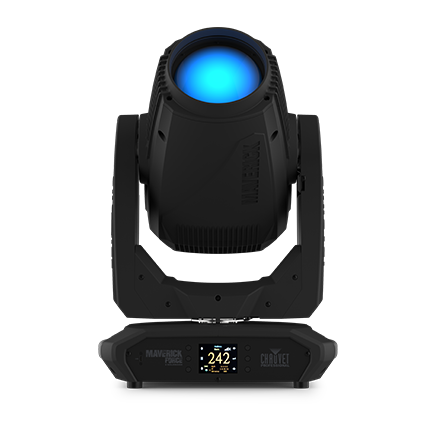

Maverick Force 2 Solo Wash

This Wash fixture is a powerful option for those looking for a moving head stage wash. It has modern features like CMY and CTO color mixing. It is a great option for medium to large stages.

From the Manufacturer:

A powerful single source 480W LED wash engineered to meet lighting designer demand for classic stage wash looks with the modern features LDs expect: CMY + CTO color mixing system offering a wide color palette, independent color wheel with CRI and CTB filters, expansive 8:1 zoom, rotating gobo wheel with interchangeable geometric gobos, linear 5-facet prism, and frost. Housed in a compact and lightweight design and calibrated to match the colors of other Force fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

Features:

• Fully featured, compact and lightweight 480 W LED yoke single source wash fixture including CMY + CTO color mixing, a color wheel, zoom optics, and one rotating gobo wheel

• 16-bit dimming of master dimmer for smooth control of fades

• Variable CMY + CTO color mixing system to create a wide pallet of colors

• CRI and CTB filters on color wheel for added flexibility

• DMX, WDMX, sACN, and Art-Net for full flexibility of control options

• RDM enabled for remote addressing and trouble shooting

• 6.3° to 55.7°zoom range for variable beam sizes

• Linear 5-facet prism, geometric gobos and frost for beam control

• True 1 compatible power input

• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

• USB slot for software uploads

• Battery backup display with auto-rotate depending on fixture orientation

• Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost

Specifications:

• Optical

• Light Source: 1 LED (CW) 480 W (15 A), 50,000 hours life expectancy

• Color Temperature (at full): 7308 K

• Color Temperature (range): 7308 to 3007 K

• CRI: 70.4 (with filter: 87.7)

• Front Lens Diameter: 178 mm

• Beam Angle: 6.3° to 32.8°

• Field Angle: 9.3° to 49.5°

• Cutoff Angle: 11.2° to 55.7°

• Zoom Range: 6.3° to 55.7°

• Lumens – Source: 39,200

• Lumens – Output: 30,967

• Illuminance (6.3°) : 91,362 lux @ 5 m

• Illuminance (55.7°) : 3989 lux @ 5 m

• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

• Dynamic Effects

• Pan and Tilt: 540°/270°

• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors: 7 + open, split colors, continuous scroll at variable speeds

• Colors: CMY flags, CTO flag

• Gobos: 7 + open (7 Metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Zoom: Motorized

• Focus: Motorized

• Frost: Motorized

• Iris: Motorized

• Prism: 5 Facets, motorized, rotating

• Strobe Rate: 0 to 20 Hz

• Move-in-Black: Yes

• Dim Curves: 5

• Construction/Physical

• Dimensions: 16.8 x 10.7 x 25.8 in (426 x 272 x 656 mm)

• Weight: 53.4 lb (24.2 kg)

• Exterior Color: Black

• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

• Connections

• Power Connection: Seetronic Powercon IP65

• Power Input/Output: Seetronic Powercon IP65

• Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out

• Cable Length (power): 5 ft (1.5 m)

• Software Connection: Type-C USB

• Control

• Control Protocol: Art-Net, sACN, RDM, DMX, W-DMX

• DMX Channels: 21ch or 27ch

• Art-Net/sACN Channels: 21ch or 27ch

• Modes/Personalities: 2 personalities (21ch or 27ch)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3units @ 230 V

• Power and Current: 660 W, 5.57 A @ 120 V, 60 Hz

• Power and Current: 649 W, 3.24 A @ 208 V, 60 Hz

• Power and Current: 641 W, 3.07 A @ 230 V, 50 Hz

• Battery

• Battery type: Lithium Ion

• Rechargeable: Yes

• Battery Charge Time: 5 hours

• Battery Life: 1 hours

• Battery Power: 3.7 V, 500 mAh

• Certifications/Qualifications

• CE, MET, FCC, UKCA

• IP Rating: IP20, dry location

• Temperature (Operating): 14 °F to 113 °F (-10 °C to 45 °C)

• What’s Included

What’s Included:

• Maverick Force 2 SoloWash

• Seetronic Powercon IP65 power cord

• (2) 140mm Omega brackets with mounting hardware

Optional Accessories:

• Clamps

• Neutrik powerCON cables

• Neutrik etherCON cables

• DMX Cables

• Flight Cases
