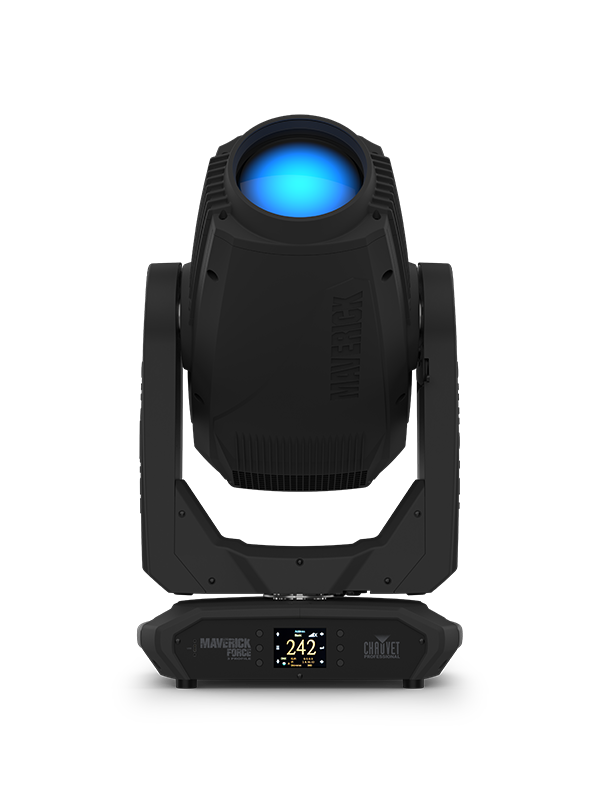

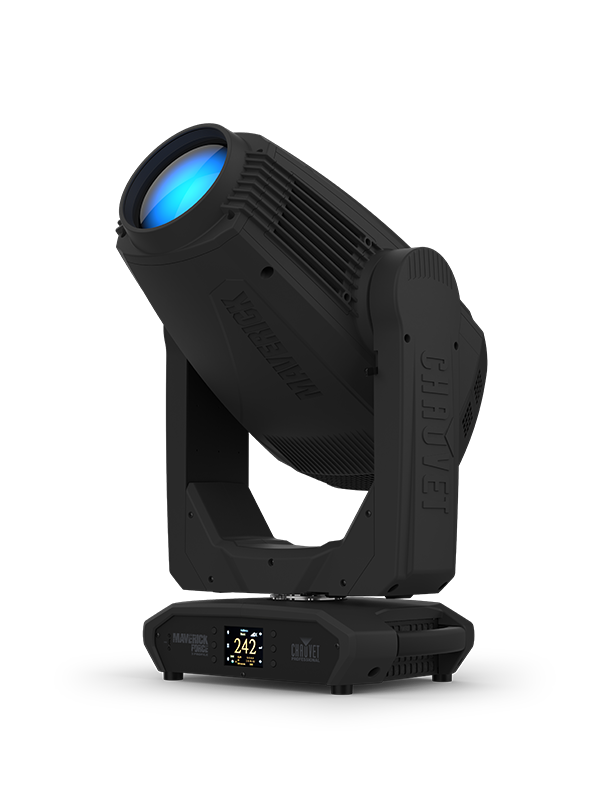

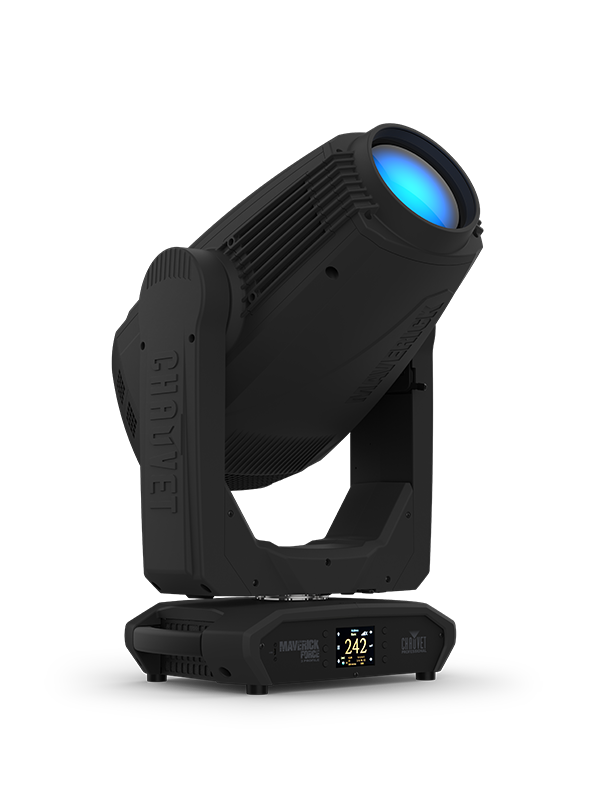

Maverick Force 3 Profile

This is a fast and powerful profile with CMY and CTO color mixing system. It is a great option for medium and large stages. This is a great option for production companies or anyone who needs a daily use fixture.

From the Manufacturer:

Maverick Force 3 Profile brings quick movement and fast effects together in a blazingly bright LED yoke profile fixture that harnesses the latest technology to deliver 40,906 lumens of output. Precision optics capture the depth of a CMY + CTO color mixing system renowned for its real reds and maintain a flat field of focus even when taking its 10:1 zoom fully wide. Color calibration and gobo selection comes matched to other Force fixtures in the rig, along with the advanced 4-blade shutter frame system and effects wheelhouse that delivers the great static, rotating, and animation effects the Force series is known for. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

Features:

• Full featured 915 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 10:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel

• 16-bit dimming of master dimmer for smooth control of fades

• Variable CMY + CTO color mixing system to create a wide pallet of colors

• CRI and CTB filters on color wheel for added flexibility

• Independently layerable five facet linear and five facet round prisms for increased prism options

• One rotating and one static gobo wheel for dynamic texture possibilities

• Independent light and medium frosts for beam control

• + or – 60 degree rotation framing shutter system to allow for better framing positioning.

• Animation wheel for enhanced visual effects

• Iris for total beam control

• DMX, WDMX, sACN, and Art-Net for full flexibility of control options

• RDM control over DMX for fixture reporting

• 4.9° to 53.9° zoom angle for variable beam sizes

• Three menu presets and preset cross load for decreased shop setup time

• True 1 compatible power input

• USB slot for software uploads

• Battery backup display with auto-rotate depending on fixture orientation.

• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.

Specifications:

• Optical

• Light Source: 1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy

• Color Temperature (at full): 7228 K

• CRI: 70.9

• CRI with CRI Filter: 89.4

• Front Lens Diameter: 160 mm

• Beam Angle: 4.9 ° to 42.8°

• Field Angle: 5.8° to 49.4°

• Cutoff Angle 6.5° to 53.6°

• Zoom Range: 4.9° to 53.9°

• Lumens – Source: 62,000

• Lumens – Output: 40,906

• Illuminance (4.9°) 130,582 lux @ 5 m

• Illuminance (53.9°) 3,792 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

• Dynamic Effects

• Pan and Tilt: 540°/270°

• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds

• Colors: CMY flags

• Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2): 9 + open glass, static, continuous scroll at variable speeds

• Gobo Size: Gobo Wheel 1 (rotating): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)

• Gobo Size: Gobo Wheel 2 (static): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)

• Framing Shutters: 4 blades, each with dual axis movement.

• Framing Shutter rotation: +/- 60° rotation.

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Zoom: Motorized

• Focus: Motorized

• Frost: Motorized

• Iris: Motorized

• Prism: 5 Linear Facets, motorized, rotating

• Prism: 5 Circular Facets, motorized, rotating

• Strobe Rate: 0 to 26 Hz

• Move-in-Black: Yes

• Dim Curves: 4

• Construction/Physical

• Dimensions: 16.73 x 10.98 x 30.47 in (425 x 279 x 774 mm)

• Weight: 84.2 lb (38.2 kg)

• Exterior Color: Black

• Housing Material: High-impact flame-retardant polymer

• Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out

• Cable Length (power): 5 ft (1.5 m)

• Control

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN

• DMX Channels: 37 or 53

• Art-Net Channels: 37 or 53

• Modes/Personalities: 2 personalities (37, 53)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 1320 W, 11.29 A @ 120 V, 60 Hz

• Power and Current: 1270 W, 6.32 A @ 208 V, 60 Hz

• Power and Current: 1260 W, 5.76 A @ 230 V, 50 Hz

• Fuse Size: F20 A, 250 V

• Certifications/Qualifications

• CE, MET, FCC,UKCA

• IP Rating: IP20, dry location

• Noise Level (ambient): 37.1 dB level @ 1 m

• Noise Level (static - Full): 46.1 dB level @ 1 m

• Noise Level (static - ECO): 47.6 dB level @ 1 m

• Noise Level (Static - Auto): 55.0 dB level @ 1 m

• Noise Level (Static - Max): 58.7 dB level @ 1 m

• Noise Level (Static – TV25): 47.5 dB level @ 1 m

• Noise Level (Static – TV35): 47.4 dB level @ 1 m

• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)

• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What’s Included:

• Maverick Force 3 Profile

• Seetronic Powerkon IP65 power cord

• Omega bracket with mounting hardware

Optional Accessories:

• Clamps

• Barn Doors

• Neutrik powerCON cables

• Neutrik etherCON cables

• DMX Cables

• Flight Cases

• CP Rack
