Sku: OVATIONF55WW

Ovation F-55WW

Regular price $495.00
Regular price Sale price $495.00
Sold out
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

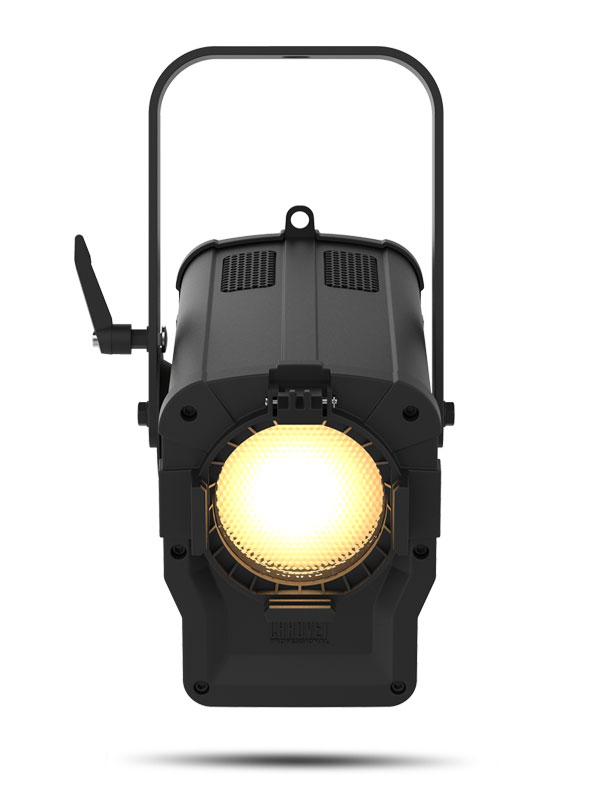

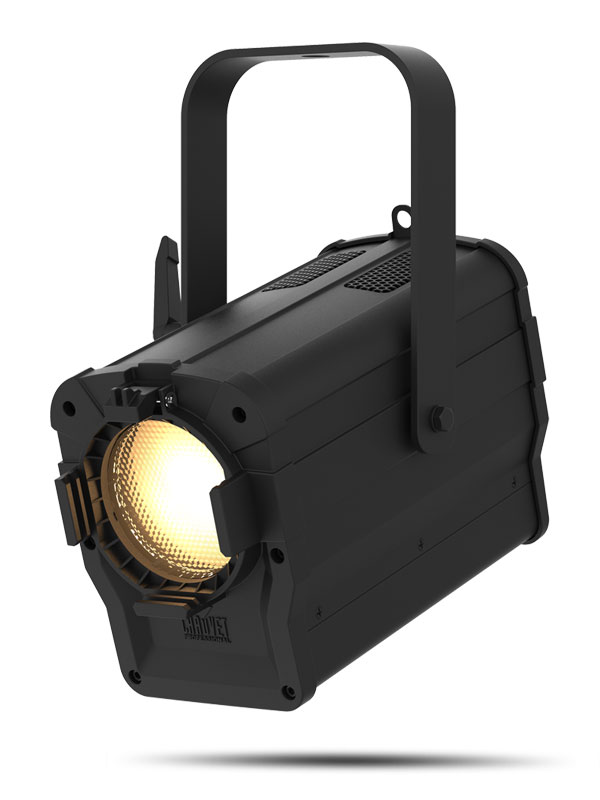

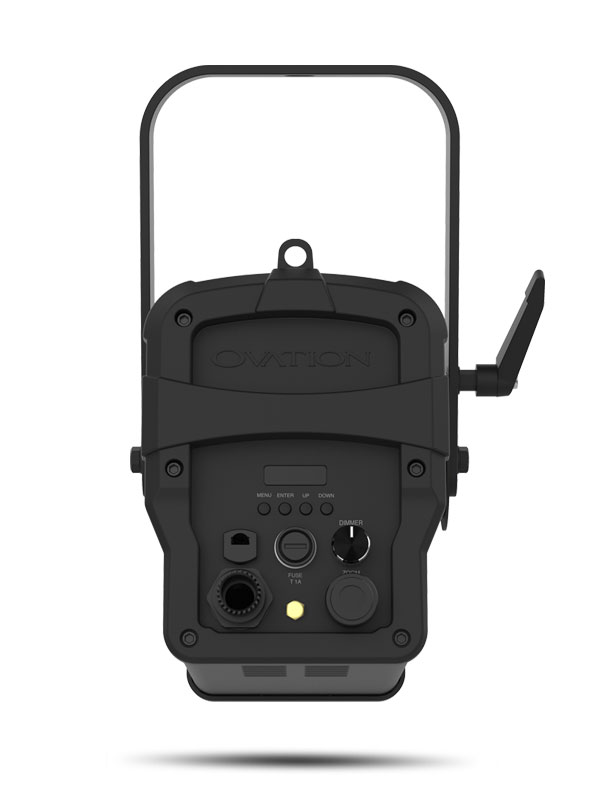

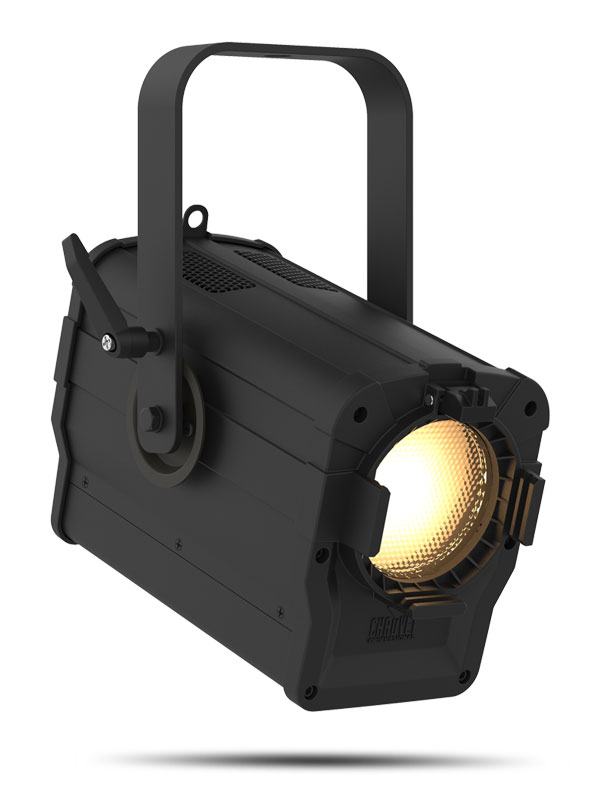

The Ovation F-55WW is a warm white LED inkie Fresnel-style fixture that is ideal for short throw applications and on-location lighting in television studios and theaters. It has a manual zoom with a field angle of 30° - 69°, allowing you to create a delightfully soft field of light when needed.

From the Manufacturer:

Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios and theatres. It projects a bright, beautifully soft field of light within a 20°- 75° field range controlled by a manual zoom.

At a glance
  • Compact warm white Fresnel for tight spaces and on-location lighting

  • Soft and even field of light

  • 16-bit dimming resolution for smooth fades

  • Virtually silent operation for use in any situation

  • Manually controlled variable zoom range between 20° to 75°

In the Box:
  • (1) Ovation F-55WW
  • (1) Gel Frame

     Features:

    • Light Source:  1 LED (WW) 36 W, (740 mA)
    • Color Temperature: 3120K
    • CRI: 92.5
    • Beam Angle:   20.1° to 61.4°
    • Dimming:  Electronic
    • Strobe:  Electronic
    • Color: Warm White
    • Control Protocol:  DMX, RDM
    • Operating Modes: 3 personalities (1CH, 2CH, 5CH)
    • IP Grade:  IP20, dry location

    Tech Specs

    Optics:

    Light Source Type: LED

    Light Source Wattage: 36 W, (740 mA)w

    Minimum Beam Angle: 20.1°

    Maximum Beam Angle: 61.4°

    Control

    DMX Channel Modes: 3 personalities (1CH, 2CH, 5CH)

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 10.87 in

    Width: 6.81 in

    Height: 6.53 in

    Weight: 4.8 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: hard-wired

    Main Power Connector on Included Cable: Edison plug to hard-wired
