Sku: ROGUER3XWASH

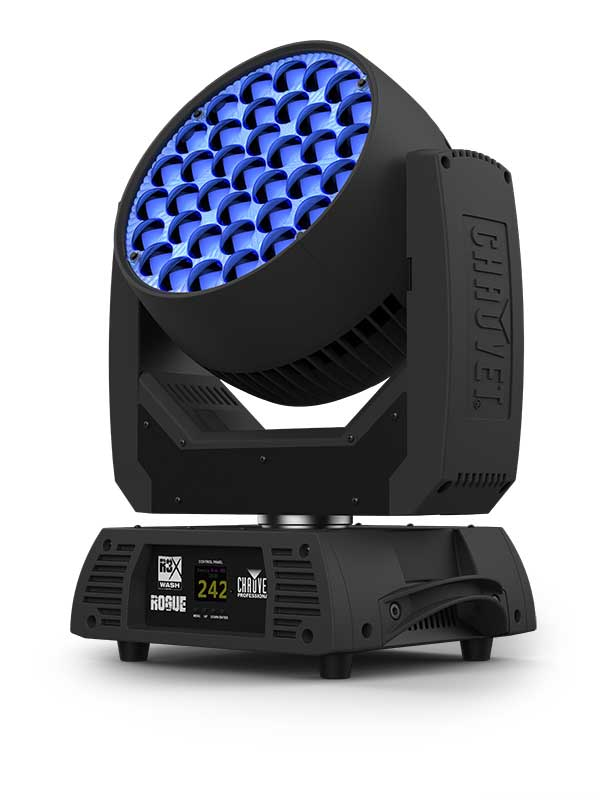

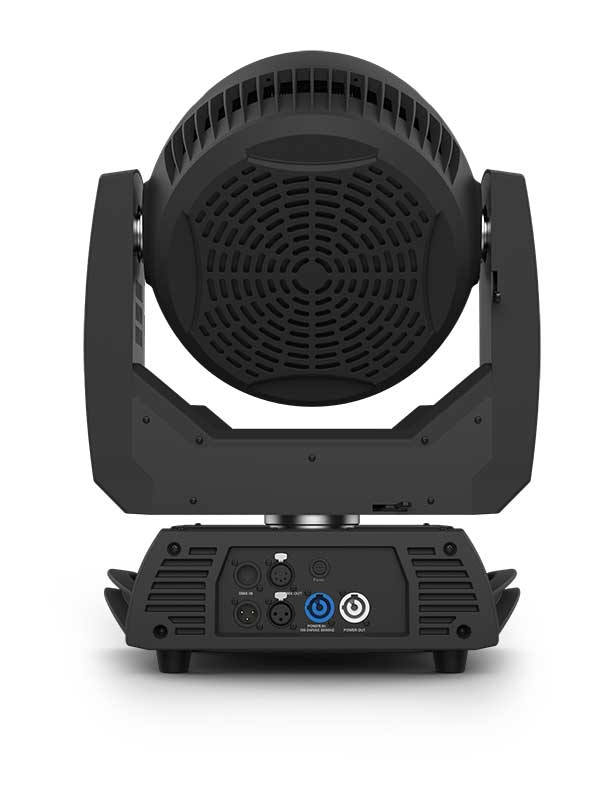

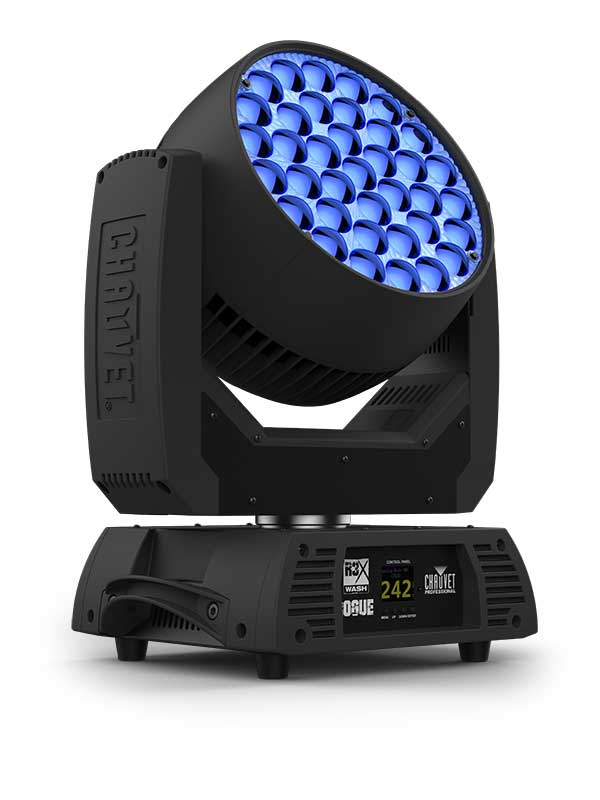

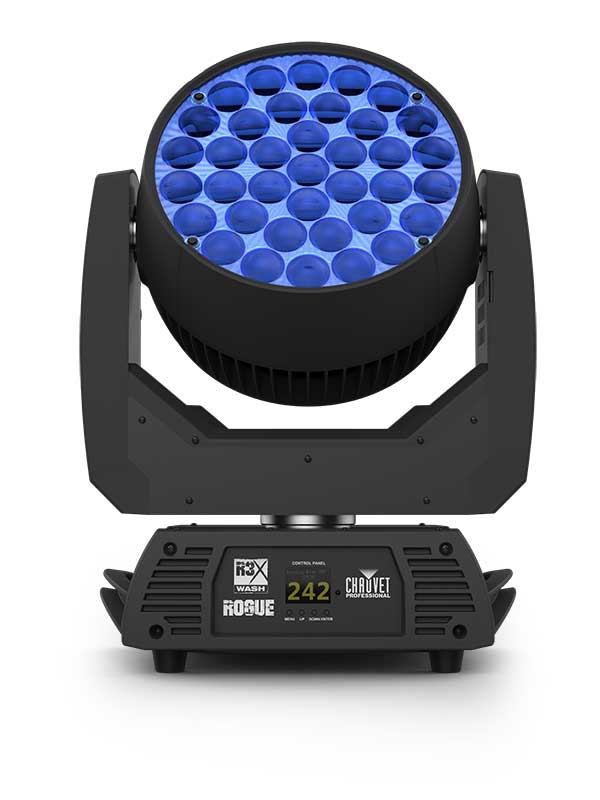

Rogue R3X Wash

$2,900.00
$2,900.00
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The Chauvet Professional Rogue R3X Wash is powered by 37 RGBW 25 W quad-LEDs and has nine zones of LED control to pixel map. A bright, evenly distributed light should be used to cover wide regions. To finish off the amazing features of this outstanding moving wash fixture, add a rapid moving zoom range of 12° - 49°, smooth color mixing, simple and complicated DMX channel configurations, and powerCON in and out.

From the Manufacturer:

Rogue R3X Wash is a feature packed moving wash workhorse ideal for rental and production inventories. It outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (25 W) RGBW quad-LEDs. A quick moving zoom range of 12° – 49° gives it the spread to cover large areas. Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.

At a glance

  • Fully featured RGBW LED yoke wash fixture with LED zone control and zoom

  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

  • 37 RGBW LEDs, 25 W each

  • 3- and 5-pin DMX input/output connections

  • 9 zones of LED control for pixel mapping effects

  • Unique lens design offers excellent color mixing

  • Fast, smooth pan and tilt movement

  • RDM enabled for remote addressing and trouble shooting

  • User-selected calibrated white for 7500 K at full output

  • Selectable LED maximum output to match legacy Rogue R3 Washes

  • Selectable PWM options for camera operation

  • 6 distinct dimming modes for different dimming needs

  • Omega mounting bracket, fits all Rogue and Maverick fixtures

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

In the Box:

  • (1) Rogue R3X Wash
  • (1) Neutrik® powerCON® power cord
  • (2) Omega brackets with mounting hardware

     Features:

    • Light Source:  37 LEDs (quad-color RGBW) 25 W, (1.5 A)
    • Color Temperature:  2,800 to 10,000 K
    • Beam Angle:  9.3° to 33.9°
    • Dimming: 16-bit
    • Strobe: 0 to 20 Hz
    • Color: RGBW
    • Control Protocol:  DMX, RDM
    • Operating Modes:  4 personalities (21, 62, 71, 107)
    • IP Grade:  IP20, dry location

    Tech Specs

    Optics:

    Light Source Type: LED

    Light Source Wattage: 25W (1.5 A)w

    Minimum Beam Angle: 9.3°

    Maximum Beam Angle: 33.9°

    Control

    DMX Channel Modes: 4 personalities (21, 62, 71, 107)

    DMX 3-Pin Connectors?: Yes

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 15.51 in

    Width: 11.73 in

    Height: 18.5 in

    Weight: 38.5 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Neutrik® powerCON®

    Main Power Connector on Included Cable: Edison (local) plug to Neutrik® powerCON®
