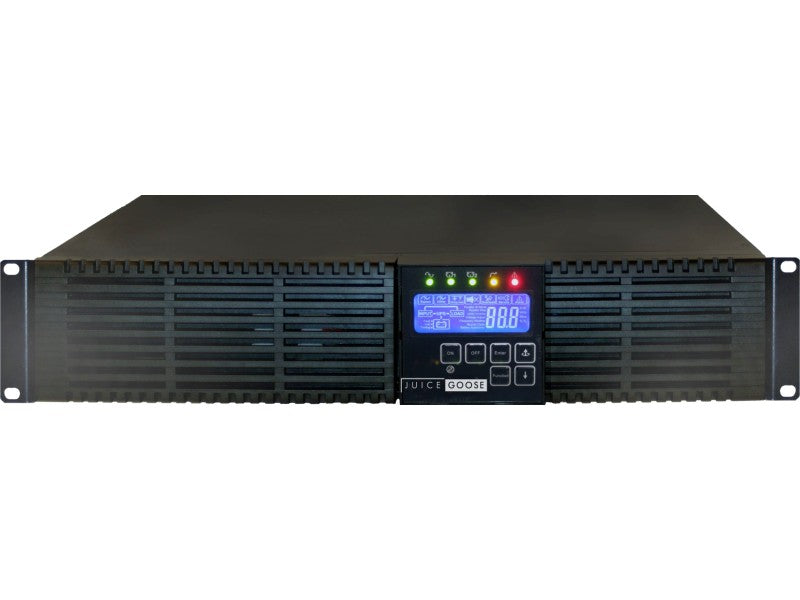

SCV-15001 UPS On Line Rack Mount 1500VA

The Juice Goose SCV-15001 on-line UPS model safeguards sensitive equipment, ideal for broadcast and streaming, security or paging systems, and much more.

From the Manufacturer

True double conversion UPS architecture completely buffers connected loads from incoming disturbances on AC line and neutral. This design also provides unconditional voltage stability regardless of problems on the local utility grid.

Advanced processor circuitry has an output power factor of 0.90 to provide higher performance and efficiency to critical applications. High efficiency circuitry converts 90% of available current (amps) into real work (watts), reducing equipment and operating costs.

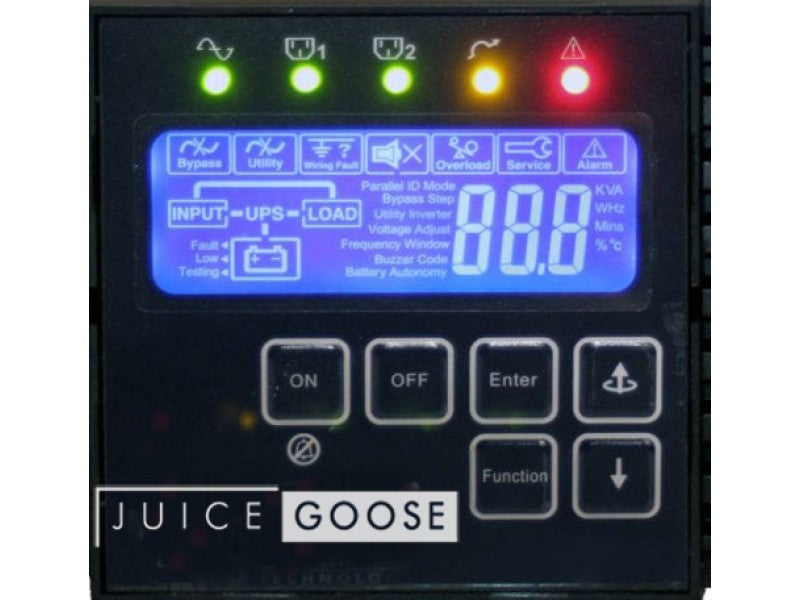

Easy to read LCD display provides real-time indication of all major system parameters and status, including load and battery levels and fault signals. Communications options allow remote monitoring and management.

Batteries can be replaced without shutting down the UPS. Available options include rack rails and network card with UPS monitoring and control software.

Features

• Double Conversion, On-Line UPS - operates connected equipment from the batteries 100% of the time to provide clean, high quality power and to fully protect mission critical devices such as AV controllers and processors, digital consoles, teleconferencing systems as well as communication, security and data processing equipment. Batteries provide a buffer to prevent even slight power disturbances from passing through the UPS.
• High Efficiency Power Factor - converts 90% of available current to usable power. A power factor of 0.90 provides higher performance and efficiency to critical applications.
• Programmable Power Outlets - two banks of outlets can be independently controlled to power cycle connected equipment or extend battery run time by shutting down non-critical devices during an extended power outage.
• Emergency Power Off (EPO) - connects to an alarm panel to immediately remove power to UPS outlets in case of an emergency.
• Hot Swappable Battery Design - ensures uninterrupted performance during battery replacement.
• Monitoring and Control  -  front panel buttons and LCD display provide convenient control and real time monitoring. Network connection and downloadable SentryHD software allow remote management via USB, RS232 and / or optional SNMP network card.

Specifications

• Power Capacity (VA): 1500
• Power Capacity (Watts): 1,350
• Rack Height: 2U
• Weight (Net, Lbs): 42
• Run Time, Full Load (Min): 3
• Run Time, Half Load (Min): 10
