ViuSite-1XS

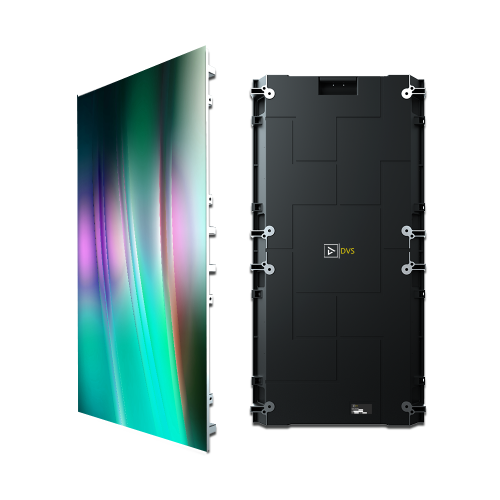

ViuSite-1X is a 1.9mm pixel pitch direct wall mount LED Video Panel that provides a cost-effective LED solution for permanent install applications offering high-resolution clarity with an extremely low-profile design and easy installation.

From The Manufacturer:

ViuSite-1X is a 1.9mm pixel pitch direct wall mount LED Video Panel that provides a cost-effective LED solution for permanent install applications offering high-resolution clarity with an extremely low-profile design and easy installation. Its 19×39″ panel size makes ViuSite-1X one of the most affordable fine-pitch LED display solutions available in the market. ViuSite series LED panels can be mounted directly to a flat wall surface without the need for mounting brackets reducing costs, simplifying installation, and maintaining a total depth of less than 2″. With full-front serviceability and a wide range of customization options, ViuSite series LED panels can provide an affordable wall-mount solution with dynamic functionality and precise scalability for the most demanding project requirements.

Features:

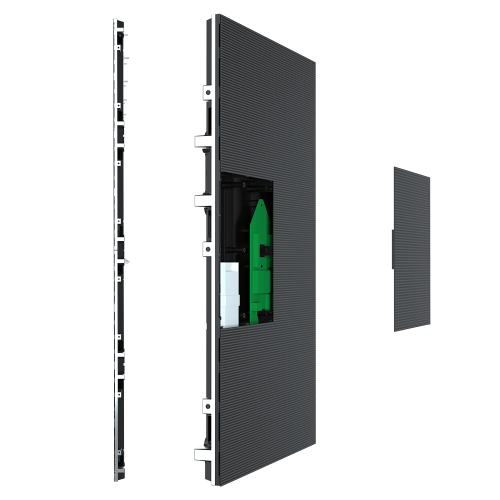

• Full Front Serviceability

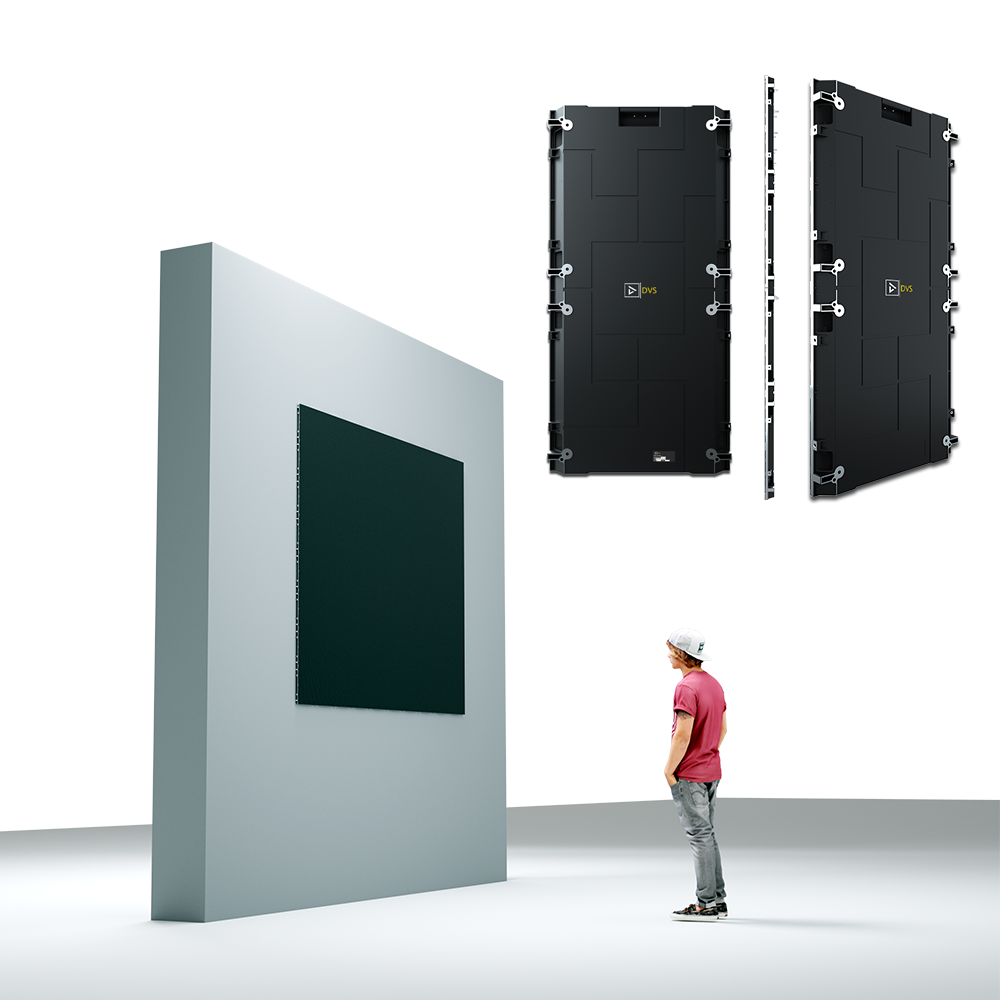

• Direct Surface Mounting / Uni-Strut Compatible

• Ultra-Low Profile ADA Compliant Depth

• High-Contrast Black LED

• Advanced Color Processing

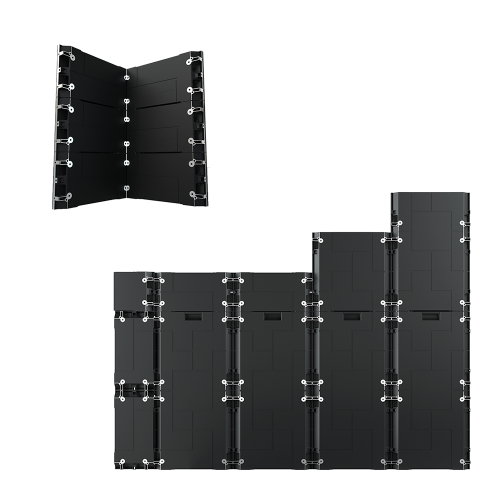

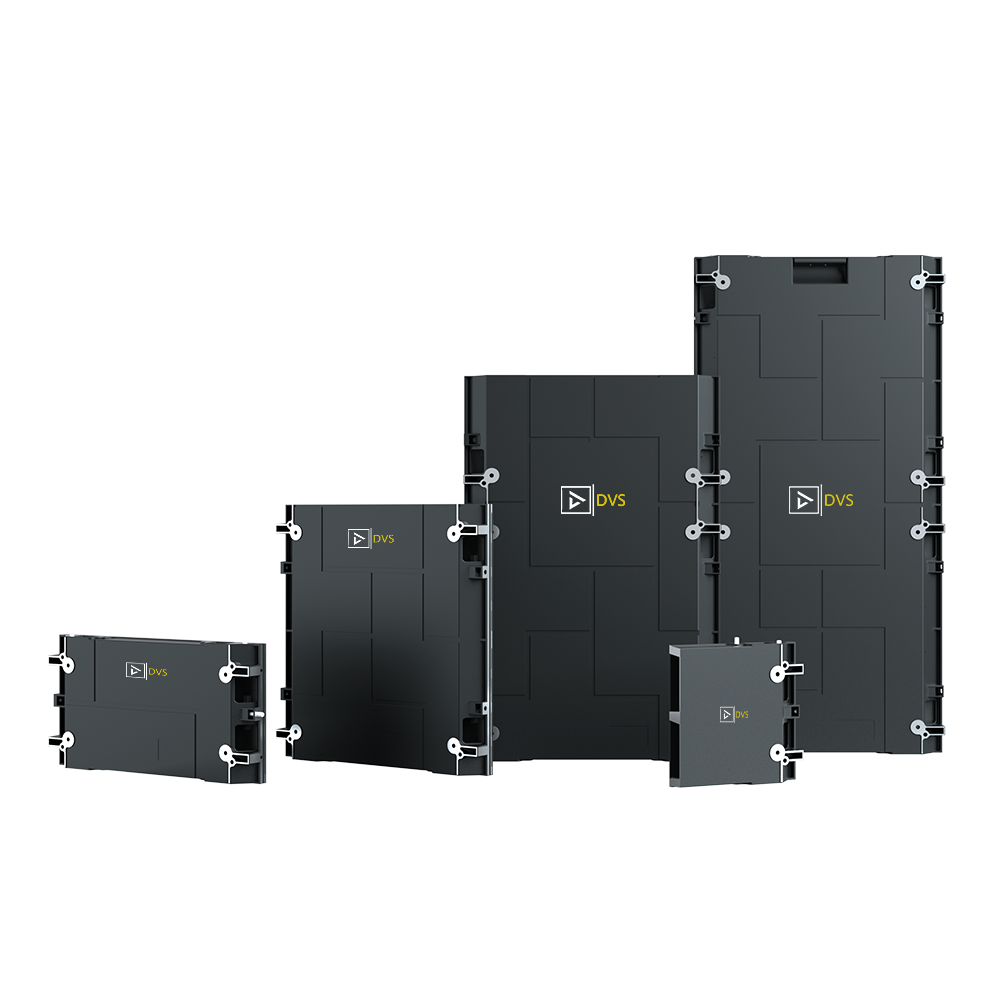

• Multiple Cabinet Sizes Available

Specifications:

• Application Type

• Permanent Install

• Mounting/Rigging

• Wall Mount

• Pixel Pitch

• 1.9mm

• Dimensions

• 39.2 in L x 19.6 in W x 1.6 in D

• Weight

• 24lbs

• LED Type

• SMD1515

• Refresh Rate

• 2,880≥ Hz / 3,840≥ Hz

• Brightness

• 800 NITS

• Color/Gray Scale

• 14-Bit +/-

• Voltage

• 110-230v

• Power Consumption

• 100w Avg, 240w Max

• Power Connection

• IN-POWER IN/THRU

• Data Connection

• RJ45 IN/THRU

• Environment

• Indoor

• Warranty

• 5-Years
