Sku: 2615572

ViuSite 2X - 12'x7' 2.6MM LED Video Wall System Package

Regular price
$14,950.00
Regular price
Sale price
$14,950.00
Shipping calculated at checkout.
Vendor: DVS LED

LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!

Description

Caret Down

This is a great package deal on a small DVS 2.6mm video wall!  It incudes everything you need for to build a wall-mounted permanent LED wall at 2.6mm and a size of 3.5m x 2m (11.4’ W x 6.6’ H).

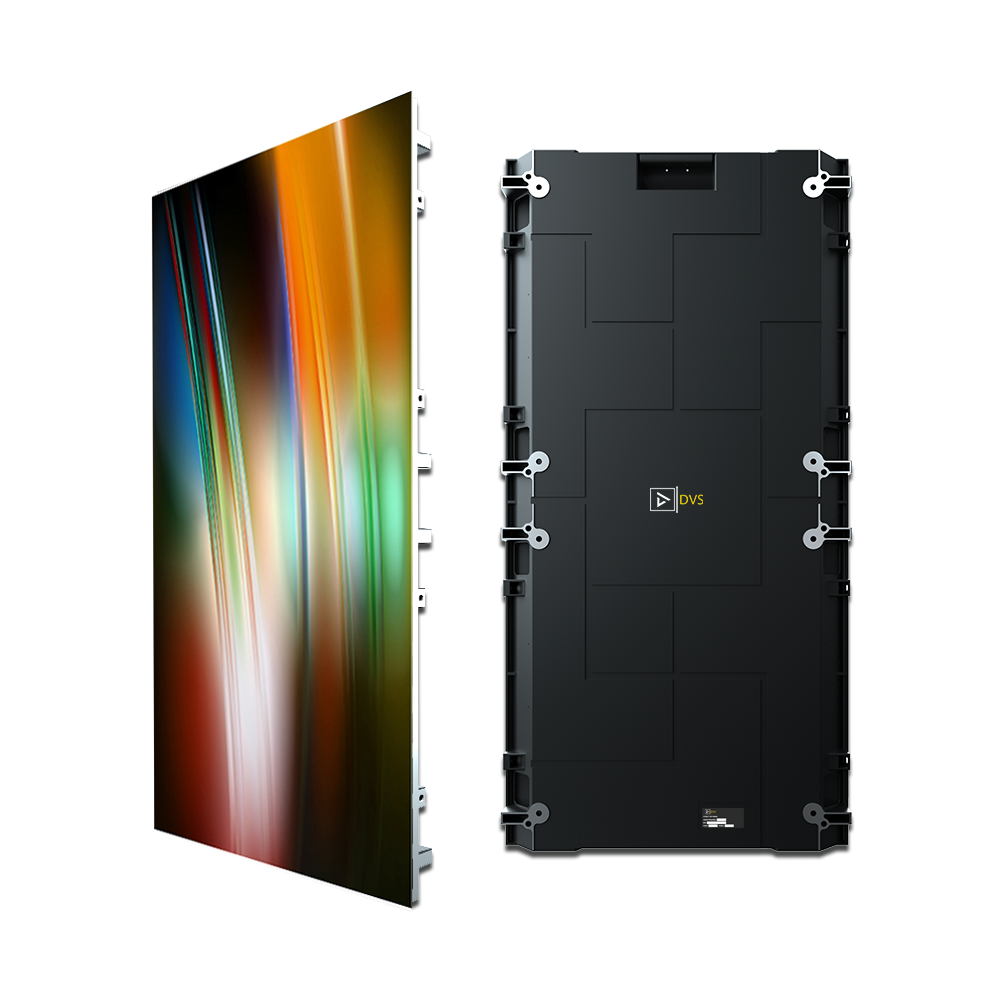

These fixed-install LED panels are a really great solution for a lot of fixed installations.  It offers easy installation, full front service, and more!

From the Manufacturer:

This ViuSite series High-Resolution LED Video Wall packages offer a turnkey, cost-effective solution for permanently installed, direct wall mount applications that embrace the ease of installation and ergonomic function with no compromise to performance and reliability. A perfect solution for various applications seeking large-format, seamless display solutions including Including, Hospitality, Sports Complexes, Houses of Worship, Retail Stores, Digital Signage Display Applications and more!

The ViuSite-2X LED panels in this package offer a 2.6mm pixel pitch that can supply refined image clarity at viewing distances as close as 6-8 ft (approx 2.5M). The use of black LED technology delivers a high contrast ratio with vibrant colors. A minimum 3,840≥ Hz refresh rate ensures fluid, smooth image movements with flicker-free performance and excellent visibility on cameras.

ViuSite series LED panels feature an industry-leading design specifically for direct mounting to flat wall surfaces that eliminate the need and added expense of proprietary mounting hardware. The hardware chassis is 30% lighter weight than conventional panels and feature a low-profile design with a thickness of only 1.4 inches that makes no compromises to space. Its 0ffers remarkable power efficiency, fanless cooling for silent operation, and low thermal output.

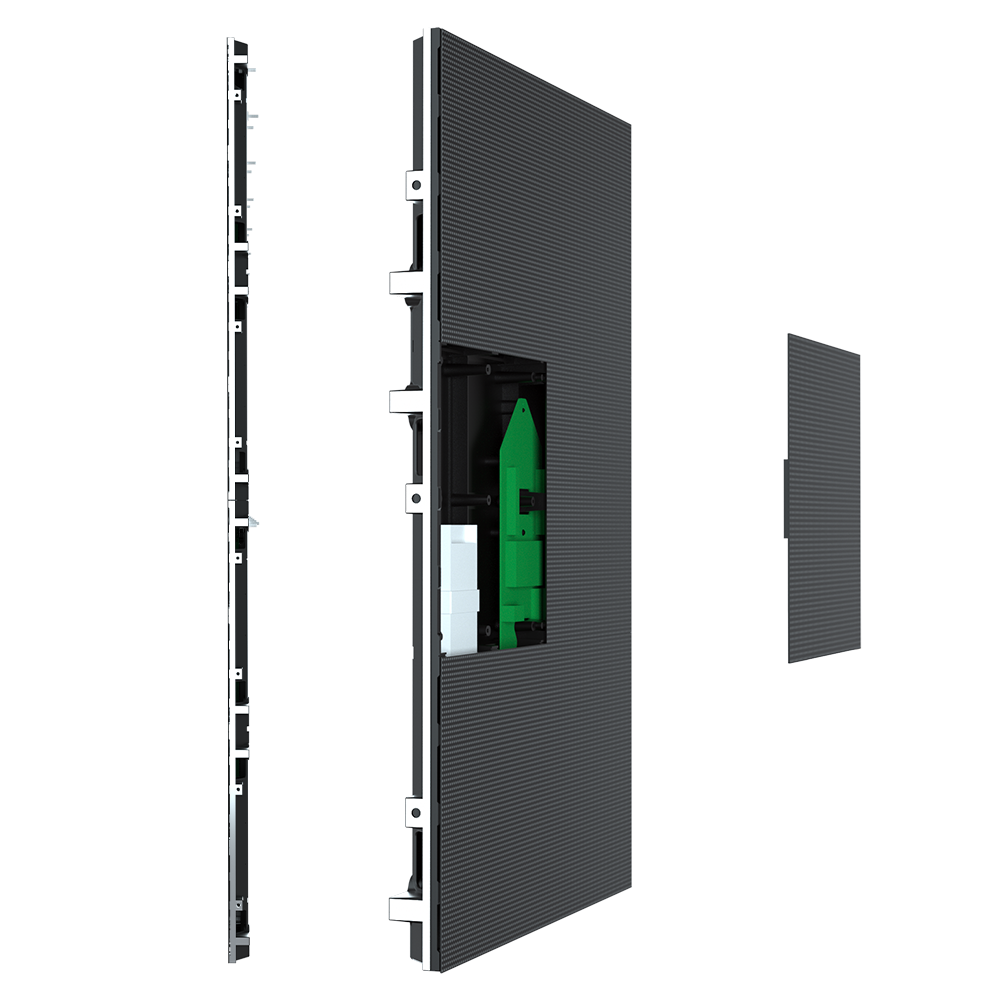

ViuSite panels provide open-access front serviceability that gives users & installers complete, unobstructed access to mounting holes, internal components, as well as power/data connections via the removal of the magnetic LED modules for easy installation, and future serviceability that never requires access to the rear of the screen once installed. Modules are universal with smart calibration and direct connectivity to internal components for a high level of stability and easy end-user serviceability. Cabling is fully enclosed within the panels for the highest level of safety with ETL certification as well as FCC and EMC compliance that ensure your investment meets building codes and doesn’t interfere with other equipment.

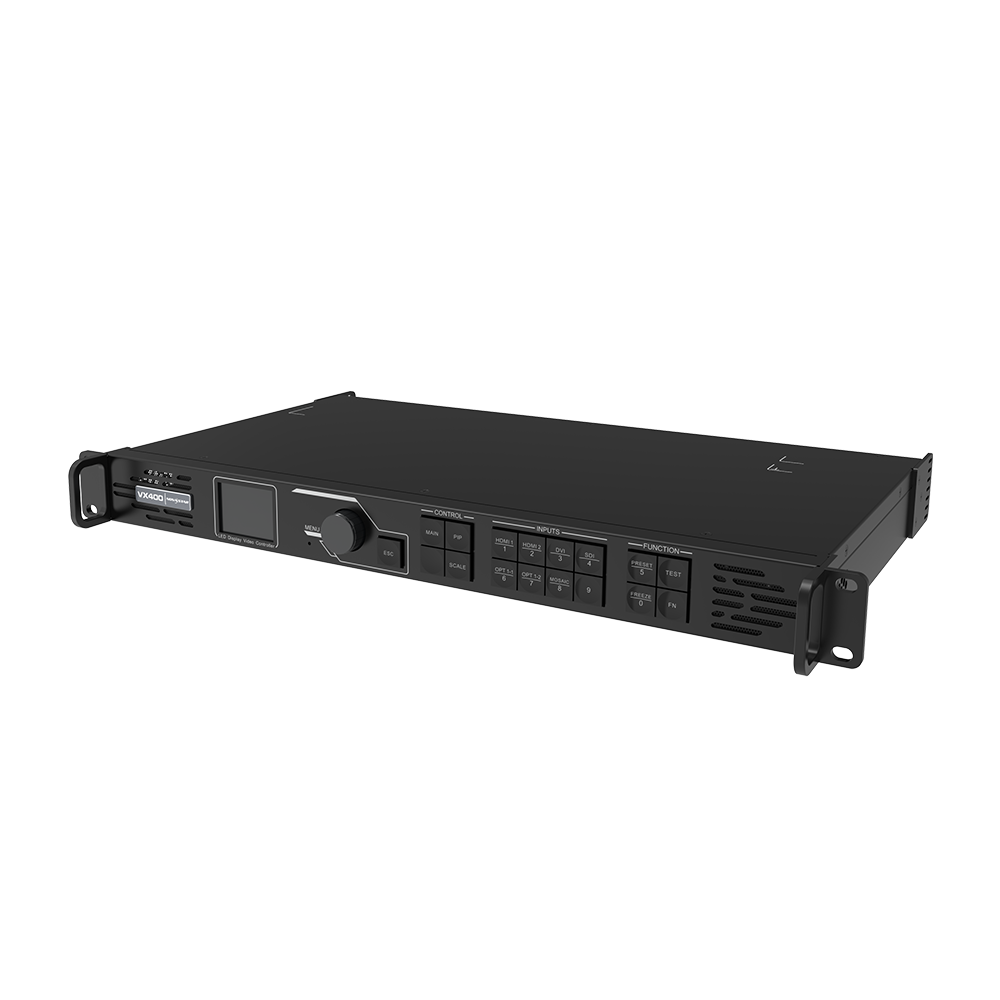

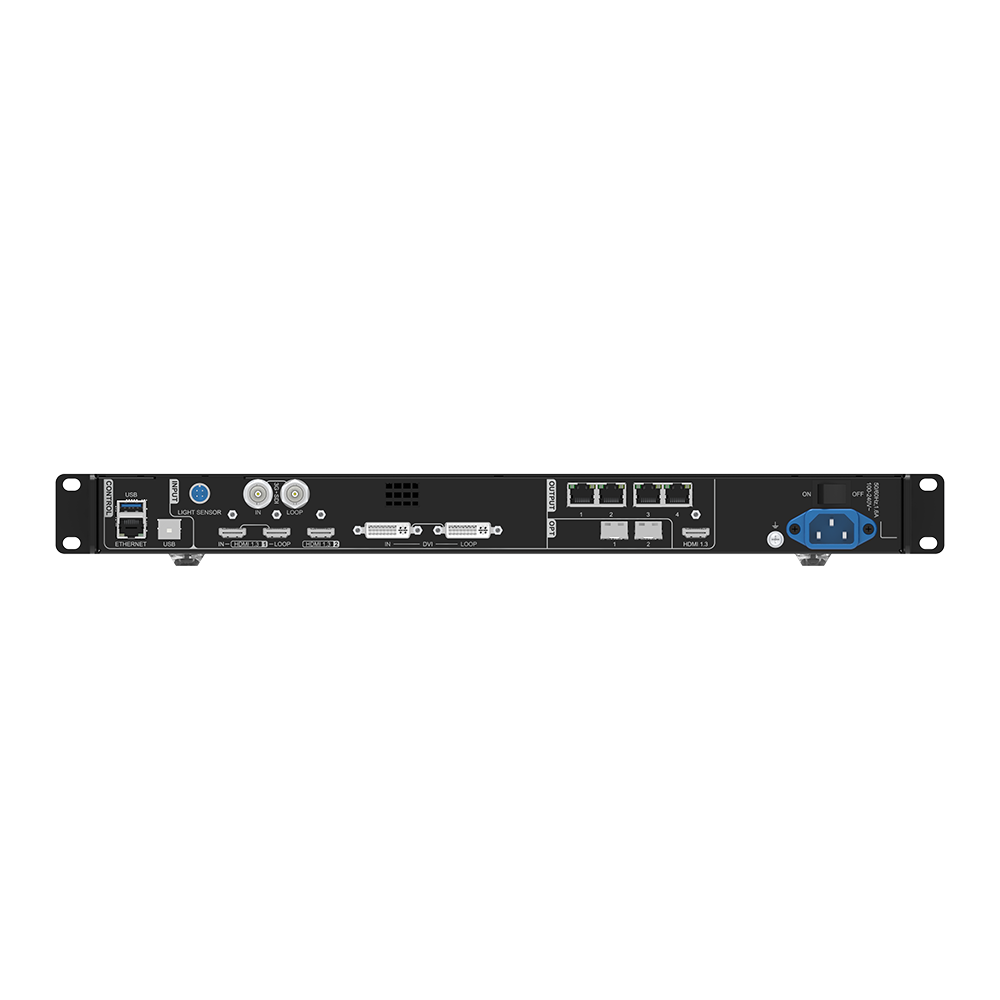

This system includes a NovaStar KU20 LED video processor/scaler. This processor offers built-in scaling to properly fit your content to the screen from any video source without the need for additional software. The KU offers (1) HDMI input port along with (6) RJ45 outputs and onboard screen configuration. Processor upgrades are available with additional inputs.

LED Panel Key Features:

  • Full Front Serviceability
  • Direct Surface Mounting / Uni-Strut Compatible
  • Ultra-Low Profile ADA Compliant Depth
  • High-Contrast Black LED w/ Advanced Color Processing
  • 3,840≥ Hz Refresh Rate
  • Multiple Cabinet Sizes Available (500x500mm, 500x750mm, 1000x250mm, 500x250mm)

If you do not have experience with LED walls, professional installation is strongly recommended.

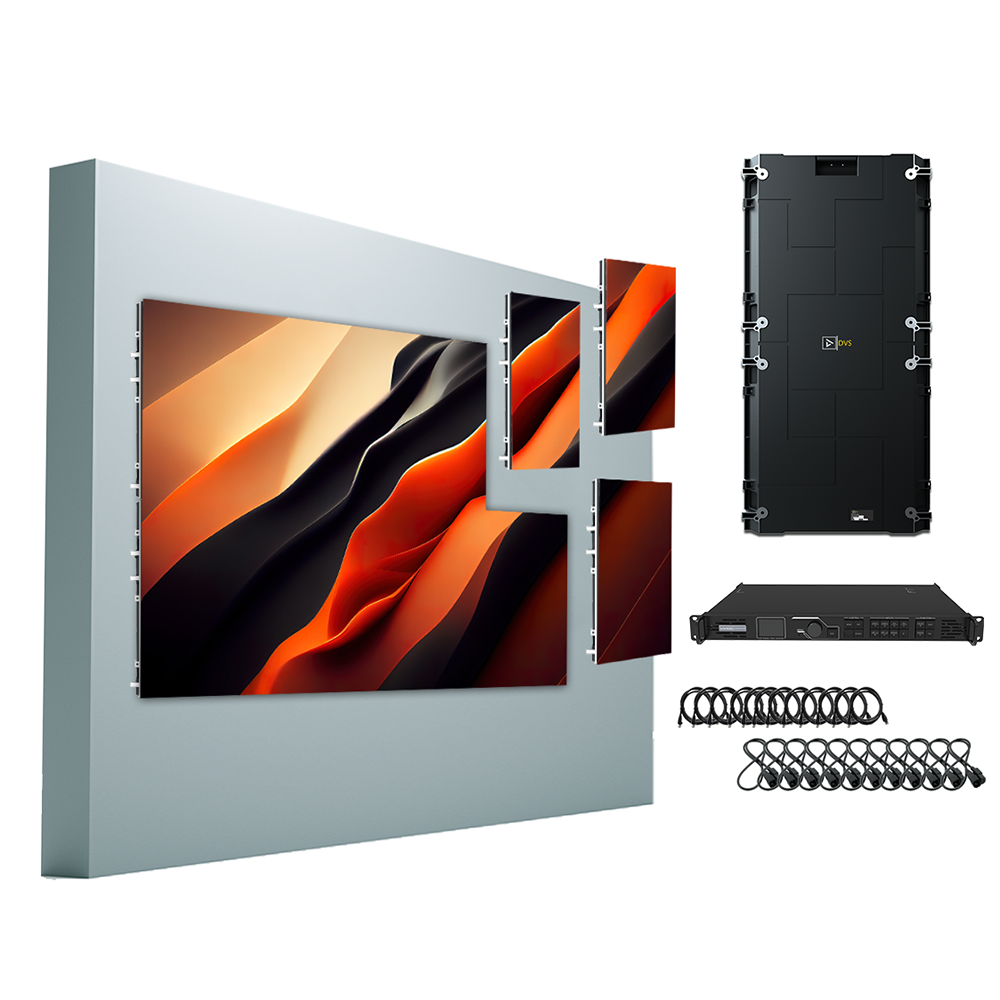

In the Box:

  • (14) DVS ViuSite-2X Wall Mount 2.6mm 500x1000mm LED Panels
  • (1) NovaStar KU20 LED Video Processor
  • (2) Master Power Input Cables
  • (14) Power Linking Cables
  • (2) RJ45 Master Input Cables
  • (14) RJ45 Datalink Cables
  • Complimentary Spare Parts Kit

Specifications:

  • LED Type: Nationstar SMD2020
  • Pixel Pitch: 2.6mm
  • Pixel Size: 2mm x 2mm
  • Panel Size: 1000mm x 500mm
  • Certifications: ETL, FCC, CE, ROHS, EMC

Optical:

  • Brightness: 800 nits
  • View Angle: 160° Horizontal by 140° Vertical
  • Grayscale; 16 Bit +/-

Power:

  • Voltage: 120-240v
  • Max Power: 240w/panel
  • Avg. Power: 100w/panel

Control:

  • Control: Novastar A5S Plus
  • Refresh Rate: 7680Hz

Tech Specs

Physical:

Length: 500 mm

Width: 40 mm

Height: 500 mm

Electrical

Voltage Range: 120-240v

Power Cable Connector - Fixture Side: IEC

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 5 Years
