WELL Fit X 6-Pack
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

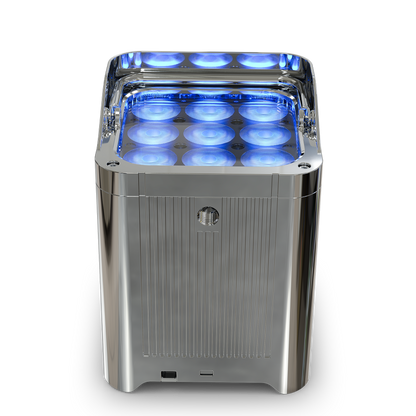

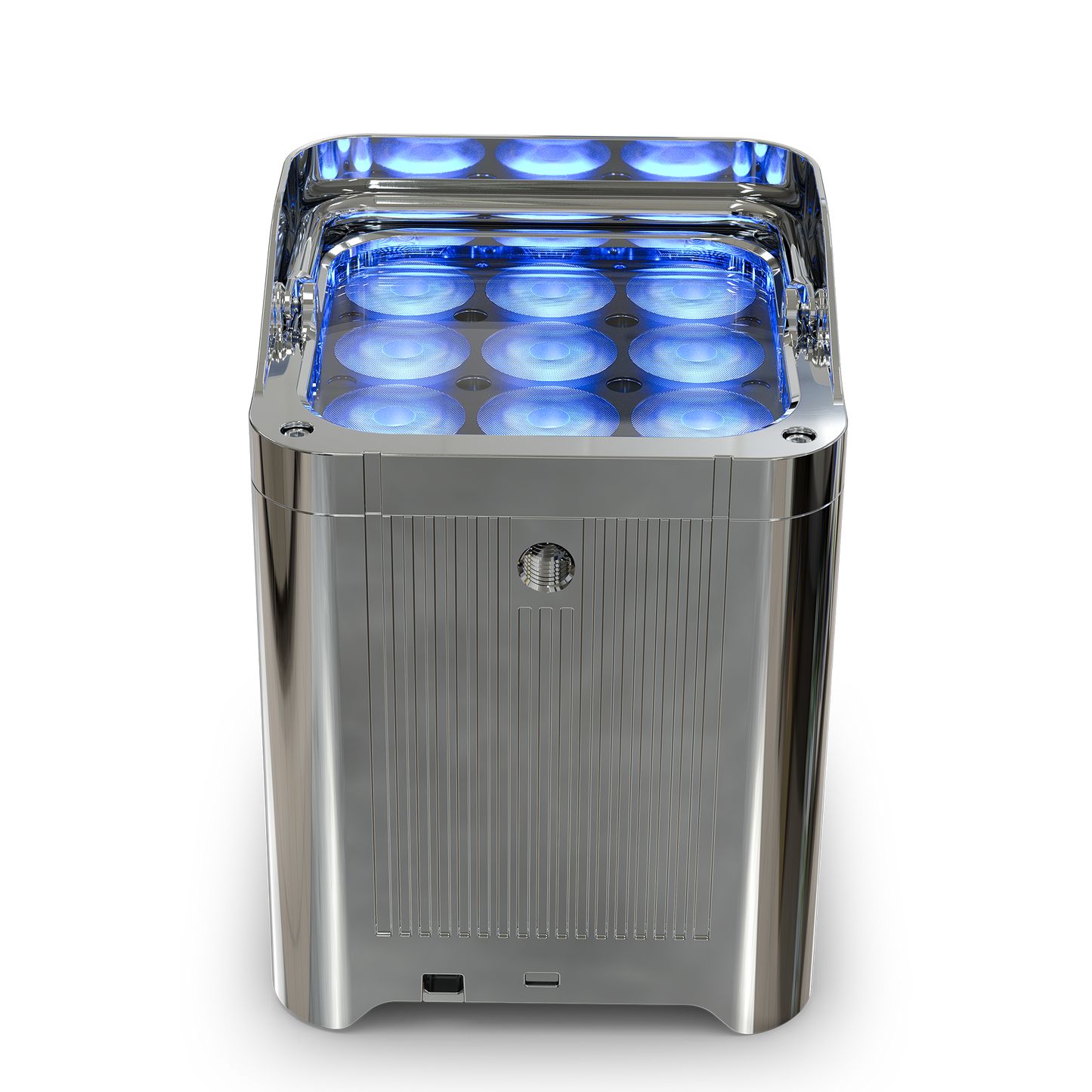

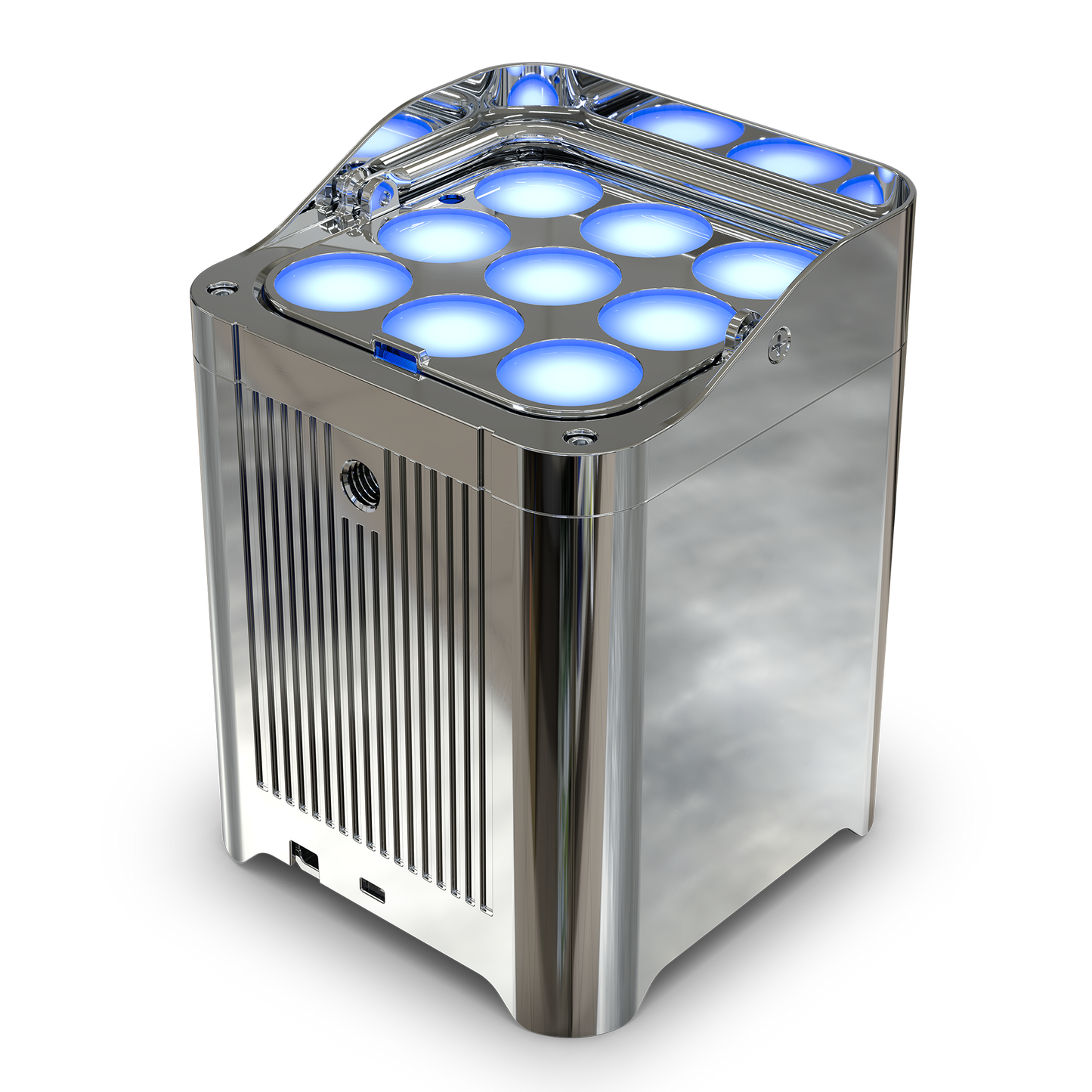

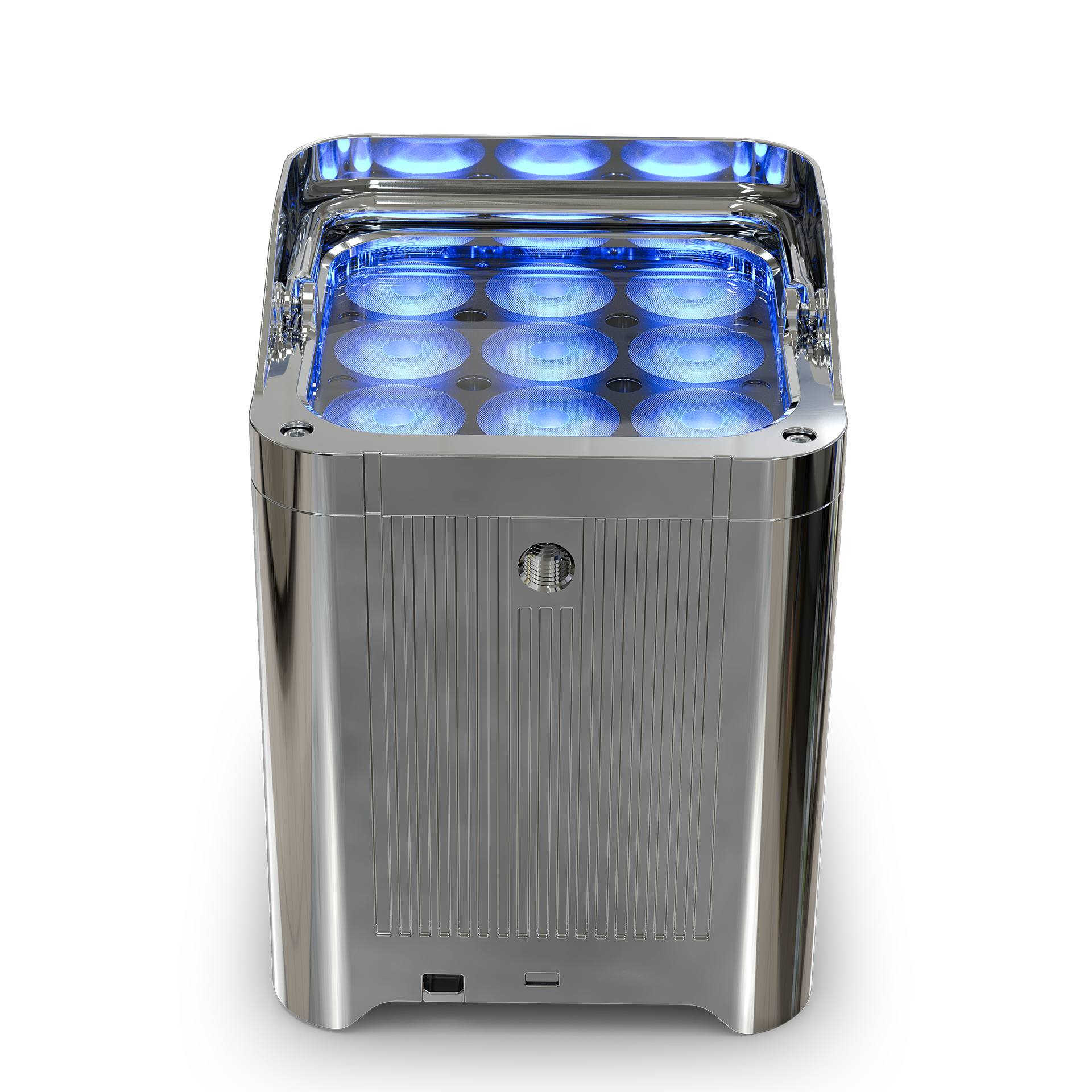

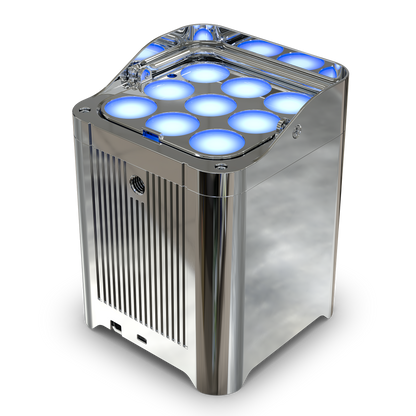

The WELL FIT X is an upgraded workhorse uplight featuring increased lumen output, improved color mixing, and enhanced functionality like beam shaping and a décor-matching cover in a more compact and lightweight design.

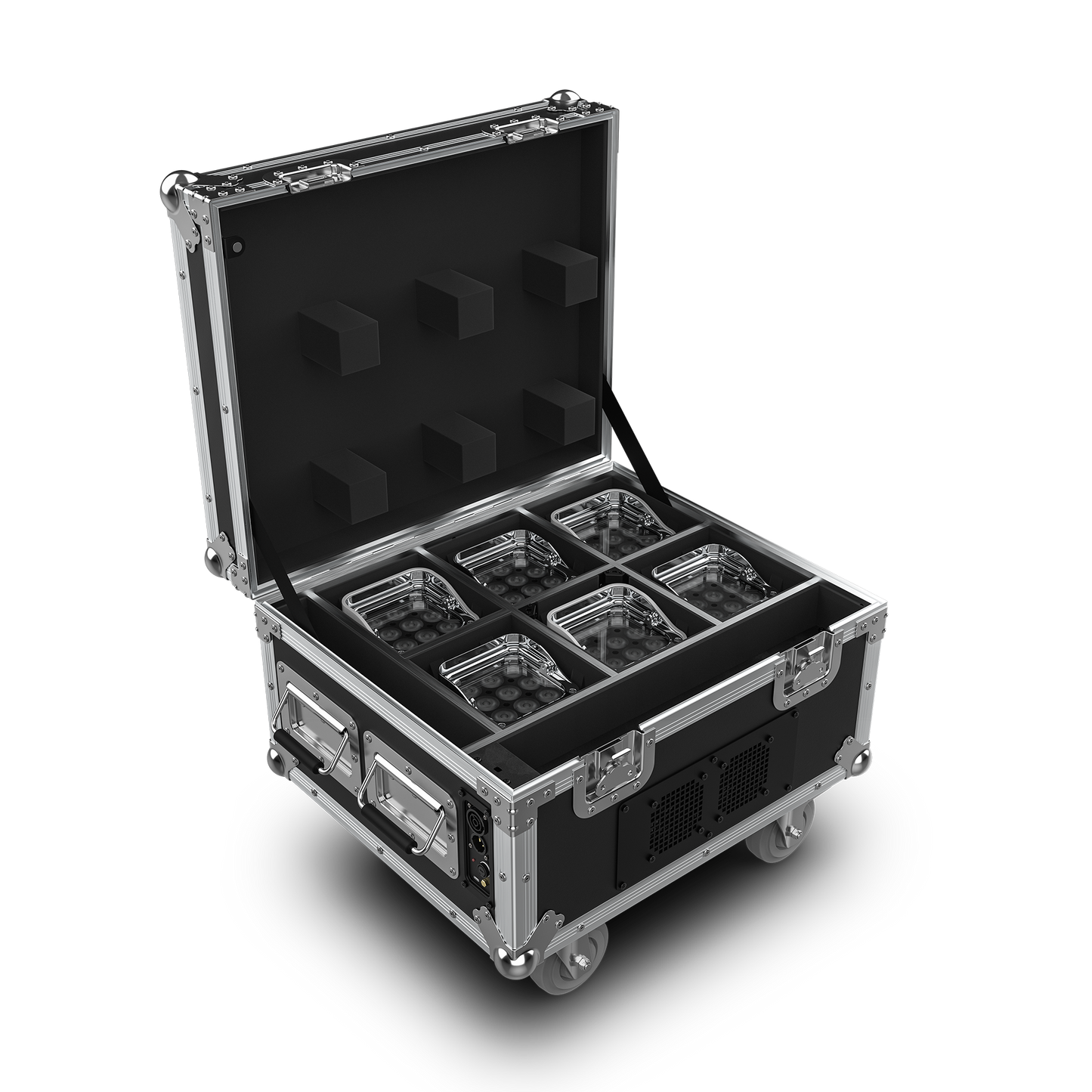

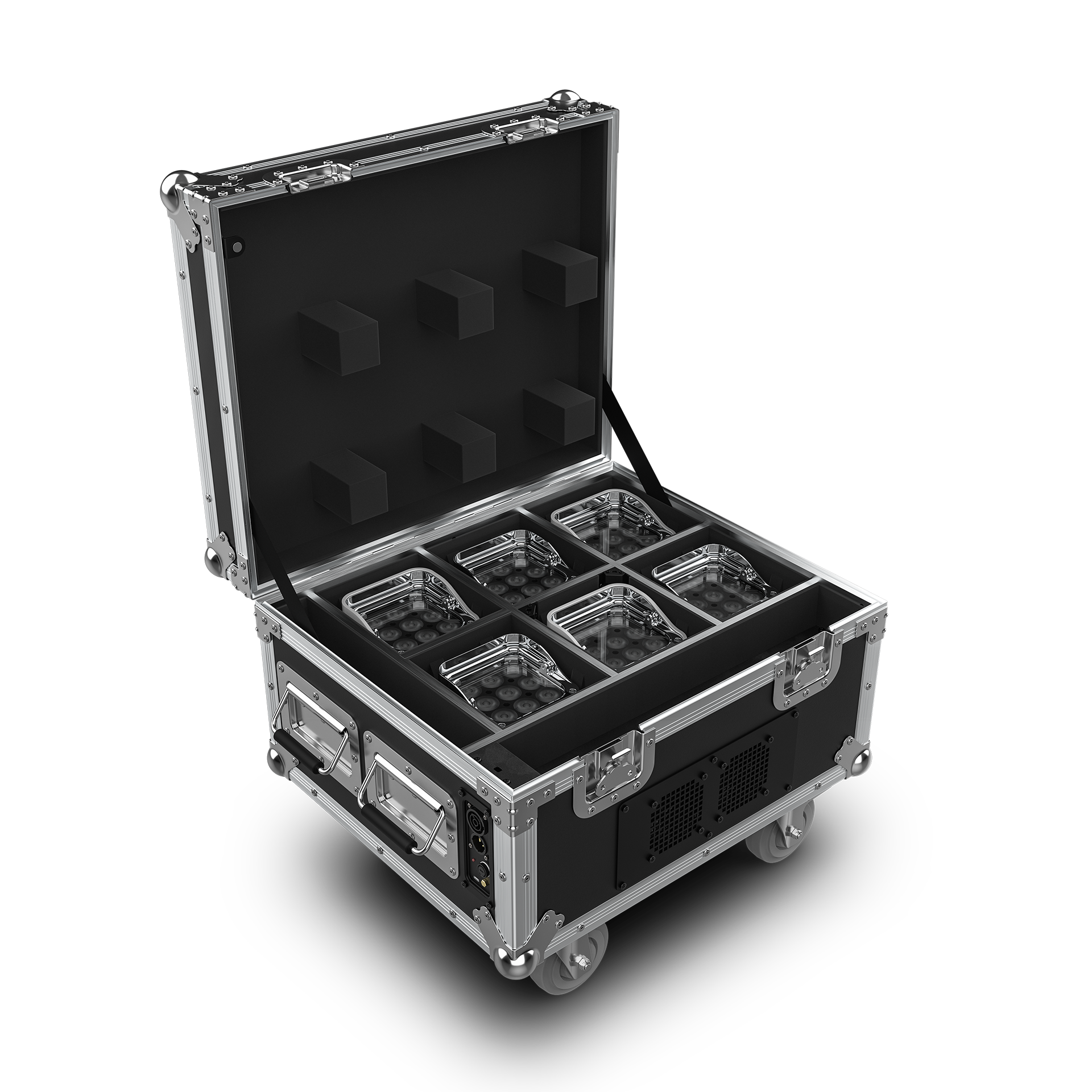

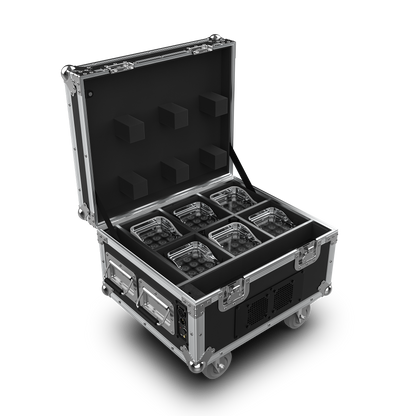

Ideal for any indoor or outdoor production, its road-worthy six-unit kit with integrated charging allows for rapid deployment and easy management in any event environment.
From the Manufacturer:

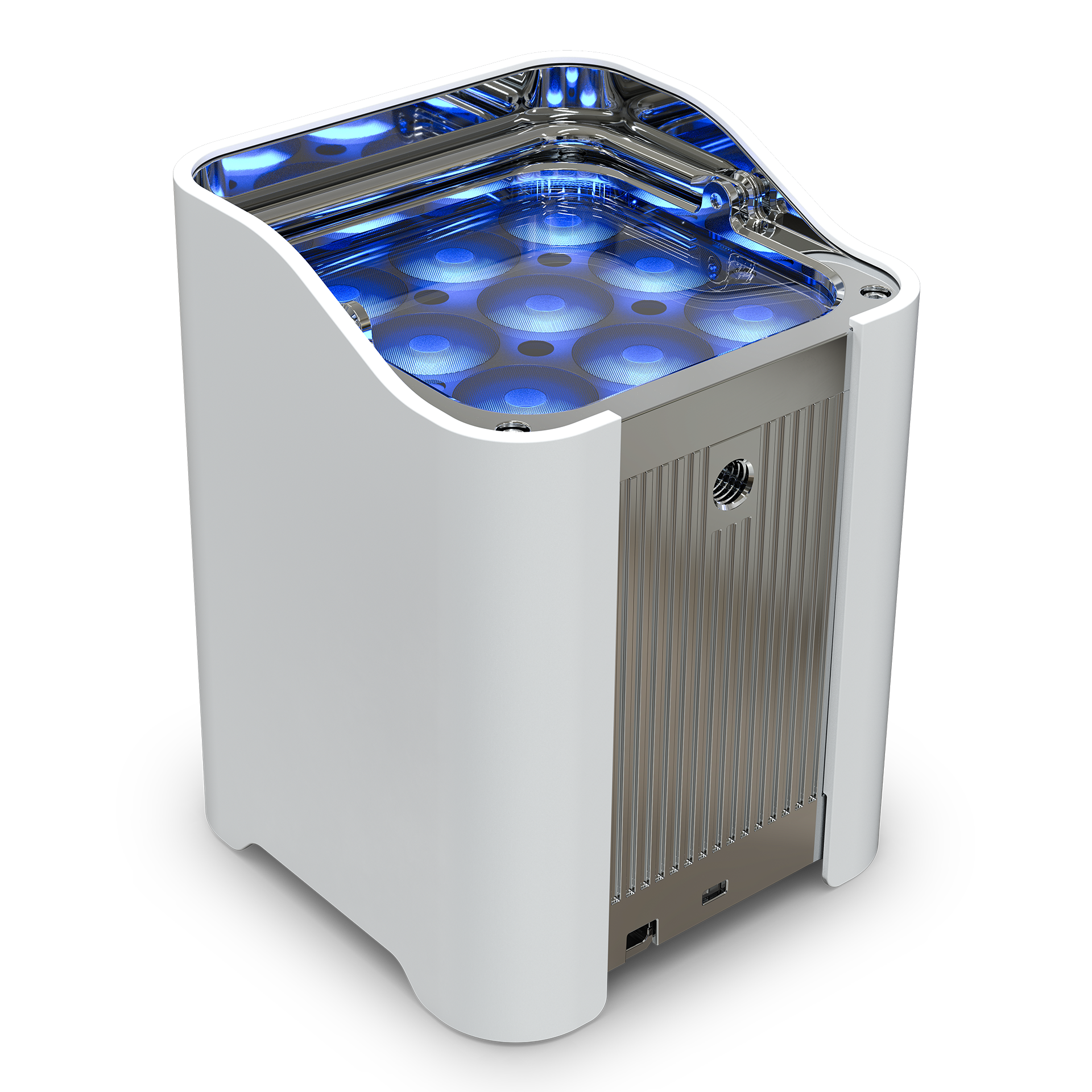

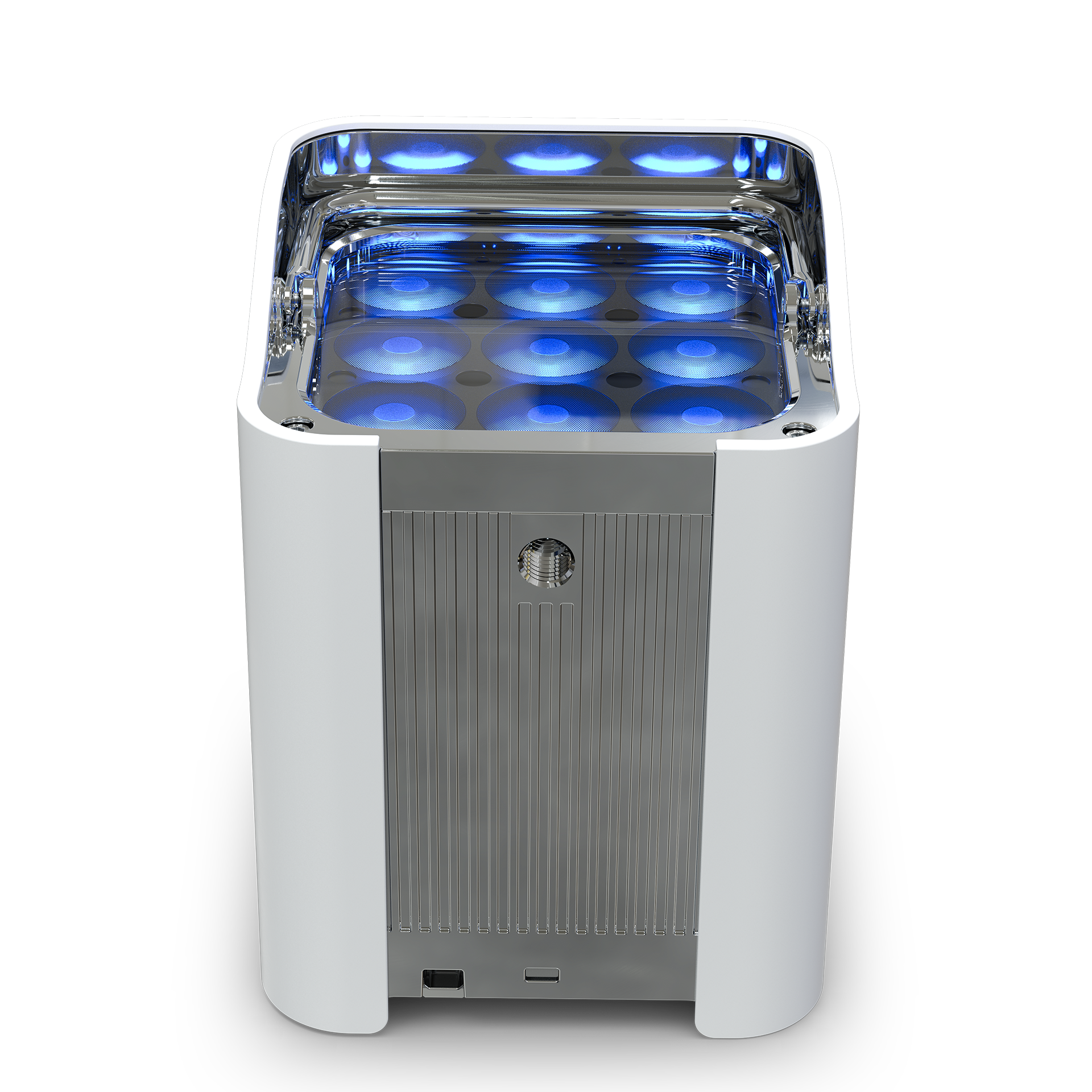

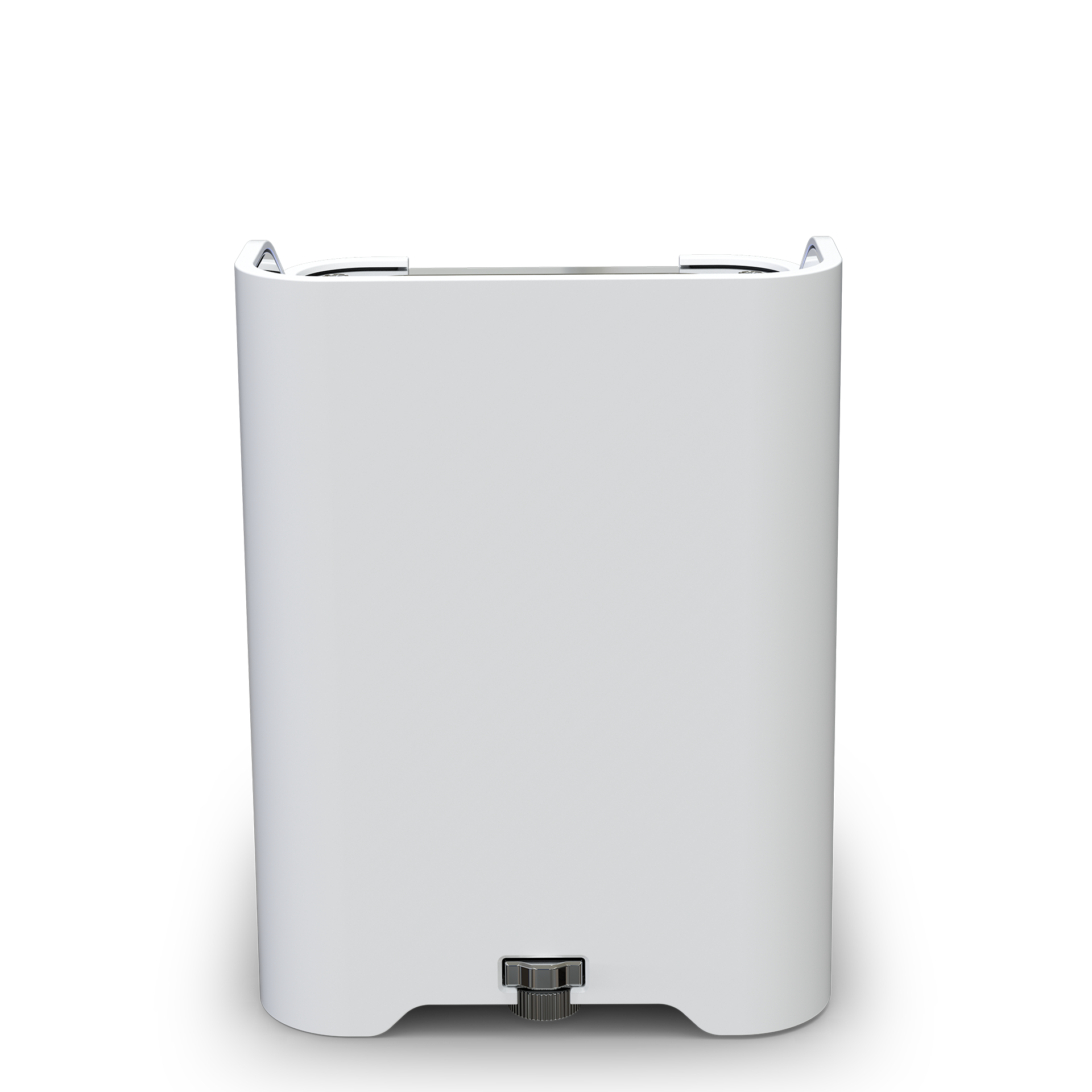

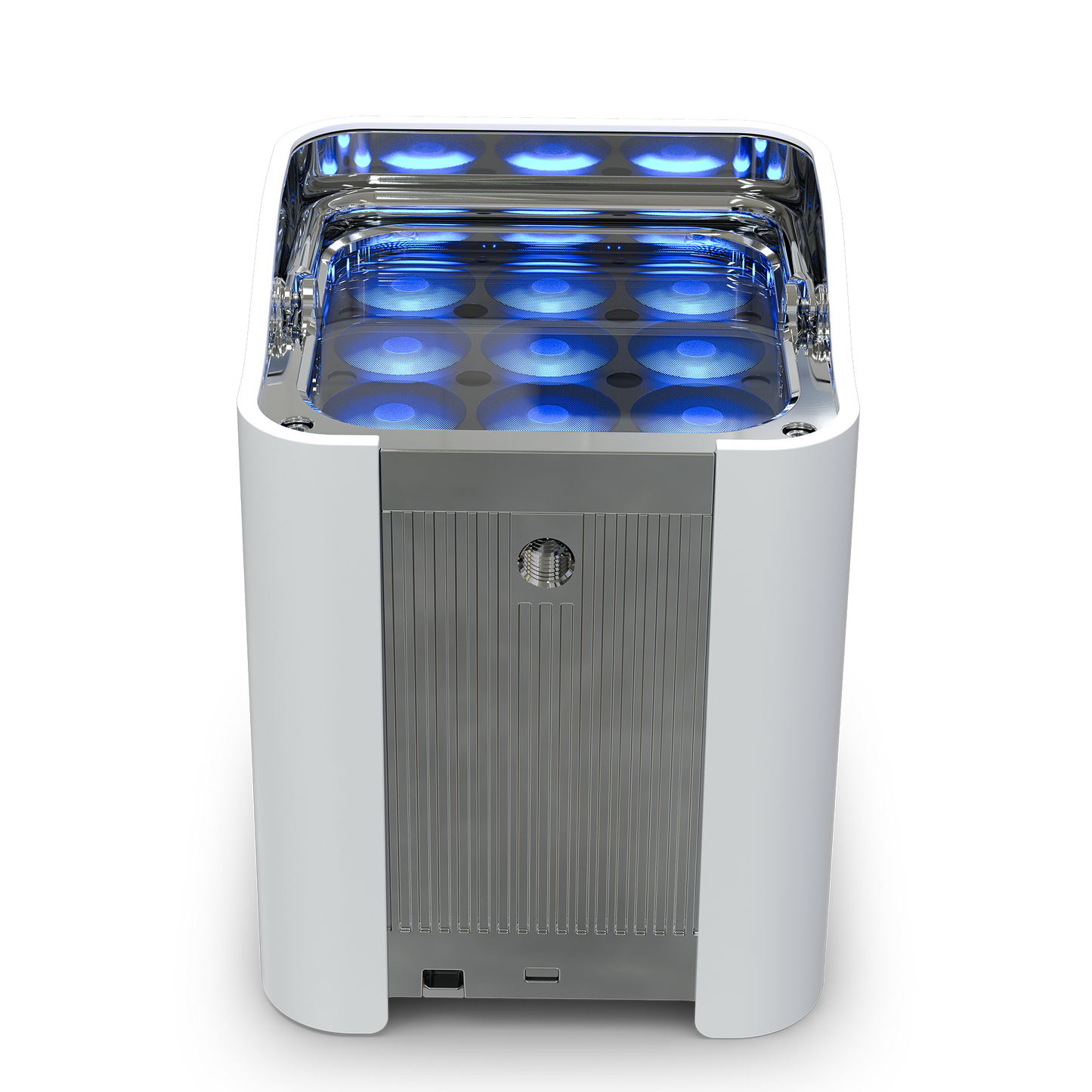

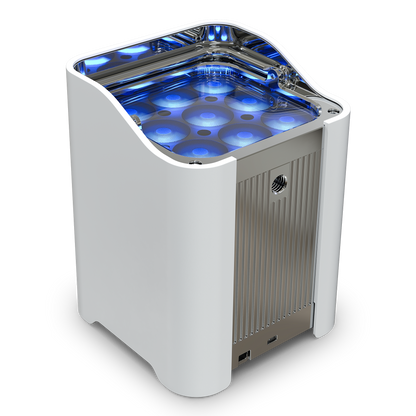

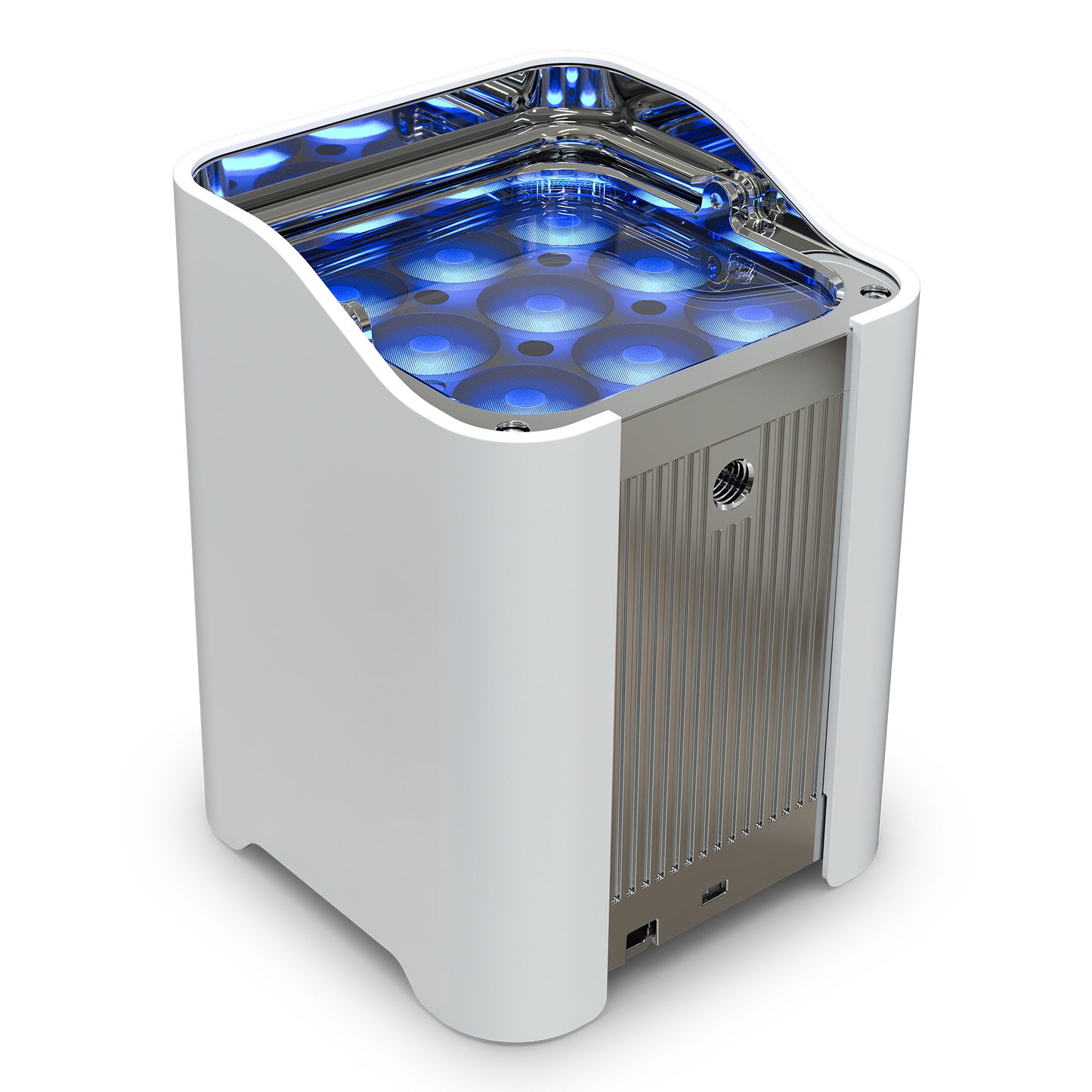

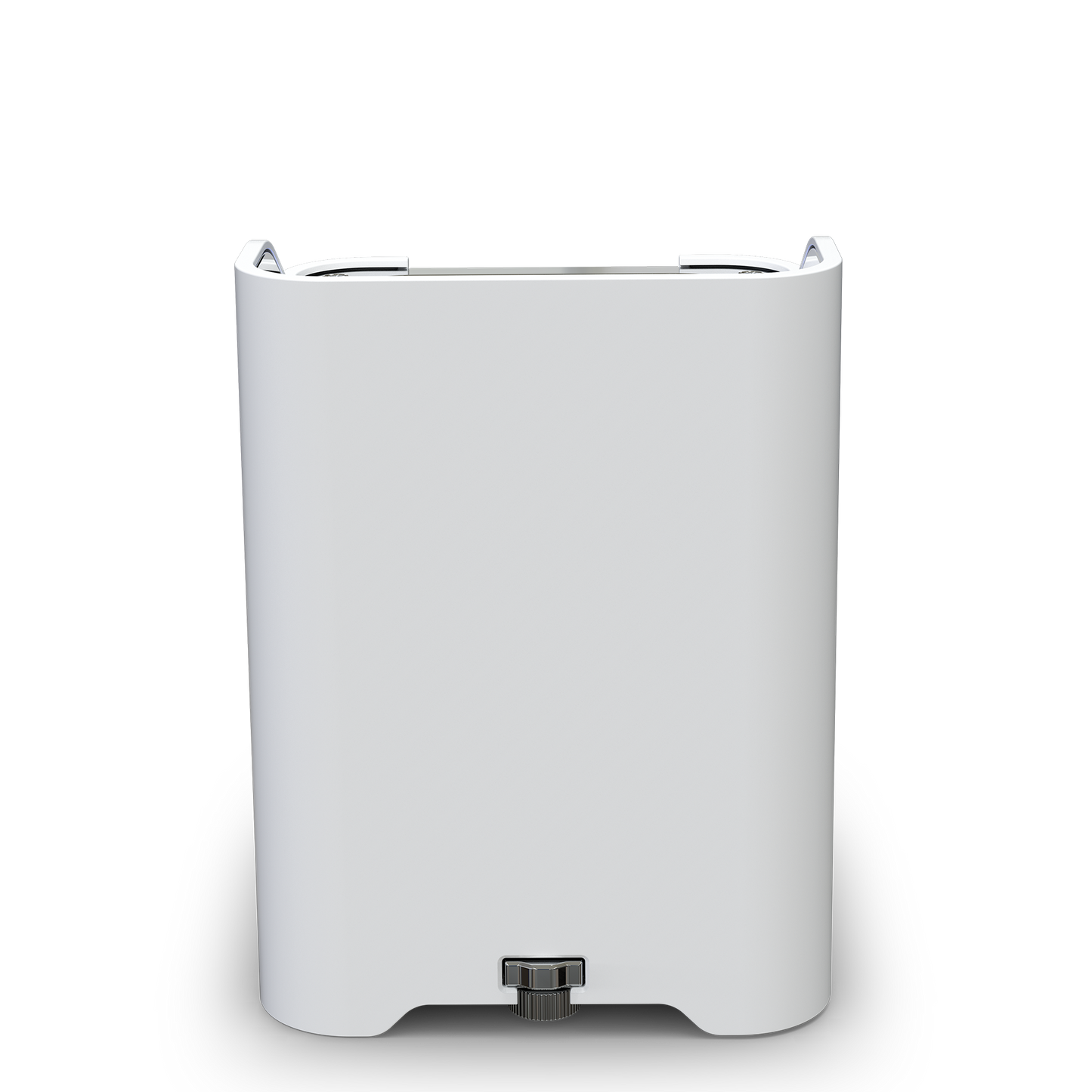

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.
Features:
-
Delivers vibrant color mixing with nine RGBWW LEDs and a 2600K to 10,000K CCT range.
-
Built with an IP65-rated housing and Gore valve for reliable all-weather operation.
-
Offers versatile wireless control options including CRMX, RDM, NFC, and an included RF remote.
-
Provides selectable battery runtimes of 5, 8, 12, or 18 hours at full output.
-
Allows software updates via USB-C while fixtures remain inside the charging case.
-
Features adjustable PWM for flicker-free on-camera use and a high-contrast OLED display.
Specifications:
Optical
-
Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
-
Color Temperature (range): 2600 to 10,000K
-
Beam Angle: 11.5°
-
Field Angle: 19.1°
-
Cutoff Angle: 30.9°
-
Lumens: 2289 lm (AC Power)
-
Illuminance: 1651 lux @ 5 m (AC Power)*
-
Lumens: 2369 lm (OFF battery setting)
- Illuminance: 1683 lux @ 5 m (OFF battery setting)
- Lumens: 2220 lm (5-hour battery setting)
- Illuminance: 1602 lux @ 5 m (5-hour battery setting)
- Lumens: 1376 lm (8-hour battery setting)
- Illuminance: 992 lux @ 5 m (8-hour battery setting)
- Lumens: 855 lm (12-hour battery setting)
- Illuminance: 613 lux @ 5 m (12-hour battery setting)
- Lumens: 538 lm (18-hour battery setting)
- Illuminance: 385 lux @ 5 m (18-hour battery setting)
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Dynamic Effects
-
Dimmer: Electronic
-
Shutter/Strobe: Electronic
-
Strobe Rate: 0 to 30 Hz
-
Standalone Color Mixing: Yes
-
Color Temperature Presets: Yes
-
Dim Modes: 4
-
Dim Curves: 4
-
Built-in Automated Programs: Yes
-
Customizable Programs: No
Construction/Physical
-
Dimensions – Fixture
-
Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)Single Unit: 7 lb6-Pack Shipping Weight: 98.3 lb
-
Exterior Color: Chrome
-
Housing Material: Aluminum diecast
Connections
-
Power Connection: 5.5mm right-angle barrel jack
-
Cable Length (charger): 8.5 ft (2.6m) (sold separately)
-
Power Input (charging case): Seetronic TRUE1 IP65
-
Power Output (charging case): Seetronic TRUE1 IP65
-
Software Connection: USB-C
Control
-
Control Protocol: RDM, CRMX, NFC, RF
-
DMX Channels: 5, 8, or 12
-
Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
-
Wireless WDMX “G” Compatibility: G4S
-
Wireless Lumen Radio Compatibility: CRMX
Battery
-
Battery type: Lithium Ion
-
Rechargeable: Yes
-
Battery Charge Time: 1.6 hours
-
Battery Life: 3hr, 5hr, 8hr, 12hr
-
Battery Power: 25.9 V, 4.4 Ah
Certifications/Qualifications
-
Certifications: CE, FCC, UKCA
-
IP Rating: IP65, temporary outdoor/ wet use (fixture)
-
IP Rating: IP20 (case)
Compatible Accessories
- Clamps
- WELL FIT X – 15° Filter Pack
- WELL FIT X – 60° x 10° Filter Pack
- WELL FIT X – Single Charger
- WELL FIT X – Black Fixture Cover
- W-DMX Micro T-1 TRX G6
What's Included
- (6) WELL FIT X
- (1) 6 slot charging case
- (1) basic RF controller
- (1) True 1 power cable
- (1) QRG
