1 6
Sku: WELLFITXX6

WELL Fit X 6-Pack

$5,300.00
$5,300.00
Sold out
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • USDC
  • Visa

Description

Caret Down

The WELL FIT X is an upgraded workhorse uplight featuring increased lumen output, improved color mixing, and enhanced functionality like beam shaping and a décor-matching cover in a more compact and lightweight design.

Ideal for any indoor or outdoor production, its road-worthy six-unit kit with integrated charging allows for rapid deployment and easy management in any event environment.

From the Manufacturer:

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

Features:

  • Delivers vibrant color mixing with nine RGBWW LEDs and a 2600K to 10,000K CCT range.

  • Built with an IP65-rated housing and Gore valve for reliable all-weather operation.

  • Offers versatile wireless control options including CRMX, RDM, NFC, and an included RF remote.

  • Provides selectable battery runtimes of 5, 8, 12, or 18 hours at full output.

  • Allows software updates via USB-C while fixtures remain inside the charging case.

  • Features adjustable PWM for flicker-free on-camera use and a high-contrast OLED display.

Specifications:

Optical

  • Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2600 to 10,000K
  • Beam Angle: 11.5°
  • Field Angle: 19.1°
  • Cutoff Angle: 30.9°
  • Lumens: 2289 lm (AC Power)
  • Illuminance:  1651 lux @ 5 m (AC Power)*

  • Lumens:  2369 lm (OFF battery setting)

  • Illuminance:  1683 lux @ 5 m (OFF battery setting)
  • Lumens: 2220 lm (5-hour battery setting)
  • Illuminance: 1602 lux @ 5 m (5-hour battery setting)
  • Lumens: 1376 lm (8-hour battery setting)
  • Illuminance:  992 lux @ 5 m (8-hour battery setting)
  • Lumens: 855 lm (12-hour battery setting)
  • Illuminance:   613 lux @ 5 m (12-hour battery setting)
  • Lumens: 538 lm (18-hour battery setting)
  • Illuminance:  385 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No

Construction/Physical

  • Dimensions – Fixture

    4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)

  • Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
    Single Unit: 7 lb
    6-Pack Shipping Weight: 98.3 lb
  • Exterior Color: Chrome
  • Housing Material: Aluminum diecast

Connections

  • Power Connection: 5.5mm right-angle barrel jack
  • Cable Length (charger): 8.5 ft (2.6m) (sold separately)
  • Power Input (charging case): Seetronic TRUE1 IP65
  • Power Output (charging case): Seetronic TRUE1 IP65
  • Software Connection: USB-C

Control

  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • 6 Pack Case:

    • Power Linking: 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V

    • Power and Current

      239 W, 3.94 A @ 100 V

    • Power and Current

      238 W, 3.44 A @ 120 V

    • Power and Current

      235 W, 2.48 A @ 208 V

    • Power and Current

      235 W, 2.32 A @ 230 V

    • Power and Current

      235 W, 2.27 A @ 240 V

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 1.6 hours
  • Battery Life: 3hr, 5hr, 8hr, 12hr
  • Battery Power: 25.9 V, 4.4 Ah

Certifications/Qualifications

  • Certifications: CE, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/ wet use (fixture)
  • IP Rating: IP20 (case)

Compatible Accessories

  • Clamps
  • WELL FIT X – 15° Filter Pack
  • WELL FIT X – 60° x 10° Filter Pack
  • WELL FIT X – Single Charger
  • WELL FIT X – Black Fixture Cover
  • W-DMX Micro T-1 TRX G6

What's Included

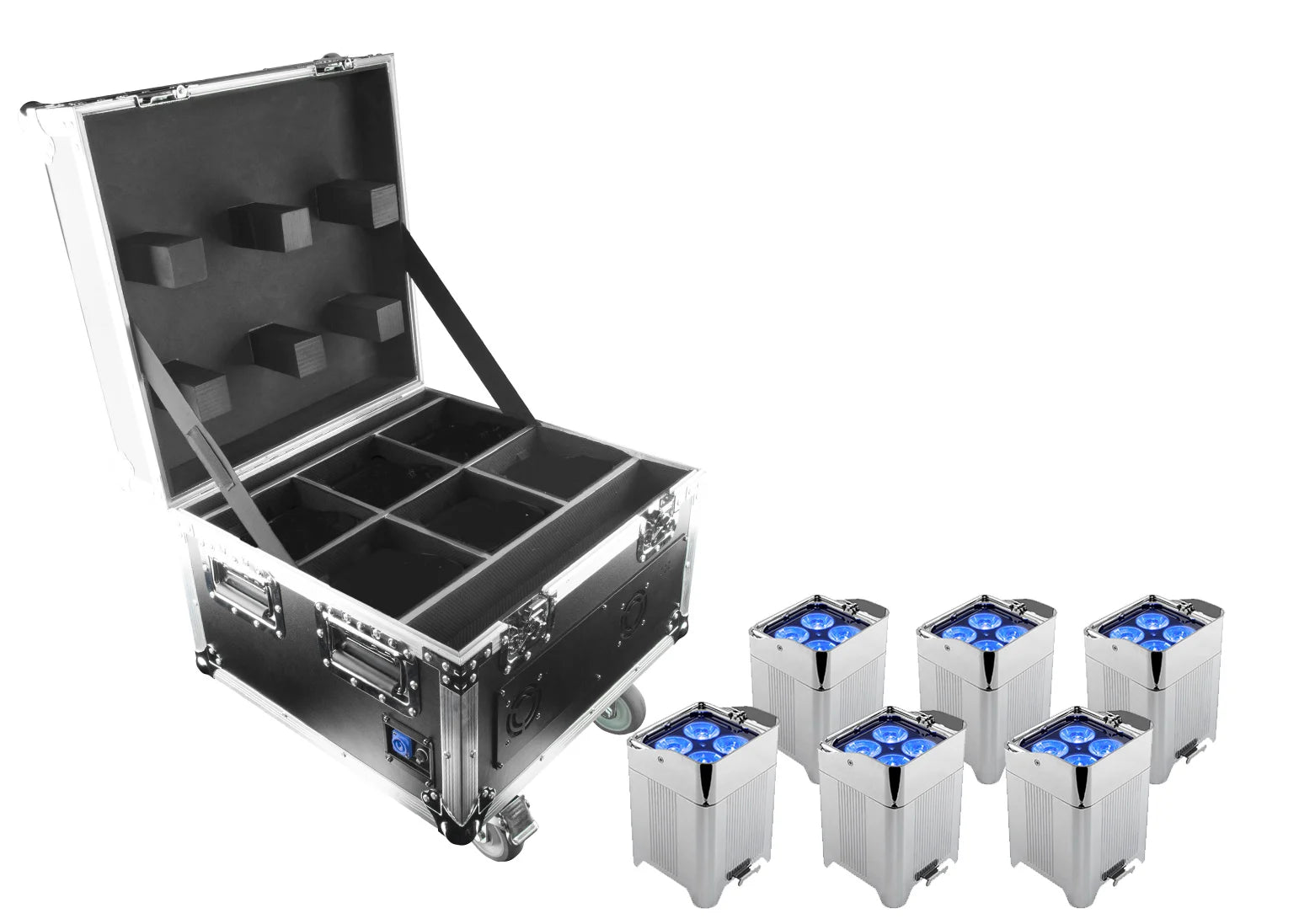

  • (6) WELL FIT X
  • (1) 6 slot charging case
  • (1) basic RF controller
  • (1) True 1 power cable
  • (1) QRG
