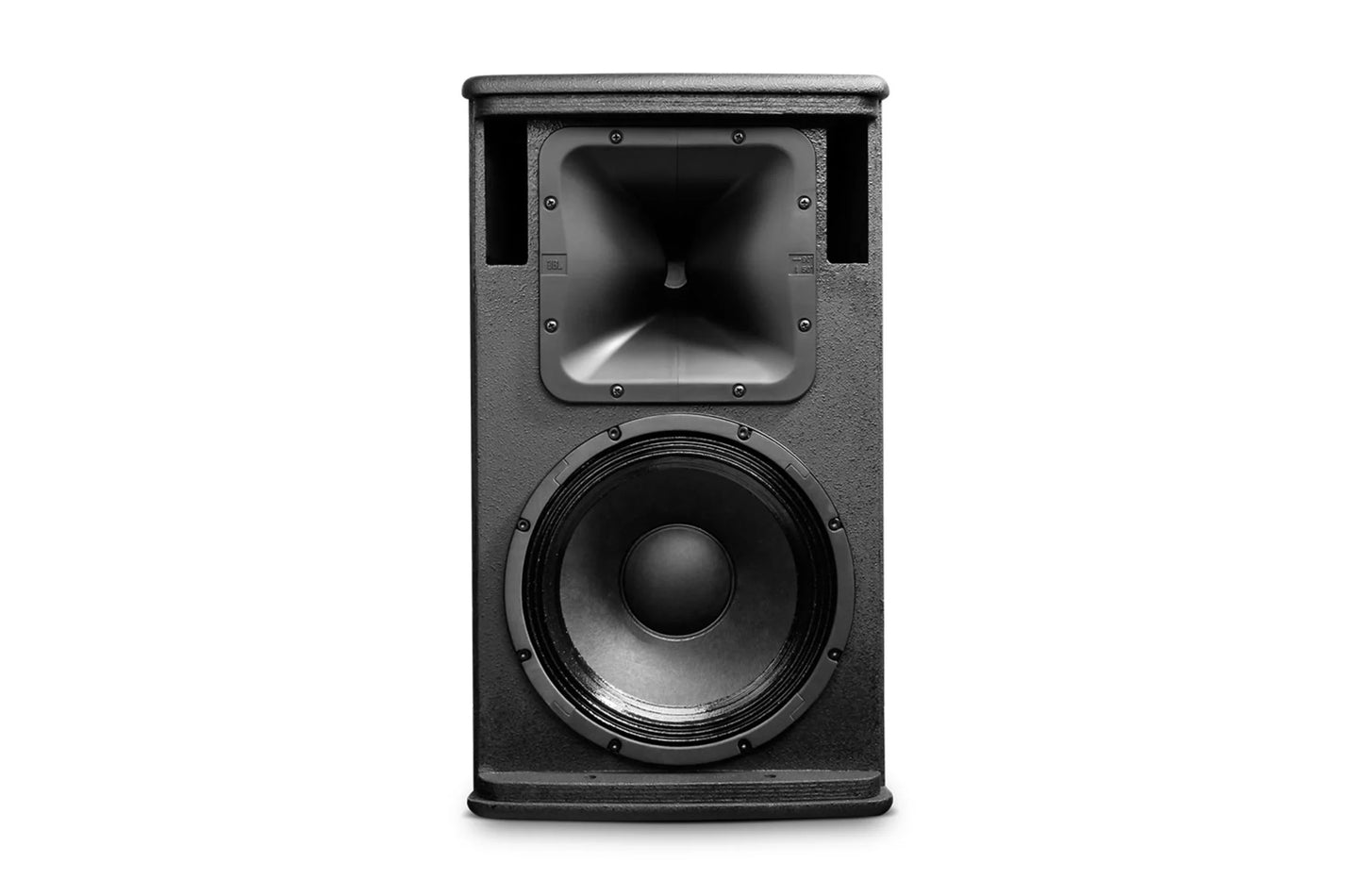

AC195

The AC195 is a two-way 10” speaker perfect for medium sized outdoor venues.

From the Manufacturer

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on the back of the enclosure allow attachment of a MultiMount® or similar type mounting.

AC195 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

• Compact enclosure

• 258 mm (10 in) LF transducer

• 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple attachment points for ultimate flexibility

Specifications

• Frequency Range (-10dB): 68 Hz - 20 kHz

• Frequency Response (±3 dB): 85 Hz - 18kHz

• System Sensitivity (1w @ 1m): 95 dB

• Nominal Impedance: 8 ohms

• Maximum SPL (1m): 118 dB (124 dB peak)

• System Power Rating: 300W (1200W peak), 2 hrs (AES rated)

• Coverage Pattern: 90° x 50° (H x V)

• Crossover: 1.8 kHz

• LF Driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil

• HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil

• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals

• Enclosure: 15 mm multi-ply hardwood plywood

• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

• Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket

• Dimensions (H x W x D): 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in

• Net Weight (each): 13.1 kg (28.8 lbs)

• Nominal LF Driver Impedance: 8 ohms

• Nominal HF Driver Impedance: 8 ohms
