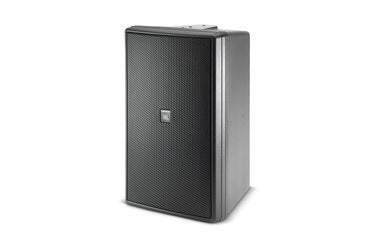

Control 30

The Control 30 is a great option for a portable setup that can be used indoors and outdoors. It can be a great option for production companies that do smaller events or gigging bands and DJs that need a more robust speaker.

From the Manufacturer:

The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.

Features:

• Extended bandwidth, extremely smooth frequency response.

• Fully outdoor-capable design, featuring WeatherMax™.

• 120° x 110° HF coverage.

• 150 W transformer for 70 V or 100 V lines, with 8 thru.

• SonicGuard® overload protection.

• 250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.

• Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.

• Sealed input panel cover and screw-down input terminals.

Specifications:

• Frequency Range

• 38 Hz – 17 kHz (-10 dB)

• Power Capacity

• 500 W Continuous Program Power; 250 W Continuous Pink Noise

• Transformer Taps

• 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 ohms nominal

• Frequency Response

• 40 Hz – 16 kHz ( ± 3 dB)

• Maximum SPL (1m)

• Short-Term: 123 dB; Long-Term: 117 dB

• Sensitivity

• 93 dB, 1W @ 1m (3.3 ft)

• Coverage Angle

• 120°H x110°V

• Directivity Factor (Q)

• 5.2 dB, averaged 500 Hz to 10 kHz

• Directivity Index (DI)

• 7.1 dB, averaged 500 Hz to 10 kHz

• Impedance

• 4 ohms

• Crossover Network

• 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.

• Drivers

• LF:250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet

• MF: 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former

• HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround

• Enclosure

• High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold

• Grille

• Thermoset composite coated steel, WeatherMax multi-layer foam

• Overload Protection

• SonicGuard full range power limiting to protect network and transducers.

• Outdoor Capability

• IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

• Input Connectors

• Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open

• Safety Agency

• Transformer is listed per UL1876

• Colors

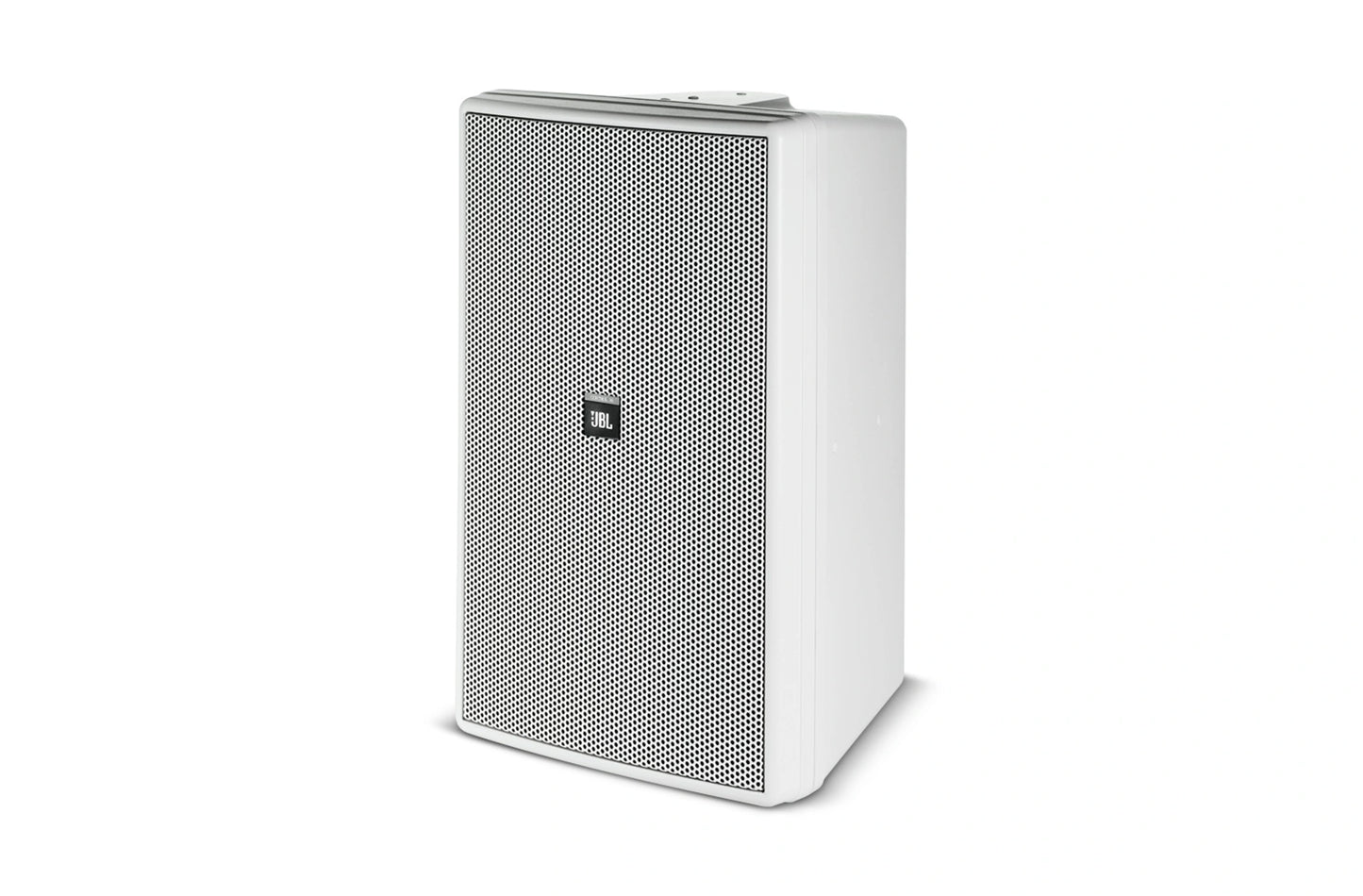

• Black or white (-WH)

• Dimensions (H x W x D)

• 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.)

• Net Weight (each)

• 18.9 kg (42 lb)

• Shipping Weight (ea)

• 20.3 kg (45 lb)

• Included Accessories

• 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.

• Optional Accessories

• MTC-30CM (-WH) to install speaker down from the ceiling. MTC-30UB (-WH) U-Bracket

• Mounting Hardware

• InvisiBall™ aimable wall-mounting system included. Optional U-bracket.
