10-ESB1090

The Yamaha ESB1090 enterprise soundbar can be mounted flat or on the wall for remote conferencing and content playback.

From the Manufacturer:

Its simple and slim design blends into flat TV naturally, enhances remote conference/education and contents playback at offices, schools and hotels.

Features:

• Rich sound output and premium sound quality enhance remote conference and contents playback: The sound bar incorporates 2 built-in subwoofers, dome tweeters, and full range speakers
• 3 preset modes optimize the sound and operability for offices schools and hotels.
  • In Conference mode and Education mode, the sound is optimized for conversation, you can hear the far-end voice clearly.
  • In Hotel mode, you can enjoy TV or music contents on your device by surround programs.
• Install with flat TV flexibly and easily.
  • Both flat and wall mount installation are available, the sound is optimized by built-in gyroscope.

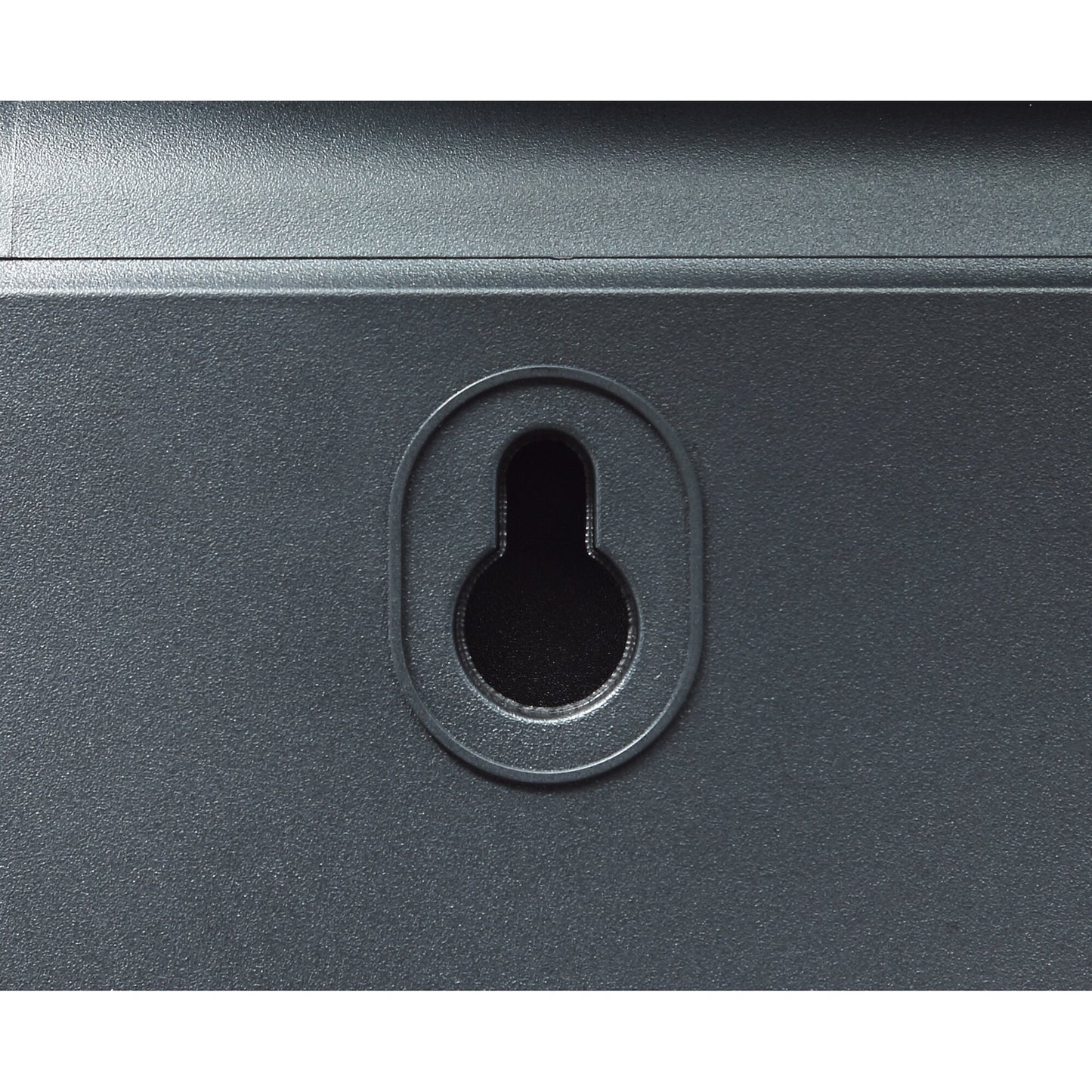

  • The sound bar can easily be mounted on a wall by screws, without a bracket.
• Blend into modern room design: Its simple and slim design matches flat TV naturally.

Specifications:

• Full range sound by 2 built-in subwoofers
• 3 preset modes optimized for conference rooms, classrooms and hotel guest rooms
• Flat or Wall-mount installtion without bracket
• Simple and slim design, ideal for modern room design

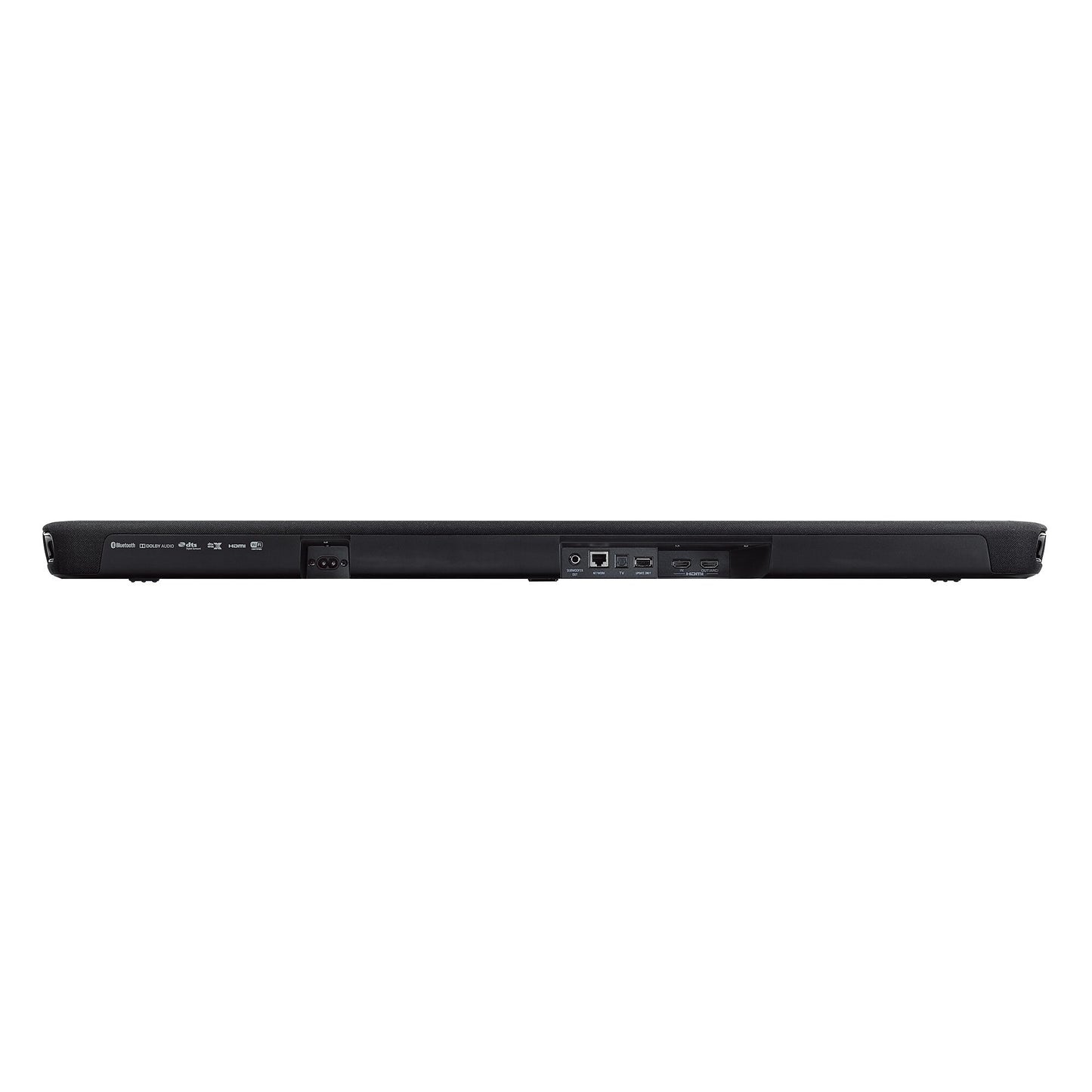

• Interface: HDMI: 4k/60p 4:4:4, HDR (HDR10, Hybrid Log-Gamma), HDCP2.3, 3D, ARC, CEC, Input Jacks: HDMI 1 (HDMI IN), Digital Optical 1, Network (Ethernet1, Wireless1), Output Jacks: HDMI 1 (HDMI OUT (ARC)), Analog 1 (Subwoofer out), Other Jacks: USB 1 (update only)
• Power consumption (max): 30 W (Rated), 4.3 W (Voice Control Ready), Standby Power Consumption: 0.2 W (HDMI control off, network standby off), 1.7/1.9/1.7 W (HDMI control off, network standby on [Wired/Wi-Fi/Bluetooth], 0.6 W (HDMI control on, network standby off), 2.2 W (HDMI control on, network standby on)
• Power source: [U.S.A. and Canada models] AC 100 - 120 V, 50/60 Hz, [U.K., Europe and Russia models ] AC 100 - 240 V, 50/60 Hz
• Operating environment: Temperature: 5 - 40ºC (41 - 104°F), Humidity: 30 - 90% (no condensation)
• Dimensions: Installing the unit in front of a TV, etc.: 890 (W) x 53 (H) x 131 mm (D) (35" x 2-1/8" x 5-1/8"), Mounting the unit on a wall, with spacers: 890 (W) x 131 (H) x 62 mm (D) (35" x 5-1/8" x 2-1/2")
• Weight: 3.4 kg (7.5 lbs)
• Accessories: The unit, Remote Control, Power cord, Optical digital audio cable, Mounting template, Spacers (*2/sheet), Owner’s Manual
• Other: Mode change: Conference mode, Education mode, Hotel mode

• Speakers: Front L/R: 5.5 cm (2-1/8") cone x 2, Tweeter: 2.5 cm (1") dome x 2, Built-in subwoofer: 7.5 cm (3") cone x 2, Output Power: 120 W (Front L/R: 30 W x 2-ch, Built-in subwoofer: 60 W)
• Maximum volume: Max SPL: 96 dB at 1 M
• Frequency bandwidth: For playback: 62 Hz - 23,000 Hz
