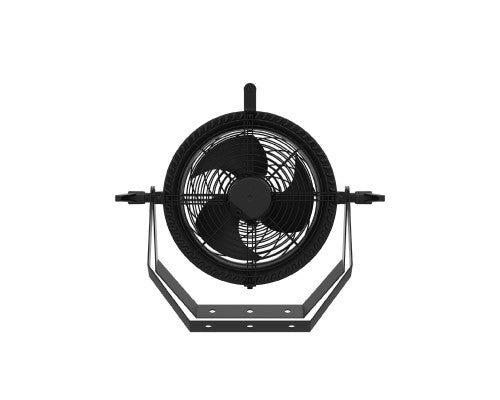

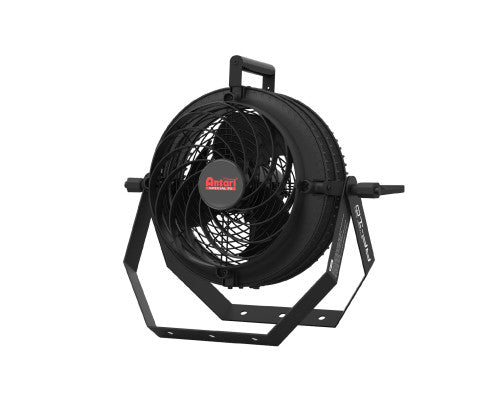

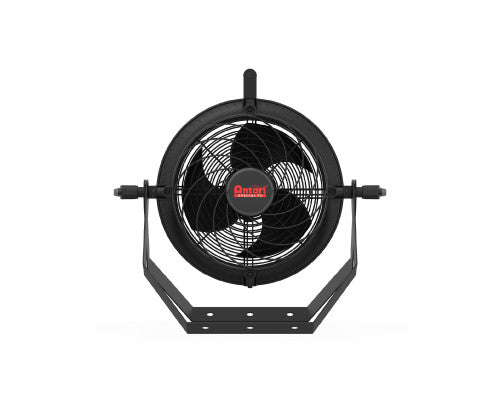

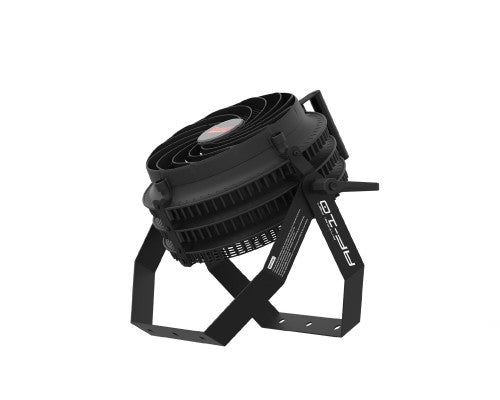

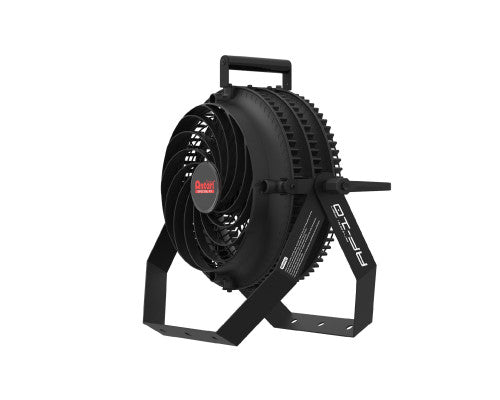

Antari AF-10 IP 10-Inch Effects Fan with 5-Pin DMX Controller

The Antari AF-10 IP is a professional 10-inch high-velocity effects fan designed for powerful, focused and low-noise airflow. Featuring a swirl-shaped front cover, aerodynamic blade design and an IP55-rated motor, it delivers up to 1,913 CFM for fog dispersion, wind effects, stage productions and professional installations. The included AFC-1 Fan Controller adds timer, variable-speed and 5-pin DMX512 control.

From The Manufacturer:

The Antari AF-10 is high-velocity fans engineered for professional use, combining power, precision, and durability. Featuring a unique swirl-shaped front cover, they maintain focused airflow while reducing turbulence and noise.

The specially designed aerodynamic blades ensure optimal air distribution with minimal sound, making them ideal for stage, studio, and installation environments.

Built with robust materials for reliable performance, can operate with a simple plug to start or integrate with an optional control box for remote operation.

Whether for fog dispersion or wind effects, the AF-10 delivers efficient, quiet, and consistent airflow in demanding applications.

Key Features:

• Professional 10-inch high-velocity effects fan

• High-velocity focused airflow

• Maximum airflow of 1,913 CFM at 60 Hz

• 1,640 ± 40 RPM fan speed

• Maximum noise level of 51 dB

• Swirl-shaped front cover

• Aerodynamic fan blade design

• Reduced turbulence

• Low-noise operation

• Robust professional construction

• IP55-rated motor

• Manual control

• Timer control

• DMX512 control

• Optional wireless control

• Optional wireless DMX

• 1 DMX channel

• 5-pin DMX connection

• AFC-1 Fan Controller included

• Dual-use bracket included

• Suitable for temporary outdoor use

Specifications:

• Product Type: High-Velocity Special Effects Fan

• Manufacturer: Antari

• Model / SKU: AF-10

• Fan Size: 10 Inch

• Airflow: 1,913 CFM @ 60 Hz

• Fan Speed: 1,640 ± 40 RPM

• Maximum Noise Level: 51 dB

• Motor Protection Rating: IP55

• Control Methods: Manual / Timer / DMX512 / Optional Wireless / Optional Wireless DMX

• DMX Channels: 1

• Power Interface: SEETRONIC IP65 Connector

• DMX Interface: SEETRONIC IP65 5-Pin XLR

• Controller: AFC-1 Fan Controller

• Mounting: Dual-Use Bracket

• Ambient Temperature Range: 0°C–40°C / 32°F–104°F

Applications:

• Fog dispersion

• Haze dispersion

• Wind effects

• Stage productions

• Concerts and touring

• Theatre

• Film and television

• Studios

• Theme parks

• Live events

• Temporary outdoor productions

• Professional special effects

Included Accessories:

• AFC-1 Fan Controller

• Dual-Use Bracket

Optional Accessories:

• Antari WTR-110 Wireless Module

• Antari ES-W-DMX Wireless DMX

Size:

• 326 × 535 × 487 mm

• 12.84 × 21.07 × 19.18 in

Weight:

• 8.2 kg

• 18.08 lb

Electrical / Thermal:

• US Input: AC 100–120 V, 50/60 Hz, 0.5 A

• EU Input: AC 220–240 V, 50/60 Hz, 0.5 A

• Rated Power @ 120 V: 60 W

• Rated Power @ 240 V: 65 W

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

• Motor Protection Rating: IP55

• Temporary Outdoor Use Only

AFC-1 Controller:

• Control: Manual / Timer / DMX512 / Optional Wireless / Optional Wireless DMX

• DMX Channels: 1

• DMX Connection: SEETRONIC IP65 5-Pin XLR

• Power Connection: SEETRONIC IP65

• Digital LCD Interface

• Variable Speed Control

• Timer and Interval Settings

• Dimensions: 229 × 196 × 53 mm

• Weight: 1.3 kg
