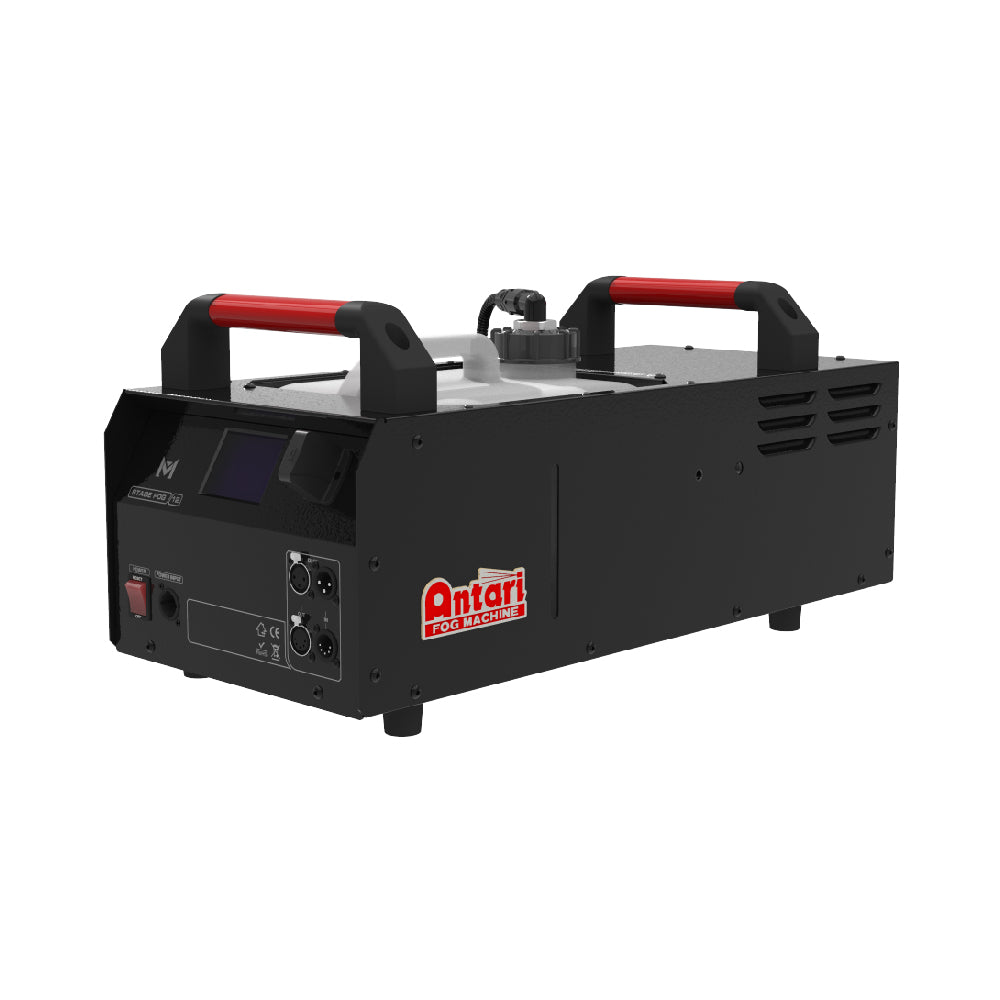

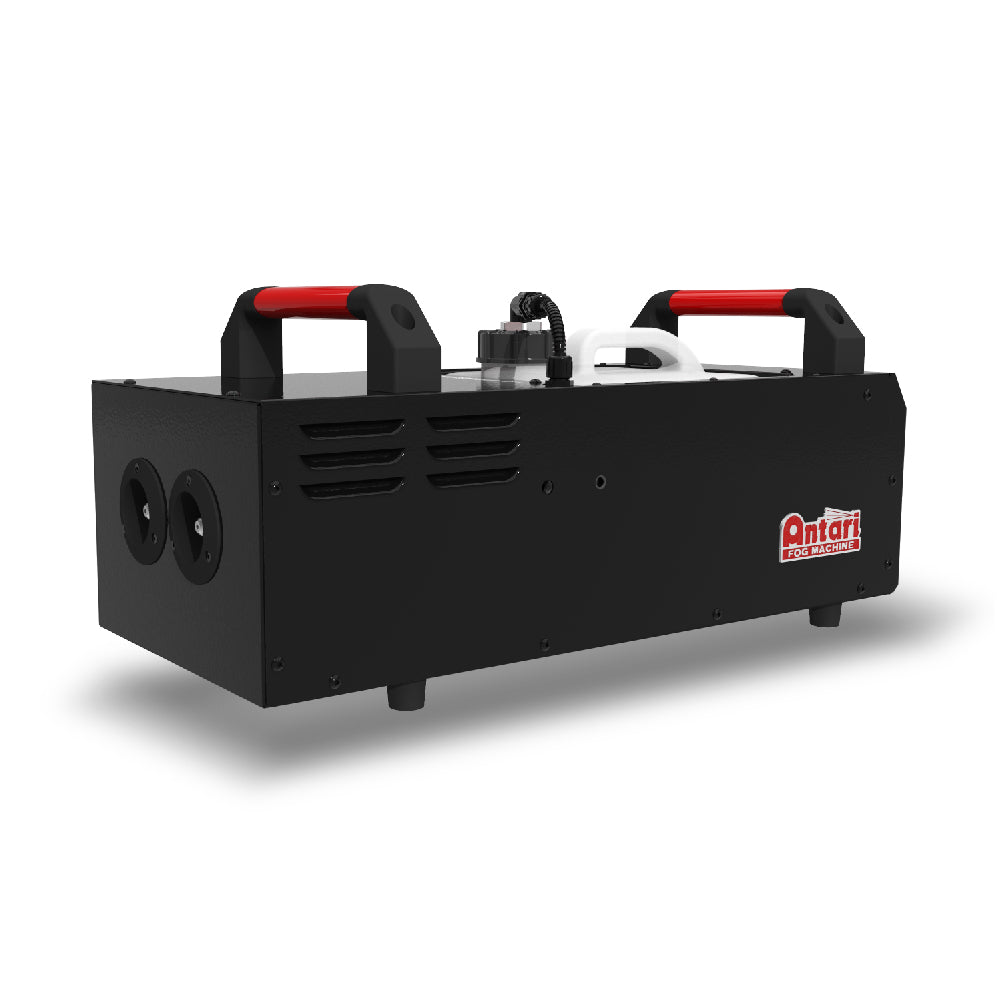

Antari M-12 Universal Voltage Dual Pump / Dual Heater Performance Fog Generator

The Antari M-12 is a professional high-power performance fog generator designed for worldwide touring and production applications. Featuring universal 100–240 V operation, dual pumps and dual heaters, the M-12 delivers extreme high-output fog bursts while maintaining consistent 2000 W performance across different power environments. A modern touchscreen interface, 10-litre fluid tank and comprehensive DMX control make it ideal for concerts, touring productions, festivals and large-scale professional events.

From The Manufacturer:

Antari introduces the revolutionary Universal Voltage High Power Fog Machine, setting a new standard in atmospheric effects.

This cutting-edge device combines unparalleled performance with adaptability, boasting the first-ever universal voltage compatibility.

From 100V to 240V, the machine seamlessly integrates into any global power grid, making it an ideal choice for events worldwide.

Delivering an impressive output of dense, lingering fog, this innovation transforms any environment into a captivating spectacle.

Key Features:

• Universal 100–240 V operation

• Professional high-power fog generator

• Dual pump design

• Dual heater design

• 2000 W rated power

• Extreme high fog bursts

• Designed for worldwide touring applications

• New-generation touchscreen user interface

• Supports 8 interface languages

• 10 L fluid tank

• Approximately 13-minute warm-up time

• 400 ml/min fluid consumption at maximum output

• Manual control

• Timer control

• DMX512 control

• Optional wireless control

• Optional wireless DMX

• 1 or 3 DMX channel modes

• 3-pin and 5-pin XLR DMX connections

• Neutrik powerCON TRUE1 power connection

• Suitable for floor or suspended operation

Specifications:

• Product Type: High-Power Performance Fog Generator

• Manufacturer: Antari

• Model / SKU: M-12

• Input Voltage: AC 100–240 V, 50/60 Hz

• Rated Power @ 120 V: 2000 W / 17.0 A

• Rated Power @ 240 V: 2000 W / 8.5 A

• Warm-Up Time: Approximately 13 Minutes

• Fluid Consumption: 400 ml/min @ 100% Output

• Fluid Tank Capacity: 10 L / 2.64 gal

• Control Methods: Manual / Timer / DMX512 / Optional Wireless / Optional W-DMX

• DMX Channel Modes: 1 or 3 Channels

• DMX Connections: 3-Pin and 5-Pin XLR

• Power Connection: Neutrik powerCON TRUE1

• User Interface: Touchscreen

• Interface Languages: 8

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

• Certifications: CE / RoHS

Compatible Fluids:

• Antari FLG Fog Fluid

• Antari FLH Fog Fluid

• Antari FLJ Fog Fluid

• Antari FLR Fog Fluid

• Antari FLY Fog Fluid

• Antari FLZ Fog Fluid

Applications:

• Concerts

• Touring productions

• Festivals

• Large-scale stage productions

• Film productions

• Theatre

• Live events

• Entertainment venues

• Theme parks

• Corporate productions

• Professional atmospheric effects

• International touring applications

Included Accessories:

• No additional accessories specified by Antari

Optional Accessories:

• Antari WTR-20 Wireless Module

• Wireless DMX

• Hanging Bracket

• DMX Cables

• Compatible Antari Fog Fluids

Size:

• 646 × 280 × 283 mm

• 25.43 × 11.02 × 11.14 in

Weight:

• 27.2 kg

• 59.97 lb

Electrical / Thermal:

• Universal Input Voltage: AC 100–240 V, 50/60 Hz

• Rated Power @ 120 V: 2000 W / 17.0 A

• Rated Power @ 240 V: 2000 W / 8.5 A

• Warm-Up Time: Approximately 13 Minutes

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

• Power Connection: Neutrik powerCON TRUE1
