AC266

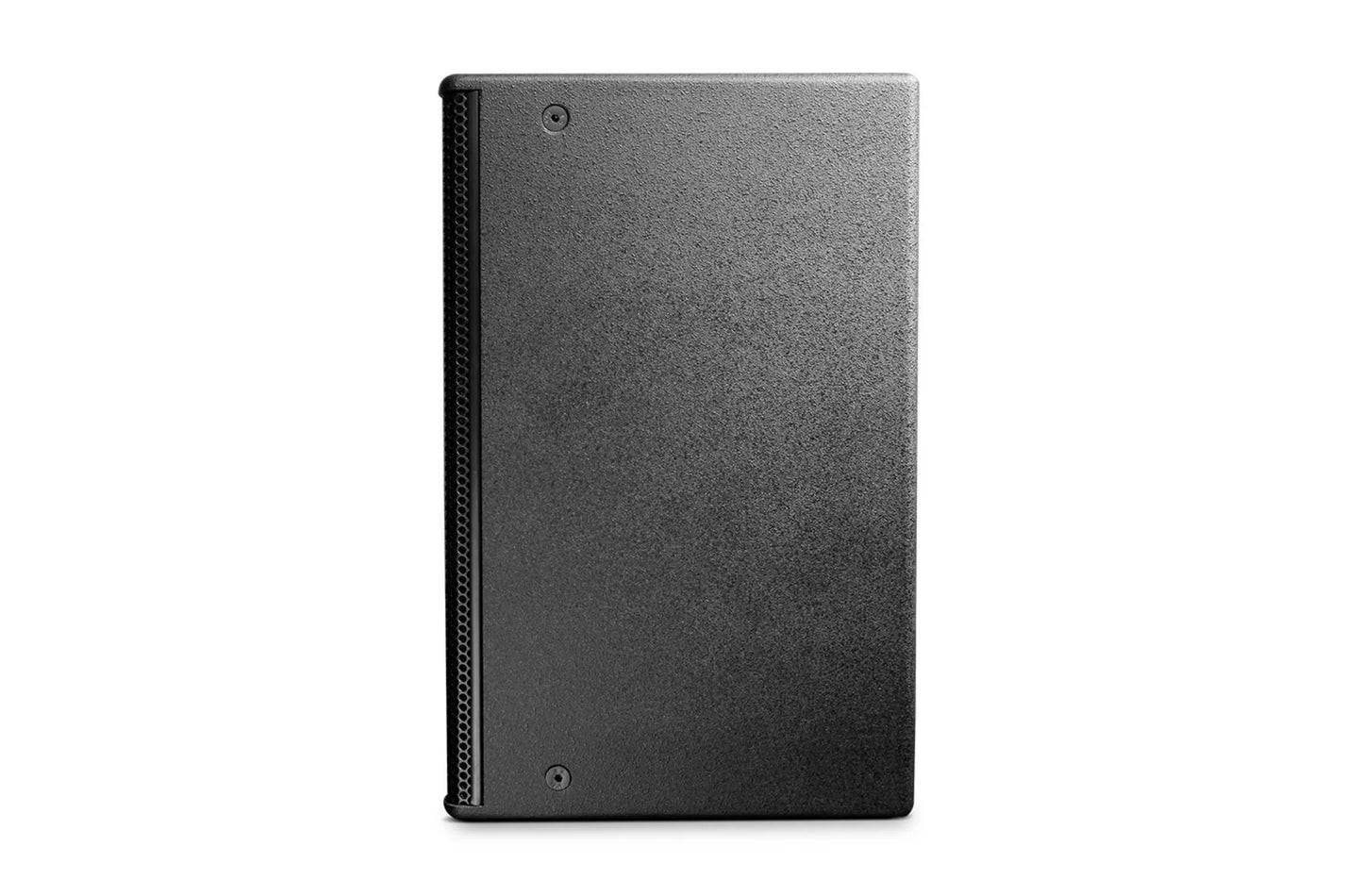

The JBL AC266 is a compact 12 in passive installation loudspeaker with 60 x 60 degree coverage for clear, controlled sound in commercial spaces.

From The Manufacturer:

JBL describes the AC266 as a compact 2-way full-range loudspeaker with one 310 mm (12 in) low-frequency driver and one 25 mm exit compression driver, built into a robust enclosure with M10 suspension points and flexible mounting options.

Specifications:

• Type: 12 in 2-way full-range loudspeaker
• Frequency range: 63 Hz - 20 kHz (-10 dB)
• Frequency response: 80 Hz - 18 kHz (+/-3 dB)
• Coverage: 60 degrees x 60 degrees
• System sensitivity: 97 dB, 1 W at 1 m
• Maximum SPL: 121 dB continuous, 127 dB peak
• Nominal impedance: 8 ohms
• System power rating: 350 W, 1400 W peak, 2 hours AES
• IEC rating: 250 W continuous, 500 W program, 1000 W peak
• Crossover: 1.5 kHz

Applications:

Performing spaces, clubs and bars, houses of worship, multimedia spaces, retail and hospitality spaces, presentation suites, educational facilities, and fixed commercial audio installations.

Contents:

Loudspeaker cabinet only.

Accessories (Not Included):

Optional U-bracket, overhead suspension bracket, wall-mount bracket, amplifier/DSP, speaker cable, and M10 mounting hardware.

Size:

600 x 370 x 392 mm (23.6 x 14.5 x 15.4 in), H x W x D.

Weight:

17.4 kg (38.3 lb) each.

Electrical/Thermal

Passive loudspeaker, 8 ohms nominal. Dual Neutrik NL4MP connectors plus covered barrier strip terminals. System power rating: 350 W, 1400 W peak, 2 hours AES; 250 W/500 W/1000 W continuous/program/peak IEC.
