AC299

The AC299 is a compact loudspeaker for small to medium sized install applications. It is a nice option for a cost effective solution for good quality audio.

From the Manufacturer:

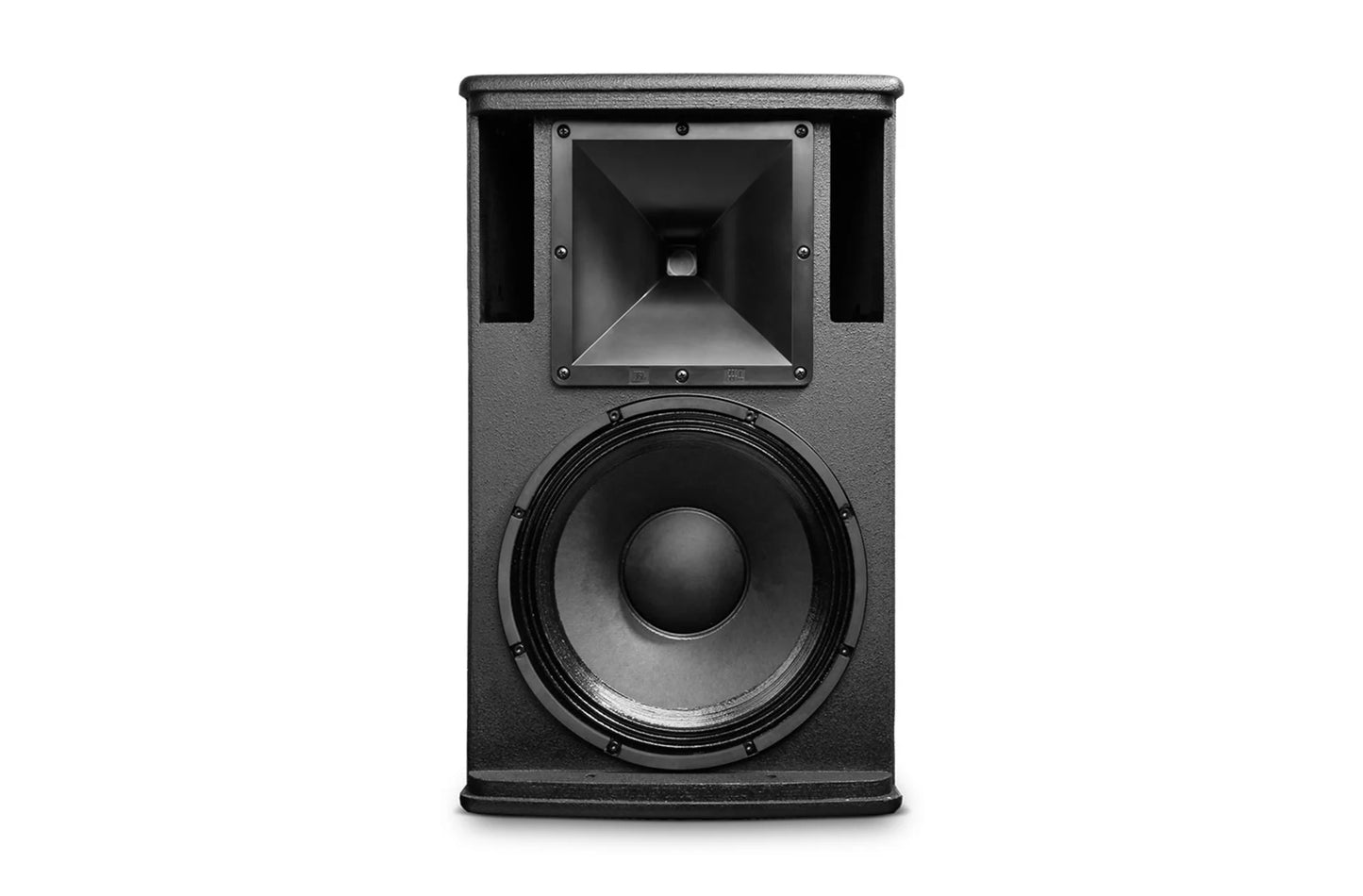

AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features:

• Robust 15mm enclosure with black textured finish

• 310 mm (12 in) LF transducer

• 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple attachment points for ultimate flexibility

Applications:

• Performing Spaces

• Clubs & Bars

• Houses of Worship

• Multi Media Spaces

• Retail & Hospitality Spaces

• Presentation Suites

• Educational Facilities

Specifications:

• Frequency Range (-10dB)

• 63 Hz - 20 kHz

• Frequency Response (±3 dB)

• 80 Hz - 18 kHz

• System Sensitivity (1w @ 1m)

• 97 dB

• Nominal Impedance

• 8 ohms

• Maximum SPL (1m)

• 121 dB (127 dB peak)

• System Power Rating

• 350W (1400W peak), 2 hrs (AES rated)

• 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)

• Coverage Pattern

• 90° x 90° (H x V)

• Crossover

• 1.5 kHz

• LF Driver

• 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil

• HF Driver

• 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil

• Input Connector

• Dual Neutrik NL4MP connectors plus covered barrier trip terminals

• Enclosure

• 15 mm multi-ply hardwood plywood

• Grille

• Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

• Finish

• Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

• Suspension Attachment

• 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket

• Dimensions (H x W x D)

• 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in

• Net Weight (each)

• 17.3 kg (38.1lbs)

• Crossover Modes

• Passive

• Nominal LF Driver Impedance

• 8 ohms

• Nominal HF Driver Impedance

• 8 ohms
