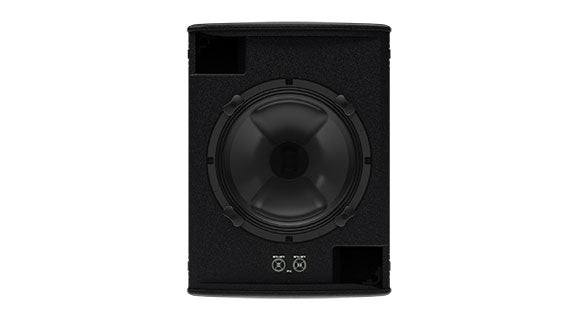

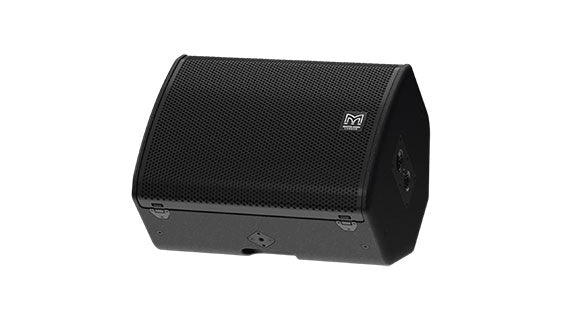

12" Passive 2-Way FlexPoint Loudspeaker

The FP12 is a passive, point-source loudspeaker that is great for short throw applications ins small to medium sized events.

From the Manufacturer:

The FP12 is a premium, point-source loudspeaker designed for short-throw applications which require superb sonic performance, high output, and coverage consistency from a compact enclosure. Its small size and portability extend its range of applications from live sound and permanent installations to corporate events, gigging musicians and DJ’s.

Features:

• Compact, passive two-way loudspeaker

• Versatile, multi-angle enclosure

• High output capability Coaxial Point Source configuration with user-rotatable drive unit

• 12” (300mm)/3” (75mm) voice coil low distortion neodymium LF driver

• 3” (75mm) titanium diaphragm/1.4” (35mm) exit HF driver

• 90° H x 60° V dispersion

• Quick-release steel grille

• 3D prediction software [DISPLAY 3]

• Powered by iKON or VIA amplifiers

Applications:

• Portable live sound reinforcement

• Theatre sound

• Fixed installations

• DJ and corporate AV events

• High-power stage monitoring

Specifications:

• Product Name

• FP12

• Type

• Coaxial passive 2-way

• Crossover Frequency

• 1.5kHz

• Frequency Response

• 4π (5) 55Hz - 20kHz ± 3dB, -10dB @44Hz with preset

• Drivers

• LF: 12", 3" Voice coil, Neodymium Motor with flux stabilising ringsHF: 1.4" exit, 3" Voice coil, Coaxial titanium dome compression driver

• Sensitivity

•  (2.83V 1m free-field) 97dB

• Nominal Impedance

• 8 Ohms

• Rated Power

• 350W AES, 1400W peak

• Maximum

• SPL 122dB Cont, 128dB Peak (6dB)

• Dispersion

• -6dB 90° H, 60° V

• Connectors

• NLT4MPXX-BAG speakons (pair)

• Pin Connections (Input)

• 1+ / 1-

• Pin Connections (Link)

• 1+/- and 2+/-

• Fittings

• 4 x M10, 17 x M8 fixing points, dual pole-mount socket, 2 x handle pockets

• Dimensions

• (W) 521mm, (H) 390mm, (D) 346mm (W) 20.5ins, (H) 15.4ins, (D) 13.6ins

• Weight

• 17.5kg (38.6lbs)

• Volume

• 33.5L
